4-31 — STEERING COLUMN AND SHAFT (#9843) — 124 parça

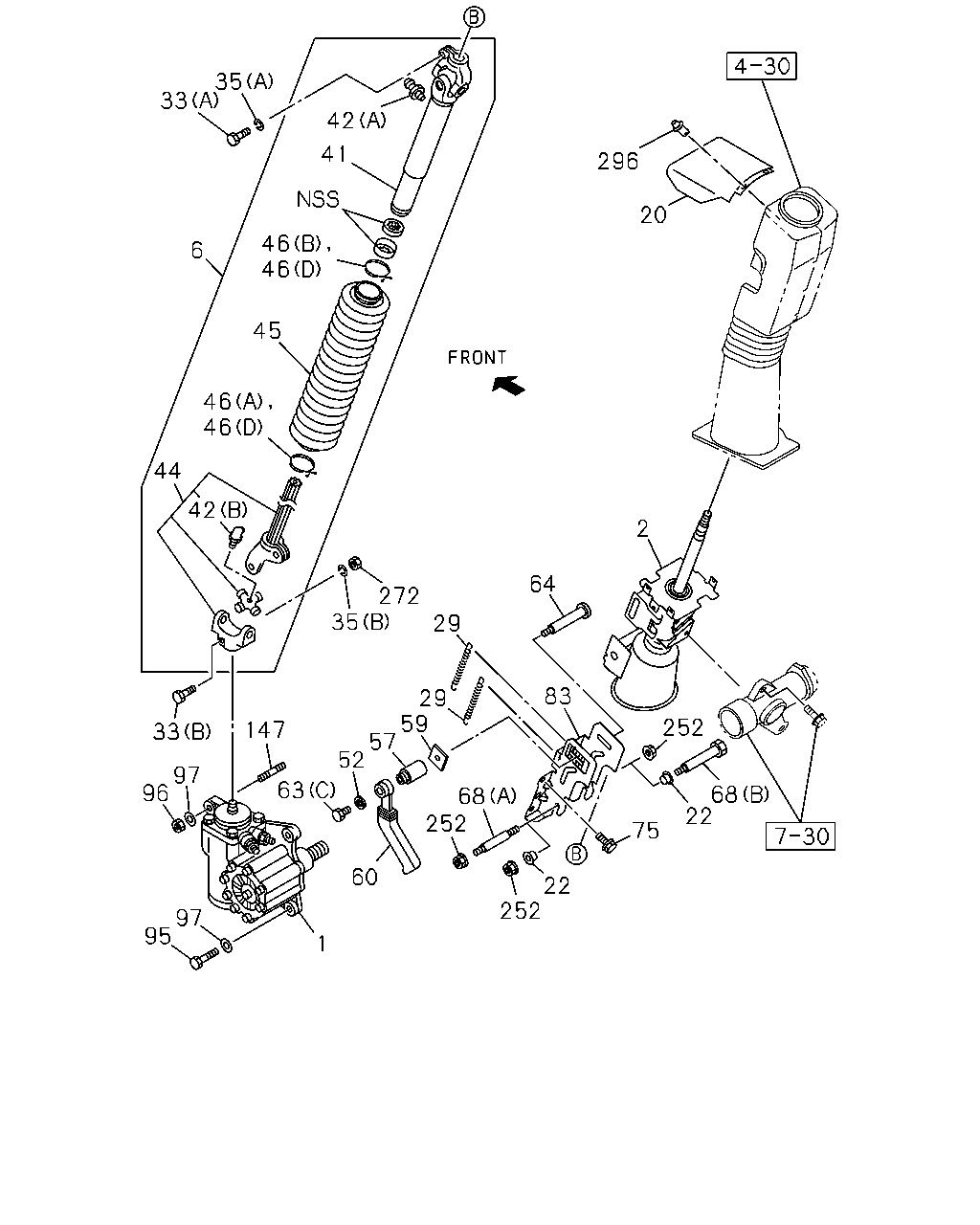

35 33 42 41 296 20 46 46 6 45 46 46 44 42 2 64 272 35 29 29 59 57 52 83 252 147 33 97 96 63 68 22 68 252 75 60 22 252 97 95 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-44000-861-2	01	1	0107-0401
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-44000-915-0	01	1	0402-
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-44000-866-1	01	1	0107-0401
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-44000-914-0	01	1	0402-
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-740-0	01	1	0107-0510
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-783-0	01	1	0511-
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	0107-
6	SHAFT; STRG LWR AIR BAG(TFQ)	1-44135-315-0	01	1	0107-0111
6	SHAFT; STRG LWR AIR BAG(TFQ)	1-44135-354-0	01	1	0112-0511
6	SHAFT; STRG LWR AIR BAG(TFQ)	1-44135-385-0	01	1	0512-
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0107-
22	BUSHING; STRG COLUMN AIR BAG(TFQ)	1-44227-165-0	02	1	0511-
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0107-
29	SPRING; COLUMN AIR BAG(TFQ)	1-44227-136-0	02	1	0107-0511
29	SPRING; COLUMN AIR BAG(TFQ)	1-44227-136-0	01	1	0512-
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0107-
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	0107-
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0107-
35	WASHER; LK,STRG SHAFT (B) ID=10.2	9-09150-810-0	01	1	0107-0603
35	WASHER; LK,STRG SHAFT (B) ID=10.2	0-91510-810-0	01	1	0604-
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (A)	1-44139-142-0	01	1	0107-
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0107-
41	YOKE; SLEEVE,STRG AIR BAG(TFQ)	1-44135-304-0	01	1	0107-0111
41	YOKE; SLEEVE,STRG AIR BAG(TFQ)	1-44135-359-0	01	1	0112-
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (A) STRAIGHT	1-44135-375-0	01	1	0507-
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (B) ELBOW	1-44135-376-0	01	1	0507-
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	9-09031-006-0	01	1	0107-0607
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	0-90301-406-0	01	1	0608-
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	9-09031-210-0	01	1	0107-0512
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
44	SHAFT; SPLINE,STRG AIR BAG(TFQ)	1-44135-316-0	01	1	0107-
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	0107-
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0107-
46	CLIP; BOOT AIR BAG(TFQ) (A)	1-44139-139-0	01	1	0107-0511
46	CLIP; BOOT AIR BAG(TFQ) (D)	8-98019-551-0	02	1	0512-
46	CLIP; BOOT AIR BAG(TFQ) (B)	1-44139-140-0	01	1	0107-0511
46	CLIP; BOOT EXC. AIR BAG(TFQ) (C)	1-44139-156-0	02	1	0107-
52	WASHER; PL,ADJ LEVER AIR BAG(TFQ)	1-44227-154-0	01	1	0107-
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	0107-
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0107-
59	COLLAR; DIST,ADJ BOLT AIR BAG(TFQ)	1-44227-127-0	01	1	0107-
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-155-0	01	1	0107-0111
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-160-0	01	1	0112-
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0107-
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) (C)	1-44227-126-0	01	1	0107-
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0107-
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0107-
64	BOLT; ADJ,PROTECTOR AIR BAG(TFQ)	1-44227-156-0	01	1	0107-
68	PIN; TILT CENTER AIR BAG(TFQ) (A)	1-44227-158-0	01	1	0107-0308
68	PIN; TILT CENTER AIR BAG(TFQ) (A)	1-44227-161-0	01	1	0309-0510
68	PIN; TILT CENTER AIR BAG(TFQ) (B)	1-44227-164-0	01	1	0511-0511
68	PIN; TILT CENTER AIR BAG(TFQ) (B)	8-97163-920-1	01	1	0512-
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	0107-0512
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0601-
83	BRACKET; TILT STRG UPR AIR BAG(TFQ)	1-44227-157-0	01	1	0107-0511
83	BRACKET; TILT STRG UPR AIR BAG(TFQ)	1-44227-166-0	01	1	0512-
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	0107-0409
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0410-
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	0107-0512
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0601-
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0107-
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0107-
252	NUT; TILT CENTER BOLT AIR BAG(TFQ)	1-44227-135-0	02	1	0107-0510
252	NUT; TILT CENTER BOLT AIR BAG(TFQ)	1-44227-135-0	01	1	0511-
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	0107-0512
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0601-
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0107-

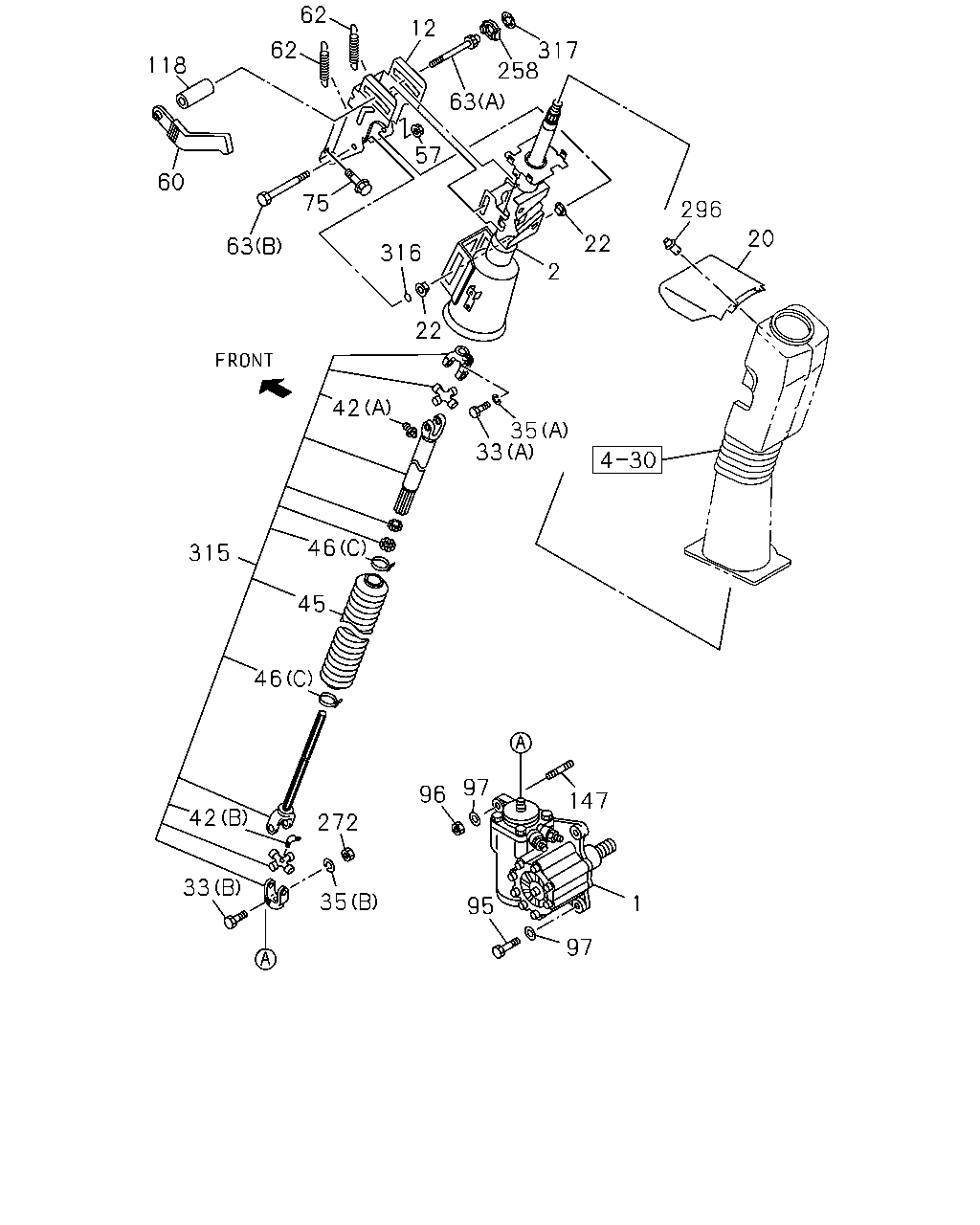

62 12 62 317 258 118 63 57 60 75 296 20 22 63 316 2 22 42 35 33 46 315 45 46 97 96 147 42 272 33 35 1 95 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-44000-861-2	01	1	0107-0401
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. STRG VARIABLE CONTROL<TFY>	1-44000-915-0	01	1	0402-
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-44000-866-1	01	1	0107-0401
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. EXC. STRG VARIABLE CONTROL<TFY>	1-44000-914-0	01	1	0402-
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-740-0	01	1	0107-0510
2	SHAFT ASM; STRG AIR BAG(TFQ)	1-44130-783-0	01	1	0511-
2	SHAFT ASM; STRG EXC. AIR BAG(TFQ)	1-44130-689-0	01	1	0107-
12	BRACKET; LWR,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-143-0	01	1	0107-
20	COVER; STRG SHAFT	1-72438-121-3	01	1	0107-
22	BUSHING; STRG COLUMN AIR BAG(TFQ)	1-44227-165-0	02	1	0511-
22	BUSHING; STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-150-0	02	1	0107-
33	BOLT; STRG SHAFT TO UNIT (B) M10X50	1-09000-489-0	01	1	0107-
33	BOLT; STRG SHAFT TO UNIT AIR BAG(TFQ) (A)	1-44139-141-0	01	1	0107-
33	BOLT; STRG SHAFT TO UNIT EXC. AIR BAG(TFQ) (A)	1-44139-153-0	01	1	0107-
35	WASHER; LK,STRG SHAFT (B) ID=10.2	9-09150-810-0	01	1	0107-0603
35	WASHER; LK,STRG SHAFT (B) ID=10.2	0-91510-810-0	01	1	0604-
35	WASHER; LK,STRG SHAFT AIR BAG(TFQ) (A)	1-44139-142-0	01	1	0107-
35	WASHER; LK,STRG SHAFT EXC. AIR BAG(TFQ) (A)	1-44139-154-0	01	1	0107-
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (A) STRAIGHT	1-44135-375-0	01	1	0507-
42	NIPPLE; GREASE,SLEEVE YOKE EXC. AIR BAG(TFQ) (B) ELBOW	1-44135-376-0	01	1	0507-
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	9-09031-006-0	01	1	0107-0607
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (A) M6 STRAIGHT	0-90301-406-0	01	1	0608-
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	9-09031-210-0	01	1	0107-0512
42	NIPPLE; GREASE,SLEEVE YOKE AIR BAG(TFQ) (B) PT1/8 ELBOW	0-90301-610-0	01	1	0601-
45	BOOT; STRG SHAFT AIR BAG(TFQ)	1-44139-138-0	01	1	0107-
45	BOOT; STRG SHAFT EXC. AIR BAG(TFQ)	1-44139-155-0	01	1	0107-
46	CLIP; BOOT AIR BAG(TFQ) (A)	1-44139-139-0	01	1	0107-0511
46	CLIP; BOOT AIR BAG(TFQ) (D)	8-98019-551-0	02	1	0512-
46	CLIP; BOOT AIR BAG(TFQ) (B)	1-44139-140-0	01	1	0107-0511
46	CLIP; BOOT EXC. AIR BAG(TFQ) (C)	1-44139-156-0	02	1	0107-
57	NUT; ADJ BOLT AIR BAG(TFQ)	1-44227-159-0	01	1	0107-
57	NUT; ADJ BOLT EXC. AIR BAG(TFQ)	1-44227-151-0	01	1	0107-
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-155-0	01	1	0107-0111
60	LEVER; ADJ,STRG COLUMN AIR BAG(TFQ)	1-44227-160-0	01	1	0112-
60	LEVER; ADJ,STRG COLUMN EXC. AIR BAG(TFQ)	1-44227-144-0	01	1	0107-
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	02	1	0107-0111
62	SPRING; LK,LEVER EXC. AIR BAG(TFQ)	1-44227-153-0	01	1	0112-
63	BOLT; ADJ LEVER,TILT STRG AIR BAG(TFQ) (C)	1-44227-126-0	01	1	0107-
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (A)	1-44227-145-0	01	1	0107-
63	BOLT; ADJ LEVER,TILT STRG EXC. AIR BAG(TFQ) (B)	1-44227-149-0	01	1	0107-
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28680-820-0	04	1	0107-0512
75	BOLT; STRG COLUMN M8X20 FLANGE	0-28650-820-0	04	1	0601-
95	BOLT; STRG UNIT M18X65	1-09000-583-0	03	1	0107-0409
95	BOLT; STRG UNIT M18X60	9-91066-860-0	03	1	0410-
96	NUT; STRG UNIT M18	9-99110-518-0	01	1	0107-0512
96	NUT; STRG UNIT M18	0-91110-518-0	01	1	0601-
97	WASHER; PL,STRG UNIT ID=18	9-09851-862-0	04	1	0107-
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-146-0	01	1	0107-0506
118	NUT; LEVER,TILT BOLT EXC. AIR BAG(TFQ)	1-44227-163-0	01	1	0507-
147	STUD; STRG UNIT M18X49 L=76	1-09300-107-0	01	1	0107-
258	STOPPER; STRG COLUMN,TILT & TELESCOPIC EXC. AIR BAG(TFQ)	1-44227-147-0	01	1	0107-
272	NUT; SHAFT TO YOKE M10	9-09110-510-0	01	1	0107-0512
272	NUT; SHAFT TO YOKE M10	0-91110-510-0	01	1	0601-
296	CLIP; COVER D6X12.5	8-94146-425-0	02	1	0107-
315	JOINT; SPLINE EXC. AIR BAG(TFQ)	1-44135-345-1	01	1	0107-
316	RING EXC. AIR BAG(TFQ)	1-44227-152-0	01	1	0107-
317	NUT; PUSH EXC. AIR BAG(TFQ)	1-44227-148-0	01	1	0107-
