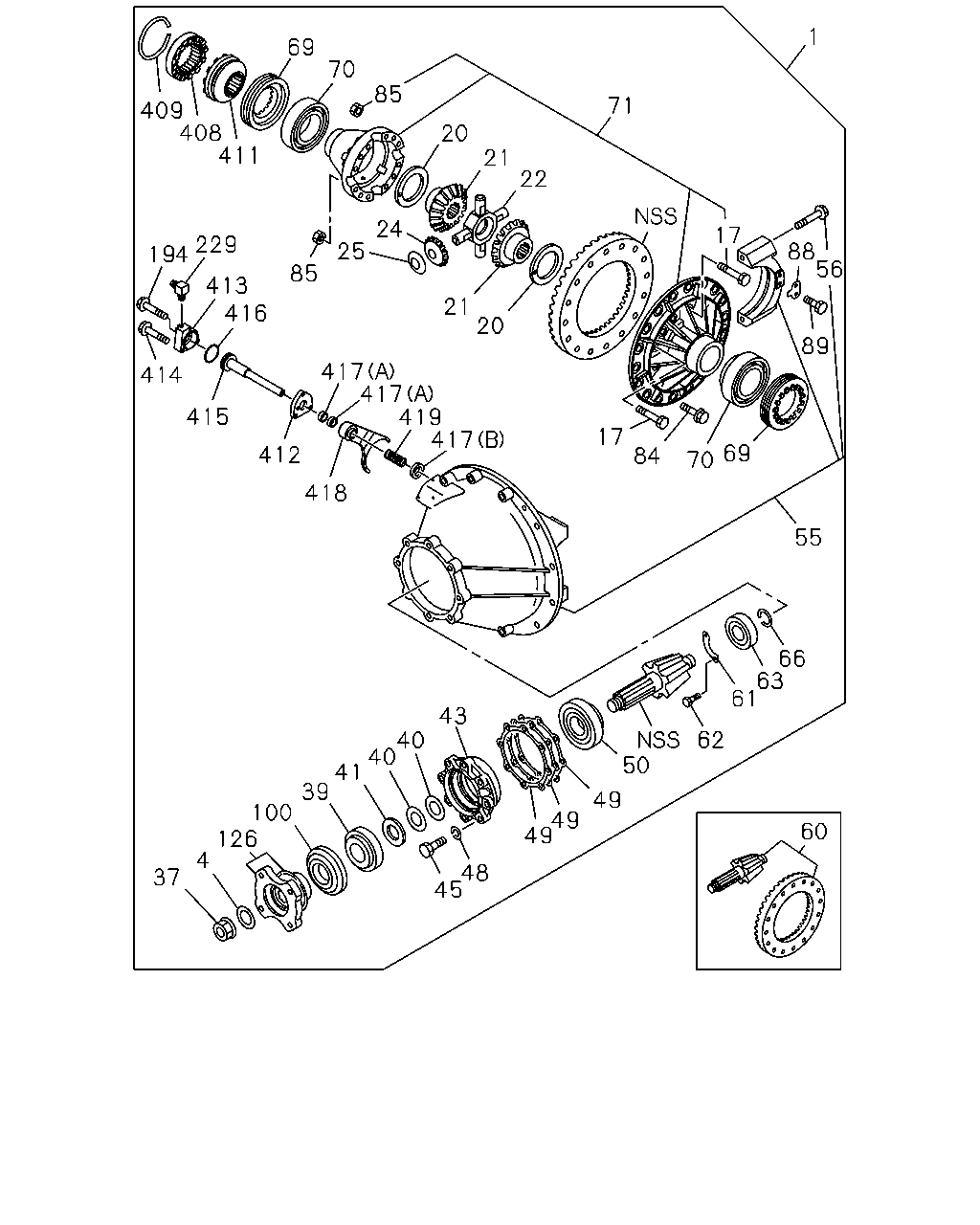

4-25 — REAR FINAL DRIVE (#9841) — 191 parça

1 69 70 85 71 409 408 411 20 21 22 24 17 229 194 25 88 56 85 413 416 21 20 89 417 417 419 417 414 415 17 69 412 84 70 418 55 66 63 61 43 62 50 40 40 41 39 100 126 4 49 49 49 60 48 45 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/8	1-41002-404-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/8	1-41002-395-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/9	1-41002-396-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/9	1-41002-405-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/10	1-41002-407-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/10	1-41002-398-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/9	1-41002-406-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/9	1-41002-397-0	01	1	0107-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0107-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0107-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0107-	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0107-0405	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0406-	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0107-	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0107-0405	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0406-	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0107-	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0107-	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0107-	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0107-	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0107-	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0107-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0107-0603	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0107-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0107-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0107-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0107-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-	●	●	●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0107-	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0107-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0107-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0107-			●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0107-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0107-	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0107-0512	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0601-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0107-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0107-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0107-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0107-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0107-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0107-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0107-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0107-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0107-0512	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0107-	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0107-0512	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0107-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0107-	●	●	●	●
194	PLUG DIFF LOCK<C3N> M8X10 FLANGE	0-28080-810-0	01	1	0107-0512	●	●	●	●
194	PLUG DIFF LOCK<C3N> M8X10 FLANGE	0-28050-810-0	01	1	0601-	●	●	●	●
229	CONNECTOR DIFF LOCK<C3N> M12 & PT1/8	9-09224-306-2	01	1	0107-0607	●	●	●	●
229	CONNECTOR DIFF LOCK<C3N> M12 & PT1/8	0-92124-306-0	01	1	0608-	●	●	●	●
408	CLAW; CLU,DIFF LK DIFF LOCK<C3N>	1-41266-020-1	01	1	0107-	●	●	●	●
409	CIRCUIT DIFF LOCK<C3N>	1-33219-024-0	01	1	0107-	●	●	●	●
411	SLEEVE; CLU DIFF LOCK<C3N>	1-41266-021-1	01	1	0107-	●	●	●	●
412	STOPPER; STROKE,SHIFT DIFF LOCK<C3N>	1-41279-017-1	01	1	0107-	●	●	●	●
413	CYLINDER; DIFF LK DIFF LOCK<C3N>	1-41279-018-0	01	1	0107-	●	●	●	●
414	BOLT; CYL DIFF LOCK<C3N> M8X45 FLANGE	0-28080-845-0	03	1	0107-0512	●	●	●	●
414	BOLT; CYL DIFF LOCK<C3N> M8X45 FLANGE	0-28050-845-0	03	1	0601-	●	●	●	●
415	ROD; PISTON,DIFF LK DIFF LOCK<C3N>	1-41279-016-0	01	1	0107-	●	●	●	●
416	GASKET DIFF LOCK<C3N> ID=43.7	9-09561-344-0	01	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (B) T=15.0	1-41229-339-0	01	1	0107-	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=4.0	1-41229-274-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=4.5	1-41229-275-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=5.0	1-41229-276-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=5.5	1-41229-277-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=6.0	1-41229-278-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=6.5	1-41229-279-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=7.0	1-41229-280-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=7.5	1-41229-281-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=8.0	1-41229-282-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=10.0	1-41229-297-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (A) T=15.0	1-41229-298-0	AR	1	0107-	●	●	●	●
417	SHIM; DIFF LK DIFF LOCK<C3N> (B) T=10.0	1-41229-338-0	01	1	0107-		●		●
418	SHIFT FORK; DIFF LK DIFF LOCK<C3N>	1-41271-012-0	01	1	0107-	●	●	●	●
419	SPRING; DIFF LK DIFF LOCK<C3N>	1-09580-507-0	01	1	0107-	●	●	●	●

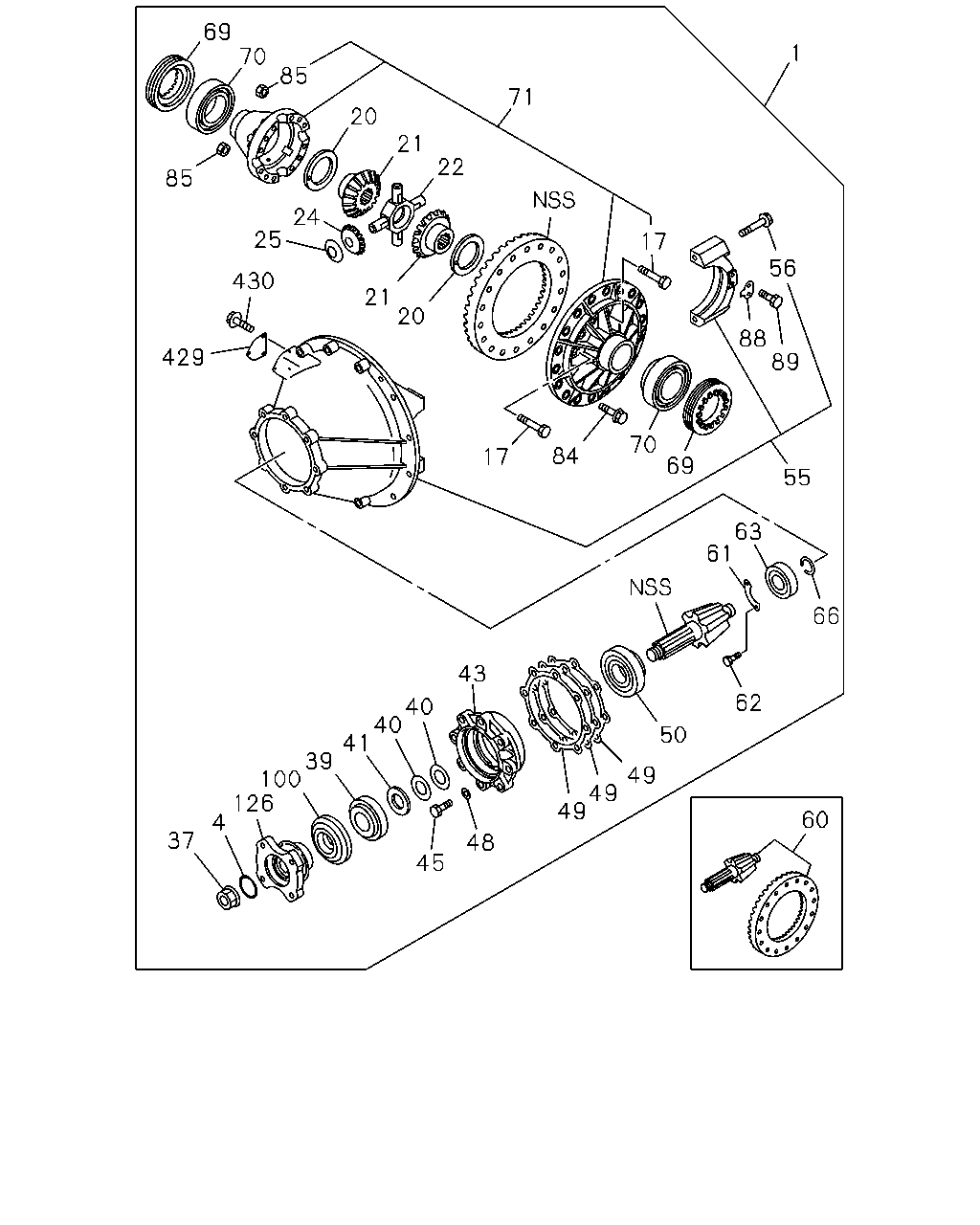

69 70 1 85 71 20 21 22 85 24 25 17 56 430 21 20 88 89 429 70 84 17 69 55 63 61 66 43 62 40 40 41 50 39 100 126 4 49 49 49 60 37 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/8	1-41002-404-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/8	1-41002-395-0	01	1	0107-	●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/9	1-41002-396-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/9	1-41002-405-0	01	1	0107-		●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 41/10	1-41002-407-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 41/10	1-41002-398-0	01	1	0107-			●
1	DRIVE ASM; FINAL,RR DIFF LOCK<C3N> 39/9	1-41002-406-0	01	1	0107-				●
1	DRIVE ASM; FINAL,RR EXC. DIFF LOCK<C3N> 39/9	1-41002-397-0	01	1	0107-				●
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	0107-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X141 FLANGE	1-09070-013-0	08	1	0107-	●	●	●	●
17	BOLT; DIFF CAGE SETTING M16X105 FLANGE	1-09070-014-0	04	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-270-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-271-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-272-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-273-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-274-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-275-1	AR	1	0107-	●	●	●	●
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-276-1	AR	1	0107-	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-114-0	02	1	0107-0405	●	●	●	●
21	GEAR; SIDE,DIFF Z=16	1-41561-142-0	02	1	0406-	●	●	●	●
22	SPIDER; DIFF PINION OD=35	1-41521-052-0	01	1	0107-	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-034-0	04	1	0107-0405	●	●	●	●
24	GEAR; PINION,DIFF Z=10	1-41551-045-0	04	1	0406-	●	●	●	●
25	WASHER; THRUST,PINION T=1.6	1-41552-003-0	04	1	0107-	●	●	●	●
37	NUT; DRIVING PINION M46 FLANGE	1-09449-071-0	01	1	0107-	●	●	●	●
39	BEARING; FINAL PINION NSK	1-09812-075-0	01	1	0107-	●	●	●	●
39	BEARING; FINAL PINION JTEKT	1-09812-076-1	01	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	0107-	●	●	●	●
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	0107-	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	0107-	●	●	●	●
43	CAGE; FINAL PINION T=82	1-41151-057-0	01	1	0107-	●	●	●	●
45	BOLT; FINAL PINION CAGE M16X55	0-16806-655-0	08	1	0107-	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	9-09150-516-0	08	1	0107-0603	●	●	●	●
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	0604-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.50	1-41154-077-0	AR	1	0107-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=1.000	1-41154-078-0	AR	1	0107-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-079-0	AR	1	0107-	●	●	●	●
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-080-0	AR	1	0107-	●	●	●	●
50	BEARING; FINAL PINION NSK	1-09812-073-1	01	1	0107-	●	●	●	●
50	BEARING; FINAL PINION JTEKT	1-09812-074-1	01	1	0107-	●	●	●	●
55	CARRIER; DIFF	1-41110-117-0	01	1	0107-	●	●	●	●
56	BOLT; BRG CAP M20X125 FLANGE	1-09070-015-0	04	1	0107-	●	●	●	●
60	GEAR SET; FINAL DRIVE,RR 39/8	1-41210-618-0	01	1	0107-	●
60	GEAR SET; FINAL DRIVE,RR 41/9	1-41210-619-0	01	1	0107-		●
60	GEAR SET; FINAL DRIVE,RR 41/10	1-41210-621-0	01	1	0107-			●
60	GEAR SET; FINAL DRIVE,RR 39/9	1-41210-620-0	01	1	0107-				●
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-008-0	01	1	0107-	●	●	●	●
62	BOLT; RET M8X16	0-20800-816-0	02	1	0107-0512	●	●	●	●
62	BOLT; RET M8X16	0-20850-816-0	02	1	0601-	●	●	●	●
63	BEARING; PINION PILOT NSK	1-09810-152-0	01	1	0107-	●	●	●	●
63	BEARING; PINION PILOT JTEKT	1-09810-153-0	01	1	0107-	●	●	●	●
66	RING; SNAP,PILOT BRG OD=45.9	1-09588-061-0	01	1	0107-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-050-0	01	1	0107-	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-051-0	01	1	0107-	●	●	●	●
70	BEARING; DIFF CAGE JTEKT ID=110 OD=170 T=38	1-09812-226-0	02	1	0107-	●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-253-0	01	1	0107-	●	●	●	●
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	18	1	0107-	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	9-99110-516-0	12	1	0107-0512	●	●	●	●
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	12	1	0601-	●	●	●	●
88	PLATE; LK,ADJ NUT T=3.2	1-41124-026-0	02	1	0107-	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28781-020-0	04	1	0107-0512	●	●	●	●
89	BOLT; LK PLATE M10X20 FLANGE	0-28751-020-0	04	1	0601-	●	●	●	●
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	0107-	●	●	●	●
126	COUPLING; DRIVING PINION	1-37245-343-0	01	1	0107-	●	●	●	●
429	PLATE; DUMMY EXC. DIFF LOCK<C3N>	1-41279-014-0	01	1	0107-	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28680-820-0	03	1	0107-0512	●	●	●	●
430	BOLT; PLATE,DUMMY EXC. DIFF LOCK<C3N> M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
