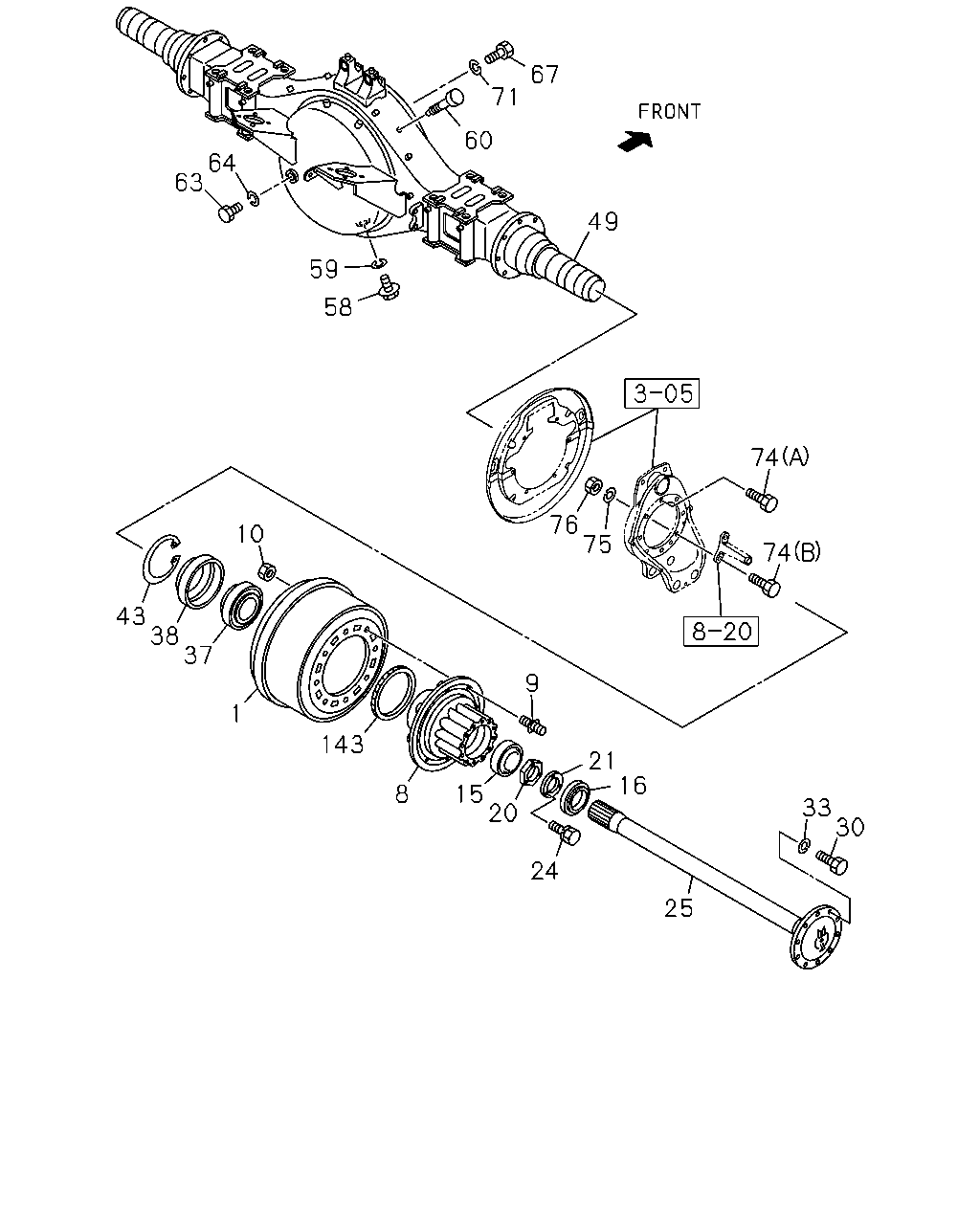

1 |
DRUM; BRK,RR
|
1-42315-220-4 |
02 |
1 |
0107- |
| |
8 |
HUB; RR AXLE
|
1-42311-126-0 |
02 |
1 |
0107- |
| |
9 |
PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD
|
1-42337-012-0 |
20 |
1 |
0107-0210 |
| |
9 |
PIN; WHEEL,RR AXLE
M22X59.8,M22X53.5 RH THREAD
|
1-42337-069-1 |
20 |
1 |
0211- |
| |
10 |
NUT; WHEEL PIN,RR AXLE
M22
|
1-09400-071-0 |
20 |
1 |
0107- |
| |
15 |
BEARING; HUB OUTER,RR AXLE
JTEKT
|
1-09812-232-0 |
02 |
1 |
0107- |
| |
16 |
SEAL; OIL,RR HUB,OUTER
TKK
|
1-09625-444-0 |
02 |
1 |
0107- |
| |
20 |
NUT; BRG,RR HUB
M88
|
9-09843-062-2 |
02 |
1 |
0107- |
| |
21 |
WASHER; LK,BRG NUT
ID=88
|
9-09854-112-0 |
02 |
1 |
0107- |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28680-616-0 |
06 |
1 |
0107-0512 |
| |
24 |
BOLT; LK WASHER
M6X16 FLANGE
|
0-28650-616-0 |
06 |
1 |
0601- |
| |
25 |
SHAFT; AXLE,RR
DIFF LOCK<C3N>
L=1054
|
1-42171-553-0 |
01 |
1 |
0107- |
| |
25 |
SHAFT; AXLE,RR
EXC. DIFF LOCK<C3N>
L=1054
|
1-42171-354-0 |
01 |
1 |
0107- |
| |
25 |
SHAFT; AXLE,RR
L=1054
|
1-42171-354-0 |
01 |
1 |
0107- |
| |
30 |
BOLT; HUB TO AXLE SHAFT
M14X58
|
1-09000-582-0 |
32 |
1 |
0107- |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
9-09150-814-0 |
32 |
1 |
0107-0603 |
| |
33 |
WASHER; AXLE SHAFT
ID=14.2
|
0-91510-814-0 |
32 |
1 |
0604- |
| |
37 |
BEARING; HUB INNER,RR AXLE
JTEKT
|
1-09812-233-0 |
02 |
1 |
0107- |
| |
38 |
SEAL; OIL,RR HUB,INNER
NOK
|
1-09625-265-0 |
02 |
1 |
0107- |
| |
38 |
SEAL; OIL,RR HUB,INNER
TKK
|
1-09625-350-0 |
02 |
1 |
0107- |
| |
43 |
RING; SNAP,HUB SEAL,RR AXLE
OD=179
|
1-09587-057-0 |
02 |
1 |
0107- |
| |
49 |
CASE; RR AXLE
ANTILOCK BRAKE SYSTEM(BFA)
|
1-42160-492-1 |
01 |
1 |
0107- |
| |
49 |
CASE; RR AXLE
EXC. ANTILOCK BRAKE SYSTEM(BFA)
|
1-42190-240-1 |
01 |
1 |
0107- |
| |
58 |
PLUG; DRAIN,AXLE CASE
M24X17 FLANGE
|
1-09604-023-0 |
01 |
1 |
0107- |
| |
59 |
GASKET; DRAIN PLUG
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0107- |
| |
60 |
BREATHER; RR AXLE CASE
|
1-09893-011-1 |
01 |
1 |
0107- |
| |
63 |
PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE
|
1-09604-022-0 |
01 |
1 |
0107- |
| |
64 |
GASKET; OIL FILLER,AXLE CASE
ID=26.8
|
9-09920-605-0 |
01 |
1 |
0107- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
9-91066-670-0 |
04 |
1 |
0107-0512 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X70
|
0-10956-670-0 |
04 |
1 |
0601- |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
9-92061-640-0 |
08 |
1 |
0107-0512 |
| |
67 |
BOLT; FINAL DRIVE SETTING
M16X40
|
0-20951-640-0 |
08 |
1 |
0601- |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
9-09150-816-0 |
12 |
1 |
0107-0603 |
| |
71 |
WASHER; LK,FINAL DRIVE SETTING
ID=16.2
|
0-91510-816-0 |
12 |
1 |
0604- |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM(BFA)
(A)
M14X50
|
1-09040-066-0 |
10 |
1 |
0107- |
| |
74 |
BOLT; RR BRK ASM SETTING
ANTILOCK BRAKE SYSTEM(BFA)
(B)
M14X80
|
9-92621-480-0 |
04 |
1 |
0107- |
| |
74 |
BOLT; RR BRK ASM SETTING
EXC. ANTILOCK BRAKE SYSTEM(BFA)
(A),(B)
M14X50
|
1-09040-066-0 |
14 |
1 |
0107- |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
9-09150-814-0 |
16 |
1 |
0107-0603 |
| |
75 |
WASHER; LK,RR BRK ASM SETTING
ID=14.2
|
0-91510-814-0 |
16 |
1 |
0604- |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
9-99110-514-0 |
16 |
1 |
0107-0512 |
| |
76 |
NUT; RR BRK ASM SETTING
M14
|
0-91110-514-0 |
16 |
1 |
0601- |
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM(BFA)
|
1-42319-163-0 |
02 |
1 |
0107-0208 |
| |
143 |
RING; EXCITER
ANTILOCK BRAKE SYSTEM(BFA)
|
1-42319-173-0 |
02 |
1 |
0209- |
