Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

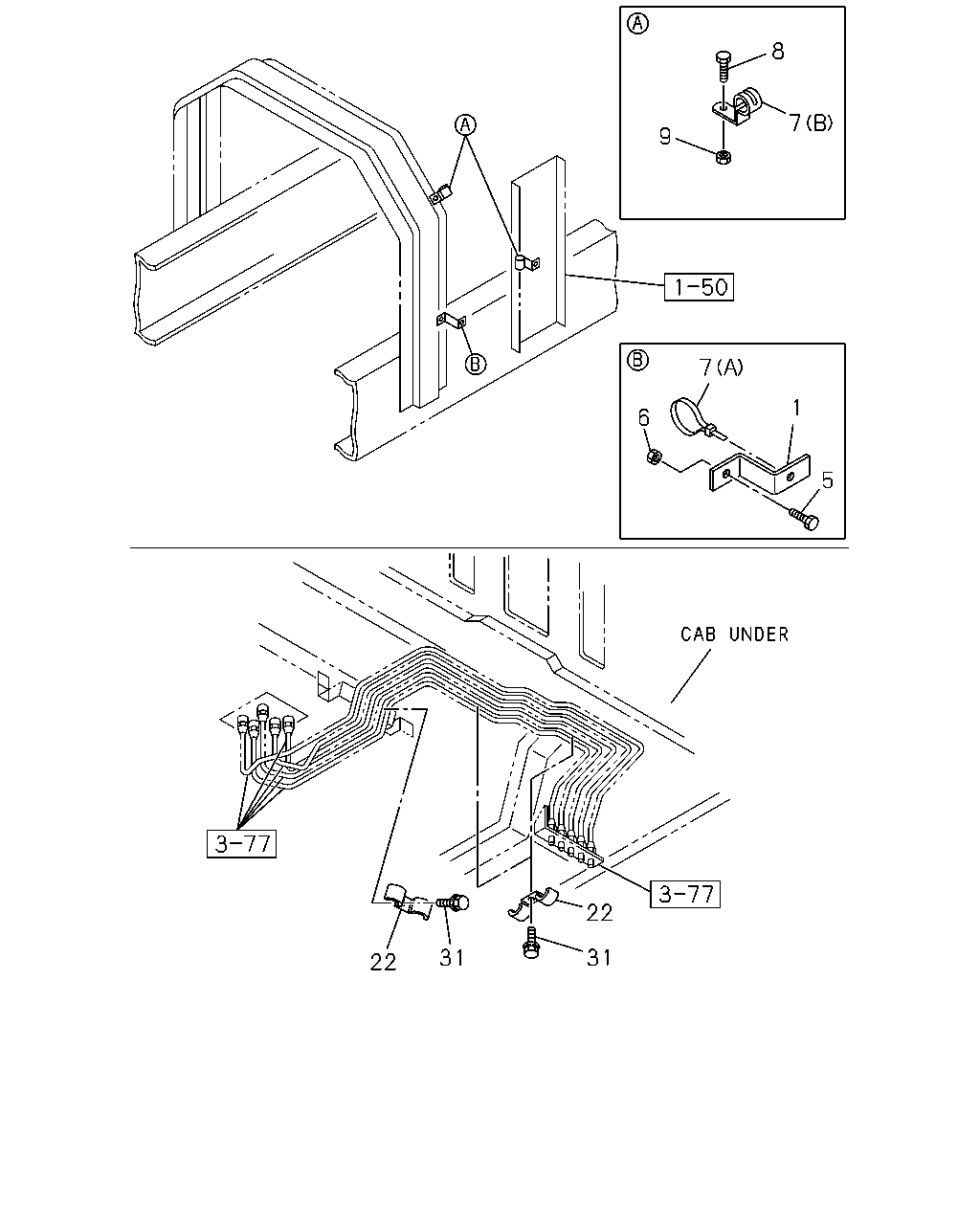

3-83 — FIXING PARTS; TRAILER PIPING
(#9836) — 18 parça
8
7
9
7
1
6
5
22
31
31
22
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
1-47477-908-1
01
1
0107-
5
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
01
1
0107-0512
5
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0601-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0107-0602
6
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
7
CLIP; NYLON TUBE
(B) ID=27.5 H=23 L=24
1-09700-863-0
02
1
0107-
7
CLIP; NYLON TUBE
(B) ID=31 H=30 L=35
1-09700-994-0
02
1
0107-
7
CLIP; NYLON TUBE
(A) L=250
1-09707-126-0
01
1
0107-
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28680-820-0
02
1
0107-0512
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0601-0605
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0606-
8
BOLT; TUBE CLIP
M8X20 FLANGE
0-28650-820-0
02
1
0606-
8
BOLT; TUBE CLIP
M8X30 FLANGE
0-28680-830-0
02
1
0107-0512
8
BOLT; TUBE CLIP
M8X30 FLANGE
0-28650-830-0
02
1
0601-0605
9
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
02
1
0107-0602
9
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
02
1
0603-
22
CLIP; AIR PIPE
ID=9 & 9 L=15 & 15
1-09700-061-0
03
1
0107-
31
BOLT; CLIP,AIR PIPE
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0107-
