Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-80 - BRAKE PIPING; TRAILER
▶
3-80 — BRAKE PIPING; TRAILER
(#9835) — 40 parça
◀

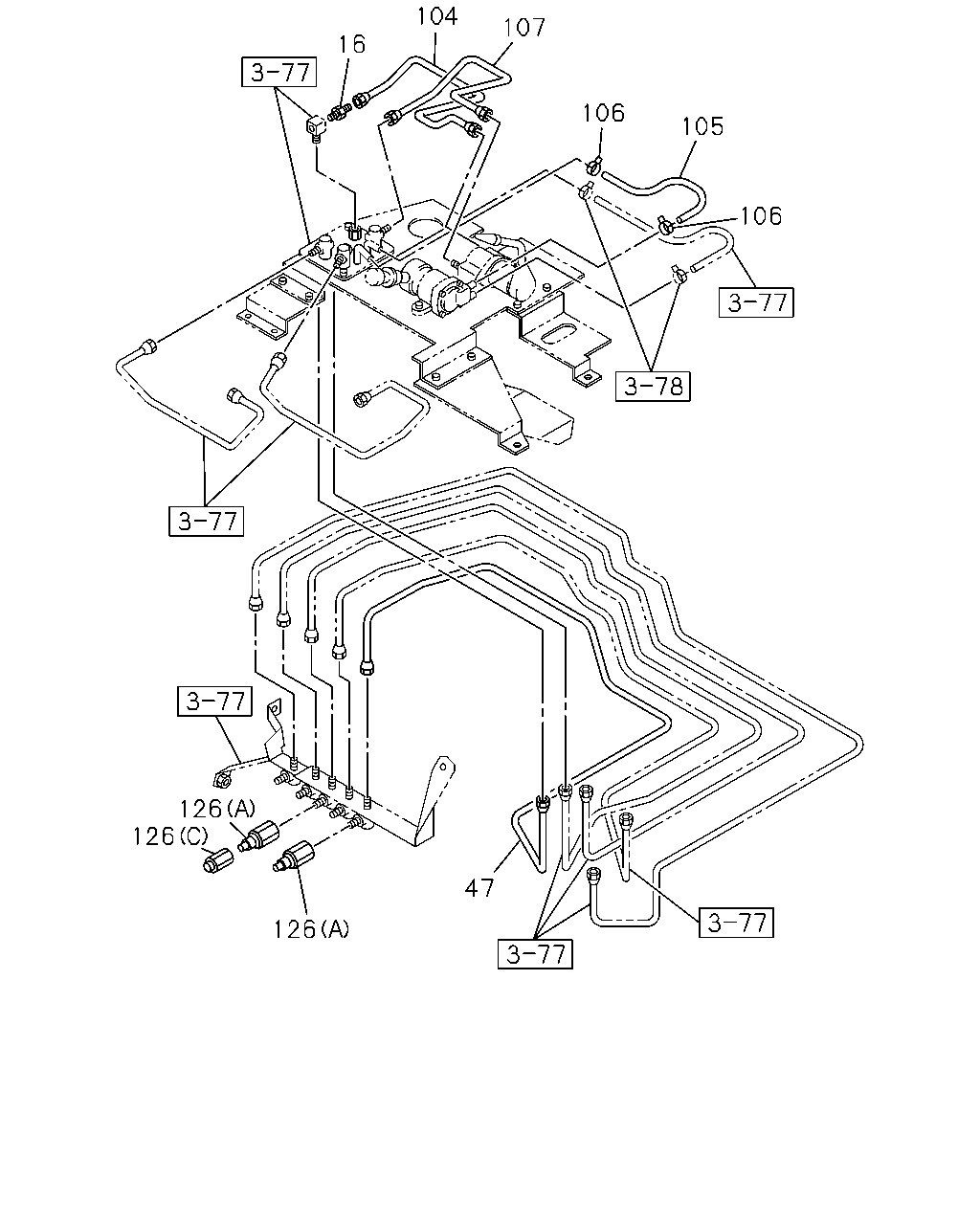

[380A] CAB SIDE (12 parça)
[380A] FRAME SIDE NO.1 (8 parça)
[380A] FRAME SIDE NO.2 (20 parça)
▶
104
107
16
106
105
106
126
126
47
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
UNION; AIR PIPE
M16 & PT1/4 STRAIGHT
9-09231-810-1
01
1
0107-0607
16
UNION; AIR PIPE
M16 & PT1/4 STRAIGHT
0-92121-810-0
01
1
0608-
47
PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950
1-47426-393-0
01
1
0107-
104
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49122-878-0
01
1
0107-
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=350 SERVICED BY L=10000
9-09914-701-0
01
1
0107-0203
105
PIPE; VINYL,EXH,PARKING BRK VLV
L=240 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
0204-
106
CLIP; PIPE
ID=14
8-94238-572-0
02
1
0107-
107
PIPE; AIR,JOINT TO PARKING BRK VLV
1-49116-328-1
01
1
0107-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
0107-0210
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0211-
126
CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0107-0210
126
CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0107-

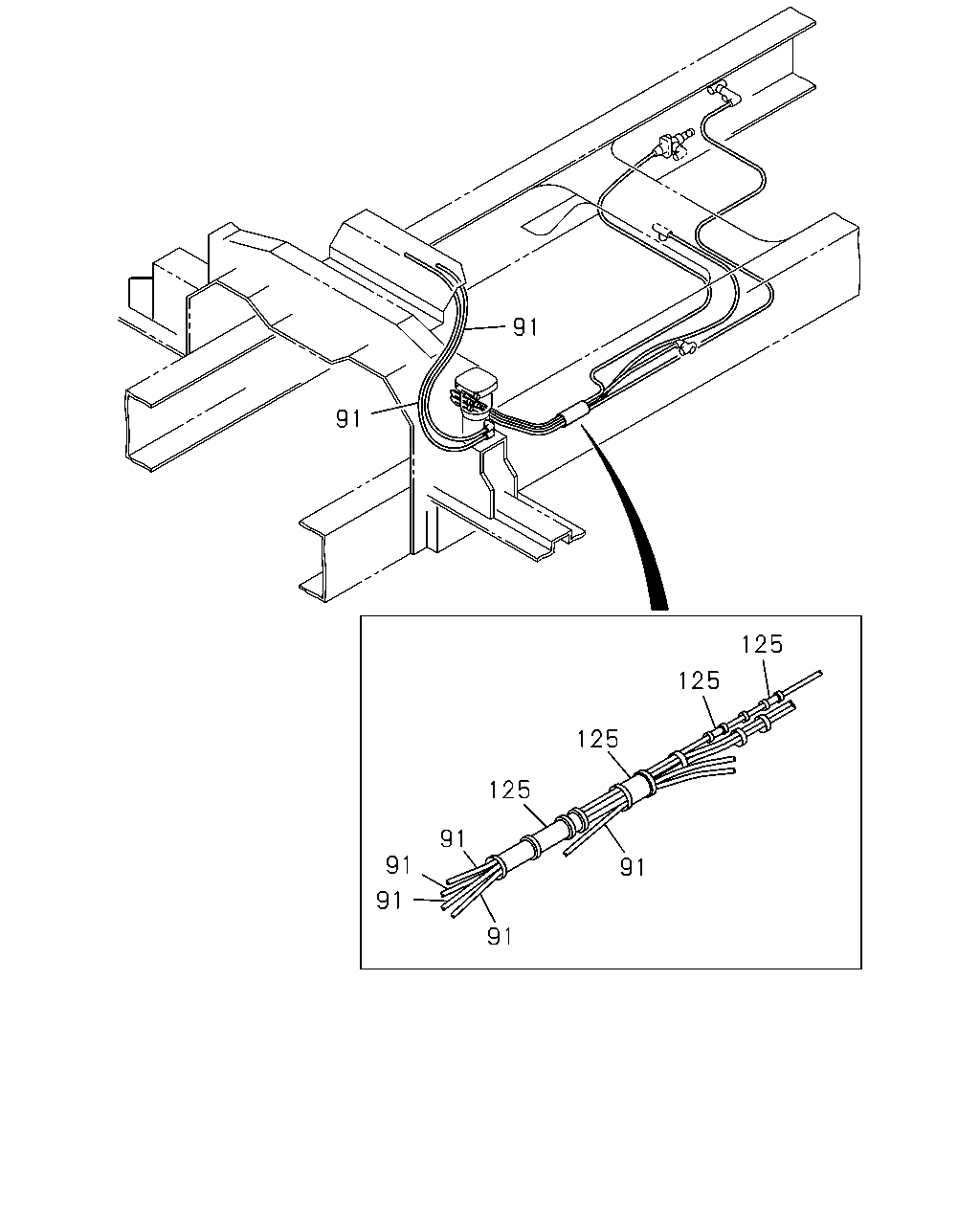

91
91
125
125
125
125
91
91
91
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0107-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0107-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=19
1-87410-094-0
AR
1
0107-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0107-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=22
1-87410-096-0
AR
1
0107-
125
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0107-

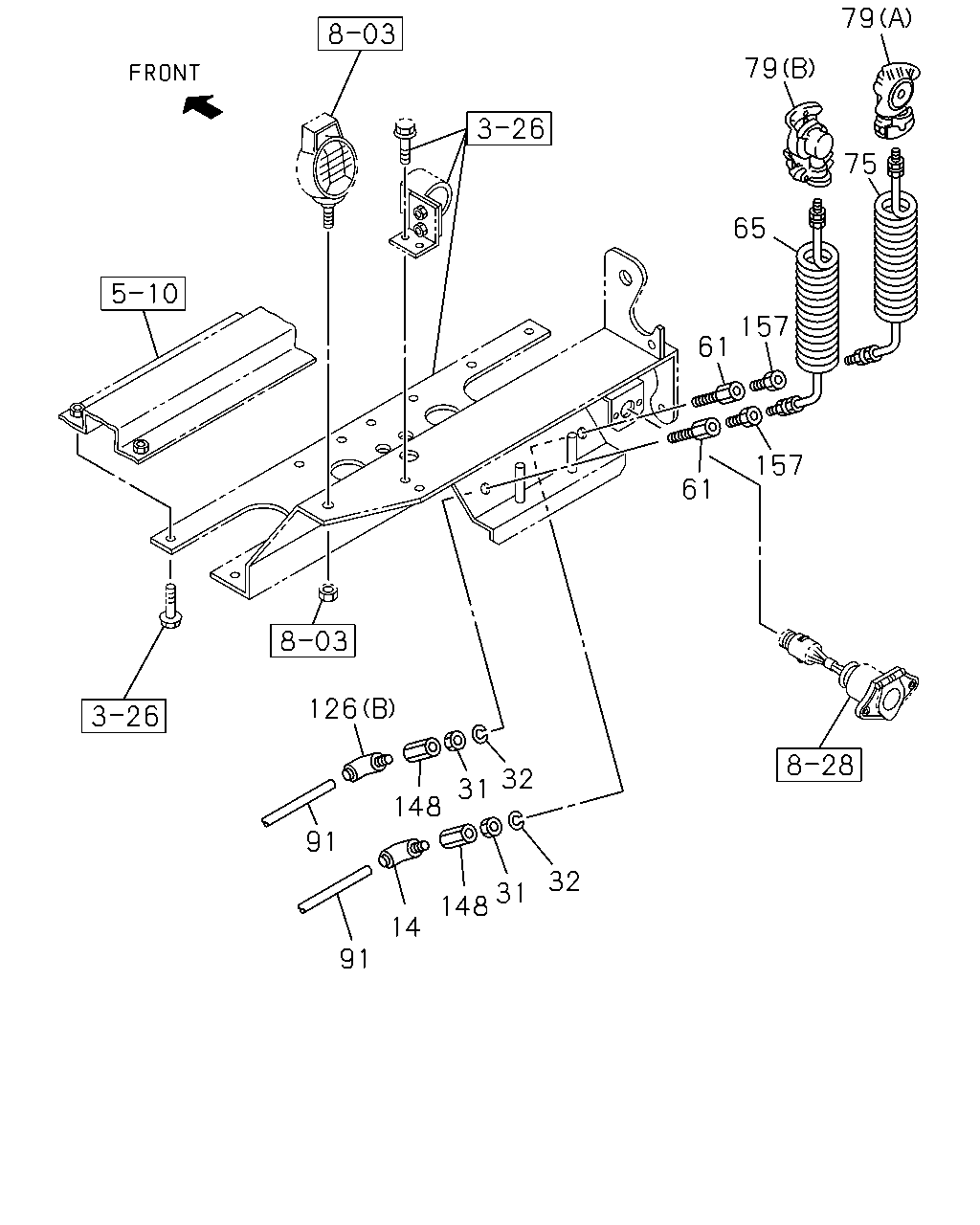

79
79
75
65
157
61
157
61
126
32
31
148
91
32
31
148
14
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
CONNECTOR; AIR PIPE
DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0107-
31
NUT; UNION
M16
9-99111-416-0
02
1
0107-0512
31
NUT; UNION
M16
0-91111-516-0
02
1
0601-
32
WASHER; LK,UNION
ID=16.2
9-09150-516-0
02
1
0107-0603
32
WASHER; LK,UNION
ID=16.2
0-91510-516-0
02
1
0604-
61
UNION; NYLON TUBE
1-09650-222-1
02
1
0107-
65
HOSE; AIR
1-49212-518-0
01
1
0107-
75
HOSE; FLEX,TRAILER EMERGENCY
1-49212-518-0
01
1
0107-
79
COUPLING; AIR,TRAILER
(A)
1-47478-210-0
01
1
0107-
79
COUPLING; AIR,TRAILER
(B)
1-47478-211-0
01
1
0107-
91
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0107-
91
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0107-
91
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0107-
91
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0107-
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
02
1
0107-0210
126
CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT
1-09660-874-0
01
1
0211-
126
CONNECTOR; NYLON TUBE
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0107-0210
126
CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0107-
148
ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT
1-09660-882-0
02
1
0107-
157
ADAPTER
1-09660-078-0
02
1
0107-
