◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#9834) — 211 parça

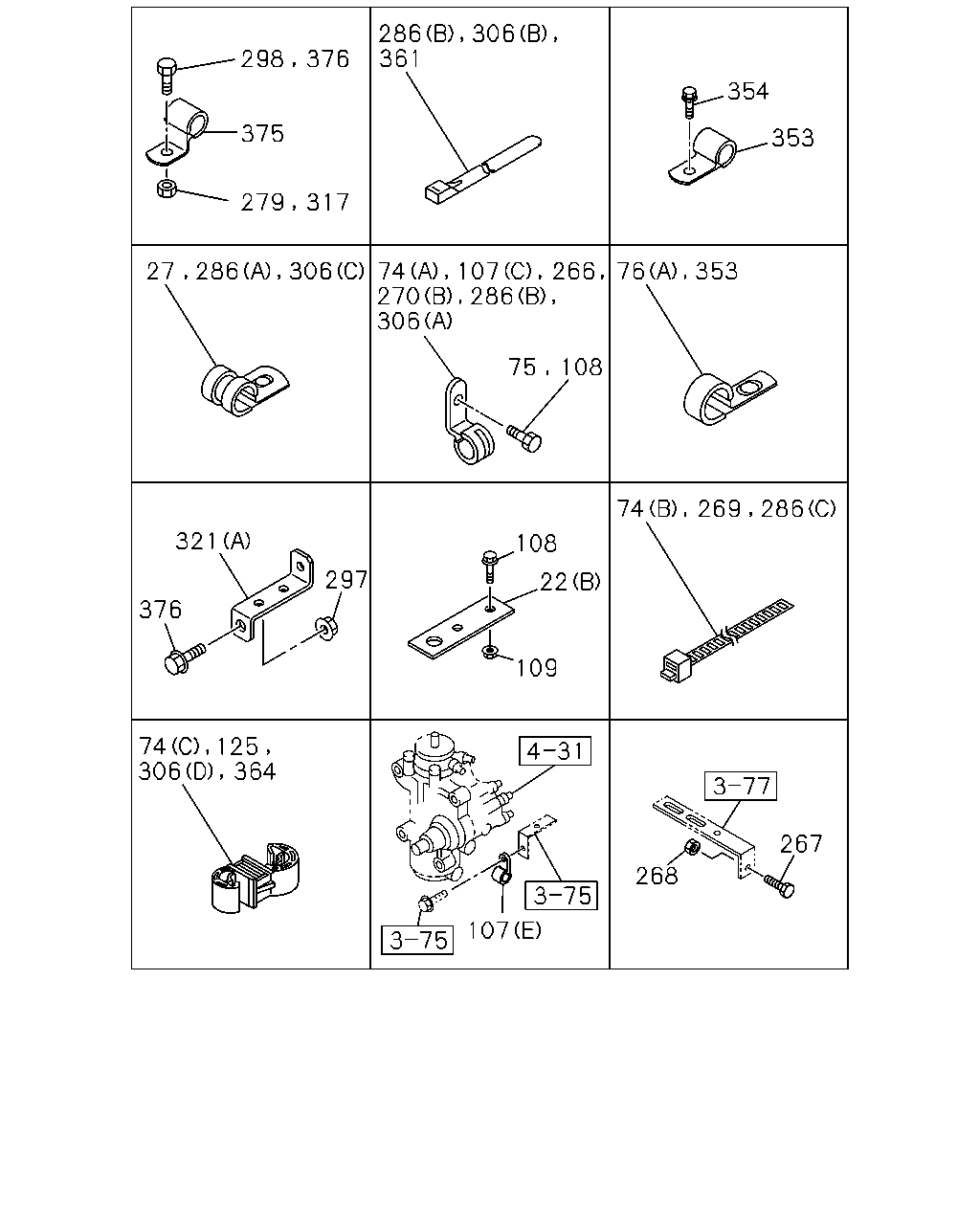

çizim 22457
361 354 375 353 74 306 76 353 75 108 321 108 297 22 376 109 74 125 267 268 107 298 376 286 306 279 317 27 306 107 266 286 270 74 269 286 306 364 286
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
(C) 		1-47477-844-0 02 1 0107-
22 BRACKET; CLIP
(D) 		1-47477-845-0 04 1 0107-
22 BRACKET; CLIP
(B) L=100 		1-47477-620-1 01 1 0107-
22 BRACKET; CLIP
(A) L=125 		1-47477-975-1 02 1 0107-
27 CLIP; FLEX HOSE
ID=10 & 10 		1-09709-277-1 01 1 0107-
74 CLIP; NYLON TUBE
(A) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
74 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 03 1 0107-
74 CLIP; NYLON TUBE
AIR DRYER<PS7> (C) ID=12 & 15 		1-09709-281-1 01 1 0107-
75 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
76 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0107-
76 CLIP; NYLON TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0107-0112
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
107 CLIP; NYLON TUBE
(E) ID=28 L=40 		1-09701-261-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0107-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 03 1 0107-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0108-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0107-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0107-
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0107-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28050-825-0 04 1 0601-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
125 CLIP; NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) ID=12 & 12 		1-09709-280-1 02 1 0107-
266 CLIP; NYLON TUBE
ID=18 H=23 L=28 		1-09700-860-0 01 1 0107-
267 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
267 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
268 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
268 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 20 1 0107-
270 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09701-047-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 0107-0308
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0309-
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0107-
279 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
279 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
286 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (B) ID=28 H=45 L=30 		1-09700-948-0 01 1 0107-
286 CLIP; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (A) ID=15 L=28 		1-09701-216-0 01 1 0107-
286 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (C) L=250 		1-09707-126-0 05 1 0107-
297 NUT; BRKT
M10 FLANGE 		0-91150-110-0 01 1 0107-0602
297 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0603-
298 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
298 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
306 CLIP; NYLON TUBE
DIFF LOCK<C3N> (A) ID=31 H=30 L=35 		1-09700-994-0 01 1 0107-
306 CLIP; NYLON TUBE
(C) ID=28 L=40 		1-09701-261-0 01 1 0107-
306 CLIP; NYLON TUBE
(B) L=250 		1-09707-126-0 03 1 0107-
306 CLIP; NYLON TUBE
(D) ID=12 & 12 		1-09709-280-1 01 1 0107-
306 CLIP; NYLON TUBE
(A) ID=18 L=25 H=50 		1-09701-096-0 01 1 0107-
306 CLIP; NYLON TUBE
EXC. DIFF LOCK<C3N> (A) ID=18 L=25 H=50 		1-09701-096-0 01 1 0107-
317 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
317 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
321 BRACKET; CLIP
(A) 		1-47476-812-1 01 1 0107-
321 BRACKET; CLIP
(B) 		1-47477-472-1 01 1 0107-
321 BRACKET; CLIP
(C) 		1-47477-746-0 01 1 0107-
353 CLIP; AIR PIPE
ID=9 L=16 		9-09524-822-0 01 1 0107-0606
353 CLIP; AIR PIPE
ID=9 L=16 		0-95234-822-0 01 1 0607-
354 BOLT; PIPE CLIP
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0107-0211
354 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0212-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 0107-
364 CLIP; AIR PIPE
ID=8.3 & 10 		8-94176-792-0 01 1 0107-
375 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
376 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0107-0512
376 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0107-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0107-
376 BOLT; BRKT
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
376 BOLT; BRKT
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 0601-

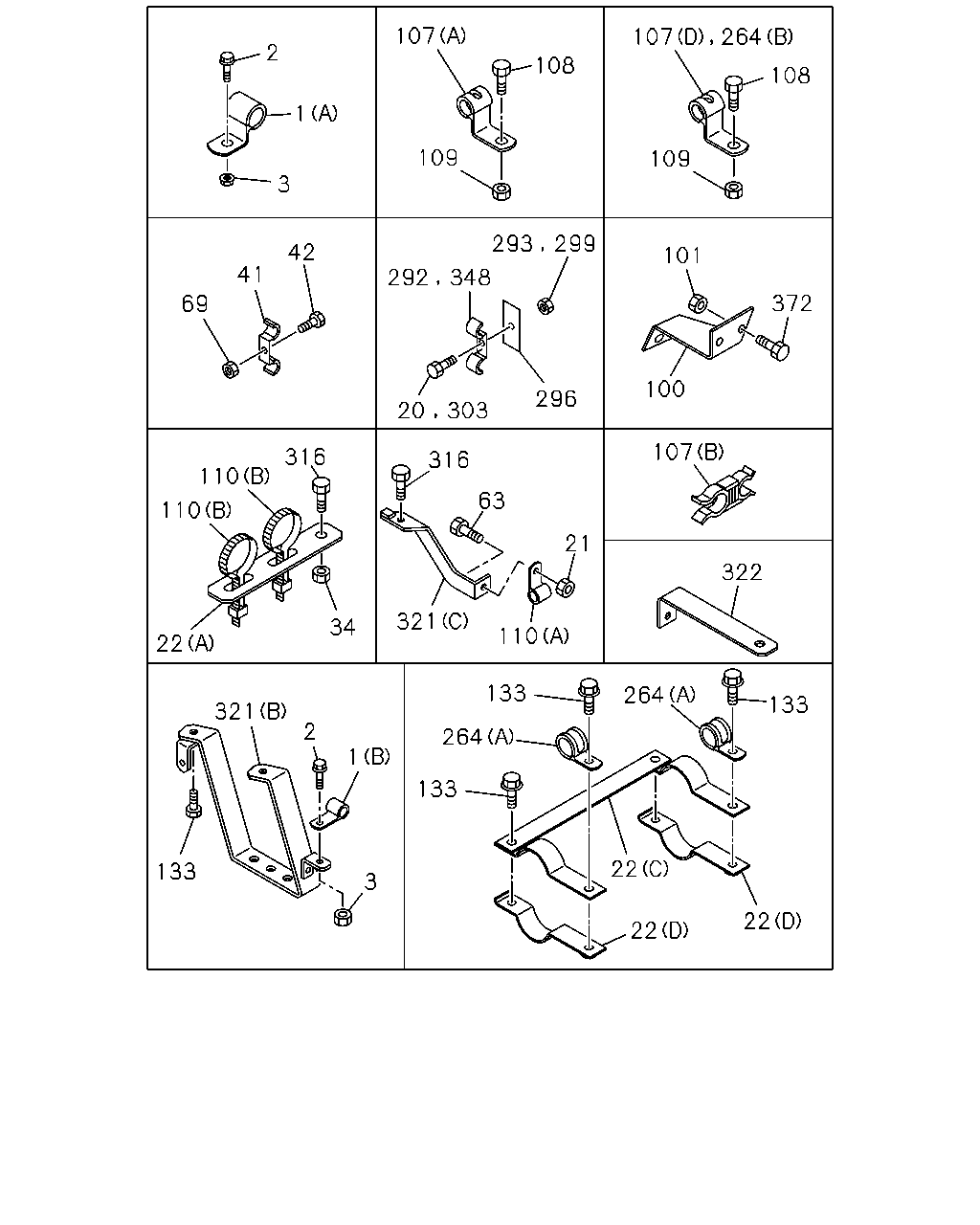

çizim 22458
107 2 108 108 1 109 109 3 42 101 41 372 69 100 296 107 316 316 110 63 110 21 322 321 34 110 22 133 264 133 321 2 264 1 133 22 133 3 22 22 107 264 293 299 292 348 20 303
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 0107-
1 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 01 1 0107-0606
1 CLIP; AIR PIPE
(B) ID=7 L=20 		0-95234-635-0 01 1 0607-
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0603-
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0107-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
20 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 04 1 0107-0512
20 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
20 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0107-0512
20 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 04 1 0107-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
21 NUT; CLIP
M8 FLANGE 		0-91180-108-0 04 1 0603-
22 BRACKET; CLIP
(C) 		1-47477-844-0 02 1 0107-
22 BRACKET; CLIP
(D) 		1-47477-845-0 04 1 0107-
22 BRACKET; CLIP
(B) L=100 		1-47477-620-1 01 1 0107-
22 BRACKET; CLIP
(A) L=125 		1-47477-975-1 02 1 0107-
34 NUT; BRKT
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE 		0-91150-108-0 01 1 0107-0602
34 NUT; BRKT
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 0603-
41 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0107-
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512
63 BOLT; CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 0107-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 0107-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 0107-0602
101 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 04 1 0603-
107 CLIP; NYLON TUBE
(E) ID=28 L=40 		1-09701-261-0 01 1 0108-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 0107-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 03 1 0107-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=25 H=30 L=35 		1-09700-875-0 02 1 0108-
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE HAND CONTROL<NLG> (A) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 0107-
107 CLIP; NYLON TUBE
TRAILER BRAKE HAND CONTROL<NLG> (D) ID=29 H=50 L=45.5 		1-09701-027-0 02 1 0107-
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 03 1 0107-0107
107 CLIP; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
107 CLIP; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=28 H=45 L=30 		1-09700-948-0 02 1 0108-
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28080-820-0 01 1 0108-0512
108 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 0601-
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0107-0107
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 04 1 0108-0512
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28050-825-0 04 1 0601-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
109 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
110 CLIP; BAND,NYLON TUBE
(B) L=700 		1-09707-190-0 01 1 0302-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 39 1 0107-
110 CLIP; BAND,NYLON TUBE
(A) ID=28 L=40 		1-09701-261-0 01 1 0107-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (B) L=250 		1-09707-126-0 01 1 0107-0108
110 CLIP; BAND,NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM(BFA) (B) L=250 		1-09707-126-0 01 1 0109-
110 CLIP; BAND,NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) L=250 		1-09707-126-0 01 1 0109-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 08 1 0107-0512
133 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 08 1 0601-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0204
133 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 02 1 0205-0512
133 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
264 CLIP
(A) ID=35 L=33 		1-09700-945-0 06 1 0107-
264 CLIP
(B) ID=18 H=23 L=28 		1-09701-070-0 04 1 0107-
292 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0107-
293 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
293 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
296 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 0107-
299 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
316 BOLT; CLIP
M8X20 FLANGE 		0-28680-820-0 03 1 0107-0512
316 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 03 1 0601-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 0107-0512
316 BOLT; CLIP
M8X40 FLANGE 		0-28650-840-0 01 1 0601-
321 BRACKET; CLIP
(A) 		1-47476-812-1 01 1 0107-
321 BRACKET; CLIP
(B) 		1-47477-472-1 01 1 0107-
321 BRACKET; CLIP
(C) 		1-47477-746-0 01 1 0107-
322 BRACKET; CLIP
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) L=112 		1-47475-694-1 01 1 0107-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 0107-
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0107-0512
372 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-

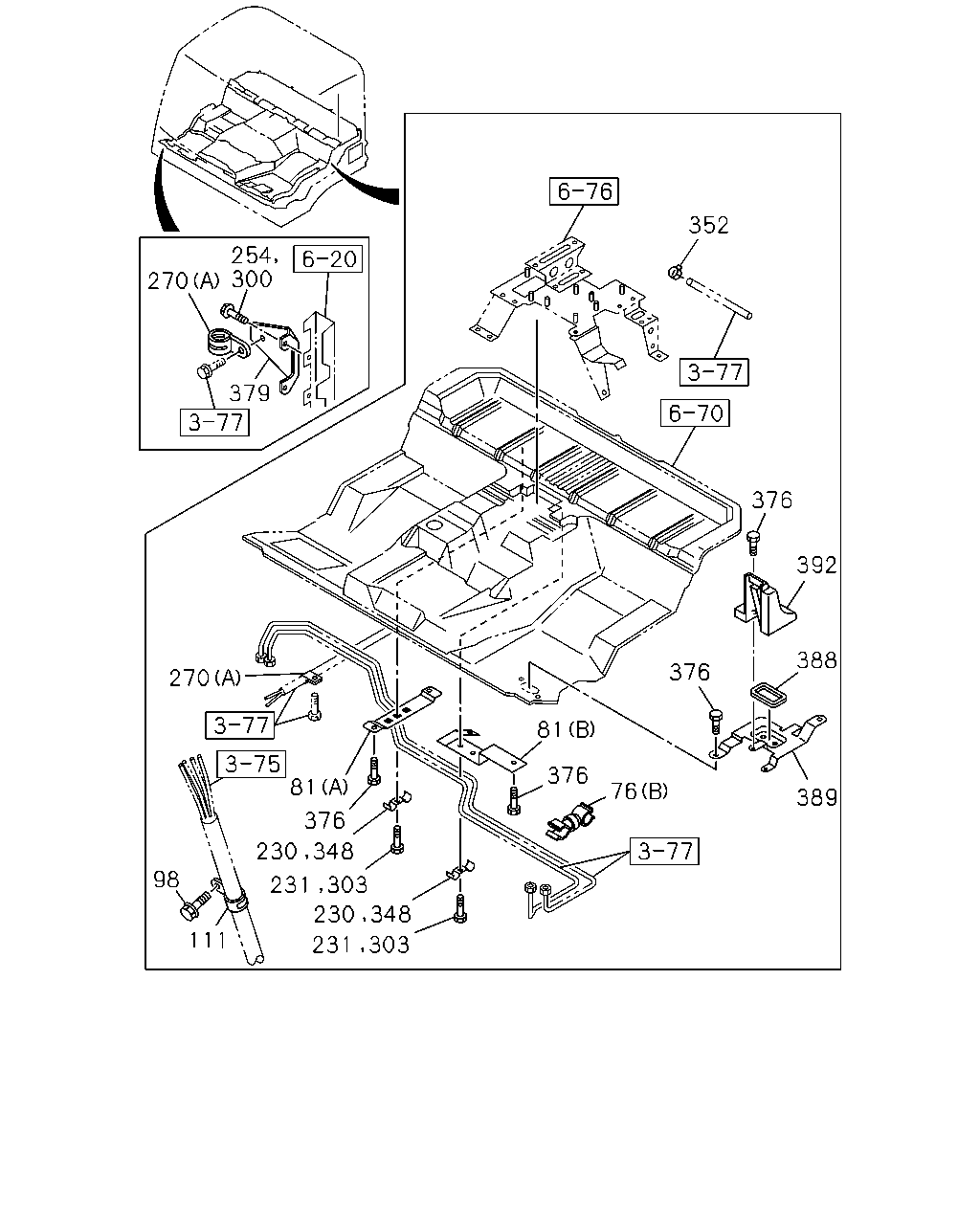

çizim 75467
352 254 300 270 379 376 392 388 376 270 81 376 81 76 389 376 98 231 303 111 231 303 230 348 230 348
BalonParca AdiParca NoAdetTipApplied Date
76 CLIP; NYLON TUBE
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0107-
76 CLIP; NYLON TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 0107-0112
76 CLIP; NYLON TUBE
(B) ID=6 & 8.3 		8-94167-742-0 01 1 0201-
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 0107-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 0107-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 0107-0512
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
111 CLIP; AIR PIPE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=25 L=50 		1-09701-019-0 01 1 0107-
111 CLIP; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=28 L=40 		1-09701-261-0 01 1 0107-
111 CLIP; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=28 L=40 		1-09701-261-0 01 1 0107-
230 CLIP; PIPE,AIR
ID=11 & 9 L=15 & 15 		1-09700-062-0 02 1 0107-
231 BOLT; CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 0107-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0107-0204
254 BOLT; PIPE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0205-0205
270 CLIP; NYLON TUBE
(B) ID=35 H=45 L=33 		1-09701-047-0 01 1 0309-
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 03 1 0107-0308
270 CLIP; NYLON TUBE
(A) ID=35 L=33 		1-09700-945-0 02 1 0309-
270 CLIP; NYLON TUBE
(A) ID=26 L=26 		1-09701-236-0 01 1 0107-
300 BOLT; TUBE CLIP
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0206-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
348 CLIP; AIR PIPE
ID=9 & 9 L=15 & 15 		1-09700-061-0 03 1 0107-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 0107-
376 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 01 1 0107-0512
376 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 01 1 0601-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0107-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 0107-
376 BOLT; BRKT
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
376 BOLT; BRKT
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 0107-
388 SEAL
L=215 		1-79738-794-1 01 1 0107-
389 BRACKET; UNION 1-79738-790-1 01 1 0107-
392 COVER; BRKT 1-73996-264-1 01 1 0107-

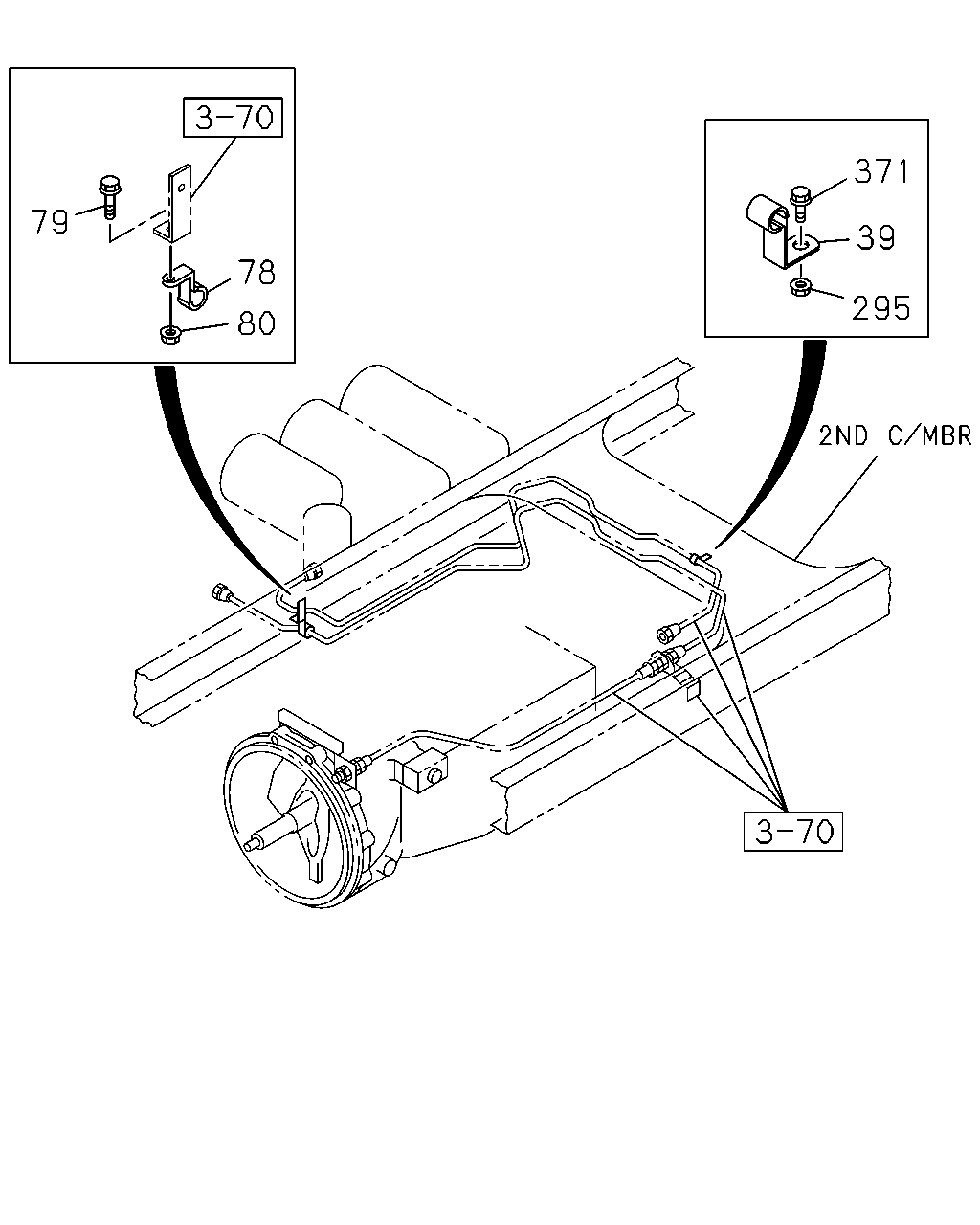

çizim 76368
371 79 39 78 295 80
BalonParca AdiParca NoAdetTipApplied Date
39 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0107-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 0107-
79 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28680-820-0 01 1 0107-0512
79 BOLT; PIPE CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0601-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 01 1 0603-
371 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
371 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
