◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXD ▶ 10866 - EXD LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#9831) — 344 parça

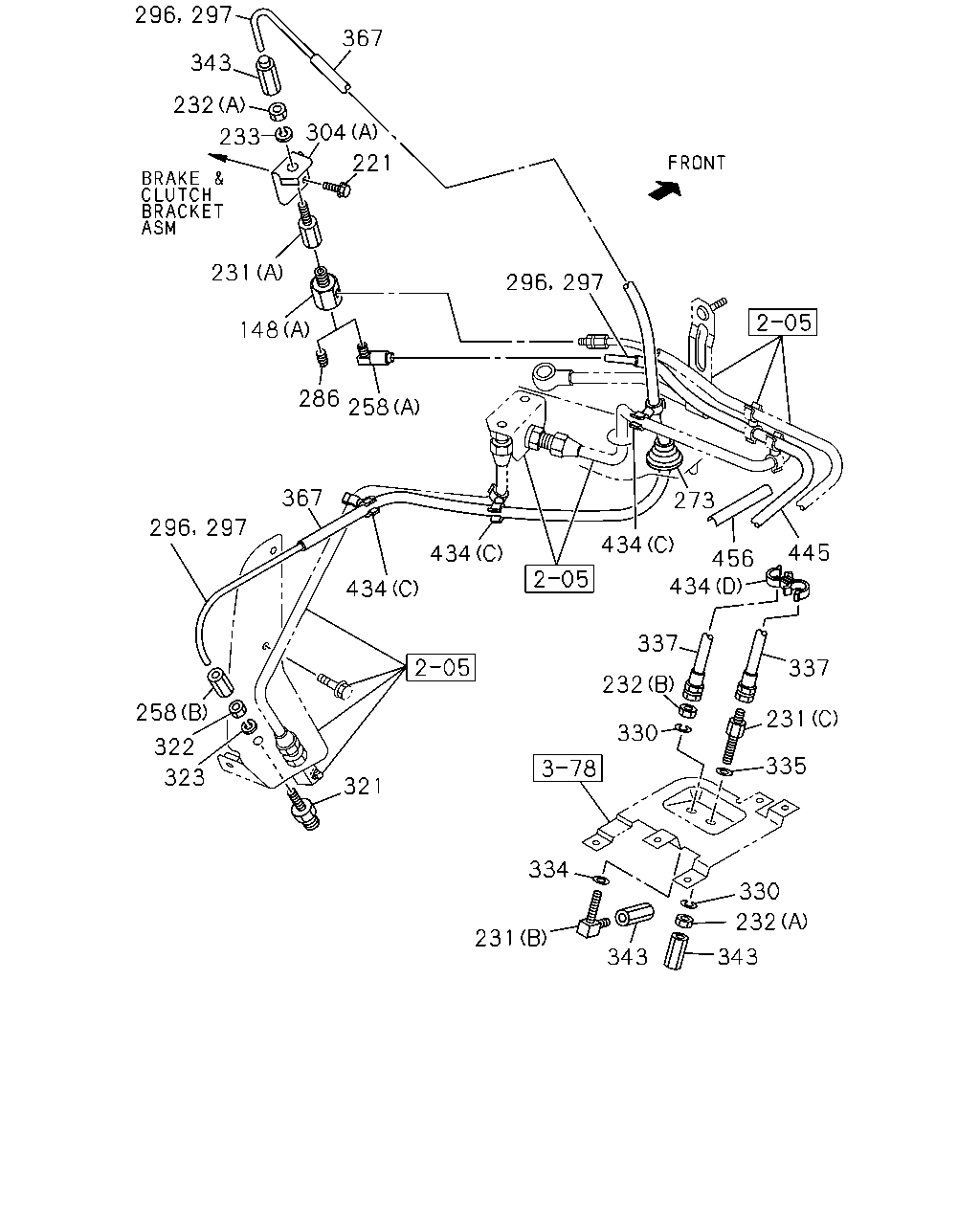

çizim 22004
367 343 232 304 233 221 231 148 286 258 367 273 434 445 434 456 434 434 337 337 232 258 231 330 322 335 323 321 334 330 232 231 343 343 296 297 296 297 296 297
BalonParca AdiParca NoAdetTipApplied Date
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0111-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) 		8-94338-417-0 01 1 0107-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0107-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
231 UNION; AIR PIPE
(B) M10 ELBOW 		1-09654-186-2 01 1 0107-
231 UNION; AIR PIPE
(C) M10 STRAIGHT 		1-09654-361-0 01 1 0107-
231 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0107-
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) 		1-09656-713-2 01 1 0107-
232 NUT; UNION,AIR PIPE
(A),(B) M10 H=8 		1-09400-029-0 02 1 0107-0312
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0401-0512
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0601-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0107-0312
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0107-0312
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0401-
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10 H=8 		1-09400-029-0 01 1 0401-
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-0603
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0107-0603
233 WASHER; LK,UNION,AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		0-91510-510-0 01 1 0604-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (C) 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0107-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
273 GROMMET
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0107-
273 GROMMET
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09332-102-0 01 1 0107-
286 PLUG; AIR PIPE
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		9-09204-510-0 01 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-0212
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87410-082-0 AR 1 0107-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0107-
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
304 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0107-
304 BRACKET; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-182-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-47477-757-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0107-0607
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		9-09223-306-1 01 1 0107-0607
321 JOINT; FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 0608-
321 JOINT; FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 L=66.5 		0-92113-306-0 01 1 0608-
322 NUT; JOINT,FLEX HOSE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M12 		9-09840-280-0 01 1 0302-
322 NUT; JOINT,FLEX HOSE
M12 		9-09840-280-0 01 1 0107-0301
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-0603
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		9-09150-512-0 01 1 0302-0603
323 WASHER; LK,JOINT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 0604-
323 WASHER; LK,JOINT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=12.2 		0-91510-512-0 01 1 0604-
323 WASHER; LK,JOINT
ID=12.2 		9-09150-512-0 01 1 0107-0301
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0107-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0107-
335 SEAL; UNION
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0107-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0107-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
343 UNION; NYLON TUBE 1-09660-796-1 02 1 0107-
343 UNION; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0107-
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09660-796-1 01 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87410-085-0 AR 1 0107-0512
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0107-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 0601-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=10 & 10 		1-09709-221-0 01 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
445 GUARD
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) L=800 		1-83129-031-1 01 1 0107-
456 SEAL; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 100X40 		1-72498-022-0 01 1 0107-

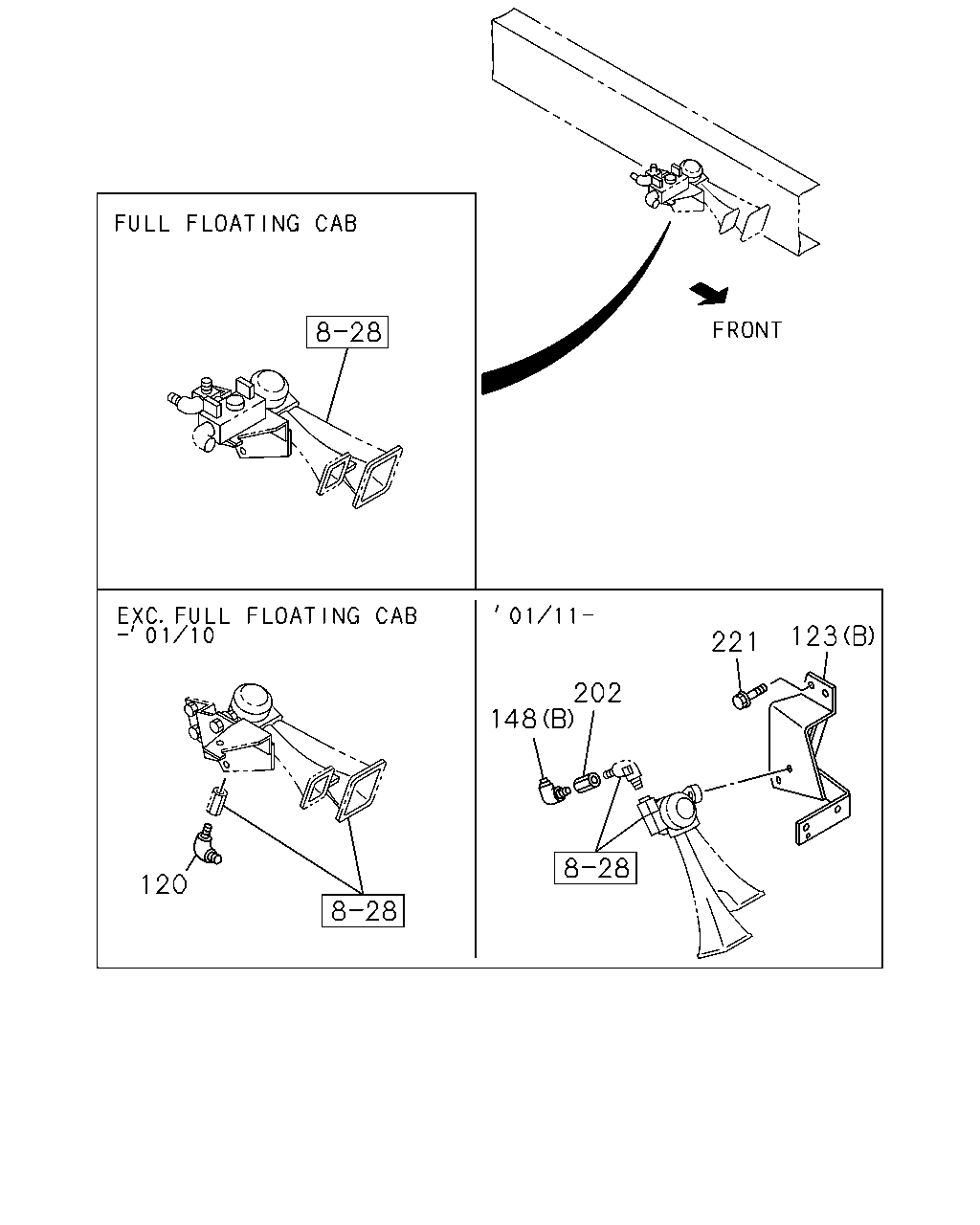

çizim 22455
123 221 202 148 120
BalonParca AdiParca NoAdetTipApplied Date
120 CONNECTOR; AIR PIPE
EXC. FULL FLOATING CAB(W16) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0107-0110
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0107-
148 CONNECTOR; UNION
EXC. FULL FLOATING CAB(W16) (B) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0111-
148 CONNECTOR; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) 		8-94338-417-0 01 1 0107-
202 ADAPTER
EXC. FULL FLOATING CAB(W16) M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0107-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-

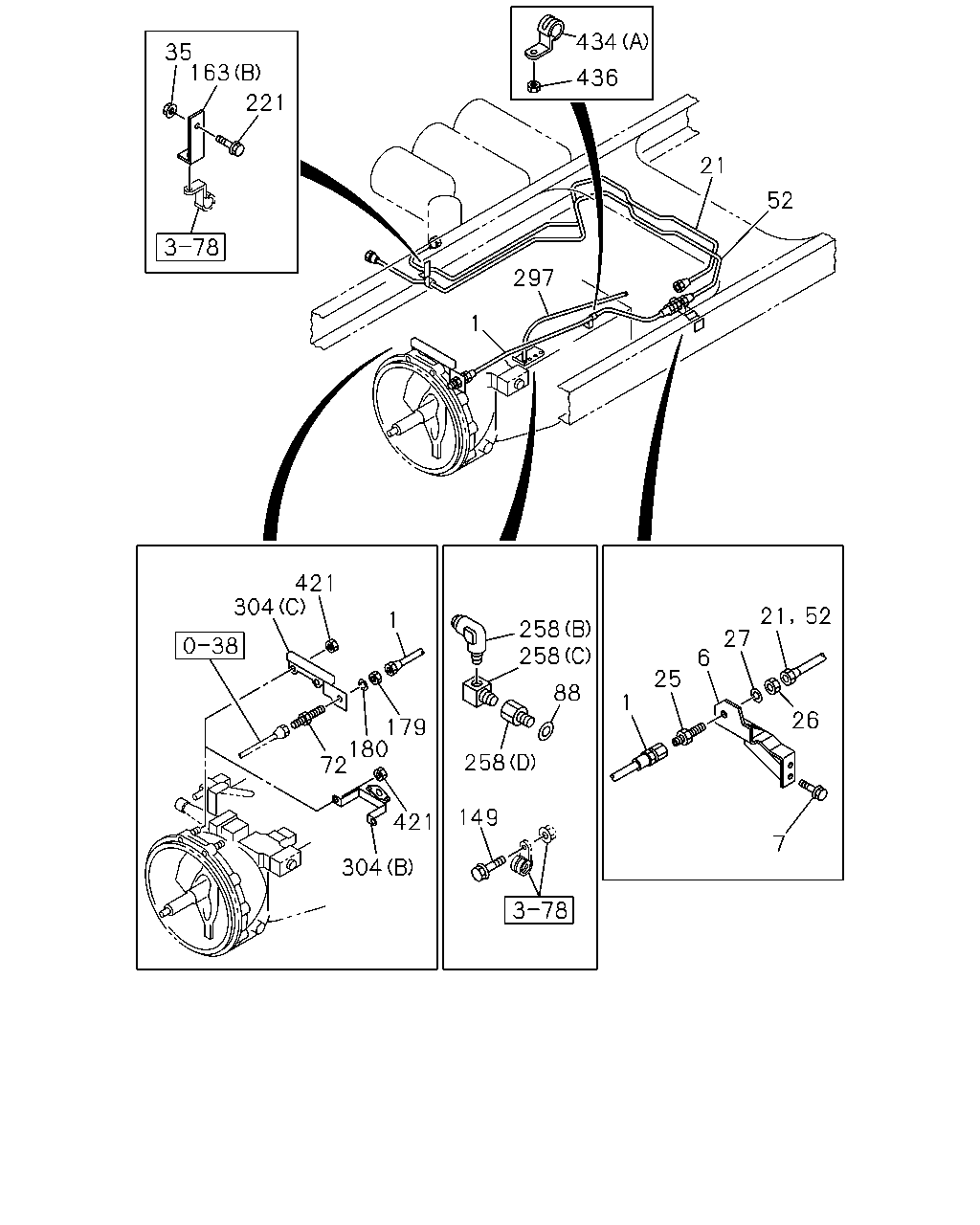

çizim 74926
434 35 163 436 221 21 52 297 1 421 304 21 27 52 1 258 258 6 25 88 1 26 179 180 72 258 149 421 7 304
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-856-0 01 1 0107-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-719-1 01 1 0107-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0107-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
21 PIPE; AIR,UNION TO AIR DRYER
AIR DRYER<PS7> 		1-49123-185-0 01 1 0107-
25 VALVE; CHECK 1-48320-042-1 01 1 0107-0410
25 VALVE; CHECK 1-48320-057-0 01 1 0411-
26 NUT; CHECK VLV
M22 		9-09111-422-0 01 1 0107-0512
26 NUT; CHECK VLV
M22 		0-91111-522-0 01 1 0601-
27 WASHER; LK,CHECK VLV
ID=22.5 		9-09150-522-0 01 1 0107-0603
27 WASHER; LK,CHECK VLV
ID=22.5 		0-91510-522-0 01 1 0604-
35 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602
35 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
52 PIPE; AIR,UNION TO AIR TANK
EXC. AIR DRYER<PS7> 		1-49123-186-0 01 1 0107-
72 UNION; AIR PIPE
M16 & M26 L=79 STRAIGHT 		1-09654-318-1 01 1 0107-
88 GASKET; NYLON TUBE
MJD7S M/T(Y2Y) ID=14.2 OD=23.0 		9-09572-014-0 01 1 0107-
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
149 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
163 BRACKET; AIR PIPE
(B) 		1-34656-009-0 01 1 0107-
163 BRACKET; AIR PIPE
(A) 		1-47478-213-0 01 1 0107-0108
163 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (A) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
ZF M/T<X9E> (A) 		1-47478-213-0 01 1 0207-
179 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512
179 NUT; UNION
M22 		0-91111-522-0 01 1 0601-
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0107-0603
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 0604-
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28681-035-0 02 1 0111-0512
221 BOLT; BRKT
EXC. FULL FLOATING CAB(W16) M10X35 FLANGE 		0-28651-035-0 02 1 0601-
221 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
221 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0107-0512
221 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
221 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
221 BOLT; BRKT
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) 		1-48319-059-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (C) 		1-09661-303-0 01 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0107-0302
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303-
258 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87410-081-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0107-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0107-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301-
304 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0107-
304 BRACKET; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-182-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-47477-757-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0107-0602
421 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=10 & 10 		1-09709-221-0 01 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
436 NUT; CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE 		0-91150-108-0 02 1 0108-0602
436 NUT; CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) M8 FLANGE 		0-91180-108-0 02 1 0603-
436 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0107
436 NUT; CLIP
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE 		0-91150-108-0 01 1 0108-0602
436 NUT; CLIP
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) M8 FLANGE 		0-91180-108-0 01 1 0603-

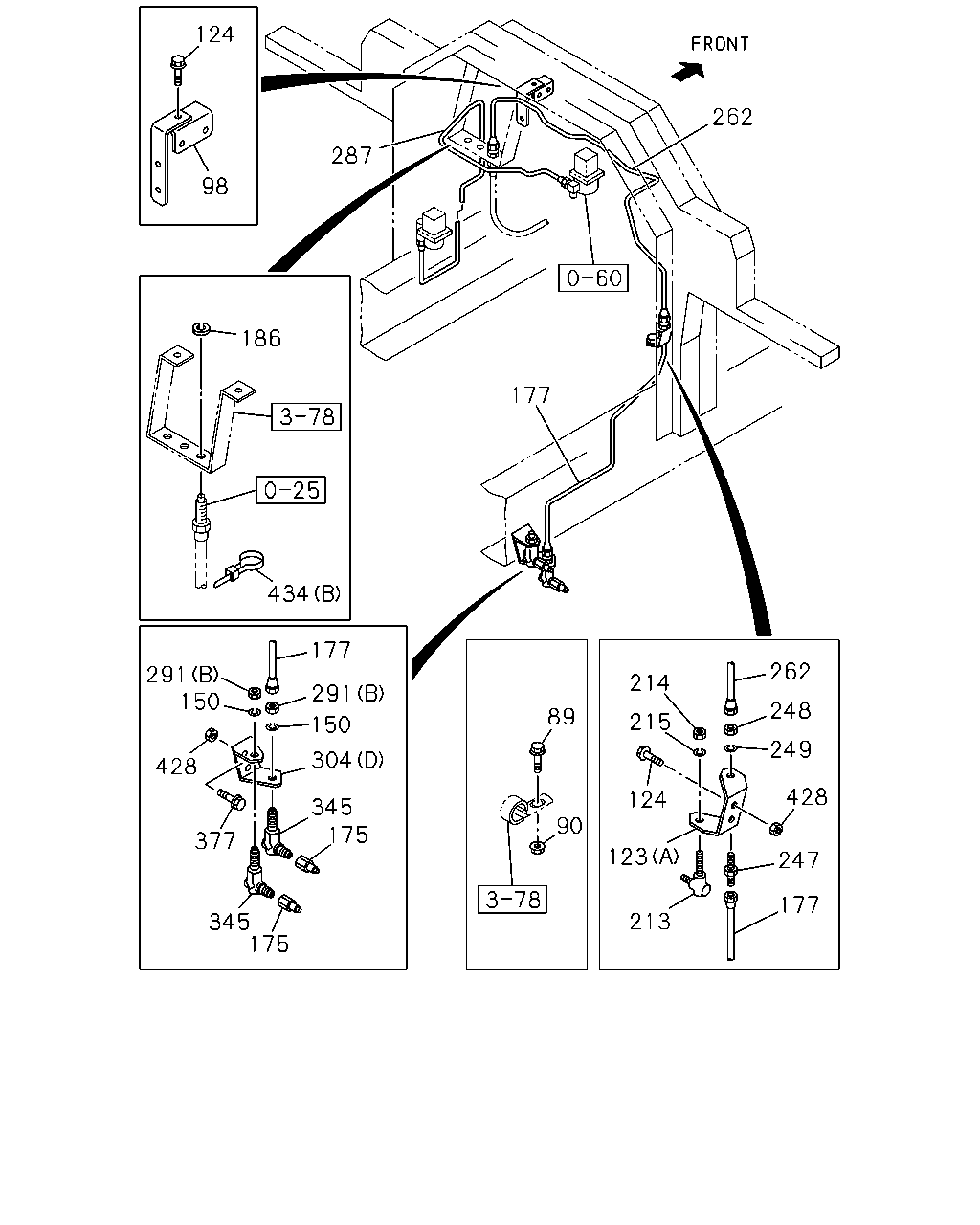

çizim 75545
124 262 287 98 186 177 434 177 262 291 150 214 291 248 89 215 150 249 304 428 428 124 345 175 90 377 123 247 177 213 345 175
BalonParca AdiParca NoAdetTipApplied Date
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512
89 BOLT; TUBE CLIP
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
90 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
90 NUT; TUBE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
98 BRACKET; AIR PIPE 1-47477-471-0 01 1 0107-
123 BRACKET; UNION
EXC. FULL FLOATING CAB(W16) (B) 		1-53458-742-2 01 1 0111-
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0107-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0107-0512
124 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
150 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 02 1 0107-0603
150 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0604-
175 CONNECTOR; AIR PIPE
DIN6 & M12 STRAIGHT 		1-09661-379-0 02 1 0107-
177 PIPE; AIR,UNION TO UNION
L=687 SERVICED BY L=700 		1-47428-811-0 01 1 0107-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0107-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0107-0607
213 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 01 1 0608-
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0107-
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0107-0603
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		0-91510-512-0 01 1 0604-
247 UNION; AIR PIPE
M12 L=66.5 		9-09223-306-1 01 1 0107-0607
247 UNION; AIR PIPE
M12 L=66.5 		0-92113-306-0 01 1 0608-
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0107-
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0107-0603
249 WASHER; LK,PIPE UNION
ID=12.2 		0-91510-512-0 01 1 0604-
262 PIPE; AIR,UNION TO FLEX 1-49121-783-0 01 1 0107-
287 PIPE; AIR,MAG VLV 1-49122-365-0 01 1 0107-0202
287 PIPE; AIR,MAG VLV
L=1269 SERVICED BY L=1370 		1-47428-818-0 01 1 0203-
291 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0107-0108
291 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (A) M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (A) M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJD7S M/T(Y2Y) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
ZF M/T<X9E> (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJD7S M/T(Y2Y) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
ZF M/T<X9E> (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0107-
304 BRACKET; UNION
(D) 		1-47477-045-0 01 1 0107-
304 BRACKET; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-183-1 01 1 0107-
304 BRACKET; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) (B) 		1-47477-182-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-47477-757-1 01 1 0107-
304 BRACKET; UNION
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
304 BRACKET; UNION
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (A) 		1-71117-210-0 01 1 0107-
345 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 02 1 0107-0607
345 UNION; AIR PIPE
M12 ELBOW 		0-92125-206-0 02 1 0608-
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28680-835-0 02 1 0107-0512
377 BOLT; BRKT FIX
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0602
428 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=25 H=30 L=35 		1-09700-875-0 01 1 0108-
434 CLIP
(A) D=24 L=21 		1-09700-380-0 01 1 0107-
434 CLIP
(B) L=250 		1-09707-126-0 01 1 0107-
434 CLIP
(D) ID=10 & 10 		1-09709-221-0 01 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 04 1 0107-
434 CLIP
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-
434 CLIP
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. AIR BAG(TFQ) (C) ID=8.3 & 8.3 		8-94426-175-0 03 1 0107-

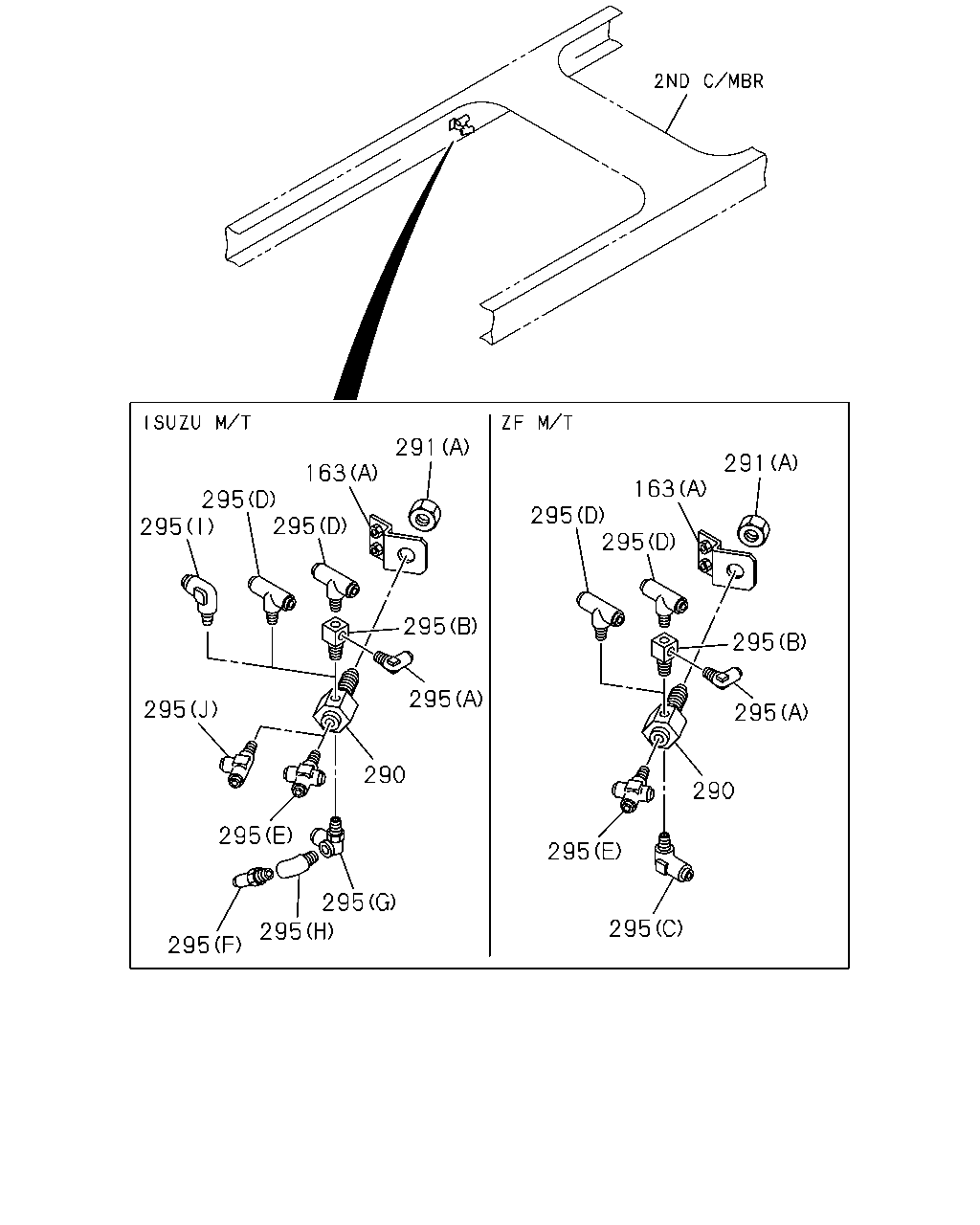

çizim 75620
291 291 163 163 295 295 295 295 295 295 295 295 295 295 290 290 295 295 295 295 295 295
BalonParca AdiParca NoAdetTipApplied Date
163 BRACKET; AIR PIPE
(B) 		1-34656-009-0 01 1 0107-
163 BRACKET; AIR PIPE
(A) 		1-47478-213-0 01 1 0107-0108
163 BRACKET; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (A) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) 		1-47478-213-0 01 1 0109-0206
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) 		1-47478-213-0 01 1 0207-
163 BRACKET; AIR PIPE
ZF M/T<X9E> (A) 		1-47478-213-0 01 1 0207-
290 UNION; AIR PIPE 1-09661-064-0 01 1 0107-0108
290 UNION; AIR PIPE
TRANSMISSION-ZF 16S151 OD(Y2N) 		1-09661-064-0 01 1 0109-0206
290 UNION; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) 		1-09661-064-0 01 1 0109-0206
290 UNION; AIR PIPE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) 		1-09661-064-0 01 1 0109-0206
290 UNION; AIR PIPE
MJD7S M/T(Y2Y) 		1-09661-064-0 01 1 0207-
290 UNION; AIR PIPE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) 		1-09661-064-0 01 1 0207-
290 UNION; AIR PIPE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) 		1-09661-064-0 01 1 0207-
290 UNION; AIR PIPE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) 		1-09661-064-0 01 1 0207-
290 UNION; AIR PIPE
ZF M/T<X9E> 		1-09661-064-0 01 1 0207-
291 NUT; UNION
(A) M22 		9-09111-422-0 01 1 0107-0108
291 NUT; UNION
TRANSMISSION-ZF 16S151 OD(Y2N) (A) M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (A) M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) M22 		9-09111-422-0 01 1 0109-0206
291 NUT; UNION
MJD7S M/T(Y2Y) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
ZF M/T<X9E> (A) M22 		9-09111-422-0 01 1 0207-0512
291 NUT; UNION
MJD7S M/T(Y2Y) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
ZF M/T<X9E> (A) M22 		0-91111-522-0 01 1 0601-
291 NUT; UNION
(B) M12 		9-09840-280-0 02 1 0107-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ELECTRICAL HORN(WB7) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN(WB7) TRANSMISSION-ZF 16S151 OD(Y2N) (J) 		1-09661-073-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (J) 		1-09661-073-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN(WB7) ZF M/T<X9E> EXC. FULL FLOATING CAB(W16) (J) 		1-09661-073-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) EXC. FULL FLOATING CAB(W16) (J) 		1-09661-073-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
(D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (D) DIN8X2 & R3/8 3WAY 		1-09660-996-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),ELECTRICAL HORN(WB7) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),ELECTRICAL HORN(WB7) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (J) DIN6X2 & R1/4 3WAY 		1-09661-070-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (F) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (G) 		1-09661-233-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (G) 		1-09661-233-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (G) 		1-09661-233-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (G) 		1-09661-233-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (G) 		1-09661-233-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (G) 		1-09661-233-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (G) 		1-09661-233-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (H) R1/4 & RC1/4 		1-09664-211-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) (I) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (I) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (I) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (I) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (E) 		1-09661-061-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) ZF M/T<X9E> (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. ELECTRICAL HORN(WB7) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (E) 		1-09661-061-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0107-0108
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0109-0206
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJD7S M/T(Y2Y) TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) ELECTRICAL HORN(WB7) FULL FLOATING CAB(W16) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
MJX16P M/T(Y3Z) EXC. ELECTRICAL HORN(WB7) (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
ZF M/T<X9E> (B) PT3/8 3WAY 		1-09661-300-0 01 1 0207-
295 CONNECTOR; NYLON TUBE
TRANSMISSION-ZF 16S151 OD(Y2N) (C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0107-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
