Sayfa 7-20 - Isuzu EPC

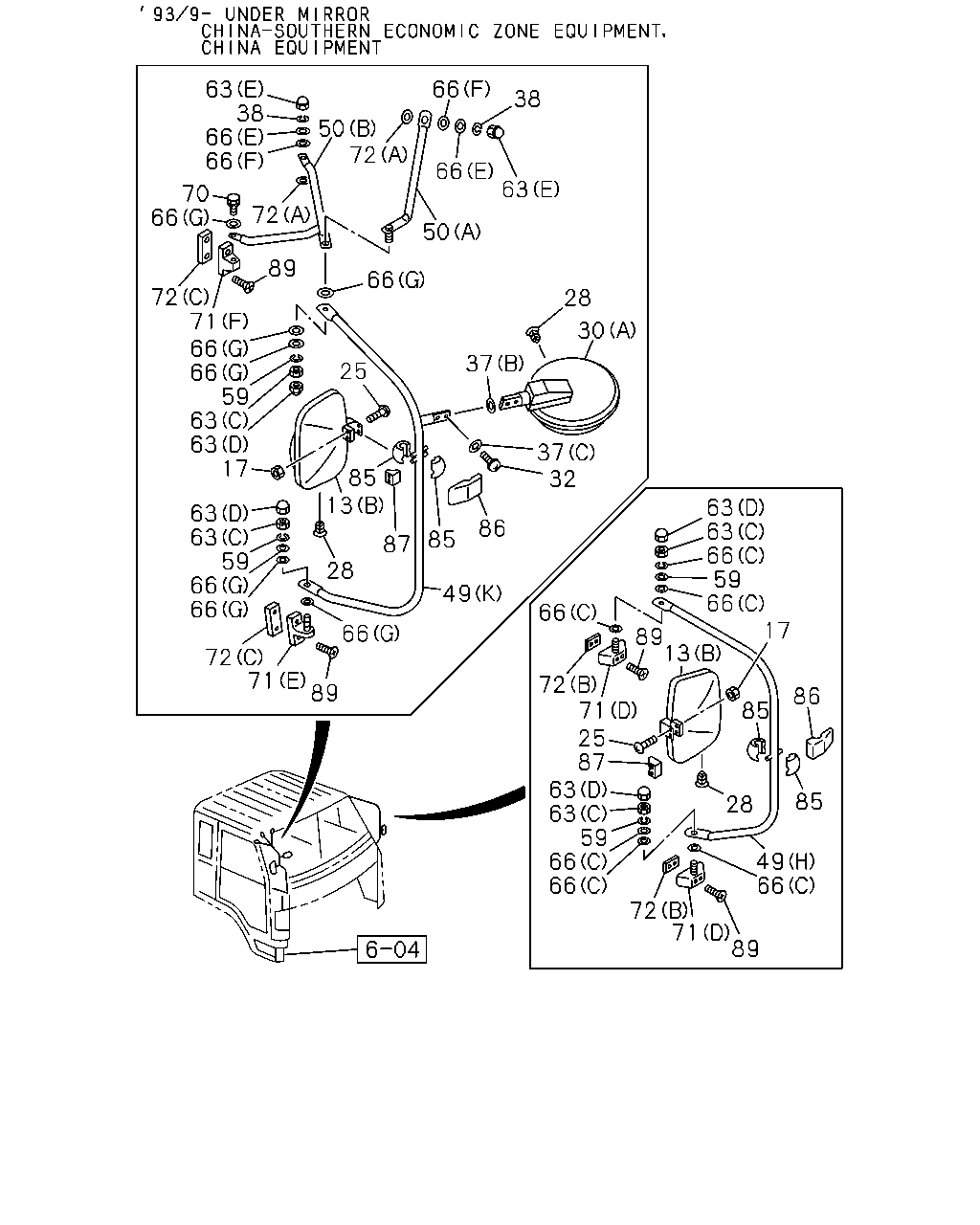

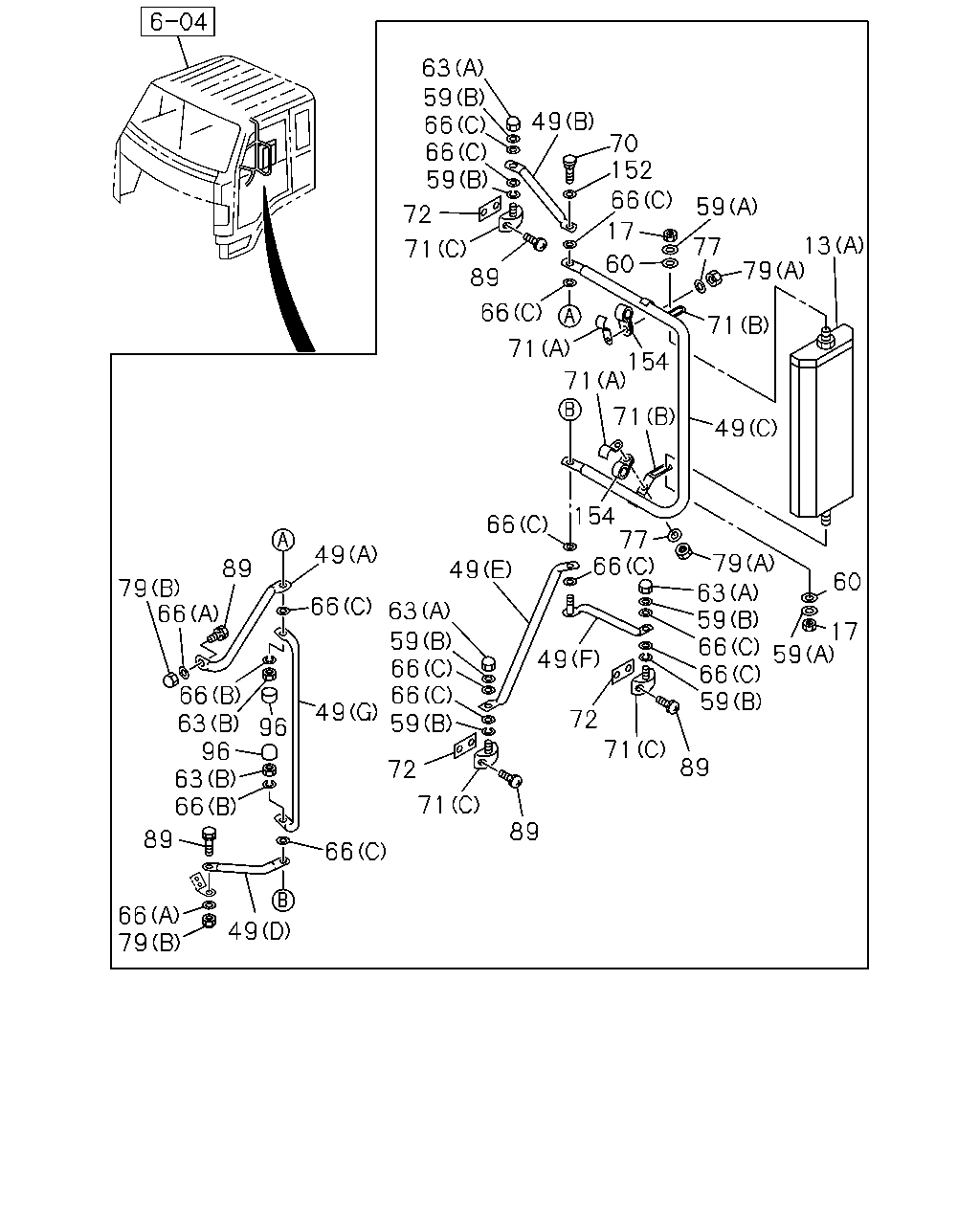

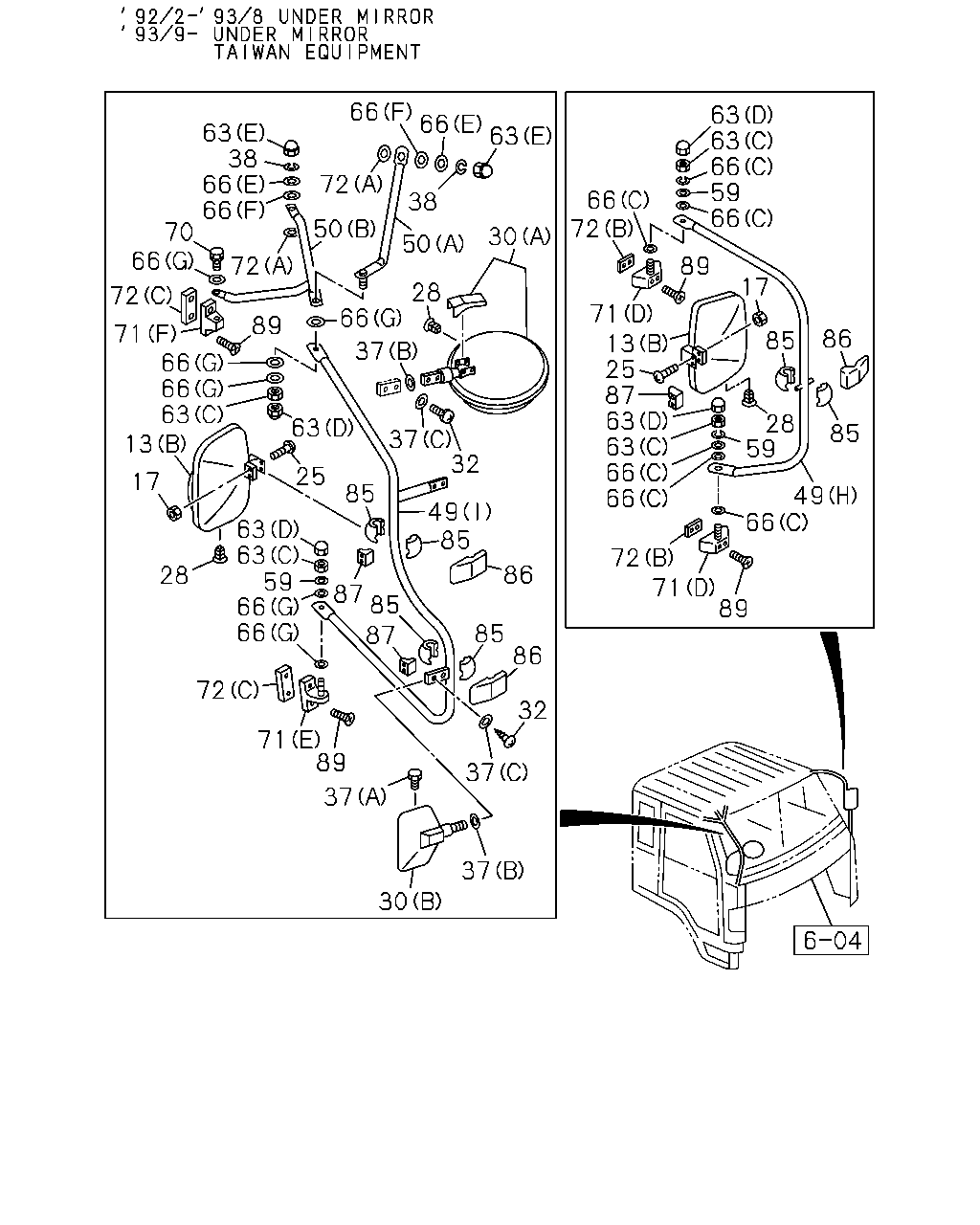

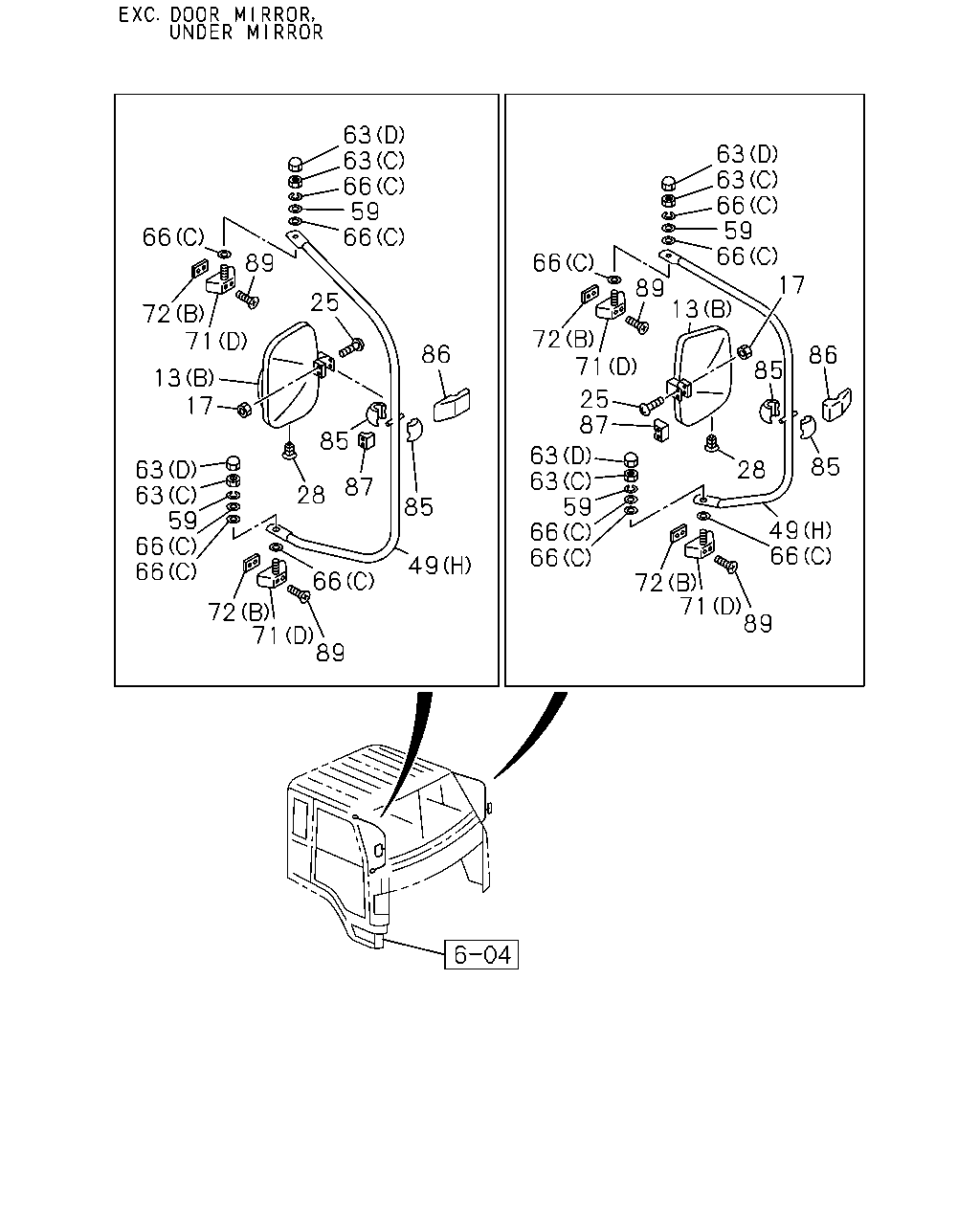

7-20 — MIRROR AND MIRROR STAY (#983) — 372 parça

63 38 66 66 66 38 50 72 66 63 70 66 72 50 89 66 72 71 66 66 59 63 63 17 28 30 37 25 37 32 85 13 63 63 66 59 66 17 63 63 59 66 66 86 85 87 28 49 66 66 89 13 72 71 89 72 71 25 87 63 63 59 66 66 86 85 85 28 49 66 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-0	01	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-917-0	01	1	9202-9308	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71737-917-0	01	1	9309-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M5X50	1-09981-444-0	04	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71736-662-4	01	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-920-1	01	1	9202-9308	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B) BLACK	1-71737-920-1	01	1	9309-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9202-9308	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9309-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	02	1	9202-9308	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71736-661-0	02	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-678-0	01	1	9202-9308	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (A) BLACK	1-71737-678-0	01	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-748-0	04	1	9202-9308	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (C)	1-71737-748-0	04	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-71736-661-0	01	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71737-748-0	02	1	9309-	●	●
38	WASHER; LK,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.2	1-09985-177-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71736-478-2	01	1	9202-9304	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71797-052-0	01	1	9305-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71798-244-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (I)	1-71736-666-2	01	1	9202-9308	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (I)	1-71736-666-2	01	1	9309-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K)	1-71798-448-0	01	1	9309-	●	●
50	STAY; CAB SIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71736-467-2	01	1	9202-	●	●
50	STAY; CAB SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-667-0	01	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> (B) ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	03	1	9309-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9309-	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	01	1	9309-	●	●
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (E) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	01	1	9309-	●	●
66	WASHER; PL DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (E) ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (F) ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9202-9308	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9309-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9309-	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S UNDER VIEW<RR9> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (F)	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-468-3	01	1	9202-	●	●
72	SHEET DOOR MIRROR<D32>	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	04	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (C) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. DOOR MIRROR<D32> ID=22.2	1-71736-489-2	04	1	9202-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-760-0	02	1	9202-	●	●
87	SPACER EXC. DOOR MIRROR<D32>	1-71737-704-0	01	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●

66 66 63 63 63 66 59 66 63 38 66 66 70 66 72 66 72 38 50 30 50 72 89 17 28 72 71 13 25 87 63 63 66 66 66 89 85 71 66 66 63 13 86 37 28 59 63 85 37 32 25 17 85 49 66 49 85 63 63 59 87 66 85 66 87 72 71 89 86 28 85 86 72 32 71 89 37 37 37 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-0	01	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-917-0	01	1	9202-9308	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71737-917-0	01	1	9309-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M5X50	1-09981-444-0	04	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71736-662-4	01	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-920-1	01	1	9202-9308	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B) BLACK	1-71737-920-1	01	1	9309-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9202-9308	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) M6X16 W/LK&PL WASHER	1-09981-431-0	04	1	9309-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	02	1	9202-9308	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71736-661-0	02	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71737-678-0	01	1	9202-9308	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (A) BLACK	1-71737-678-0	01	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	1-71737-748-0	04	1	9202-9308	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (C)	1-71737-748-0	04	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B)	1-71736-661-0	01	1	9309-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (C)	1-71737-748-0	02	1	9309-	●	●
38	WASHER; LK,UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> ID=8.2	1-09985-177-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71736-478-2	01	1	9202-9304	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71797-052-0	01	1	9305-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71798-244-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (I)	1-71736-666-2	01	1	9202-9308	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (I)	1-71736-666-2	01	1	9309-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K)	1-71798-448-0	01	1	9309-	●	●
50	STAY; CAB SIDE MIRROR O/S UNDER VIEW<RR9> (A)	1-71736-467-2	01	1	9202-	●	●
50	STAY; CAB SIDE MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-667-0	01	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> (B) ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	03	1	9309-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9309-	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	01	1	9309-	●	●
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (E) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	01	1	9309-	●	●
66	WASHER; PL DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (E) ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (F) ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9202-9308	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9309-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9309-	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S UNDER VIEW<RR9> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (F)	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-468-3	01	1	9202-	●	●
72	SHEET DOOR MIRROR<D32>	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	04	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (C) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. DOOR MIRROR<D32> ID=22.2	1-71736-489-2	04	1	9202-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-760-0	02	1	9202-	●	●
87	SPACER EXC. DOOR MIRROR<D32>	1-71737-704-0	01	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●

63 59 66 66 59 49 70 152 66 59 72 17 13 77 71 89 60 79 66 71 154 71 71 71 49 154 77 66 66 49 79 63 59 66 66 59 89 49 60 79 66 66 63 59 66 66 59 17 59 49 66 63 96 63 66 49 72 96 71 89 72 71 89 89 66 66 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-0	01	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-917-0	01	1	9202-9308	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71737-917-0	01	1	9309-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71736-478-2	01	1	9202-9304	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71797-052-0	01	1	9305-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71798-244-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (I)	1-71736-666-2	01	1	9202-9308	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (I)	1-71736-666-2	01	1	9309-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K)	1-71798-448-0	01	1	9309-	●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> (B) ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	03	1	9309-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9309-	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	01	1	9309-	●	●
60	WASHER; PL,OUTSIDE MIRROR DOOR MIRROR<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (E) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	01	1	9309-	●	●
66	WASHER; PL DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (E) ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (F) ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9202-9308	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9309-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9309-	●	●
70	BOLT; STAY TO BRKT DOOR MIRROR<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S UNDER VIEW<RR9> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (F)	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-468-3	01	1	9202-	●	●
72	SHEET DOOR MIRROR<D32>	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	04	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (C) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	02	1	9202-	●	●
77	WASHER; PL,BRKT,STAY DOOR MIRROR<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9202-	●	●
79	NUT; BRKT,STAY DOOR MIRROR<D32> (A) M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
79	NUT; BRKT,STAY DOOR MIRROR<D32> (B) M8 FLANGE	1-09984-126-0	04	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●
96	CAP; MIRROR STAY DOOR MIRROR<D32>	1-71736-199-0	04	1	9202-	●	●
152	SHEET; MIRROR STAY DOOR MIRROR<D32>	1-71736-357-0	02	1	9202-	●	●
154	SEAT; BRKT DOOR MIRROR<D32>	1-71736-479-0	04	1	9202-	●	●

63 63 66 59 66 63 63 66 59 66 17 66 66 89 89 13 25 72 71 72 71 86 86 85 13 17 25 87 85 63 63 59 66 66 85 28 63 63 59 66 66 87 28 85 49 66 49 66 72 71 89 72 71 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-0	01	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-917-0	01	1	9202-9308	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71737-917-0	01	1	9309-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M5X50	1-09981-444-0	04	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (B)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (D)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (G)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (E)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (F)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE DOOR MIRROR<D32> (C)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71736-478-2	01	1	9202-9304	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32> (H)	1-71797-052-0	01	1	9305-	●	●
49	STAY; MIRROR SIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (H)	1-71798-244-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> (I)	1-71736-666-2	01	1	9202-9308	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (I)	1-71736-666-2	01	1	9309-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (K)	1-71798-448-0	01	1	9309-	●	●
59	WASHER; LK DOOR MIRROR<D32> (A) ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK DOOR MIRROR<D32> (B) ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9202-9308	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	03	1	9309-	●	●
59	WASHER; LK EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	04	1	9309-	●	●
59	WASHER; LK MIRROR O/S UNDER VIEW<RR9> ID=10	1-09985-180-0	01	1	9309-	●	●
63	NUT; STAY DOOR MIRROR<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY DOOR MIRROR<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9202-9308	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	03	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	04	1	9309-	●	●
63	NUT; STAY EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	04	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (E) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (C) M10	1-09984-120-0	01	1	9309-	●	●
63	NUT; STAY MIRROR O/S UNDER VIEW<RR9> (D) M10	1-09984-145-0	01	1	9309-	●	●
66	WASHER; PL DOOR MIRROR<D32> (A) ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (B) OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL DOOR MIRROR<D32> (C) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (E) ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (F) ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	13	1	9202-9308	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9309-	●	●
66	WASHER; PL MIRROR O/S UNDER VIEW<RR9> (G) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9309-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (A)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (B)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR DOOR MIRROR<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (F)	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (D)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (E)	1-71736-468-3	01	1	9202-	●	●
72	SHEET DOOR MIRROR<D32>	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	04	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (A) ID=8.5 T=3 OD=30	1-71736-247-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (C) D=8 2-HOLE	1-71737-444-0	02	1	9202-	●	●
72	SHEET MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-428-0	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. DOOR MIRROR<D32> ID=22.2	1-71736-489-2	04	1	9202-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. DOOR MIRROR<D32> BLACK	1-71737-760-0	02	1	9202-	●	●
87	SPACER EXC. DOOR MIRROR<D32>	1-71737-704-0	01	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X20 W/LK&PL WASHER	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M8X22 W/LK&PL WASHER	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR DOOR MIRROR<D32> M6X20	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> M6X20	1-09981-494-0	08	1	9202-	●	●

132 13 87 133 134 25 134 30 132 135 17 6 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73117-026-1	01	1	9202-	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9202-	●	●
6	BUSHING; RR VIEW MIRROR DELUXE CAB(W14)	1-73318-342-0	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW DOOR MIRROR<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-918-0	01	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-917-0	01	1	9202-9308	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71737-917-0	01	1	9309-	●	●
17	NUT; CAP,MIRROR STAY DOOR MIRROR<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. DOOR MIRROR<D32> M5	1-09984-124-0	04	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. DOOR MIRROR<D32> M5X50	1-09981-444-0	04	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (A) BLACK	1-71736-662-4	01	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> (B) BLACK	1-71737-920-1	01	1	9202-9308	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B) BLACK	1-71737-920-1	01	1	9309-	●	●
87	SPACER EXC. DOOR MIRROR<D32>	1-71737-704-0	01	1	9202-	●	●
132	RING; MIRROR EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-934-0	01	1	9202-	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-933-0	01	1	9202-9308	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (A)	1-71737-933-0	01	1	9309-	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71737-935-0	01	1	9202-9308	●	●
132	RING; MIRROR MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5) (B)	1-71737-935-0	01	1	9309-	●	●
133	LENS; MIRROR,OUTSIDE EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>	1-71737-927-0	01	1	9202-	●	●
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9>	1-71737-926-0	01	1	9202-9308	●	●
133	LENS; MIRROR,OUTSIDE MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5)	1-71737-926-0	01	1	9309-	●	●
134	CLIP; MIRROR LENS EXC. DOOR MIRROR<D32>,MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	01	1	9202-	●	●
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9>	1-71737-936-0	02	1	9202-9308	●	●
134	CLIP; MIRROR LENS MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5)	1-71737-936-0	02	1	9309-	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR O/S UNDER VIEW<RR9>	1-71737-929-0	01	1	9202-9308	●	●
135	LENS; MIRROR,SIDE UNDER MIRROR O/S UNDER VIEW<RR9> TAIWAN EQUIPMENT(WW5)	1-71737-929-0	01	1	9309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
