Isuzu WW
▶
TRUCKS
▶
EXD
▶
10866 - EXD LHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶

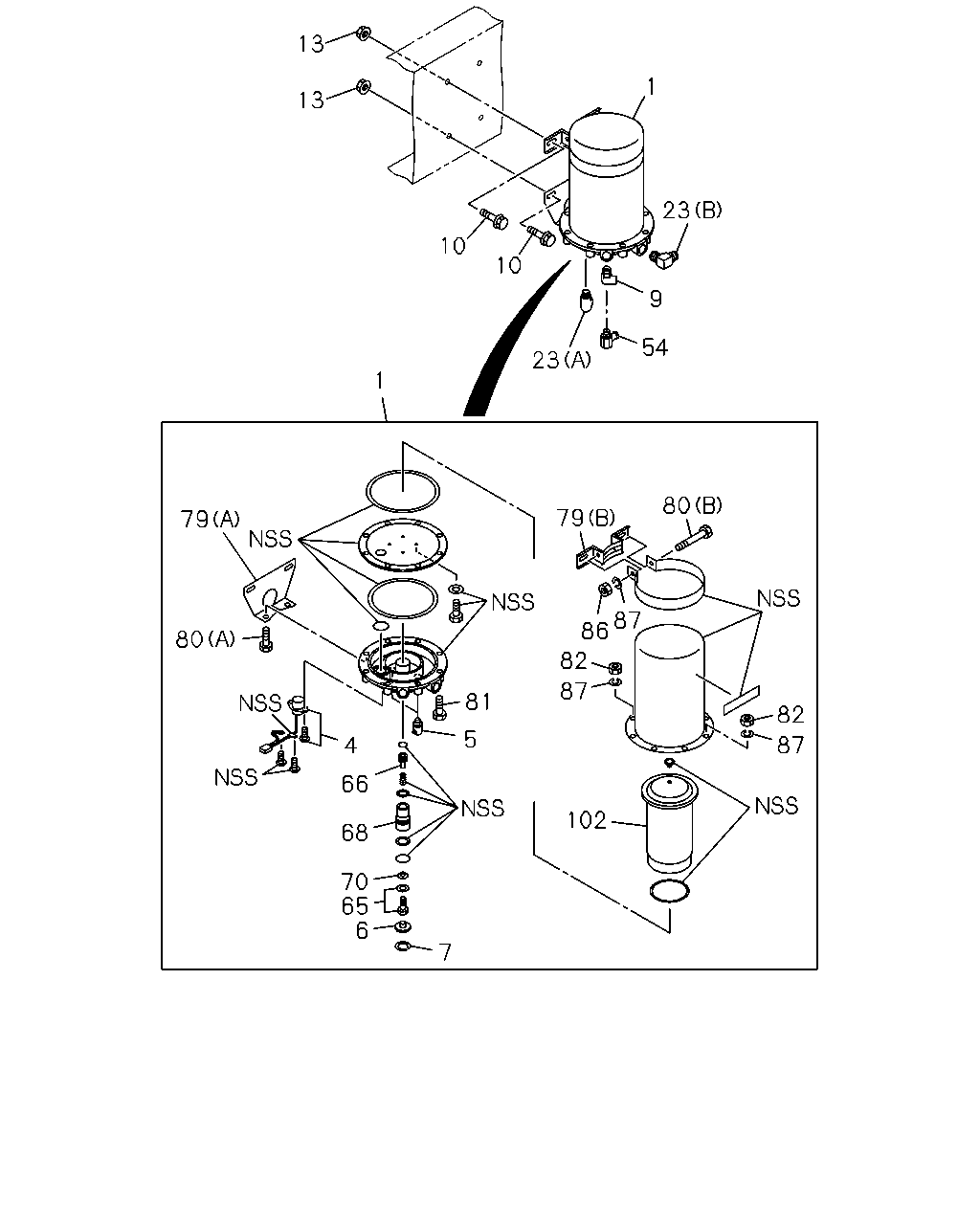

3-46 — AIR DRYER
(#9829) — 39 parça
◀
[346A] FIXING AND COMPONENT (29 parça)
[346A] THERMOSTAT,PISTON AND REPAIR KIT (10 parça)
▶
13
1
13
23
10
10
9
54
23
1
80
79
79
87
86
80
82
87
81
82
5
87
4
66
102
68
70
65
6
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-216-0
01
1
0107-0305
1
DRYER; AIR
AIR DRYER<PS7>
1-48190-324-0
01
1
0306-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-216-0
01
1
0107-
5
HEATER ASM; AIR DRYER
AIR DRYER<PS7>
1-48199-085-0
02
1
0107-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-419-0
01
1
0107-
7
RING; SNAP,AIR DRYER
AIR DRYER<PS7>
1-48199-154-0
01
1
0107-
9
CONNECTOR; PIPE,AIR DRYER
AIR DRYER<PS7> DIN6 & R1/4 ELBOW
1-09661-067-0
01
1
0107-
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X35 FLANGE
0-28681-035-0
04
1
0107-0512
10
BOLT; AIR DRYER
AIR DRYER<PS7> M10X35 FLANGE
0-28651-035-0
04
1
0601-
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91150-210-0
04
1
0107-0602
13
NUT; AIR DRYER
AIR DRYER<PS7> M10 FLANGE
0-91180-210-0
04
1
0603-
23
CONNECTOR; AIR TANK
AIR DRYER<PS7> (A) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0107-
23
CONNECTOR; AIR TANK
AIR DRYER<PS7> (B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
0107-
54
CONNECTOR
AIR DRYER<PS7>
8-94241-962-0
01
1
0107-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0107-
66
PISTON; AIR DRYER
AIR DRYER<PS7>
1-48199-198-0
01
1
0107-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-439-0
01
1
0107-0305
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-352-0
01
1
0306-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0107-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (A)
1-48199-336-0
01
1
0107-
79
BRACKET; AIR DRYER
AIR DRYER<PS7> (B)
1-48199-354-0
01
1
0107-
80
BOLT; BRKT
AIR DRYER<PS7> (B)
1-48199-335-0
01
1
0107-
80
BOLT; BRKT
AIR DRYER<PS7> (A)
1-48199-338-0
02
1
0107-
81
BOLT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-341-0
06
1
0107-
82
NUT; CASE,AIR DRYER
AIR DRYER<PS7>
1-48199-421-0
08
1
0107-
86
NUT; BRKT
AIR DRYER<PS7>
1-48199-333-0
01
1
0107-
87
WASHER; LK,BRKT
AIR DRYER<PS7>
1-48199-334-0
09
1
0107-
102
CARTRIDGE; AIR DRYER
AIR DRYER<PS7>
1-48199-347-0
01
1
0107-0305
102
CARTRIDGE; AIR DRYER
AIR DRYER<PS7>
1-48199-493-0
01
1
0306-
2
70
4
3
66
68
70
65
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-140-0
01
1
0107-0305
2
REPAIR KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-379-0
01
1
0306-
3
PISTON KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-139-0
01
1
0107-
4
THERMOSTAT KIT; AIR DRYER
AIR DRYER<PS7>
1-85576-216-0
01
1
0107-
6
COVER; EXH,AIR DRYER
AIR DRYER<PS7>
1-48199-419-0
01
1
0107-
65
BOLT; PURGE VLV
AIR DRYER<PS7>
1-48199-393-0
01
1
0107-
66
PISTON; AIR DRYER
AIR DRYER<PS7>
1-48199-198-0
01
1
0107-
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-439-0
01
1
0107-0305
68
BODY; VALVE
AIR DRYER<PS7>
1-48199-352-0
01
1
0306-
70
VALVE; AIR DRYER
AIR DRYER<PS7>
1-48199-105-0
01
1
0107-
