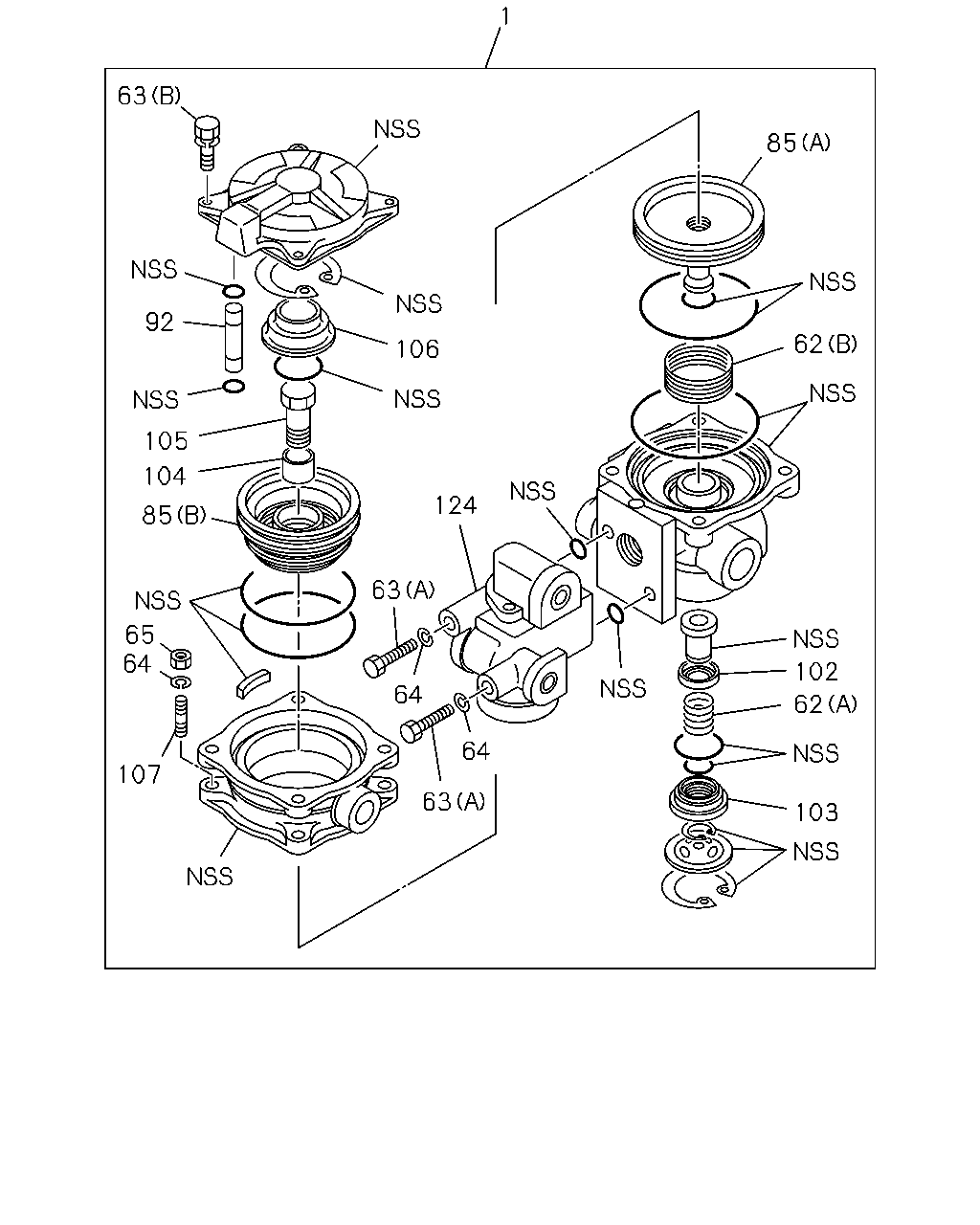

3-45 — LOAD SENSING PROPORTIONING VALVE (#9828) — 27 parça

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

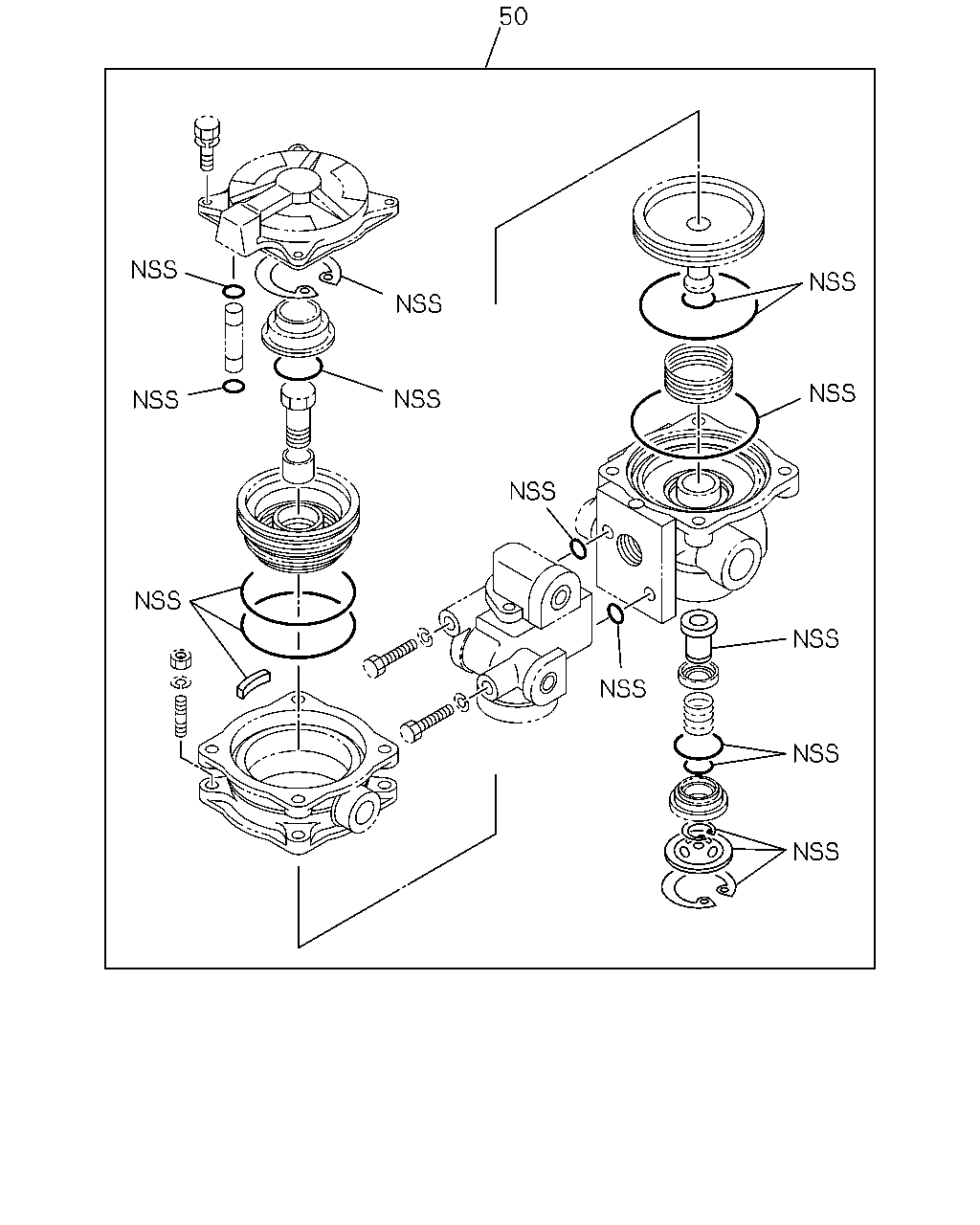

	50	REPAIR KIT; LSPV	1-85576-206-0	01	1	0107-

1 63 85 92 62 106 105 104 124 85 63 65 64 102 64 62 64 107 63 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-090-0	01	1	0107-
62	SPRING; LSPV (A)	1-47819-089-0	01	1	0107-
62	SPRING; LSPV (B)	1-47819-090-0	01	1	0107-
63	BOLT; LSPV (A)	1-47769-160-0	02	1	0107-
63	BOLT; LSPV (B)	1-48219-039-0	04	1	0107-
64	WASHER; LSPV ID=8.2	9-09150-508-0	06	1	0107-
65	NUT; LSPV	9-83315-085-0	04	1	0107-
85	PISTON; LSPV (A)	1-47769-058-0	01	1	0107-
85	PISTON; LSPV (B)	1-47769-059-0	01	1	0107-
92	PIPE; LSPV	1-47769-159-0	01	1	0107-
102	RETAINER; VALVE	1-48213-002-0	01	1	0107-
103	GUIDE; VALVE	1-48129-014-0	01	1	0107-
104	COLLAR; LSPV	1-47769-061-0	01	1	0107-
105	BOLT; PISTON	1-47769-062-0	01	1	0107-
106	COVER; PISTON	1-47769-063-0	01	1	0107-
107	STUD; LSPV	1-47769-064-0	04	1	0107-
124	VALVE; EMERGENCY	1-47769-161-0	01	1	0107-

101 1 101 21 101 101 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING	1-47720-090-0	01	1	0107-
21	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	03	1	0107-0512
21	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	03	1	0601-
101	CONNECTOR; LSPV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0107-
101	CONNECTOR; LSPV (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0107-
101	CONNECTOR; LSPV (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0107-
101	CONNECTOR; LSPV (D) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0107-
101	CONNECTOR; LSPV (E)	1-09661-126-0	01	1	0107-
101	CONNECTOR; LSPV (F)	1-09661-271-0	01	1	0107-
