10866 - EXD LHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

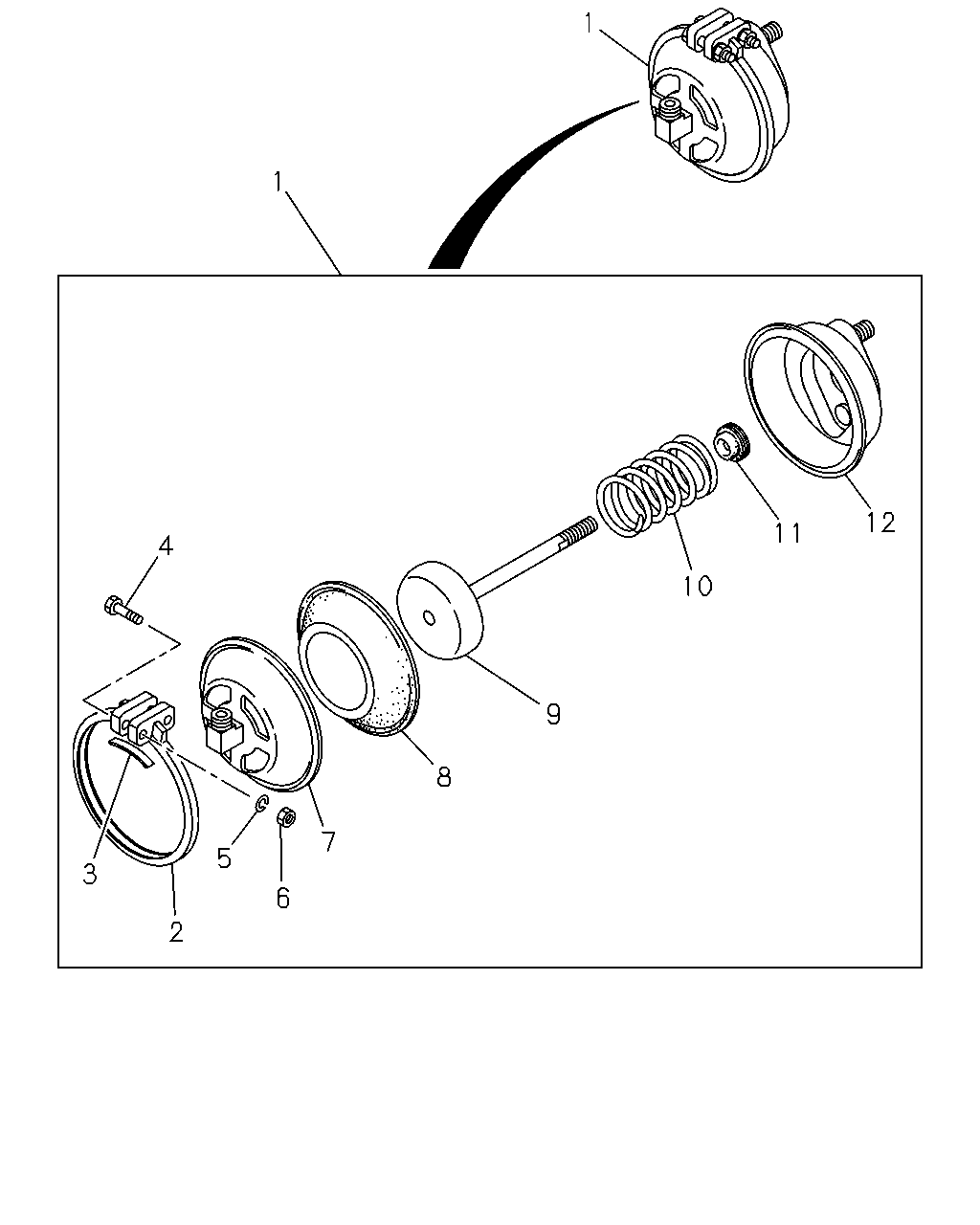

3-40 — FRONT BRAKE POWER CHAMBER
(#9826) — 15 parça
1
1
12
11
4
10
9
8
7
5
3
6
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
1-48250-338-0
02
1
0107-0203
1
CHAMBER ASM; POWER,FRT BRK
1-48250-062-2
02
1
0204-
2
RING; CLAMP,SPR CHAMBER
1-48259-001-0
02
1
0107-
3
RETAINER; DIAPH
9-48259-016-0
04
1
0107-0203
3
RETAINER; DIAPH
9-48259-016-0
02
1
0204-
4
BOLT; CLAMP RING
1-48259-002-0
04
1
0107-
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
0107-
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
0107-
7
COVER ASM; UPR,SPR CHAMBER
1-48251-039-0
02
1
0107-
8
DIAPHRAGM; SPR CHAMBER
1-48252-006-0
02
1
0107-0203
8
DIAPHRAGM; SPR CHAMBER
1-48252-054-0
02
1
0204-
9
PISTON; SPR CHAMBER
1-48253-001-0
02
1
0107-
10
SPRING; PISTON,SPR CHAMBER
1-48255-001-0
02
1
0107-
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
0107-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-019-0
02
1
0107-
