Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-25 - SWITCH AND RELAY; INSTRUMENT PANEL
▶

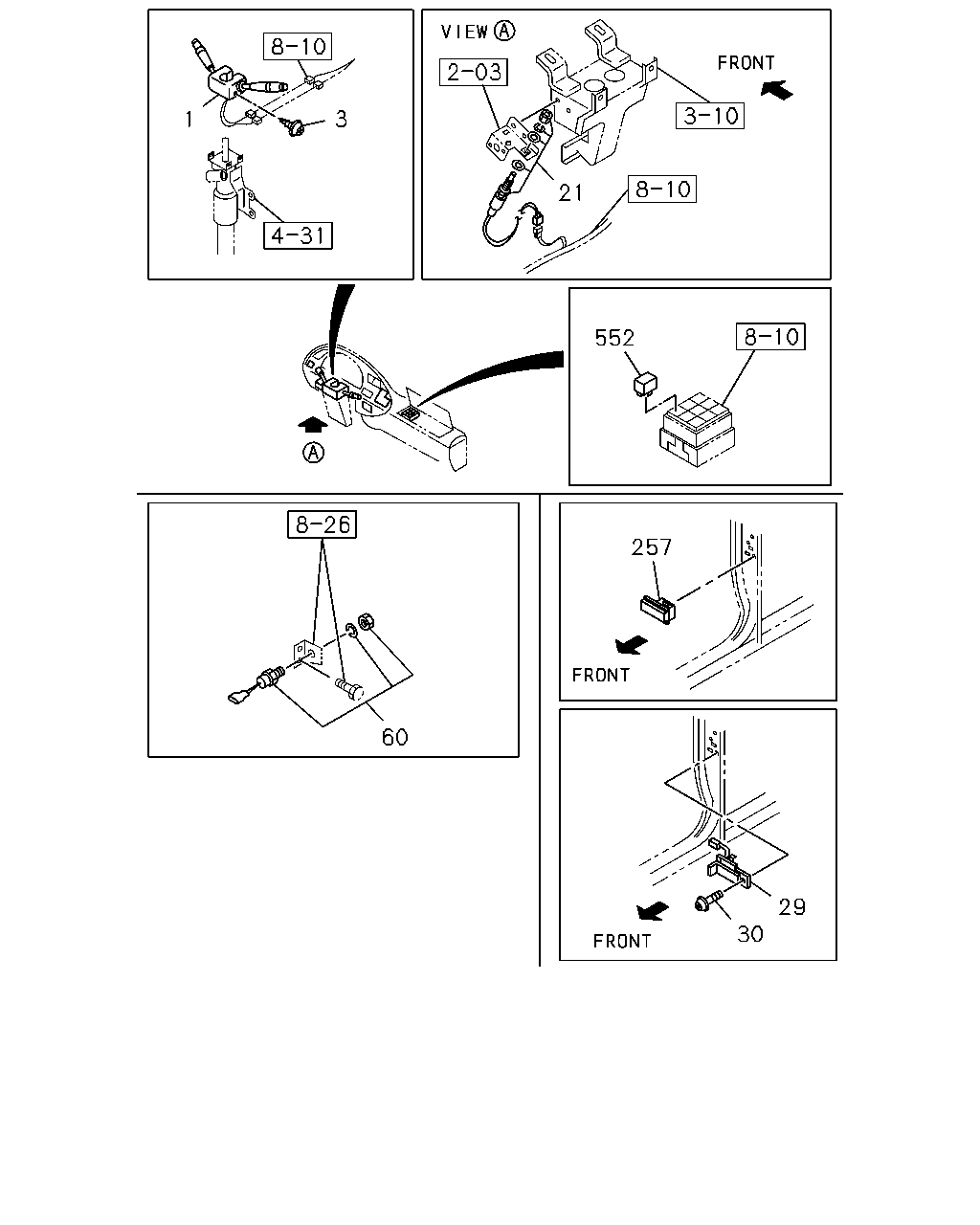

8-25 — SWITCH AND RELAY; INSTRUMENT PANEL
(#9823) — 12 parça
3
1
21
552
257
60
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SWITCH; COMB
1-82360-371-4
01
1
0011-0103
1
SWITCH; COMB
1-82360-642-0
01
1
0104-0312
1
SWITCH; COMB
1-82360-731-0
01
1
0401-
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74105-512-0
04
1
0011-0604
3
SCREW; COMB SW
M5X12 TAPPING W/PL WASHER
0-74165-512-0
04
1
0605-
21
SWITCH; CLU
1-82380-114-3
01
1
0011-
29
SWITCH; DOOR
8-97855-032-3
01
1
0011-
30
SCREW; DOOR SW
M5X11
1-09981-536-1
01
1
0011-
60
SWITCH; STARTER SUB
1-82380-107-1
01
1
0011-
257
COVER; HOLE,SW
8-94229-914-1
01
1
0011-
552
RELAY; CIGAR LIGHTER
24V 12.5A MITUBA
8-97062-815-1
01
1
0011-0111
552
RELAY; CIGAR LIGHTER
24V 12.5A PANASONIC
8-97262-933-0
01
1
0112-
