8-15 — FIXING PARTS; WIRING HARNESS (#9820) — 144 parça

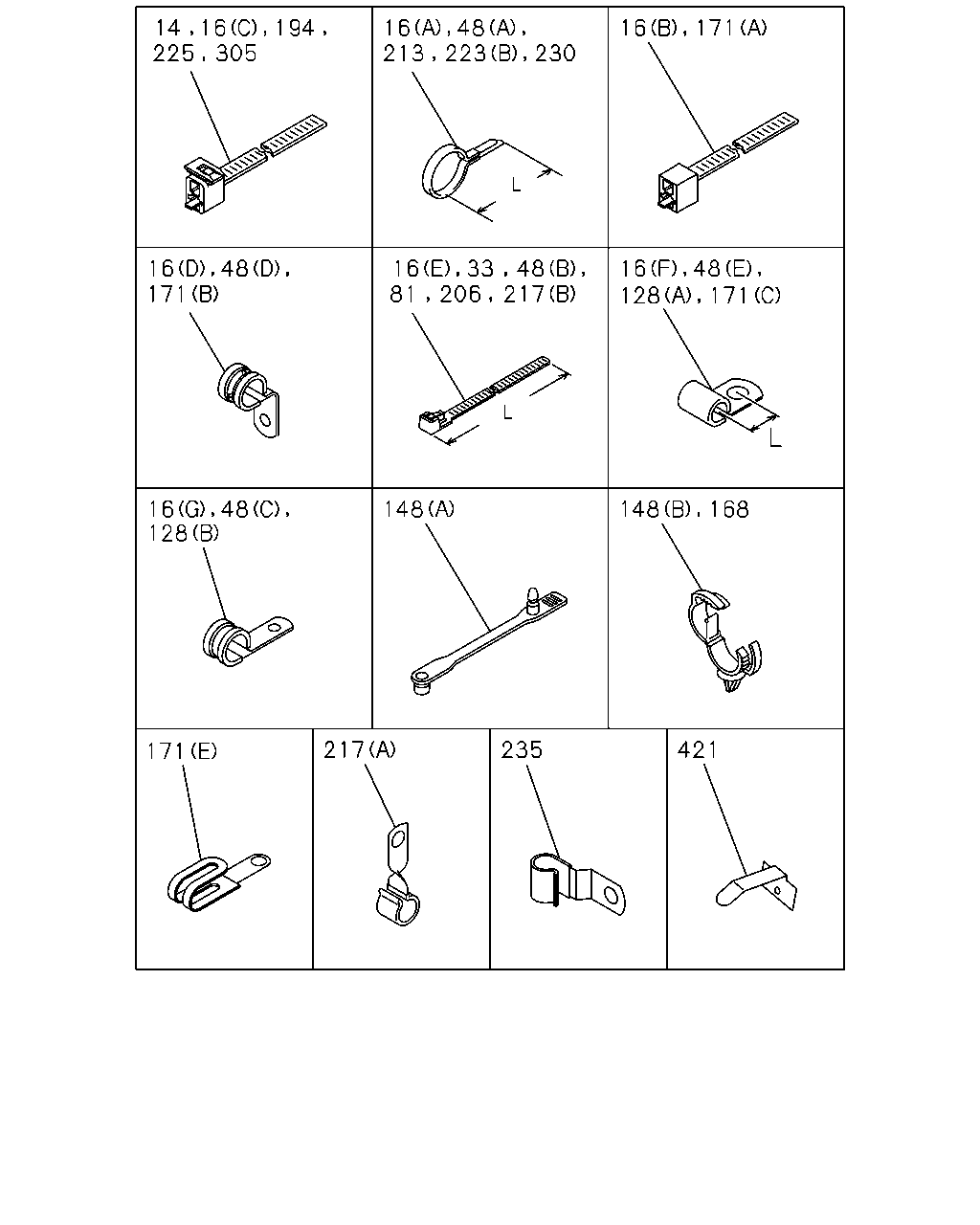

çizim 20435
194 16 171 171 81 128 171 128 168 148 148 217 235 421 171 14 16 225 305 16 48 213 223 230 16 48 16 33 48 206 217 16 48 16 48
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 01 1 0011-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0011-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 02 1 0011-
16 CLIP; HARNESS
(A) ID=11 L=41 		1-09700-403-0 03 1 0011-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0011-0104
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0011-0104
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 02 1 0105-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0011-
16 CLIP; HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 0011-
16 CLIP; HARNESS
(G) ID=25 L=50 		1-09701-019-0 01 1 0011-
16 CLIP; HARNESS
(G) ID=25 L=50 		1-09701-019-0 01 1 0011-
16 CLIP; HARNESS
(G) ID=24 L=40 		1-09701-139-0 01 1 0011-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0011-
16 CLIP; HARNESS
(C) L=180 		1-09707-162-1 01 1 0011-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0011-
16 CLIP; HARNESS
(F) ID=19 L=32 		9-09525-866-0 01 1 0011-0606
16 CLIP; HARNESS
(F) ID=19 L=32 		0-95235-866-0 01 1 0607-
33 CLIP; HARNESS,VLV
L=140 		5-09707-031-1 01 1 0011-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 07 1 0011-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 05 1 0011-
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 04 1 0011-
48 CLIP; FRAME HARNESS
(D) ID=25 H=30 L=35 		1-09700-875-0 01 1 0011-
48 CLIP; FRAME HARNESS
(C) ID=25 L=50 		1-09700-976-0 02 1 0011-
48 CLIP; FRAME HARNESS
(D) ID=24 H=40 L=24 		1-09701-243-1 01 1 0011-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 01 1 0011-
48 CLIP; FRAME HARNESS
(B) L=250 		5-09707-030-1 01 1 0011-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0011-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=14 L=44 		9-09917-427-0 02 1 0011-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 18 1 0011-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0011-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0011-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0011-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0011-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0011-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=19 L=32 		9-09525-862-0 01 1 0011-0011
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0012-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0011-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 		8-97069-515-0 01 1 0011-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0011-
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0011-
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0011-
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0011-
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 0011-0801
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-97367-985-1 01 1 0802-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0011-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0011-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0011-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0011-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0011-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0011-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 0011-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0011-
225 CLIP; AIR TANK HARNESS
L=180 		1-09707-162-1 01 1 0011-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0011-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0011-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0011-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0011-
çizim 73920
38 139 38 173 219 294 524 239 313 239 516 184 210 520 209 64 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28181-016-0 01 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28680-825-0 03 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28680-830-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-1201
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0011-1201
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0011-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
64 SCREW; CLIP
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 01 1 0011-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0011-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0107-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0011-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0601-
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0011-0512
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0011-1201
173 BOLT; STARTER EARTH
M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0011-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0011-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0011-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0011-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 02 1 0011-0104
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0105-0602
219 NUT
M8 FLANGE 		0-91180-108-0 04 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0011-0104
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0011-0104
219 NUT
M8 FLANGE 		0-91150-108-0 06 1 0105-0602
219 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
239 BOLT; GRAND
(A) M5X8 		0-20800-508-0 01 1 0011-
239 BOLT; GRAND
(B) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0011-1007
239 BOLT; GRAND
(B) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0011-1201
239 BOLT; GRAND
(B) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
294 NUT
M6 FLANGE 		0-91150-106-0 01 1 0011-0602
294 NUT
M6 FLANGE 		0-91180-106-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0011-0602
294 NUT
M8 FLANGE 		0-91180-108-0 02 1 0603-
313 BOLT; BRKT
M6X20 FLANGE 		0-28680-620-0 01 1 0011-0512
313 BOLT; BRKT
M6X20 FLANGE 		0-28650-620-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0011-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0011-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0011-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 75305
510 121 178 59 53 335 324 312 503 224 513 171 223 229 231 470
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS 1-47476-812-1 01 1 0011-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0011-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0011-
171 CLIP; STARTER HARNESS
(B) ID=21 L=30 H=40 		1-09700-991-1 01 1 0011-
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0011-
171 CLIP; STARTER HARNESS
(D) OD=9 H=6 		1-09709-178-0 01 1 0011-
171 CLIP; STARTER HARNESS
(A) ID=18 L=44 		8-94225-185-0 01 1 0011-0801
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-97367-985-1 01 1 0802-
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		9-09525-856-0 04 1 0011-0606
171 CLIP; STARTER HARNESS
(C) ID=19 L=28 		0-95235-856-0 04 1 0607-
178 GROMMET; HARNESS
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0011-
178 GROMMET; HARNESS
ID=19 OD=23 T=24 		1-09332-103-0 01 1 0011-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=17.5 		1-09709-181-0 01 1 0011-
223 CLIP; AIR TANK HARNESS
(B) ID=20 L=50 		9-09917-430-0 03 1 0011-
224 SLEEVE; RUBBER,HARNESS
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0011-
229 CLIP; STARTER SUB SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0011-
231 CLIP; BAND,OIL PRESS
OD=9 H=6 		1-09709-178-0 01 1 0011-
312 BRACKET; CLIP HARNESS 1-82699-109-0 01 1 0011-
324 BRACKET; CLIP
L=120 		1-82699-465-0 01 1 0011-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0011-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0011-
503 CONNECTOR 1-82690-668-0 01 1 0011-
510 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 01 1 0011-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 02 1 0011-
