Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

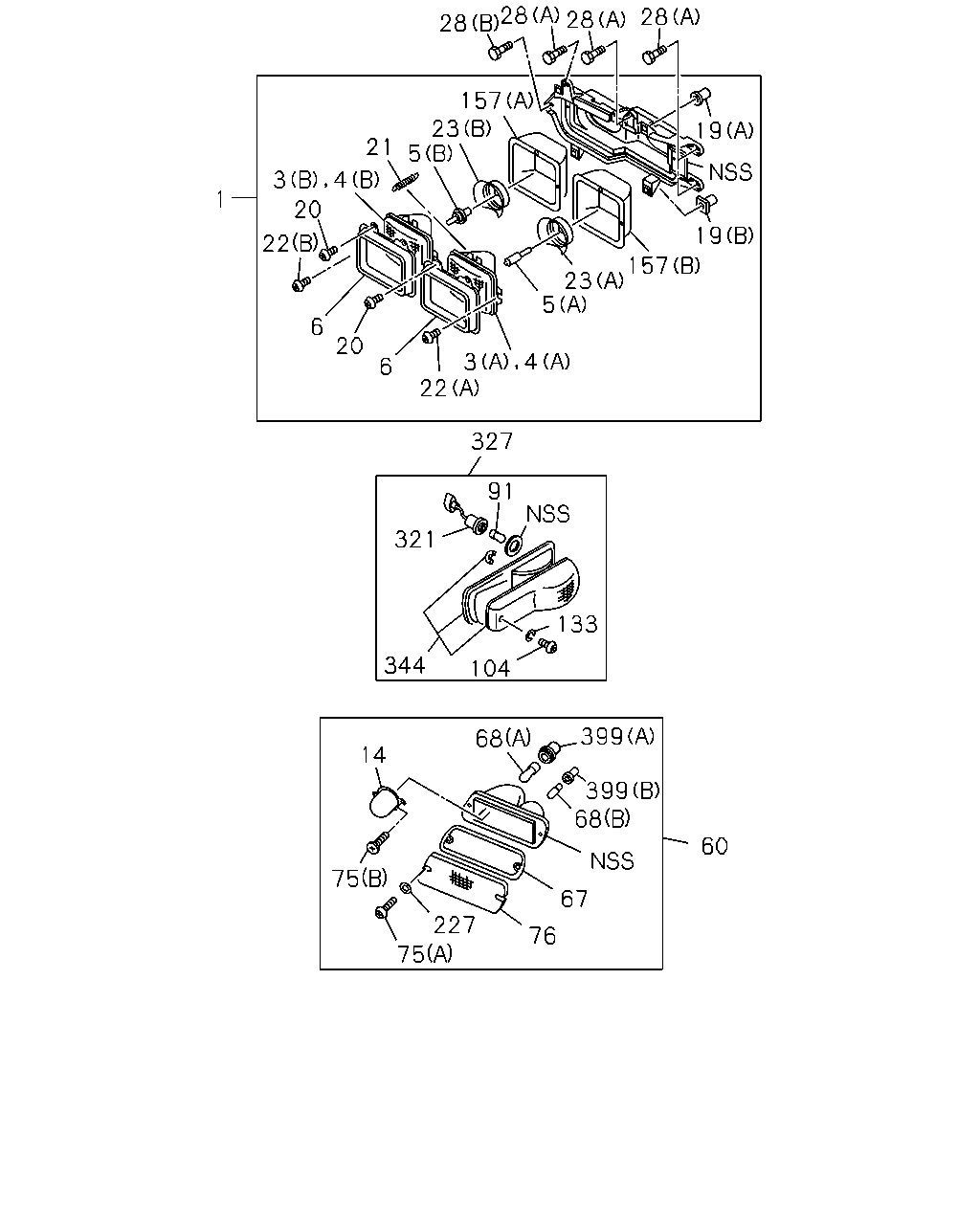

8-01 — LAMP; FRONT AND FRONT SIDE
(#9816) — 48 parça
28
28
28
28
157
23
5
19
21
1
20
19
22
157
23
5
6
20
3
22
4
6
327
91
321
133
344
104
399
68
14
399
68
60
75
67
227
76
75
3
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-86830-174-1
01
1
0011-0411
1
LAMP ASM; HEAD
1-86830-397-1
01
1
0412-
1
LAMP ASM; HEAD
1-86830-173-1
01
1
0011-0411
1
LAMP ASM; HEAD
1-86830-396-1
01
1
0412-
3
SEALED BEAM; HEADLAMP
(A) 24V 50/65W
8-94111-275-0
02
1
0011-0411
3
SEALED BEAM; HEADLAMP
(B) 24V 55W
8-94111-276-0
02
1
0011-0411
4
HEADLAMP UNIT
(A) TYPE 1 24V 70W
1-82191-032-0
02
1
0412-
4
HEADLAMP UNIT
(B) TYPE 2 24V 75/70W
1-82191-037-0
02
1
0412-
5
BULB; HEADLAMP
(B) 24V 75/70W
1-82194-063-0
02
1
0412-
5
BULB; HEADLAMP
(A) 24V 70W
8-94405-658-0
02
1
0412-
6
RIM; HEADLAMP
8-94165-573-0
04
1
0011-
14
CAP; BULB,LAMP
1-82219-030-0
02
1
0011-
19
NUT; HEADLAMP
(A)
1-82119-117-0
08
1
0011-
19
NUT; HEADLAMP
(B)
8-97044-618-0
08
1
0011-
20
SCREW; HEADLAMP
M4X8
8-94165-886-0
16
1
0011-
21
SPRING; ADJ HEADLAMP
1-82119-120-0
04
1
0011-0411
21
SPRING; ADJ HEADLAMP
1-82119-158-0
04
1
0412-
22
SCREW; ADJ,HEADLAMP
(A)
1-82119-118-0
07
1
0011-
22
SCREW; ADJ,HEADLAMP
(B)
1-82119-119-0
01
1
0011-
23
COVER; BULB,HEADLAMP
(B)
1-82119-220-0
02
1
0412-
23
COVER; BULB,HEADLAMP
(A)
1-82119-221-0
02
1
0412-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
08
1
0011-
28
BOLT; HEADLAMP
(B) M8X24.5 W/LK&PL WASHER
8-94279-208-0
02
1
0011-0904
28
BOLT; HEADLAMP
(B) M8X24.5 W/LK&PL WASHER
8-98059-720-0
02
1
0905-
60
LAMP ASM; FRT COMB
1-82210-221-0
01
1
0011-
60
LAMP ASM; FRT COMB
1-82210-220-0
01
1
0011-
67
GASKET; FRT COMB LAMP
1-82216-033-0
02
1
0011-
68
BULB; FRT COMB LAMP
(A) 24V 21W
1-82194-036-0
02
1
0011-
68
BULB; FRT COMB LAMP
(B) 24V 5W
8-94135-397-0
02
1
0011-
75
SCREW; FRT COMB LAMP
(A)
1-82219-026-0
04
1
0011-
75
SCREW; FRT COMB LAMP
(B)
1-82219-031-0
04
1
0011-
76
LENS; FRT COMB LAMP
1-82215-071-0
01
1
0011-
76
LENS; FRT COMB LAMP
1-82215-070-0
01
1
0011-
91
BULB; SIDE TURN SIGNAL
24V 12W
1-82194-030-0
02
1
0011-
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0011-
133
WASHER; PL,SIDE FLASHER LAMP
1-86830-150-0
02
1
0011-0206
157
RING; MTG,HEADLAMP
(B)
1-82119-032-0
01
1
0011-
157
RING; MTG,HEADLAMP
(A)
1-82119-033-0
01
1
0011-
157
RING; MTG,HEADLAMP
(A)
1-82119-031-0
01
1
0011-
157
RING; MTG,HEADLAMP
(B)
1-82119-034-0
01
1
0011-
227
SEAT; SET SCREW,FRT COMB LAMP
1-82216-032-0
04
1
0011-
321
HARNESS; SIDE FLASHER LAMP
1-86830-253-0
02
1
0011-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-011-6
01
1
0011-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-007-6
01
1
0011-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-241-1
01
1
0011-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-240-1
01
1
0011-
399
SOCKET; TURN SIGNAL
(B)
1-82219-033-0
02
1
0011-
399
SOCKET; TURN SIGNAL
(A)
1-82219-034-0
02
1
0011-
