Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#9814) — 29 parça
◀
[750A] NO.2 (10 parça)

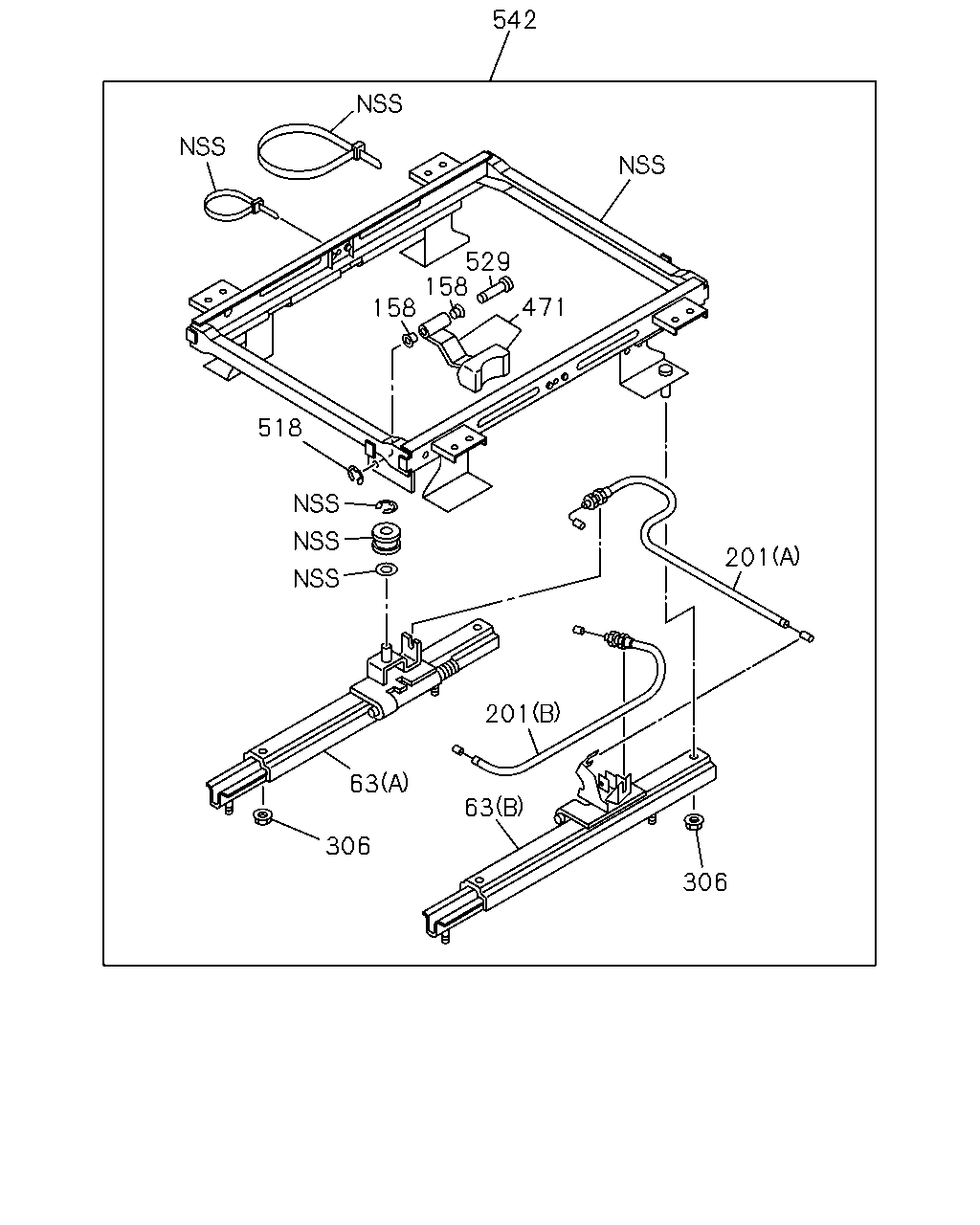

[750A] NO.1 (19 parça)
▶
542
529
158
158
471
518
201
201
63
63
306
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
63
ADJUSTER; SEAT SLIDE
(A)
1-75518-227-0
01
1
0011-
63
ADJUSTER; SEAT SLIDE
(B)
1-75518-295-1
01
1
0011-
158
BUSHING; LINK ARM
1-75518-209-0
02
1
0011-
201
CABLE; ADJ
(A) L=667
1-75518-288-0
01
1
0011-
201
CABLE; ADJ
(B) L=605
1-75518-289-0
01
1
0011-
306
NUT; SEAT ADJ
M8 FLANGE
1-75538-207-0
04
1
0011-
471
LEVER; SEAT ADJ
1-75518-290-0
01
1
0011-
518
NUT; TILT ADJ
1-75518-263-0
01
1
0011-
529
PIN; LINK
1-75518-262-0
01
1
0011-
542
ADJUSTER ASM; SEAT SLIDE
1-75518-283-1
01
1
0011-
1
2
99
17
12
18
13
24
228
19
542
73
55
46
42
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
1-75026-720-0
01
1
0011-
2
COVER; TRIM,FRT SEAT,BACK
1-75116-599-0
01
1
0011-
12
CUSHION; SEAT,FRT
1-75026-685-0
01
1
0011-
13
COVER; TRIM,FRT SEAT,CUSHION
1-75116-553-0
01
1
0011-
17
BOLT; RECLINING
M8X20
8-97255-906-0
02
1
0011-
18
COVER; RECLINING
1-75418-052-0
01
1
0011-
19
SCREW; COVER
M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0011-
24
KNOB; RECLINING,FRT,SEAT
1-75418-056-0
01
1
0011-
42
STAND; DRIVER SEAT
1-75558-604-0
01
1
0011-
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0011-0104
46
BOLT; STAND TO FLOOR
M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0105-0703
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0704-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0011-0104
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
1-09984-153-0
02
1
0105-0703
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
0704-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
08
1
0011-
99
BUSHING; SEAT BACK
8-97854-087-0
01
1
0011-
228
SCREW; KNOB
M4X6
8-97042-273-0
01
1
0011-
542
ADJUSTER ASM; SEAT SLIDE
1-75518-283-1
01
1
0011-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
