◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#981) — 8 parça

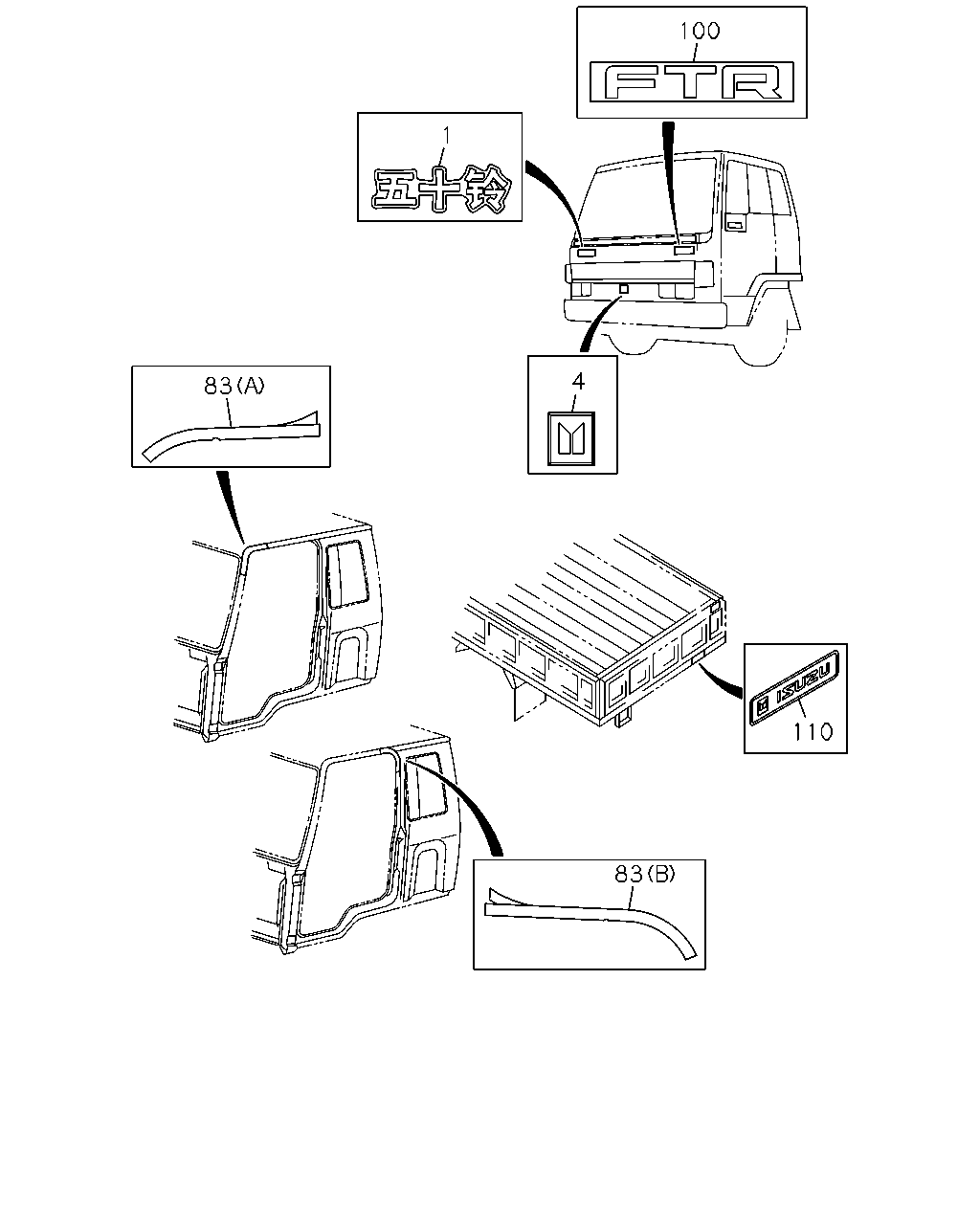

çizim 94325
100 1 4 83 110 83
BalonParca AdiParca NoAdetTipApplied Date A B
1 MARK; ISUZU
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) 		1-76210-433-1 01 1 9202- ● ●
4 EMBLEM; RAD GRILLE 1-76210-367-0 01 1 9202- ● ●
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) CLEAR 		1-65500-225-0 01 1 9202- ● ●
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) CLEAR 		1-65500-227-0 01 1 9202- ● ●
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (A) CLEAR 		1-65500-224-0 01 1 9202- ● ●
83 PROTECTOR; SUB SEAL,DOOR
CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB),CHINA EQUIPMENT(YT2) (B) CLEAR 		1-65500-226-0 01 1 9202- ● ●
100 EMBLEM; PET NAME 1-76210-358-1 01 1 9202- ● ●
110 EMBLEM; "ISUZU",RR BODY 1-76210-310-0 01 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
