5-01 — FRAME AND OTHER PARTS (#9801) — 82 parça

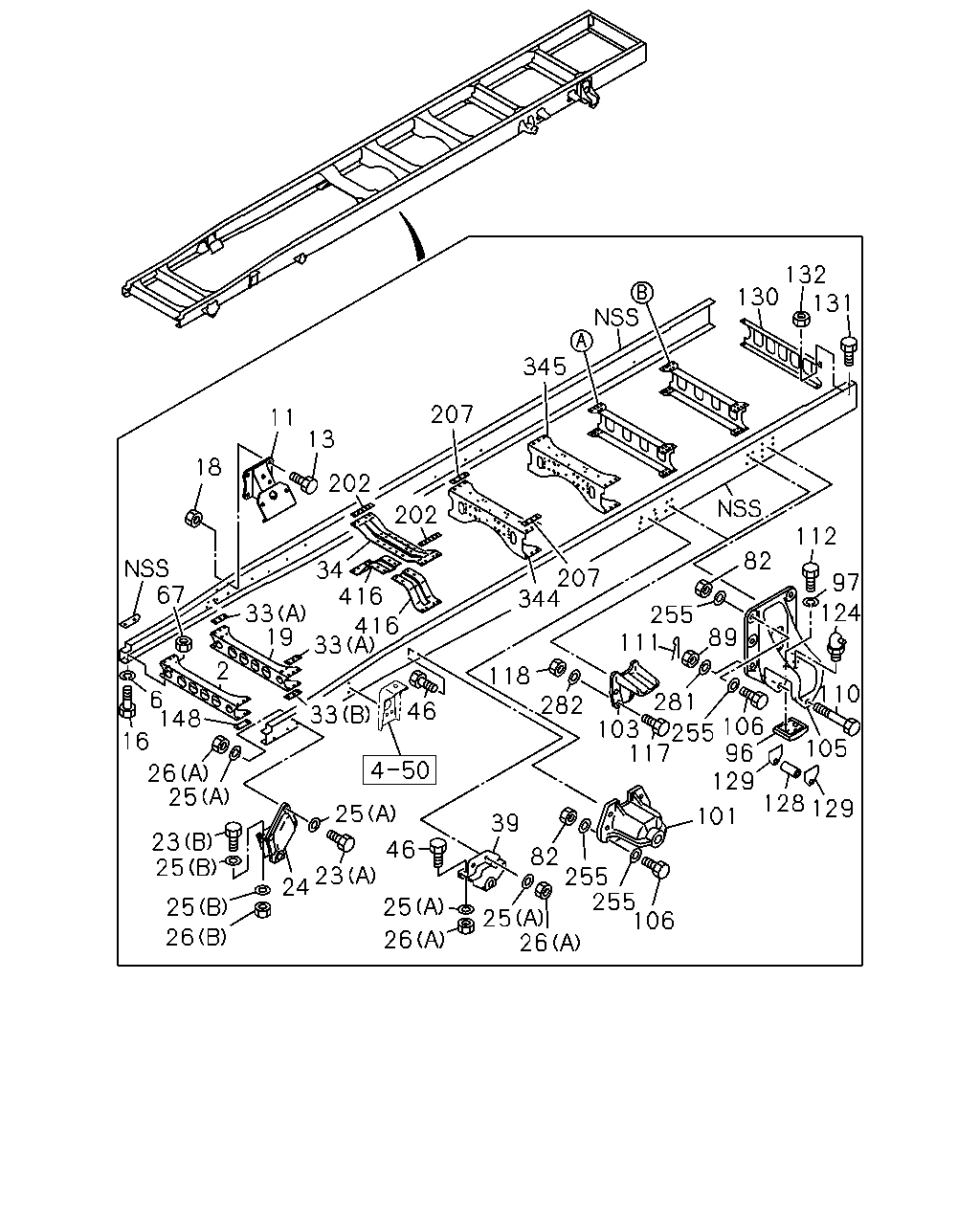

çizim 20957
132 130 131 345 207 11 13 18 202 202 112 82 67 34 416 416 33 207 344 97 255 111 124 33 19 89 2 6 148 118 282 110 103 106 255 105 117 96 129 281 33 46 16 26 25 128 129 25 101 39 23 25 46 82 255 255 106 23 24 25 25 25 26 26 26
BalonParca AdiParca NoAdetTipApplied Date
2 MEMBER; CROSS,1ST 1-53181-670-9 01 1 0011-
6 WASHER; LK,1ST C/MBR
ID=16.2 		9-09150-616-0 02 1 0011-0603
6 WASHER; LK,1ST C/MBR
ID=16.2 		0-91510-616-0 02 1 0604-
11 BRACKET; ENG MTG 1-53211-196-0 02 1 0011-
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28691-235-0 08 1 0011-0512
13 BOLT; BRKT,ENG MTG
M12X35 FLANGE 		0-28661-235-0 08 1 0601-
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20801-640-0 02 1 0011-0512
16 BOLT; 1ST C/MBR TO S/MBR
M16X40 		0-20851-640-0 02 1 0601-
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91150-212-0 08 1 0011-0602
18 NUT; BRKT,ENG MTG
M12 FLANGE 		0-91180-212-0 08 1 0603-
19 MEMBER; CROSS,2ND 1-53181-671-9 01 1 0011-0410
19 MEMBER; CROSS,2ND 8-97606-306-0 01 1 0411-
23 BOLT; BRKT,SPR
(A) M14X45 		9-92061-445-0 06 1 0011-
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 0011-0512
23 BOLT; BRKT,SPR
(B) M16X50 		0-20951-650-0 04 1 0601-
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 0011-
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 0011-
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 0011-
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 28 1 0011-1201
25 WASHER; PL,BRKT
(A) ID=15 		8-98010-627-1 28 1 1202-
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 14 1 0011-0512
26 NUT; BRKT,SPR
(A) M14 		0-91110-514-0 14 1 0601-
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 0011-0512
26 NUT; BRKT,SPR
(B) M16 		0-91110-516-0 04 1 0601-
33 SPACER; 2ND C/MBR,UPR
(A) UPPER 		1-53168-276-0 02 1 0011-
33 SPACER; 2ND C/MBR,UPR
(B) LOWER 		1-53168-287-0 02 1 0011-
34 MEMBER; CROSS,3RD 1-53174-231-2 01 1 0011-
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 0011-
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 0011-
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 08 1 0011-0512
46 BOLT; BRKT FIX
M14X40 		0-20951-440-0 08 1 0601-
67 NUT; C/MBR
M16 		9-99110-516-0 02 1 0011-0512
67 NUT; C/MBR
M16 		0-91110-516-0 02 1 0601-
82 NUT; BRKT
M14 		9-99110-514-0 24 1 0011-0512
82 NUT; BRKT
M14 		0-91110-514-0 24 1 0601-
89 NUT; LEAF SPR STOPPER
M14 		9-99116-414-0 02 1 0011-0604
89 NUT; LEAF SPR STOPPER
M14 SLOTTED 		0-91116-514-0 02 1 0605-
96 PAD; RR SPR 1-53359-047-0 02 1 0011-
97 WASHER; LK,PAD
ID=14.2 		9-09150-514-0 04 1 0011-0603
97 WASHER; LK,PAD
ID=14.2 		0-91510-514-0 04 1 0604-
101 BRACKET; RR SPR,FRT 1-53353-078-1 02 1 0011-
103 STOPPER; SUB SPR 1-53356-057-0 04 1 0011-
105 BRACKET; RR SPR,RR 1-53354-064-1 02 1 0011-
106 BOLT; BRKT
M14X45 		9-92061-445-0 24 1 0011-
110 BOLT; LEAF SPR STOPPER 1-09000-007-0 02 1 0011-
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		9-08113-028-0 02 1 0011-0606
111 PIN; SPLIT,LEAF SPR STOPPER
OD=2.8 L=28 		0-81123-028-0 02 1 0607-
112 BOLT; PAD
M14X35 		0-20801-435-0 04 1 0011-0512
112 BOLT; PAD
M14X35 		0-20851-435-0 04 1 0601-
117 BOLT; STOPPER
M14X45 		9-92061-445-0 16 1 0011-
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 0011-0512
118 NUT; STOPPER
M14 		0-91110-514-0 16 1 0601-
124 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0011-0512
124 NIPPLE; GREASE
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601-
128 COLLAR; RUBBER 1-53359-004-0 02 1 0011-
129 SHIM; SIDE
T=4.5 		1-53359-061-1 02 1 0011-
129 SHIM; SIDE
T=3.2 		1-53359-062-1 02 1 0011-
130 MEMBER; CROSS,END 1-53181-151-2 01 1 0011-
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28681-230-0 04 1 0011-0512
131 BOLT; END C/MBR
M12X30 FLANGE 		0-28651-230-0 04 1 0601-
132 NUT; END C/MBR
M12 FLANGE 		0-91150-112-0 04 1 0011-0602
132 NUT; END C/MBR
M12 FLANGE 		0-91180-112-0 04 1 0603-
148 SPACER; C/MBR 1-53168-341-0 02 1 0011-
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 0011-
207 SPACER; 4TH C/MBR 1-53168-163-1 02 1 0011-
255 WASHER; PL,BRKT
ID=15 		9-09651-069-0 48 1 0011-1201
255 WASHER; PL,BRKT
ID=15 		8-98010-627-1 48 1 1202-
281 WASHER; LEAF SPR STOPPER
ID=15 OD=30 		9-09160-614-0 04 1 0011-
282 WASHER; PL,STOPPER
ID=15 		9-09651-069-0 16 1 0011-1201
282 WASHER; PL,STOPPER
ID=15 		8-98010-627-1 16 1 1202-
344 MEMBER; CROSS,4TH 1-53171-953-2 01 1 0011-
345 MEMBER; CROSS,5TH 1-53171-953-2 01 1 0011-
416 GUSSET; 3RD C/MBR 1-53164-214-1 01 1 0011-
416 GUSSET; 3RD C/MBR 1-53164-213-1 01 1 0011-
çizim 75226
69 69 57 69 69 69 69 86 69 69
BalonParca AdiParca NoAdetTipApplied Date
57 MEMBER; CROSS,RR SUSP FRT 1-53181-815-1 01 1 0011-
69 GUSSET; RR SUSP,UPR
(A) 21-HOLE 		1-53167-095-5 01 1 0011-
69 GUSSET; RR SUSP,UPR
(B) 21-HOLE 		1-53167-096-4 01 1 0011-
69 GUSSET; RR SUSP,UPR
(C) 17-HOLE 		1-53167-097-5 01 1 0011-
69 GUSSET; RR SUSP,UPR
(D) 17-HOLE 		1-53167-098-5 01 1 0011-
69 GUSSET; RR SUSP,UPR
(E) 		1-53167-099-4 02 1 0011-
69 GUSSET; RR SUSP,UPR
(F) 		1-53167-100-3 02 1 0011-
86 MEMBER; CROSS,RR SUSP RR 1-53181-815-1 01 1 0011-
