Isuzu WW
▶
TRUCKS
▶
FTR
▶
10627 - FTR-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-90 - REAR BUMPER
▶

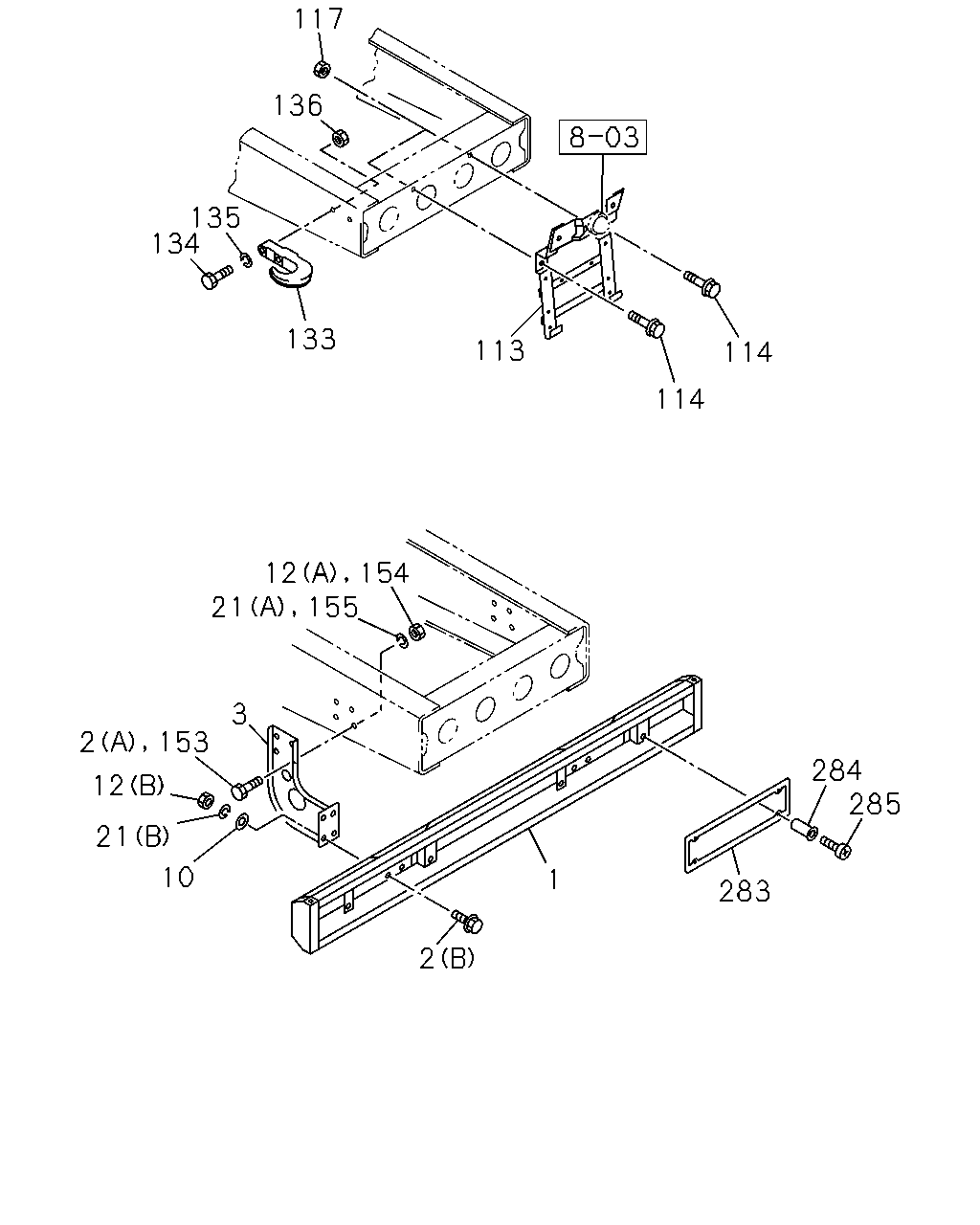

6-90 — REAR BUMPER
(#980) — 25 parça
Tümü
A - FTR6MC
B - FTR6MF
117
136
135
134
133
113
114
114
12
154
21
155
3
2
153
284
285
12
21
10
1
283
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BUMPER; RR
REAR BUMPER,REINFORCEMENT<SMS> STAMP B3M
1-71220-077-2
01
1
9308-
●
●
2
BOLT; BACK BAR
REAR BUMPER,REINFORCEMENT<SMS> (A) M16X40
0-20801-640-0
04
1
9308-
●
●
2
BOLT; BACK BAR
REAR BUMPER,REINFORCEMENT<SMS> (B) M12X30 W/LK WASHER
0-50041-230-0
08
1
9308-
●
●
3
BRACKET; BUMPER
REAR BUMPER,REINFORCEMENT<SMS> STAMP BU
1-71230-255-1
01
1
9308-
●
●
3
BRACKET; BUMPER
REAR BUMPER,REINFORCEMENT<SMS> STAMP BU
1-71230-254-1
01
1
9308-
●
●
10
WASHER; PL,BRKT
REAR BUMPER,REINFORCEMENT<SMS> ID=12.5 OD=32
9-09160-712-0
08
1
9308-
●
●
12
NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS> (B) M12
9-99110-512-0
08
1
9308-
●
●
12
NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS> (A) M16
9-99110-516-0
04
1
9308-
●
●
21
WASHER; LK,BUMPER
REAR BUMPER,REINFORCEMENT<SMS> (B) ID=12.2
9-09150-512-0
08
1
9308-
●
●
21
WASHER; LK,BUMPER
REAR BUMPER,REINFORCEMENT<SMS> (A) ID=16.2
9-09150-816-0
04
1
9308-
●
●
113
BRACKET; LICENSE PLATE
1-53485-048-2
01
1
9202-
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
0-28010-820-0
02
1
9202-9204
●
●
114
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
0-28080-820-0
02
1
9205-
●
●
117
NUT; BRKT
M8
9-09110-408-0
02
1
9202-
●
●
133
HOOK
1-57181-027-1
01
1
9202-
●
●
134
BOLT; HOOK
M16X65
0-10811-665-0
01
1
9202-
●
●
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
9202-
●
●
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
9202-
●
●
136
NUT; HOOK
M16
9-99110-416-0
02
1
9202-
●
●
153
BOLT; BRKT
REAR BUMPER,REINFORCEMENT<SMS> M16X40
0-20801-640-0
08
1
9308-
●
●
154
NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS> M16
9-99110-516-0
08
1
9308-
●
●
155
WASHER; LK,BRKT
REAR BUMPER,REINFORCEMENT<SMS> ID=16.2
9-09150-816-0
08
1
9308-
●
●
283
REFLECTOR; REFLEX,RR
REFLECTOR,SEPARATE TYPE<SMR>
1-82290-040-0
02
1
9308-
●
●
284
NUT; REFLECTOR
REFLECTOR,SEPARATE TYPE<SMR> M6
1-09470-003-0
08
1
9308-
●
●
285
BOLT; REFLECTOR
REFLECTOR,SEPARATE TYPE<SMR> M6X24 W/PL WASHER
8-94496-062-0
08
1
9308-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
