4-60 — REAR SUSPENSION (#9798) — 48 parça

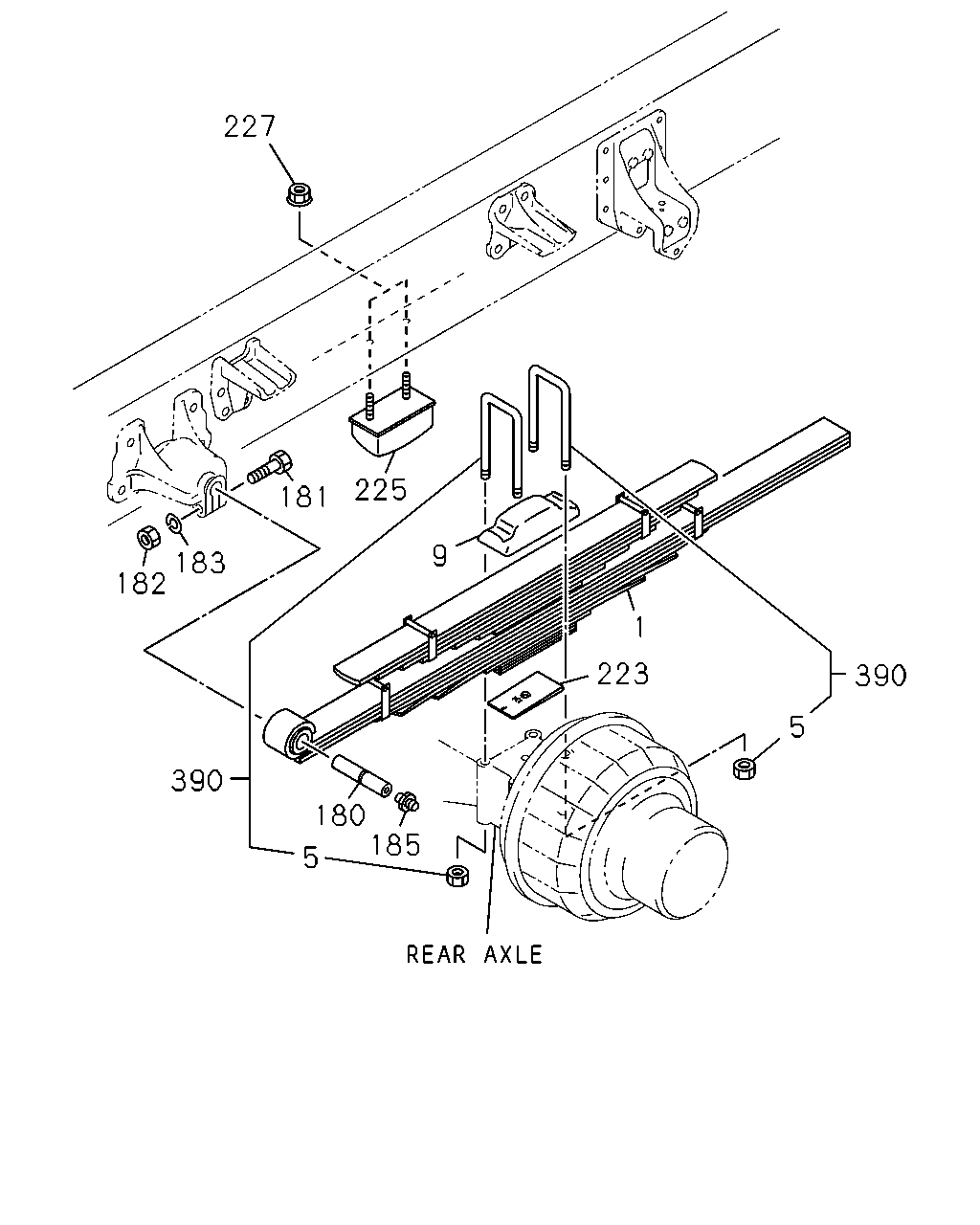

227 225 181 9 183 182 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF	1-51300-352-0	02	1	0011-
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0011-0512
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	0011-
180	PIN; RR SPR	1-51361-020-0	02	1	0011-1105
180	PIN; RR SPR	1-51361-026-0	02	1	1106-
181	BOLT; SPR & SHACKLE M14X80	0-10806-480-0	02	1	0011-0512
181	BOLT; SPR & SHACKLE M14X80	0-10856-480-0	02	1	0601-
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	0011-0512
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	0011-0603
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0011-0512
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-
223	SPACER; U BOLT,RR SPR	1-51377-371-1	02	1	0011-1212
225	RUBBER; CUSHION,RR SPR	1-53366-081-1	02	1	0011-
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	0011-0602
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-
390	U-BOLT SET; RR SPRING L=490	1-87870-036-4	04	1	0011-

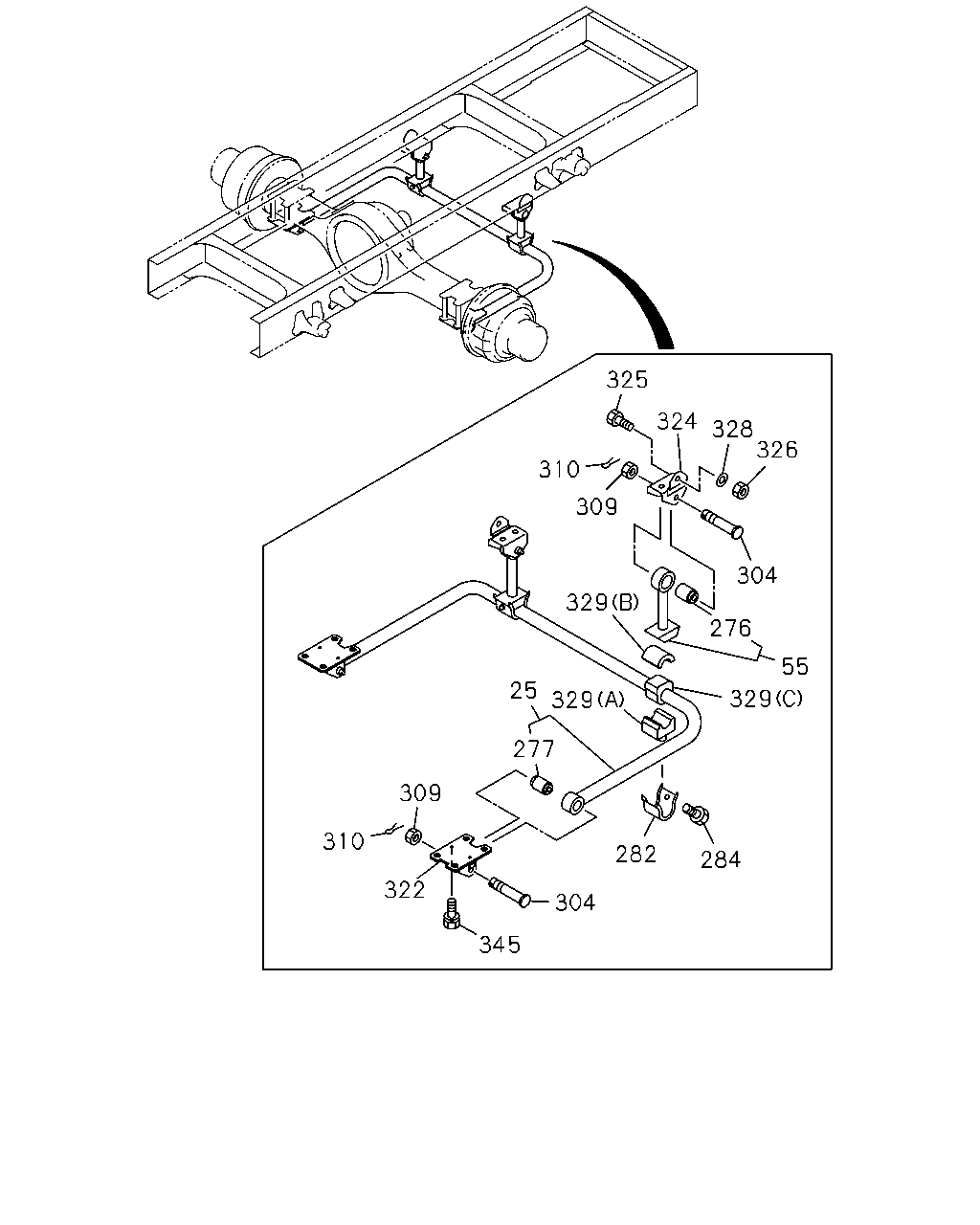

325 324 328 326 310 309 304 329 276 55 329 329 25 277 284 282 304 345 322 309 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
25	BAR ASM; STAB,RR SUSP REAR STABILIZER SHAFT<F61>	1-51770-030-2	01	1	0011-
55	ROD; STAB REAR STABILIZER SHAFT<F61>	1-51770-035-1	02	1	0011-
276	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61>	1-51779-019-0	04	1	0011-0401
276	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61>	1-51779-019-0	02	1	0402-
277	BUSHING; STAB,RR UPR REAR STABILIZER SHAFT<F61>	1-51779-067-0	02	1	0011-
282	RETAINER; STAB BAR REAR STABILIZER SHAFT<F61>	1-51789-015-2	02	1	0011-
284	BOLT; RET TO RET REAR STABILIZER SHAFT<F61> M10X25	8-94463-351-0	08	1	0011-
304	PIN; STAB ROD REAR STABILIZER SHAFT<F61>	1-51789-020-2	04	1	0011-
309	NUT; STAB ROD REAR STABILIZER SHAFT<F61> M24	9-99116-424-0	04	1	0011-
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	9-08115-045-0	04	1	0011-0606
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	0-81125-045-0	04	1	0607-
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61>	1-51781-127-0	01	1	0011-
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61>	1-51781-048-4	01	1	0011-
324	BRACKET; STAB BAR TO FRAME REAR STABILIZER SHAFT<F61>	1-51781-059-0	02	1	0011-
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X40	9-92061-440-0	02	1	0011-0104
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X50	9-92061-450-0	04	1	0105-0512
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X50	0-20951-450-0	04	1	0601-
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X45	9-92061-445-0	04	1	0011-0104
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X45	9-92061-445-0	02	1	0105-
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14	9-99110-514-0	06	1	0011-0104
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14	9-99110-514-0	04	1	0105-0512
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14	0-91110-514-0	04	1	0601-
328	WASHER; PL,BRKT REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	12	1	0011-0109
328	WASHER; PL,BRKT REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	10	1	0110-0910
328	WASHER; PL,BRKT REAR STABILIZER SHAFT<F61> ID=15	8-98010-627-1	10	1	0911-
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (B)	1-51789-051-1	02	1	0011-1405
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (C)	1-51789-016-0	02	1	1406-
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (A)	1-51789-052-0	02	1	0011-1405
345	BOLT; BRKT REAR STABILIZER SHAFT<F61> M10X16 FLANGE	0-28081-016-0	04	1	0011-0112
