◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10854 - FVR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55 - FRONT LEAF SPRING ▶
4-55 — FRONT LEAF SPRING (#9797) — 23 parça

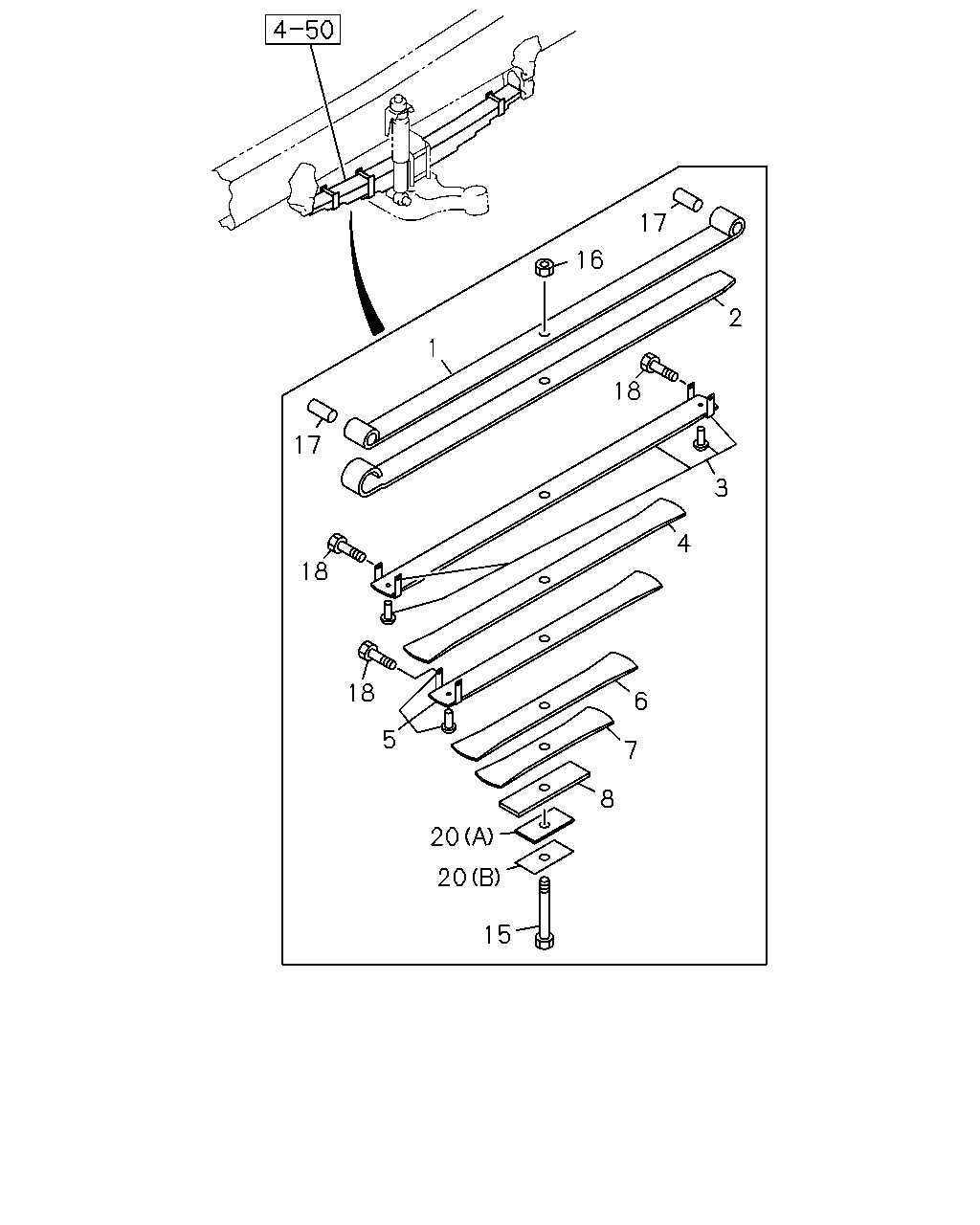

çizim 76953
17 16 2 1 18 17 3 4 18 18 6 5 7 8 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING; LEAF,NO 1,FRT
ASM PART: A = 1-51130-343-0 		1-51131-343-0 01 1 -
1 SPRING; LEAF,NO 1,FRT
ASM PART: B = 1-51130-474-0 		1-51131-474-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: A = 1-51130-343-0 		1-51132-343-0 01 1 -
2 SPRING; LEAF,NO 2,FRT
ASM PART: B = 1-51130-474-0 		1-51132-474-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: A = 1-51130-343-0 		1-51133-343-0 01 1 -
3 SPRING; LEAF,NO 3,FRT
W/CLIP ASM PART: B = 1-51130-474-0 		1-51133-474-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: A = 1-51130-343-0 		1-51134-343-0 01 1 -
4 SPRING; LEAF,NO 4,FRT
ASM PART: B = 1-51130-474-0 		1-51134-474-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
W/CLIP ASM PART: A = 1-51130-343-0 		1-51135-343-0 01 1 -
5 SPRING; LEAF,NO 5,FRT
W/CLIP ASM PART: B = 1-51130-474-0 		1-51135-474-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: A = 1-51130-343-0 		1-51136-343-0 01 1 -
6 SPRING; LEAF,NO 6,FRT
ASM PART: B = 1-51130-474-0 		1-51136-474-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: A = 1-51130-343-0 		1-51137-343-0 01 1 -
7 SPRING; LEAF,NO 7,FRT
ASM PART: B = 1-51130-474-0 		1-51137-474-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: A = 1-51130-343-0 		1-51138-343-0 01 1 -
8 SPRING; LEAF,NO 8,FRT
ASM PART: B = 1-51130-474-0 		1-51138-474-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=140 ASM PART: B = 1-51130-474-0 		1-51156-304-0 01 1 -
15 BOLT; CENTER,LEAF SPR,FRT
L=135 ASM PART: A = 1-51130-343-0 		1-51156-333-0 01 1 -
16 NUT; CENTER BOLT,LEAF SPR,FRT
M16 ASM PART: A = 1-51130-343-0, B = 1-51130-474-0 		1-09400-054-0 01 1 -
17 BUSHING; LEAF SPR,FRT
OD=38 ASM PART: A = 1-51130-343-0, B = 1-51130-474-0 		1-51351-009-0 02 1 -
18 BOLT; CLIP,LEAF SPR,FRT
M10X99 ASM PART: A = 1-51130-343-0, B = 1-51130-474-0 		1-09000-328-0 03 1 -
20 SEAT; LEAF SPR,FRT
(A), T=6 ASM PART: B = 1-51130-474-0 		1-51177-115-0 01 1 -
20 SEAT; LEAF SPR,FRT
(B), T=13 ASM PART: A = 1-51130-343-0, B = 1-51130-474-0 		1-51177-181-0 01 1 -
