◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10854 - FVR-LHD(BUS CHASSIS) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#9792) — 55 parça

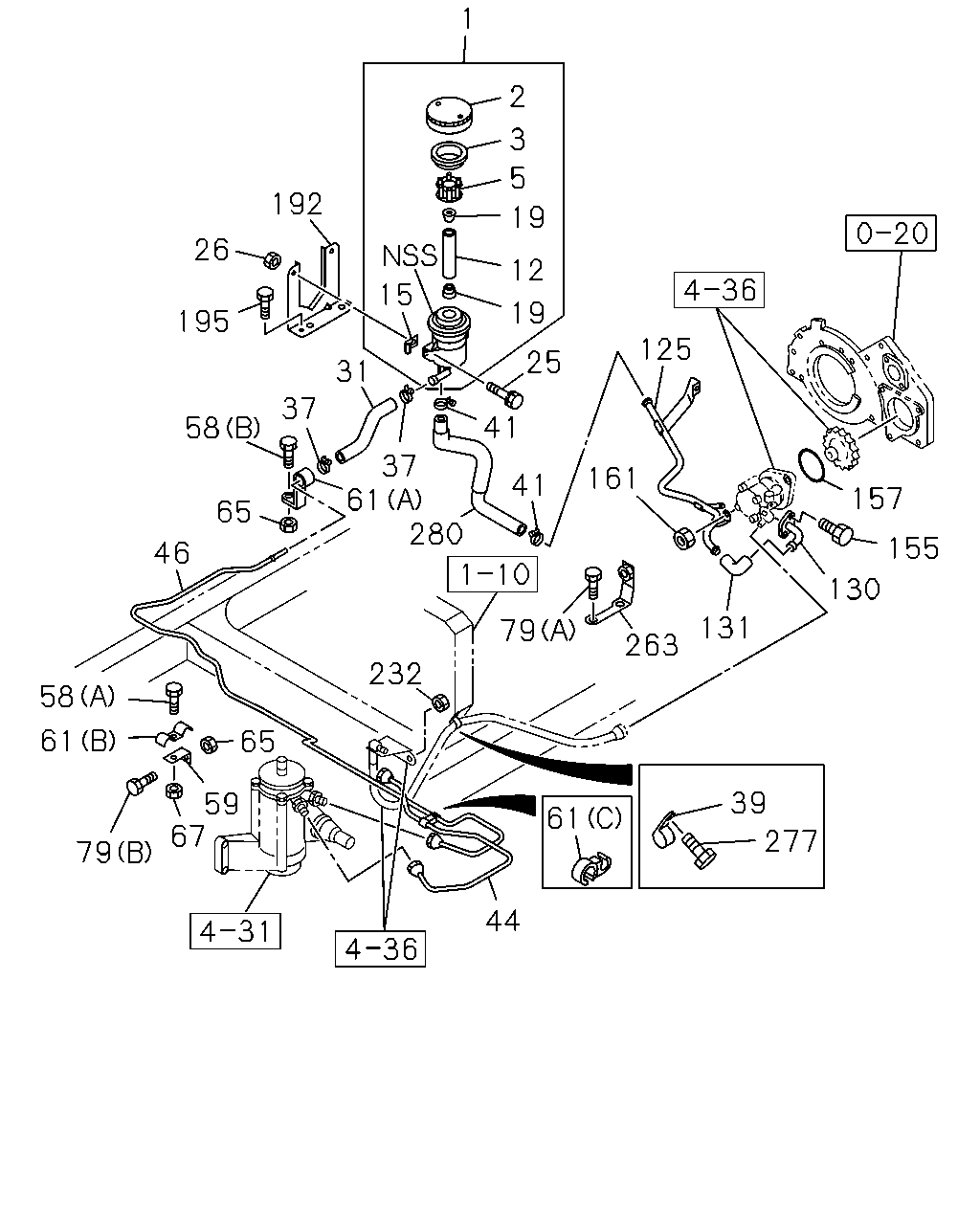

çizim 19803
1 2 3 5 192 19 26 12 15 19 195 125 25 31 37 41 58 37 61 280 161 41 157 65 155 46 130 131 79 263 232 58 61 65 39 59 67 61 277 79 44
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0011-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0011-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0011-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0011-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0011-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0011-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 0011-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0011-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0011-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-590-0 01 1 0011-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0011-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0011-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0011-
44 PIPE; OIL,P/S UNIT TO NIPPLE 1-21115-359-0 01 1 0011-
46 PIPE; OIL,P/S UNIT TO OIL TANK 1-21116-028-1 01 1 0011-
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0512
58 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0011-0512
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0011-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 02 1 0011-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=21.5 & 21.5 		1-09700-668-0 01 1 0011-
61 CLIP; OIL PIPE
(C) ID=12 & 15 		1-09709-281-1 01 1 0011-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0011-0602
65 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603-
67 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0011-0602
67 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0011-0512
79 BOLT; BRKT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 01 1 0011-0512
79 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
125 CONNECTOR; P/S PUMP 8-94390-584-1 01 1 0011-
130 ADAPTER; P/S PUMP 8-94390-583-0 01 1 0011-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0011-
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0011-0512
155 BOLT; CONNECTOR
M8X16 FLANGE 		0-28050-816-0 02 1 0601-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0011-
161 NUT; P/S PIPE
M10 FLANGE 		0-91150-110-0 01 1 0011-0602
161 NUT; P/S PIPE
M10 FLANGE 		0-91180-110-0 01 1 0603-
192 BRACKET; P/S OIL TANK 1-21119-142-1 01 1 0011-
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0011-0512
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0011-0602
232 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0011-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0011-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-491-0 01 1 0011-0206
280 HOSE; P/S OIL PUMP,INL 1-21116-721-0 01 1 0207-
