Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-20 - REAR AXLE CASE AND SHAFT
▶
4-20 — REAR AXLE CASE AND SHAFT
(#9787) — 77 parça
◀
[420A] '01/11- (40 parça)
[420A] -'01/10 (37 parça)
▶

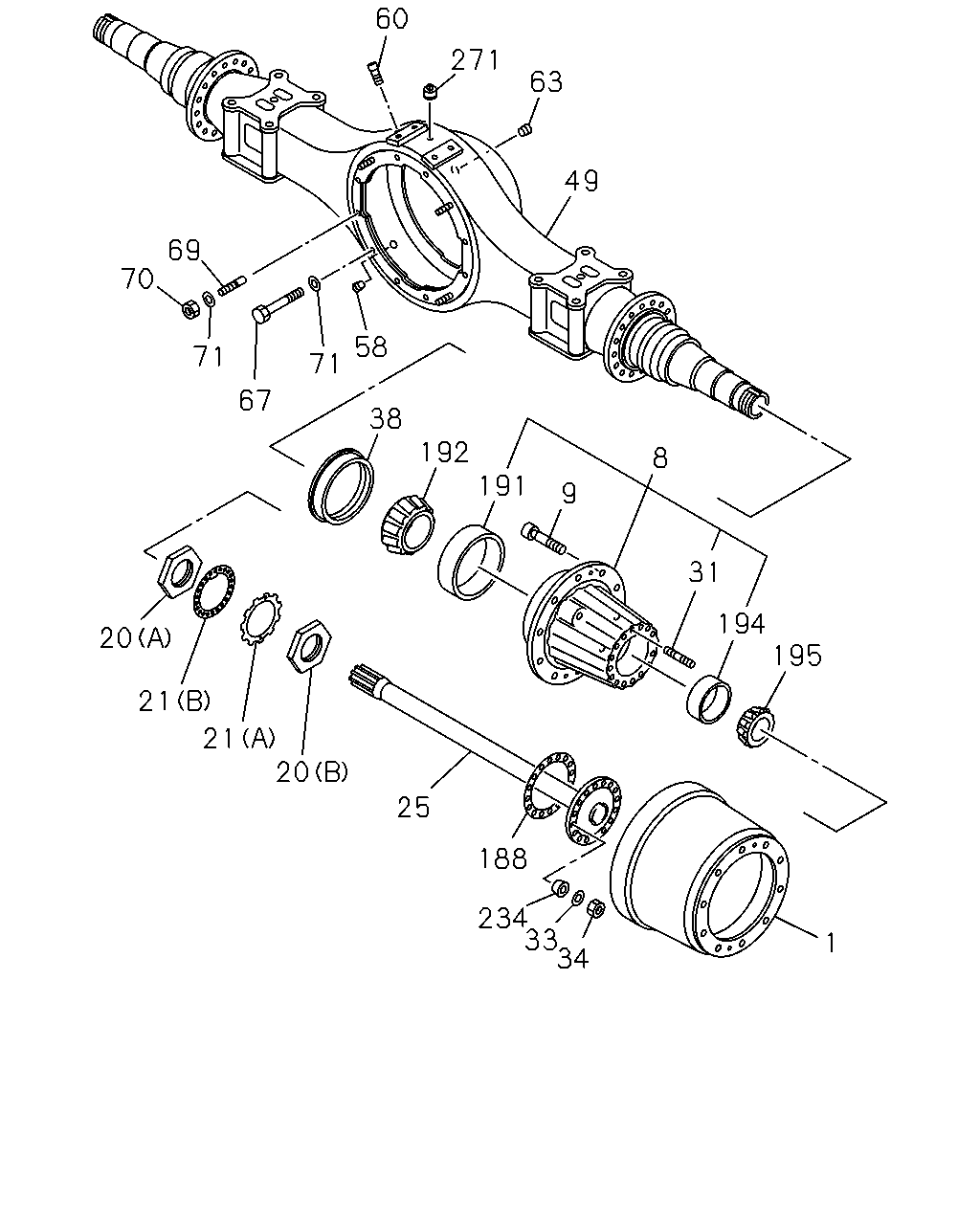

60
271
63
49
69
70
58
71
71
67
38
192
191
8
9
31
194
195
20
21
21
20
25
188
234
33
34
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
1-42315-349-0
02
1
0011-0110
1
DRUM; BRK,RR
1-42315-379-0
02
1
0111-
8
HUB; RR AXLE
1-42311-113-0
02
1
0011-0110
8
HUB; RR AXLE
1-42311-128-0
02
1
0111-
9
PIN; WHEEL,RR AXLE
1-42337-053-0
20
1
0011-0110
9
PIN; WHEEL,RR AXLE
1-42339-031-0
20
1
0111-
20
NUT; BRG,RR HUB
(A)
1-42179-011-0
02
1
0011-
20
NUT; BRG,RR HUB
(B)
1-42179-013-0
02
1
0011-
21
WASHER; LK,BRG NUT
(A)
1-42179-016-0
02
1
0111-
21
WASHER; LK,BRG NUT
(B)
1-42179-012-0
02
1
0011-
25
SHAFT; AXLE,RR
1-42171-482-0
01
1
0011-0110
25
SHAFT; AXLE,RR
1-42171-573-0
01
1
0111-
25
SHAFT; AXLE,RR
1-42171-483-0
01
1
0011-0110
25
SHAFT; AXLE,RR
1-42171-574-0
01
1
0111-
31
STUD; AXLE SHAFT TO HUB
1-42319-201-0
16
1
0111-
33
WASHER; AXLE SHAFT
1-42179-003-0
16
1
0111-
34
NUT; AXLE SHAFT
1-42179-005-0
16
1
0111-
38
SEAL; OIL,RR HUB,INNER
1-42319-148-0
02
1
0011-0110
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0111-
49
CASE; RR AXLE
1-42160-303-0
01
1
0011-0110
49
CASE; RR AXLE
1-42190-427-0
01
1
0111-
58
PLUG; DRAIN,AXLE CASE
1-42119-075-0
01
1
0011-0110
58
PLUG; DRAIN,AXLE CASE
1-42119-215-0
01
1
0111-
60
BREATHER; RR AXLE CASE
1-09893-024-0
01
1
0011-
63
PLUG; OIL FILLER,AXLE CASE
1-42119-079-0
01
1
0011-
67
BOLT; FINAL DRIVE SETTING
1-42119-076-0
04
1
0011-0110
67
BOLT; FINAL DRIVE SETTING
M16X50
1-42119-218-0
04
1
0111-
67
BOLT; FINAL DRIVE SETTING
M16X50
1-42119-077-0
04
1
0011-0110
67
BOLT; FINAL DRIVE SETTING
M16X110
1-42119-219-0
04
1
0111-
69
STUD; AXLE CASE
M16 L=68
1-42119-078-0
04
1
0011-
70
NUT; CARRIER
1-42119-073-0
04
1
0011-0110
70
NUT; CARRIER
1-42119-073-0
12
1
0111-
71
WASHER; LK,FINAL DRIVE SETTING
1-42119-074-0
12
1
0011-
188
GASKET; AXLE SHAFT
1-42175-013-0
02
1
0111-
191
CUP; BRG,HUB INNER
1-41229-131-0
02
1
0011-
192
CONE; BRG,HUB INNER
1-41519-032-0
02
1
0011-
194
CUP; BRG,HUB OUTER
1-42179-010-0
02
1
0011-
195
CONE; BRG,HUB OUTER
1-42179-009-0
02
1
0011-
234
DOWEL; AXLE SHAFT
1-42319-162-0
16
1
0111-
271
PLUG; BREATHER
1-41229-370-0
01
1
0111-

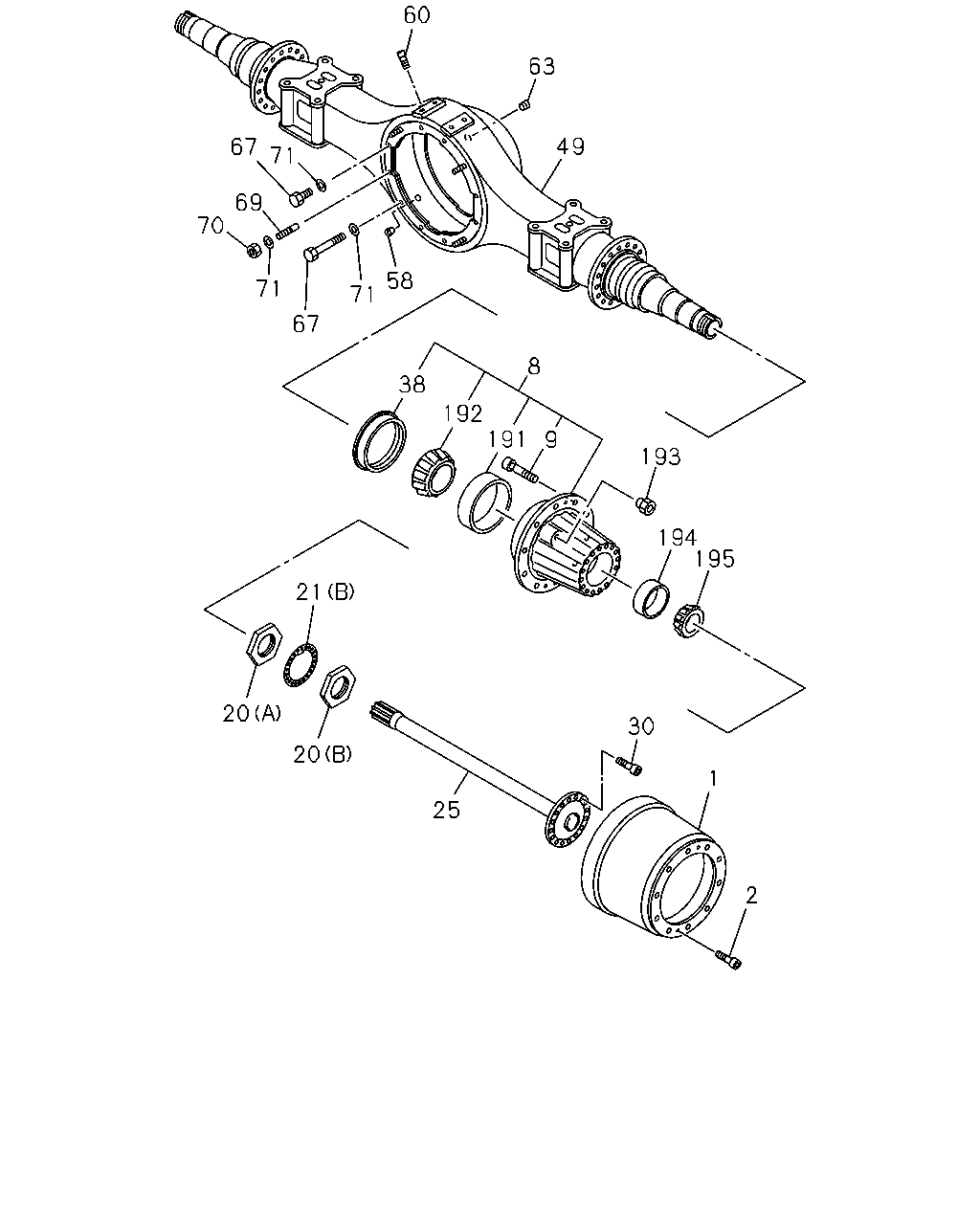

60
63
49
67
71
69
70
58
71
71
67
8
38
192
191
9
193
194
195
21
20
30
20
1
25
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRUM; BRK,RR
1-42315-349-0
02
1
0011-0110
1
DRUM; BRK,RR
1-42315-379-0
02
1
0111-
2
BOLT; BRK DRUM
1-42319-146-0
04
1
0011-0110
8
HUB; RR AXLE
1-42311-113-0
02
1
0011-0110
8
HUB; RR AXLE
1-42311-128-0
02
1
0111-
9
PIN; WHEEL,RR AXLE
1-42337-053-0
20
1
0011-0110
9
PIN; WHEEL,RR AXLE
1-42339-031-0
20
1
0111-
20
NUT; BRG,RR HUB
(A)
1-42179-011-0
02
1
0011-
20
NUT; BRG,RR HUB
(B)
1-42179-013-0
02
1
0011-
21
WASHER; LK,BRG NUT
(A)
1-42179-016-0
02
1
0111-
21
WASHER; LK,BRG NUT
(B)
1-42179-012-0
02
1
0011-
25
SHAFT; AXLE,RR
1-42171-482-0
01
1
0011-0110
25
SHAFT; AXLE,RR
1-42171-573-0
01
1
0111-
25
SHAFT; AXLE,RR
1-42171-483-0
01
1
0011-0110
25
SHAFT; AXLE,RR
1-42171-574-0
01
1
0111-
30
BOLT; HUB TO AXLE SHAFT
1-42179-008-0
32
1
0011-0110
38
SEAL; OIL,RR HUB,INNER
1-42319-148-0
02
1
0011-0110
38
SEAL; OIL,RR HUB,INNER
1-42319-172-0
02
1
0111-
49
CASE; RR AXLE
1-42160-303-0
01
1
0011-0110
49
CASE; RR AXLE
1-42190-427-0
01
1
0111-
58
PLUG; DRAIN,AXLE CASE
1-42119-075-0
01
1
0011-0110
58
PLUG; DRAIN,AXLE CASE
1-42119-215-0
01
1
0111-
60
BREATHER; RR AXLE CASE
1-09893-024-0
01
1
0011-
63
PLUG; OIL FILLER,AXLE CASE
1-42119-079-0
01
1
0011-
67
BOLT; FINAL DRIVE SETTING
1-42119-076-0
04
1
0011-0110
67
BOLT; FINAL DRIVE SETTING
M16X50
1-42119-218-0
04
1
0111-
67
BOLT; FINAL DRIVE SETTING
M16X50
1-42119-077-0
04
1
0011-0110
67
BOLT; FINAL DRIVE SETTING
M16X110
1-42119-219-0
04
1
0111-
69
STUD; AXLE CASE
M16 L=68
1-42119-078-0
04
1
0011-
70
NUT; CARRIER
1-42119-073-0
04
1
0011-0110
70
NUT; CARRIER
1-42119-073-0
12
1
0111-
71
WASHER; LK,FINAL DRIVE SETTING
1-42119-074-0
12
1
0011-
191
CUP; BRG,HUB INNER
1-41229-131-0
02
1
0011-
192
CONE; BRG,HUB INNER
1-41519-032-0
02
1
0011-
193
PLUG; HUB,RR AXLE
1-42319-149-0
02
1
0011-0110
194
CUP; BRG,HUB OUTER
1-42179-010-0
02
1
0011-
195
CONE; BRG,HUB OUTER
1-42179-009-0
02
1
0011-
