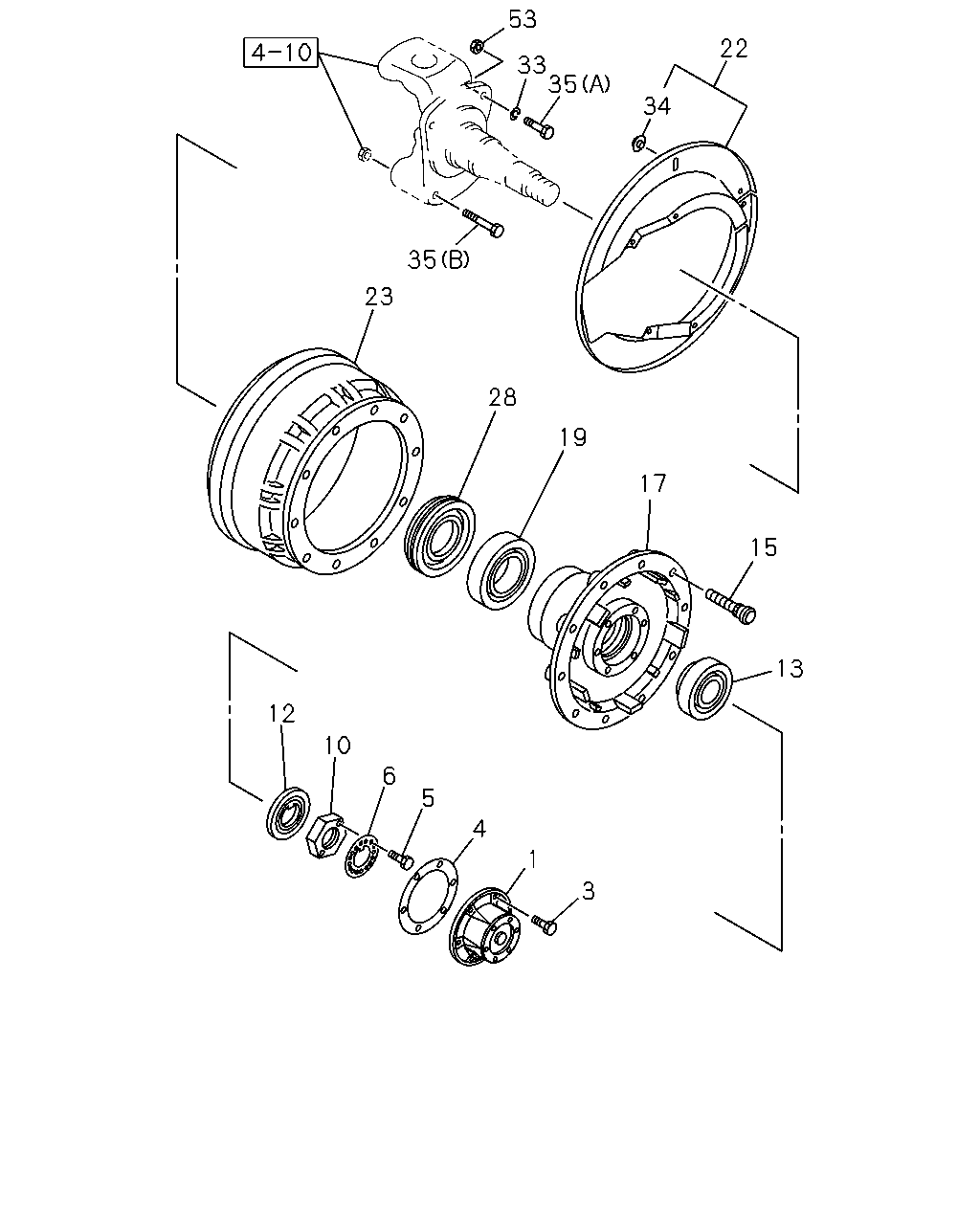

4-11 — FRONT HUB AND DRUM OR ROTOR
(#9786) — 31 parça
53
22
33
35
34
35
23
28
19
17
15
13
12
10
6
5
4
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
1-42313-016-1
02
1
0011-
3
BOLT; HUB CAP,FRT WHEEL
M8X16 FLANGE
0-28080-816-0
12
1
0011-0512
3
BOLT; HUB CAP,FRT WHEEL
M8X16 FLANGE
0-28050-816-0
12
1
0601-
4
GASKET; HUB CAP,FRT WHEEL
1-09630-119-0
02
1
0011-
5
BOLT; LK WASHER
M6X16 FLANGE
0-28680-616-0
04
1
0011-0512
5
BOLT; LK WASHER
M6X16 FLANGE
0-28650-616-0
04
1
0601-0707
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98084-271-0
04
1
0708-1201
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1202-
6
WASHER; LK,FRT HUB
ID=48
1-09533-012-1
02
1
0011-0707
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
0708-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
0011-
12
WASHER; LK,FRT HUB BRG
ID=48
1-09533-016-0
02
1
0011-0911
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
0912-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
0011-
15
PIN; WHEEL,FRT AXLE
1-42337-052-0
20
1
0011-
17
HUB; FRT AXLE
1-42312-133-0
02
1
0011-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
1-09812-231-0
02
1
0011-
22
COVER SET; FRT BRK DRUM
1-47151-643-0
01
1
0011-
22
COVER SET; FRT BRK DRUM
1-47151-642-0
01
1
0011-
23
DRUM; BRK,FRT
1-42315-348-2
02
1
0011-
28
SEAL; OIL,FRT HUB
TBK
1-09625-449-1
02
1
0011-
28
SEAL; OIL,FRT HUB
JTEKT
1-09625-503-0
02
1
0011-
33
WASHER; LK,DRUM COVER
ID=16.2
9-09150-816-0
04
1
0011-0603
33
WASHER; LK,DRUM COVER
ID=16.2
0-91510-816-0
04
1
0604-
34
COVER; CHECK HOLE,DRUM COVER
1-87050-011-0
04
1
0011-
35
BOLT; DRUM COVER
(A) M16X52
1-09044-001-2
02
1
0011-0805
35
BOLT; DRUM COVER
(A) M16X52
1-09044-120-0
02
1
0806-
35
BOLT; DRUM COVER
(A) M16X59 FLANGE
1-09044-002-2
02
1
0011-
35
BOLT; DRUM COVER
(B)
1-47159-177-0
08
1
0011-
53
NUT; DRUM COVER
M16
9-99110-516-0
04
1
0011-0512
53
NUT; DRUM COVER
M16
0-91110-516-0
04
1
0601-
