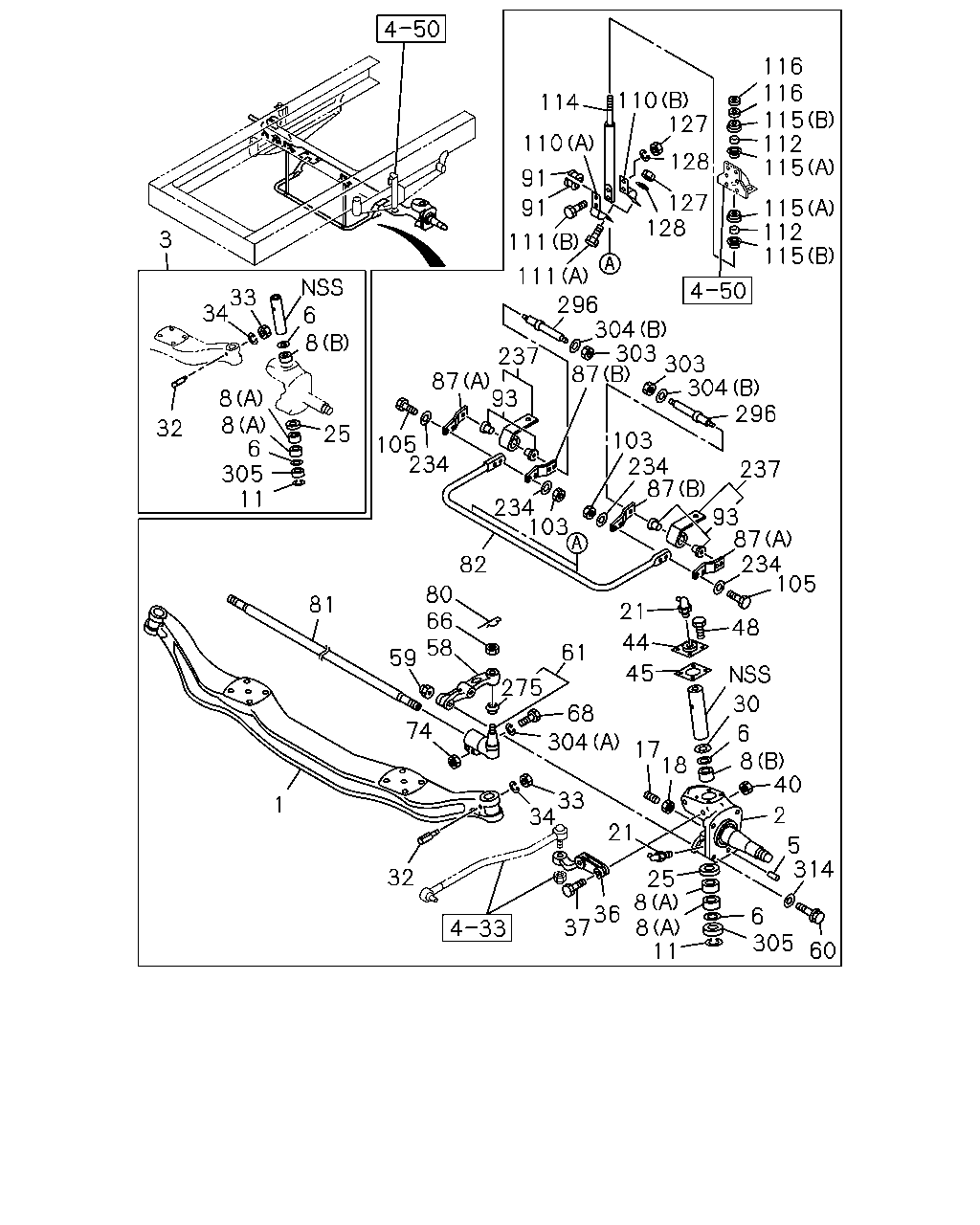

4-10 — FRONT AXLE (#9785) — 108 parça

116 116 115 112 115 110 127 114 110 128 91 127 128 91 115 112 115 3 111 111 6 8 33 34 296 304 303 303 87 304 296 237 93 87 8 8 6 305 11 32 25 103 234 87 93 87 234 105 105 234 234 103 237 82 80 66 58 81 21 48 44 61 59 45 275 30 68 74 6 8 40 304 17 18 33 34 1 2 21 5 314 32 25 8 8 11 36 37 6 305 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-113-6	01	1	0011-
2	KNUCKLE; FRT AXLE	1-43132-087-1	01	1	0011-
2	KNUCKLE; FRT AXLE	1-43132-090-1	01	1	0011-
3	KING PIN SET	1-87830-738-6	02	1	0011-
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0011-
6	SEAL; KING PIN	9-09926-024-0	04	1	0011-
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0011-
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0011-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0011-
17	BOLT; STOPPER KNUCKLE M18X53	1-09009-066-0	02	1	0011-
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0011-0512
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0011-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0011-
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0011-
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0011-
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	0011-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0011-0512
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0011-0603
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-066-3	01	1	0011-
37	BOLT; KNUCKLE ARM M22X179	1-09000-578-1	01	1	0011-0704
37	BOLT; KNUCKLE ARM M22X179	8-98052-380-1	01	1	0705-
37	BOLT; KNUCKLE ARM M22X167	9-09806-847-3	01	1	0011-0704
37	BOLT; KNUCKLE ARM M22X167	8-98052-381-1	01	1	0705-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0011-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN	1-43175-014-1	02	1	0011-
45	GASKET; KING PIN COVER	1-42319-044-0	02	1	0011-
48	BOLT; COVER M12X16 FLANGE	0-28081-216-0	08	1	0011-0512
48	BOLT; COVER M12X16 FLANGE	0-28051-216-0	08	1	0601-
58	ARM; TIE ROD	1-43135-044-3	01	1	0011-
58	ARM; TIE ROD	1-43134-044-3	01	1	0011-
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0011-0704
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	02	1	0011-0704
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	02	1	0705-
60	BOLT; TIE ROD ARM M22X180.5	1-09070-117-1	02	1	0011-
61	ROD END; TIE ROD	1-43150-793-1	01	1	0011-
61	ROD END; TIE ROD	1-43150-792-1	01	1	0011-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0011-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	0011-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0011-0512
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0011-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	9-43151-120-1	01	1	0011-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-113-0	01	1	0011-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0011-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0011-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	0011-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0011-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0011-0512
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91061-470-0	04	1	0011-0206
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0207-0910
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0011-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0011-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0011-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0011-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-050-0	04	1	0011-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	0011-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	0011-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	0011-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0011-0512
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0011-0512
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0011-0603
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-512-0	06	1	0604-0912
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1001-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	9-09651-069-0	08	1	0011-0910
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-724-0	02	1	0011-0209
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0210-
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0011-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-145-2	02	1	0011-0907
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	0908-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0011-0512
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0011-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0011-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0011-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-
314	WASHER; PL,TIE ROD ARM ID=23	9-09164-522-0	04	1	0011-0605
314	WASHER; PL,TIE ROD ARM ID=23	0-91614-522-0	04	1	0606-
