4-01 — PROPELLER SHAFT (#9784) — 86 parça

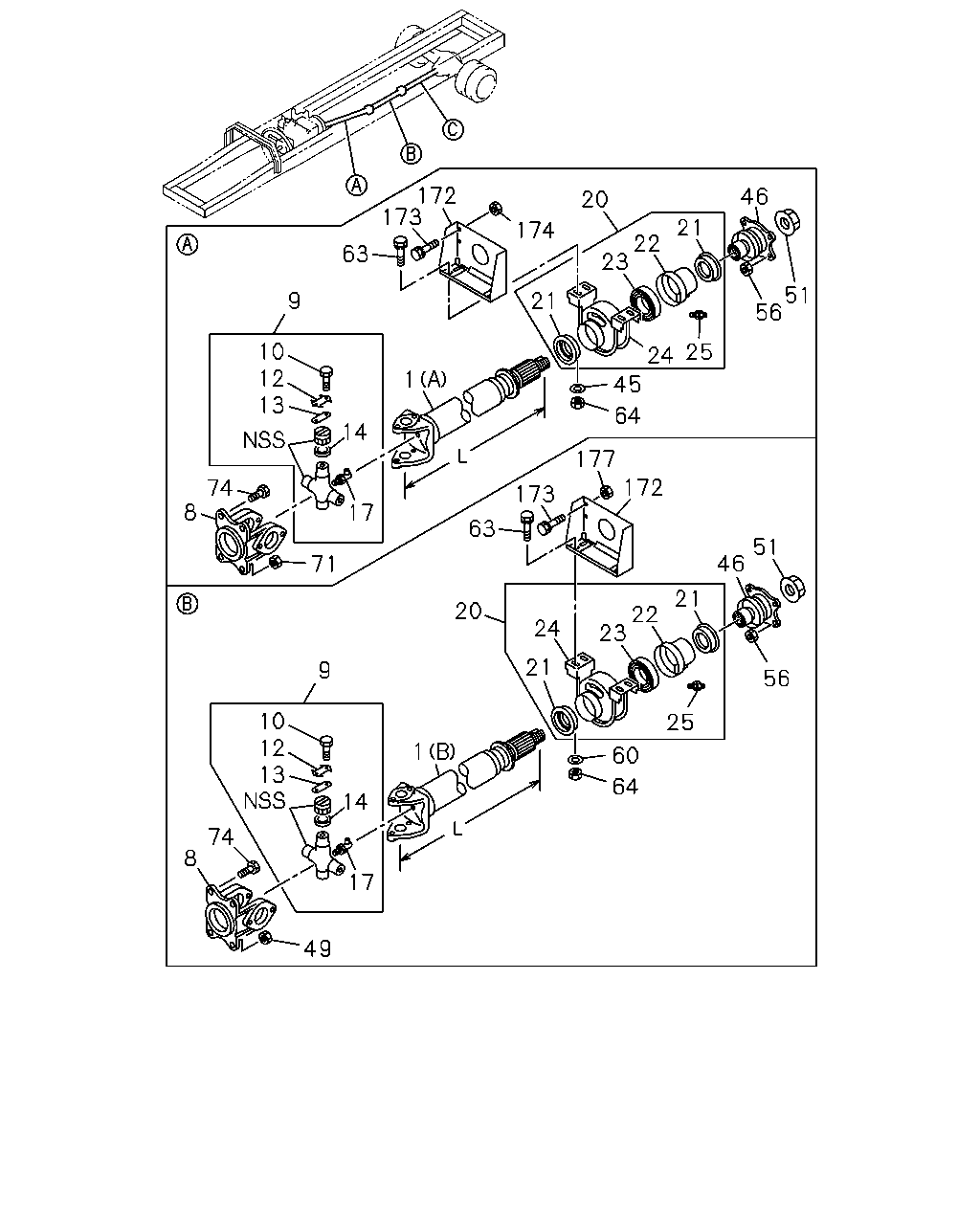

çizim 20150
172 173 46 20 21 174 22 23 63 51 56 9 21 10 12 13 25 24 1 45 64 14 177 172 74 173 17 8 63 51 46 71 21 20 22 23 24 21 9 56 10 12 13 25 1 60 64 14 74 8 17 49
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=869 		1-37124-216-0 01 1 0011-
1 SHAFT; PROP
(A) L=1056 		1-37152-030-0 01 1 0011-
1 SHAFT; PROP
(B) L=1131 		1-37152-031-0 01 1 0011-
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0011-
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0011-
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0011-
9 JOURNAL ASM; PROP SHAFT
1ST,END 		1-37300-094-1 AR 1 0011-
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-095-1 AR 1 0011-
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0011-0512
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601-
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0011-
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0011-
14 COVER; DUST,SPIDER 9-37352-023-0 AR 1 0011-
17 NIPPLE; GREASE,PROP SHAFT
1ST,END PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0011-0512
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 0011-0512
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		0-90301-610-0 AR 1 0601-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-099-1 01 1 0011-
20 BEARING ASM; CTR,PROP SHAFT 1-37510-099-1 01 1 0011-
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0011-
21 SEAL; OIL,CENTER BRG
D=120 		1-09625-126-0 02 1 0011-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-053-0 01 1 0011-
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-053-0 01 1 0011-
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0011-
23 BEARING; CENTER,PROP SHAFT 9-00090-292-0 01 1 0011-
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0011-
24 RETAINER; CENTER BRG,1ST 1-37529-039-0 01 1 0011-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0011-
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0011-
45 WASHER; PL,RET TO BRKT
ID=12.5 OD=26 		9-09164-612-0 04 1 0011-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0011-
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-283-1 01 1 0011-
49 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011-
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0011-
51 NUT; FLANGE,SPLINED
M33 FLANGE 		1-09449-051-0 01 1 0011-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011-
60 WASHER; PL,RET TO BRKT
ID=12.5 OD=26 		9-09164-612-0 04 1 0011-
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M12X30 W/LK WASHER 		0-50041-230-0 04 1 0011-0512
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M12X30 W/LK WASHER 		0-50041-230-0 04 1 0011-0512
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M12X30 W/LK WASHER 		0-50541-230-0 04 1 0601-0901
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M12X35 W/LK WASHER 		0-50541-235-0 04 1 0902-
64 NUT; RET TO BRKT
M12 FLANGE 		0-91150-212-0 04 1 0011-0602
64 NUT; RET TO BRKT
M12 FLANGE 		0-91150-212-0 04 1 0011-0602
64 NUT; RET TO BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603-
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0011-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0011-
172 BRACKET; CENTER BRG
2ND 		1-37515-124-0 01 1 0011-
172 BRACKET; CENTER BRG
1ST 		1-37515-125-0 01 1 0011-
173 BOLT; BRKT
M12X30 FLANGE 		0-28681-230-0 08 1 0011-0512
173 BOLT; BRKT
M12X30 FLANGE 		0-28651-230-0 08 1 0601-
174 NUT; BRKT
M12 FLANGE 		0-91150-212-0 04 1 0011-0602
174 NUT; BRKT
M12 FLANGE 		0-91180-212-0 04 1 0603-
177 NUT
M12 FLANGE 		0-91150-212-0 04 1 0011-0602
177 NUT
M12 FLANGE 		0-91180-212-0 04 1 0603-

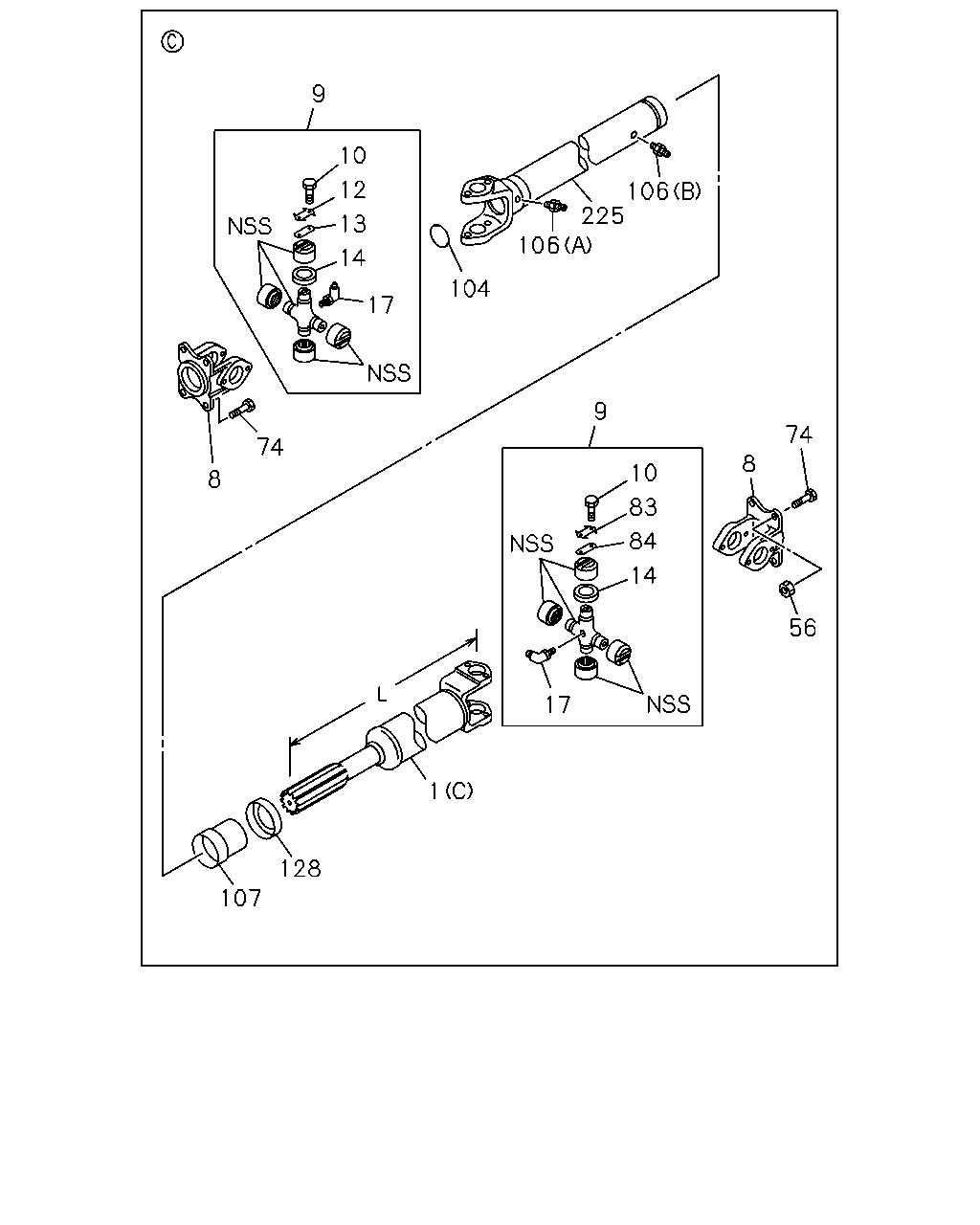

çizim 73077
9 10 12 106 225 13 106 14 104 17 9 74 74 8 10 8 83 84 14 56 17 1 128 107
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; PROP
(C) L=869 		1-37124-216-0 01 1 0011-
1 SHAFT; PROP
(A) L=1056 		1-37152-030-0 01 1 0011-
1 SHAFT; PROP
(B) L=1131 		1-37152-031-0 01 1 0011-
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 02 1 0011-
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0011-
8 YOKE; FLANGE,PROP SHAFT 1-37211-072-1 01 1 0011-
9 JOURNAL ASM; PROP SHAFT
1ST,END 		1-37300-094-1 AR 1 0011-
9 JOURNAL ASM; PROP SHAFT
2ND 		1-37300-095-1 AR 1 0011-
10 BOLT; UJT
M10X20 		9-02061-020-0 AR 1 0011-0512
10 BOLT; UJT
M10X20 		0-20951-020-0 AR 1 0601-
12 PLATE; LK,FRT UJT,PROP SHAFT 1-37356-010-0 AR 1 0011-
13 COVER; FRT UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0011-
14 COVER; DUST,SPIDER 9-37352-023-0 AR 1 0011-
17 NIPPLE; GREASE,PROP SHAFT
1ST,END PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 AR 1 0011-0512
17 NIPPLE; GREASE,PROP SHAFT
1ST PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 AR 1 0601-
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		9-09031-210-0 AR 1 0011-0512
17 NIPPLE; GREASE,PROP SHAFT
2ND PT1/8 ELBOW 		0-90301-610-0 AR 1 0601-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011-
56 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0011-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0011-
74 BOLT; YOKE,TRANS
M16X48 		1-09000-383-0 04 1 0011-
83 PLATE; LK,UJT,PROP SHAFT 1-37356-010-0 AR 1 0011-
84 COVER; UJT,PROP SHAFT
T=6 		1-37355-022-0 AR 1 0011-
104 PLUG; SLEEVE YOKE 1-09600-067-0 01 1 0011-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(B) MT6 STRAIGHT 		1-09380-006-0 01 1 0011-
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0011-0512
106 NIPPLE; GREASE,YOKE,PROP SHAFT
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601-
107 COVER; RET,SLEEVE 1-37249-137-1 01 1 0011-
128 SEAL; SLEEVE 1-37247-021-0 01 1 0011-
225 YOKE; SLEEVE,PROP SHAFT
L=332 		1-37241-109-1 01 1 0011-
