3-70 — BRAKE PIPING; AIR,AIR MASTER (#9780) — 48 parça

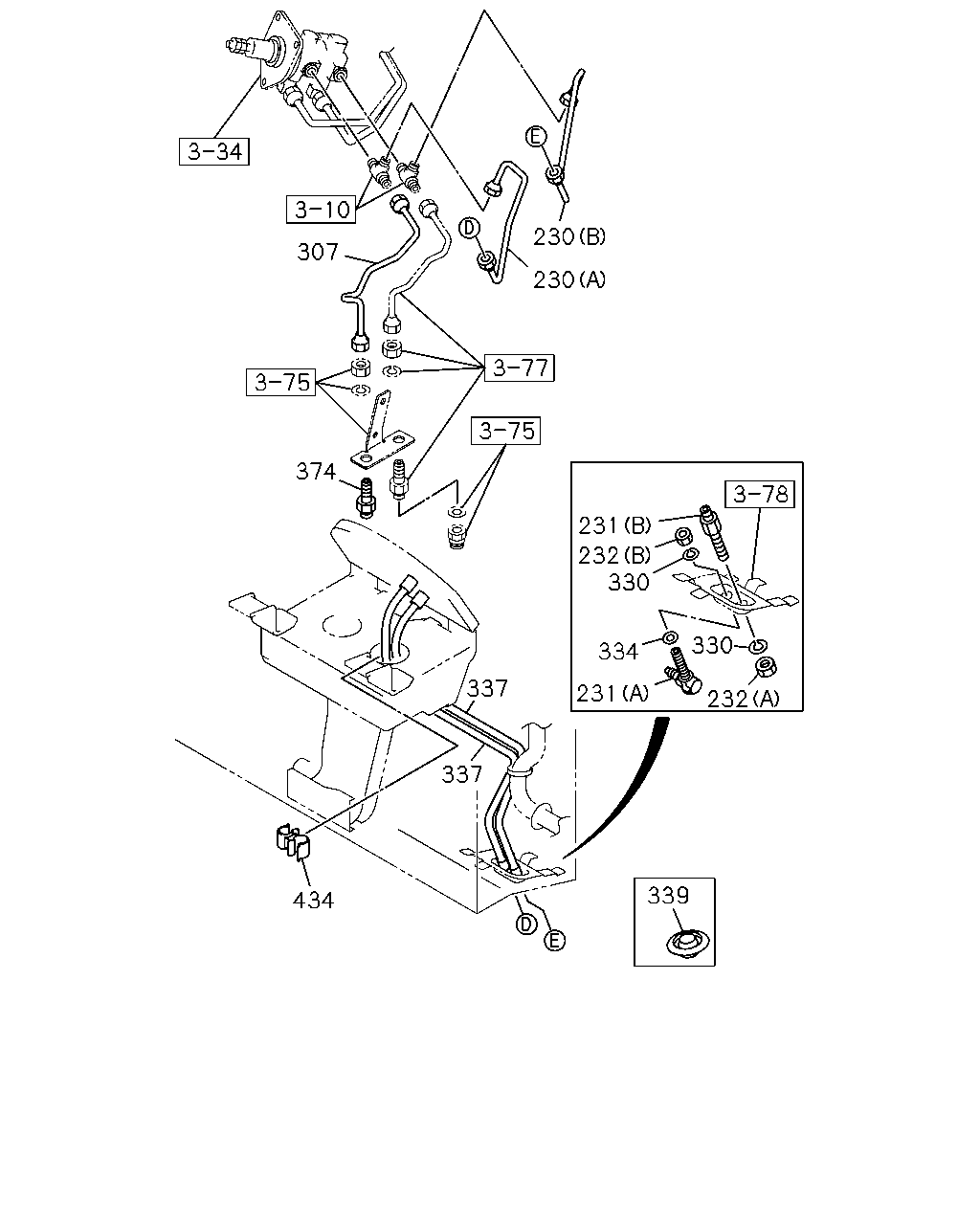

çizim 73313
230 307 230 374 231 232 330 330 334 337 231 232 337 339 434
BalonParca AdiParca NoAdetTipApplied Date
230 PIPE; AIR,UNION TO UNION
(A) L=426 		1-49116-433-0 01 1 0011-
230 PIPE; AIR,UNION TO UNION
(B) L=483 		1-49116-434-0 01 1 0011-
231 UNION; AIR PIPE
(A) M10 ELBOW 		1-09654-186-2 01 1 0011-
231 UNION; AIR PIPE
(B) M10 STRAIGHT 		1-09654-361-0 01 1 0011-
232 NUT; UNION,AIR PIPE
(A) M10 H=8 		1-09400-029-0 01 1 0011-
232 NUT; UNION,AIR PIPE
(B) M10 		9-09110-410-0 01 1 0011-0512
232 NUT; UNION,AIR PIPE
(B) M10 		0-91110-510-0 01 1 0601-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=540 		1-49113-427-2 01 1 0011-
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0011-0603
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604-
334 SPACER; PIPE UNION
ID=10.5 OD=22 T=4 		1-09503-045-0 01 1 0011-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0011-0608
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609-
339 GROMMET; AIR PIPE
OD=28 		8-94279-720-0 01 1 0011-
374 CONNECTOR
M16 STRAIGHT 		1-09654-380-0 01 1 0011-
434 CLIP
ID=10 & 10 		1-09709-221-0 01 1 0011-

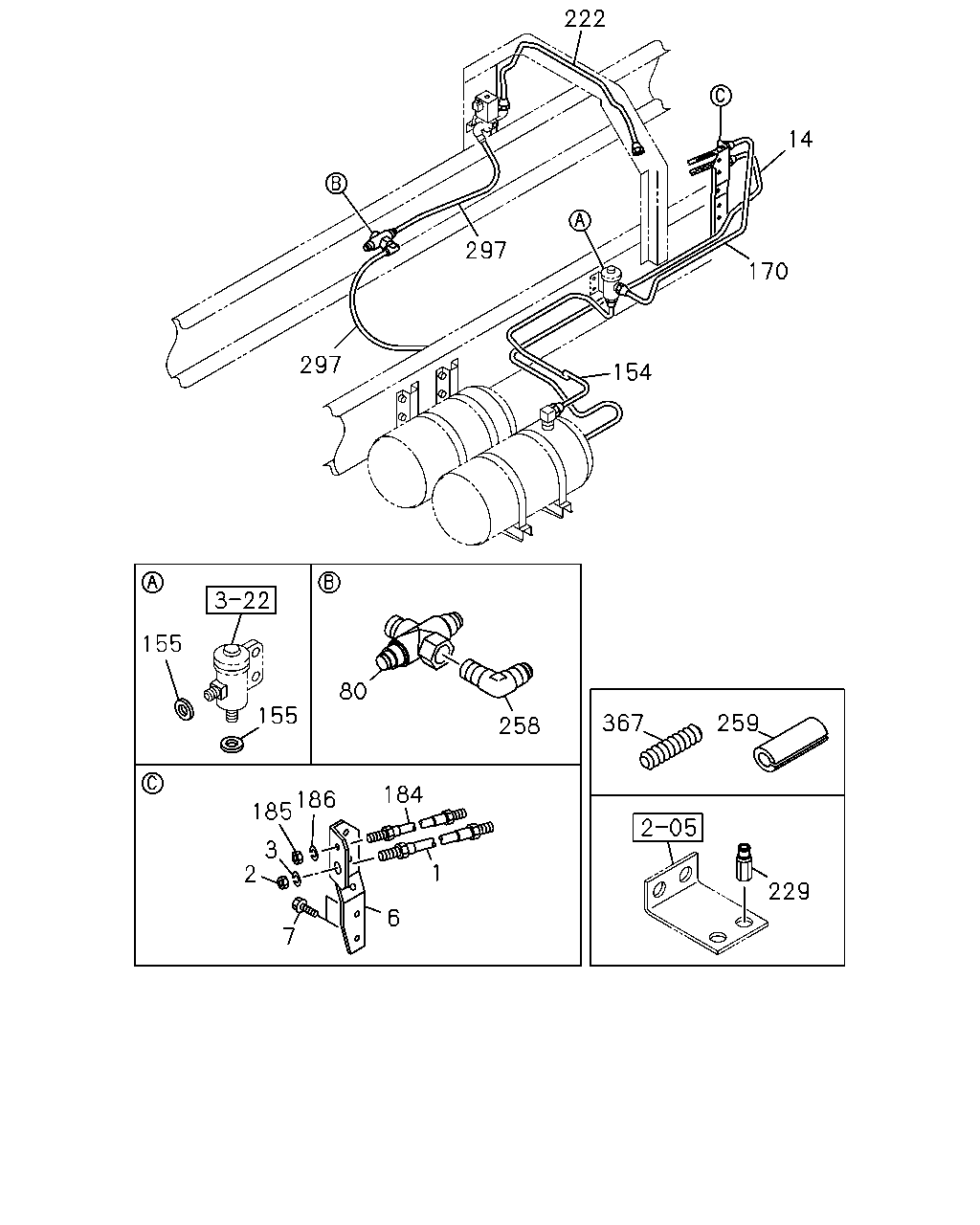

çizim 73344
222 14 297 170 297 154 155 80 155 367 259 258 184 186 185 3 2 1 229 6 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0011-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0011-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0011-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0011-0304
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0011-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49118-850-0 01 1 0011-
80 UNION; 3 WAY
DIN8 RC1/4 & M8 		1-09660-735-1 01 1 0011-0306
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0307-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49118-524-0 01 1 0011-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 0011-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49118-852-0 01 1 0011-
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0011-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0011-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0011-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1052 SERVICED BY L=1100 		1-47426-351-0 01 1 0011-
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0011-
258 CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW 		1-09660-649-1 01 1 0011-0306
258 CONNECTOR; NYLON TUBE
DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0307-
259 SLEEVE; RUBBER,NYLON TUBE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0011-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 0301-
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0011-0212
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0301-
297 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0011-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0011-
