3-22 — AIR CONTROL PARTS (#9774) — 104 parça

240 45 158 157 216

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0011-0109
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0011-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0011-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0011-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0011-
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0110-
240	REPAIR KIT; AIR CONT GOV	1-85576-466-0	01	1	0011-

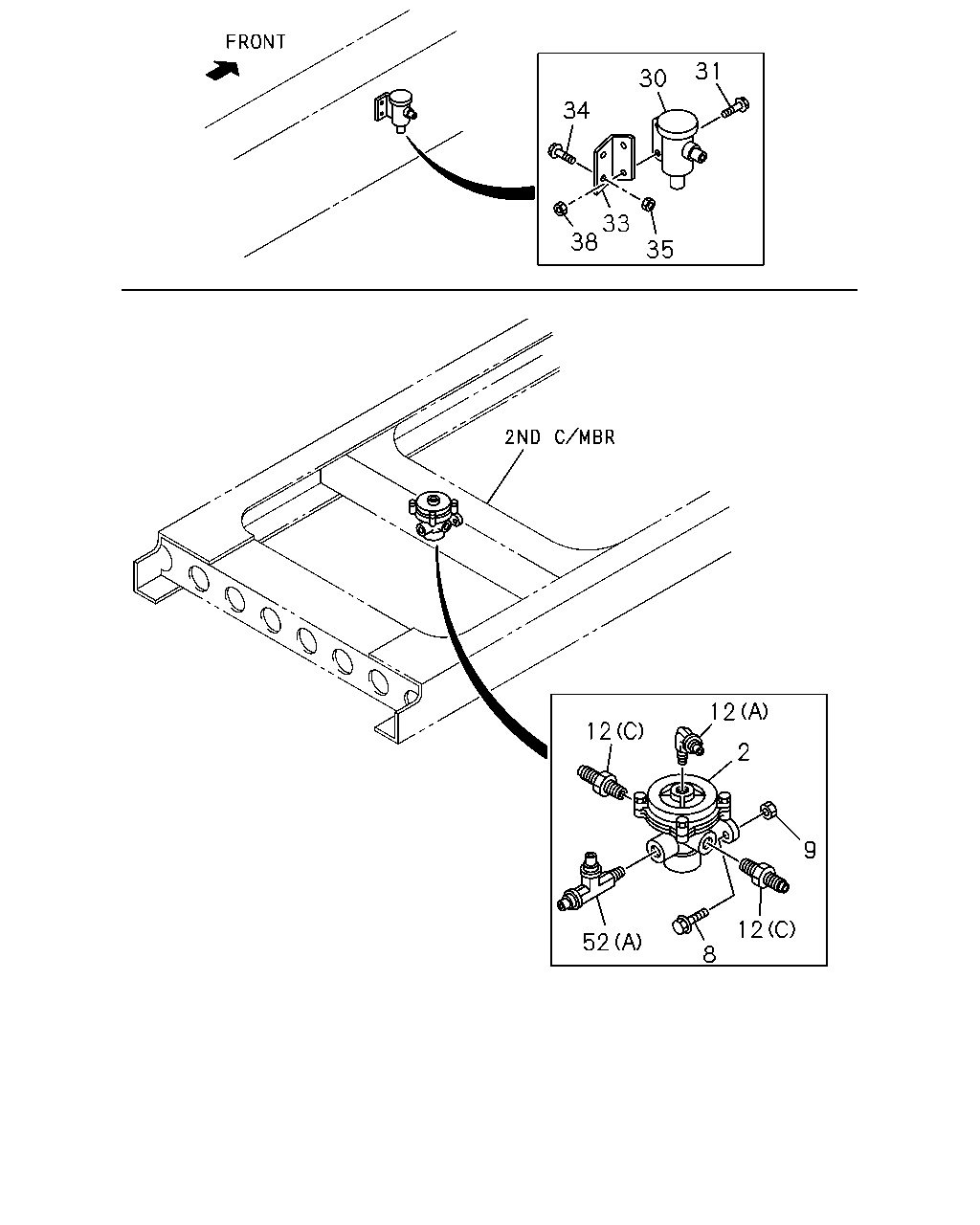

31 30 34 33 38 35 12 12 2 9 12 52 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	01	1	0011-
2	VALVE; RELAY	1-48210-278-0	01	1	0011-
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0011-0512
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
9	NUT M10 FLANGE	0-91150-210-0	02	1	0011-0602
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0011-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0011-
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0011-
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0011-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0011-
30	GOVERNOR; AIR CONT	1-48350-059-0	01	1	0011-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0011-0512
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-
33	BRACKET; GOV,AIR CONT	1-48359-045-0	01	1	0011-
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28680-830-0	02	1	0011-0512
34	BOLT; BRKT,GOV M8X30 FLANGE	0-28650-830-0	02	1	0601-
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0011-0602
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0011-0602
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0011-
52	CONNECTOR; RELAY VLV (B)	1-09656-476-0	01	1	0011-

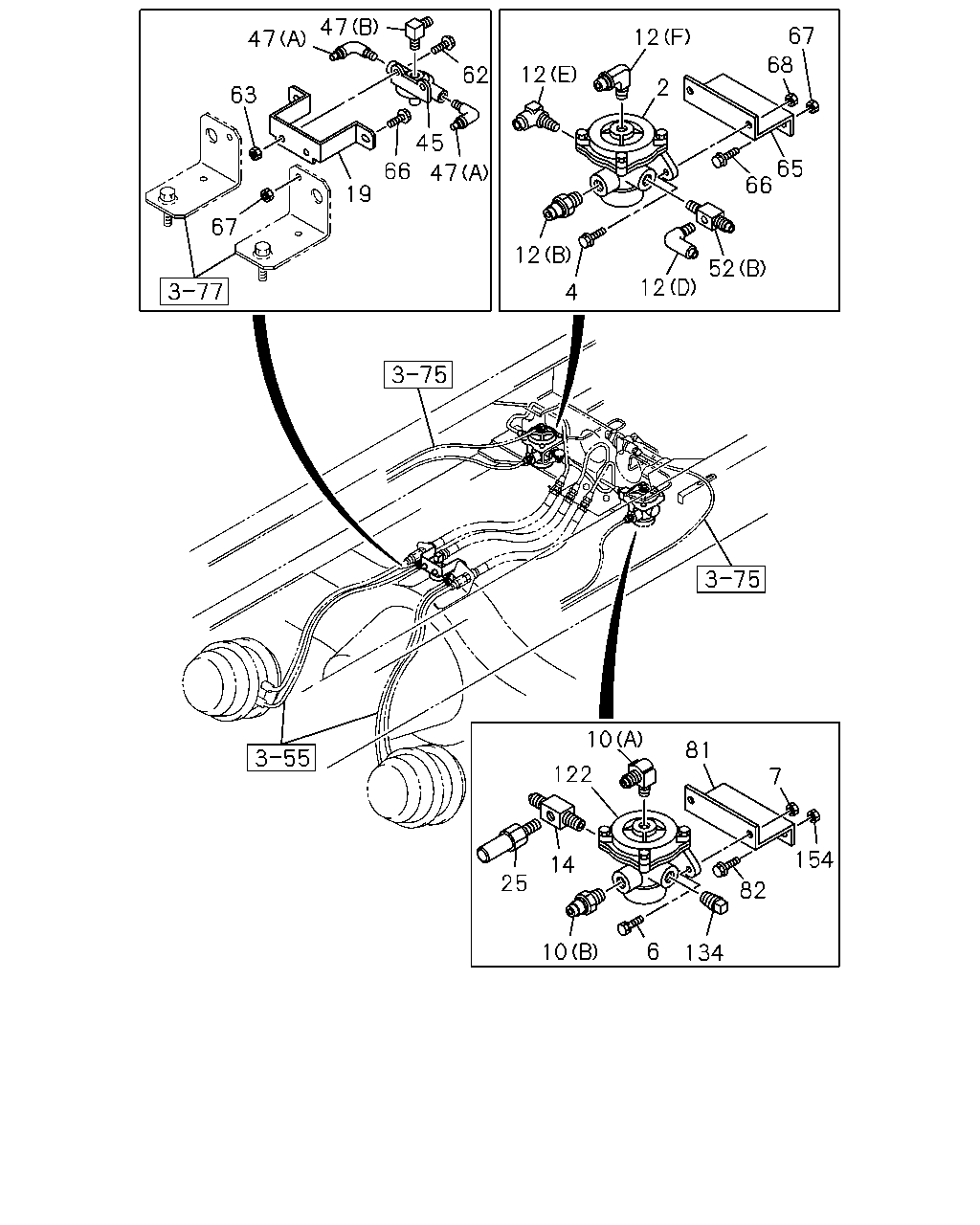

47 67 12 47 68 12 62 2 63 45 65 66 66 47 19 67 12 52 12 4 10 81 122 7 154 14 25 82 6 10 134

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	01	1	0011-
2	VALVE; RELAY	1-48210-278-0	01	1	0011-
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0011-0512
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-
6	BOLT; VLV M10X30 FLANGE	0-28681-030-0	02	1	0011-0512
6	BOLT; VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0011-0602
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-
10	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0011-
12	CONNECTOR; RELAY VLV (C) M16 & PT1/2 STRAIGHT	1-09650-245-1	02	1	0011-
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0011-
12	CONNECTOR; RELAY VLV (D) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0011-
12	CONNECTOR; RELAY VLV (F) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0011-
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0011-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0011-
14	CONNECTOR; RELAY VLV	1-09656-476-0	01	1	0011-
19	BRACKET; QUICK RELEASE VLV	1-47477-518-0	01	1	0011-
25	SWITCH; PRESSURE	1-82410-163-1	01	1	0011-
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0011-0109
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0011-
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0011-
52	CONNECTOR; RELAY VLV (A) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0011-
52	CONNECTOR; RELAY VLV (B)	1-09656-476-0	01	1	0011-
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0011-0512
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0011-0512
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	0011-
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	04	1	0011-0104
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28680-825-0	02	1	0105-0512
66	BOLT; BRKT,RELAY VLV RR M8X25 FLANGE	0-28650-825-0	02	1	0601-
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0011-0512
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28651-025-0	02	1	0601-
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	04	1	0011-0104
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91150-108-0	02	1	0105-0602
67	NUT; BRKT,RELAY VLV RR M8 FLANGE	0-91180-108-0	02	1	0603-
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0011-0602
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0011-0602
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	0011-
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	0011-0512
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28651-025-0	02	1	0601-
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	0011-
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	0011-
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0011-0602
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-

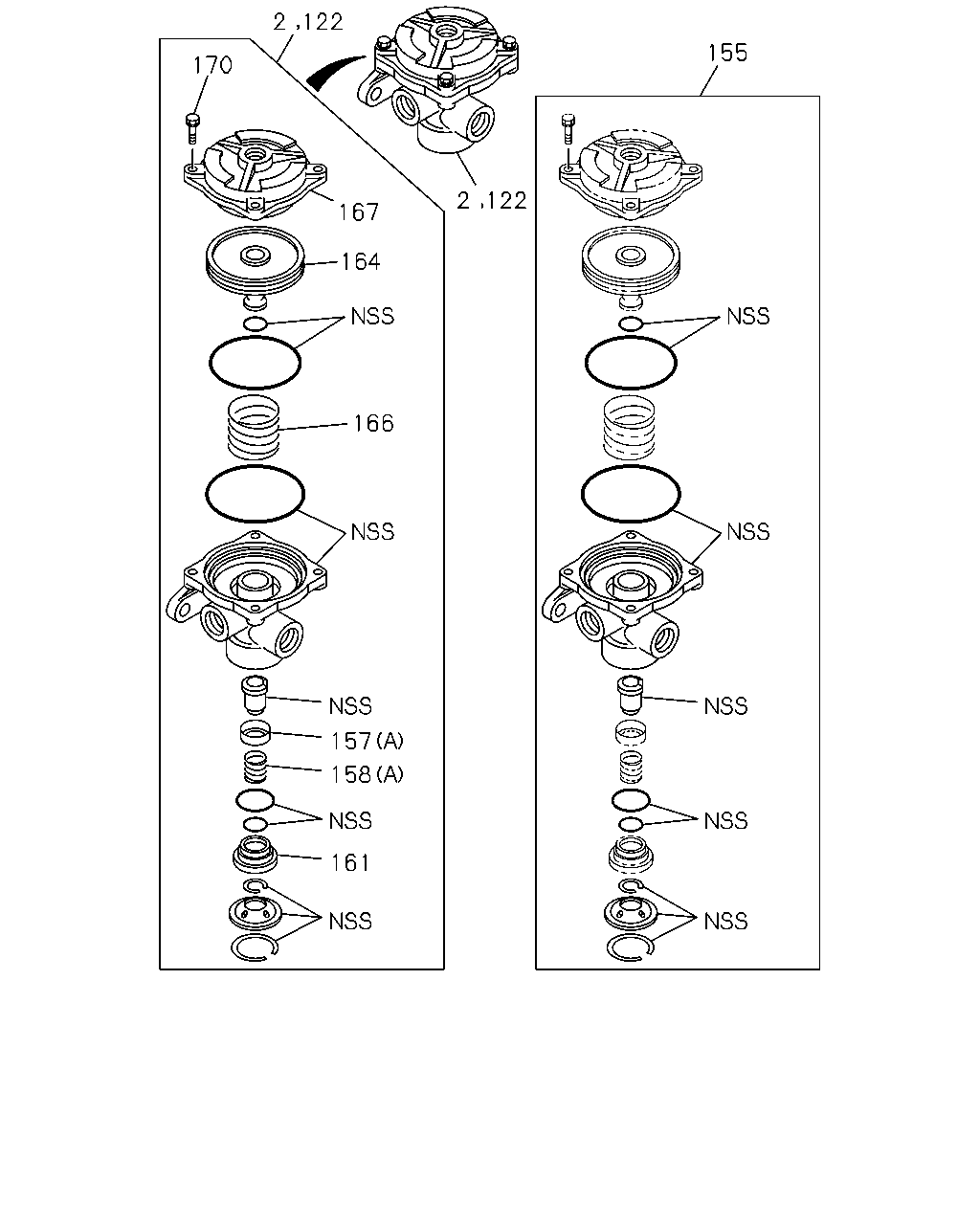

2 122 155 170 2 122 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY	1-48210-278-0	01	1	0011-
2	VALVE; RELAY	1-48210-278-0	01	1	0011-
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-278-0	01	1	0011-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0011-
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0011-
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0110-
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0011-
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0011-
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0110-
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0011-
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0011-
161	GUIDE; VALVE	1-48129-014-0	01	1	0011-
161	GUIDE; VALVE	1-48129-014-0	02	1	0011-
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0011-
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0011-
166	SPRING; PISTON	1-47819-090-0	01	1	0011-
166	SPRING; PISTON	1-47819-090-0	02	1	0011-
167	COVER; VALVE	1-48219-070-0	01	1	0011-
167	COVER; VALVE	1-48219-070-0	02	1	0011-
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0011-
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0011-
