Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

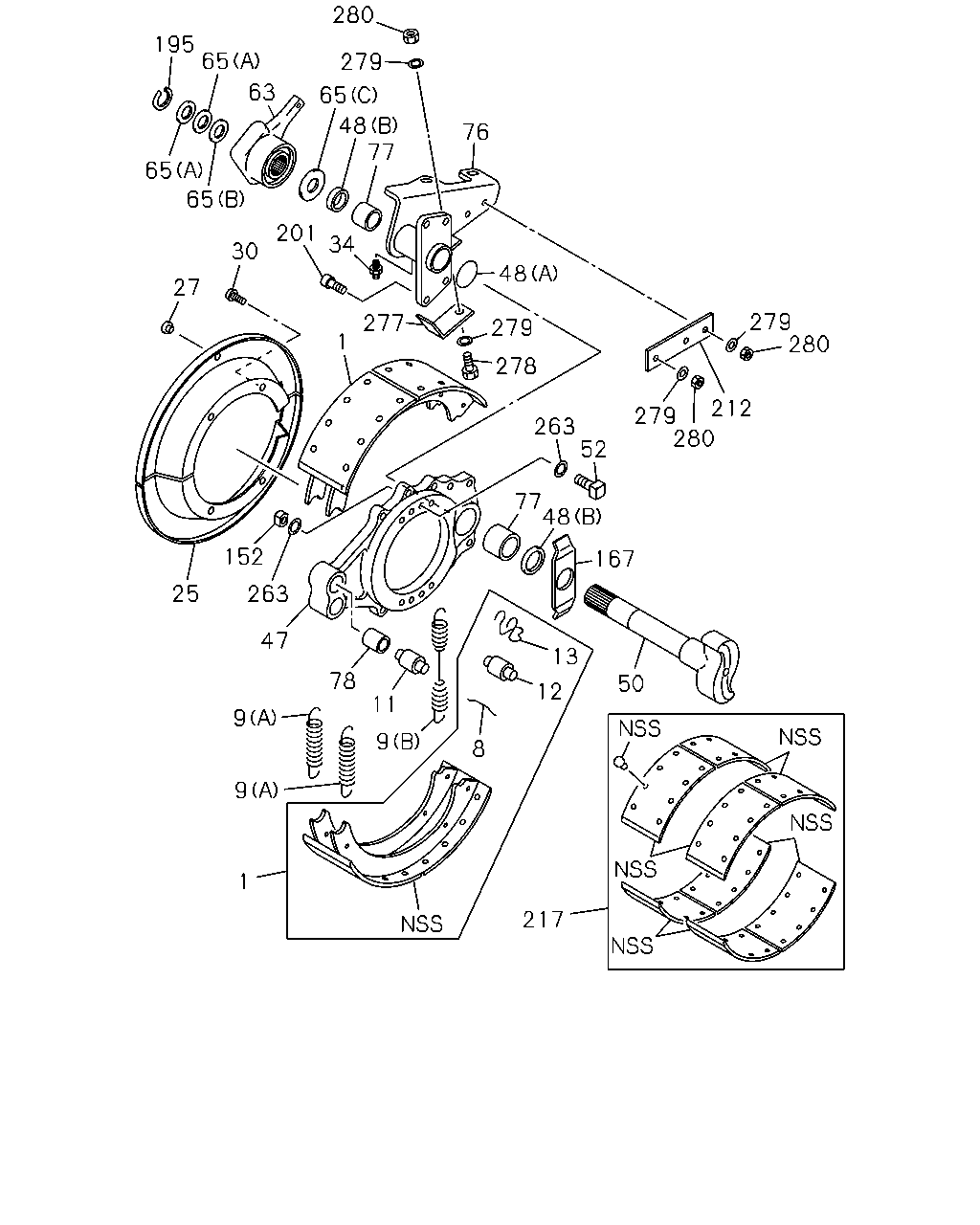

3-05 — REAR WHEEL BRAKE
(#9770) — 50 parça
280
195
65
279
63
65
48
77
76
65
65
201
34
30
48
27
279
279
280
277
1
278
212
279
280
263
52
77
48
152
167
25
263
47
13
78
50
12
11
9
9
8
9
1
217
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47120-401-0
04
1
0011-0110
1
SHOE; BRK,RR
1-47170-241-0
04
1
0111-
8
PIN; RETURN SPRING,RR BRK SHOE
1-47119-116-0
04
1
0011-
9
SPRING; RETURN,BRK SHOE
(A)
1-47119-114-0
04
1
0011-
9
SPRING; RETURN,BRK SHOE
(B)
1-47119-115-0
02
1
0011-
11
PIN; ANCHOR,RR WHEEL BRK
1-47131-046-0
04
1
0011-0110
11
PIN; ANCHOR,RR WHEEL BRK
1-47131-040-0
04
1
0111-
12
ROLLER; CAM,BRK SHOE
1-47119-117-0
04
1
0011-0110
12
ROLLER; CAM,BRK SHOE
1-47119-141-0
04
1
0111-
13
CLIP; ROLLER PIN,BRK SHOE
1-47119-118-0
04
1
0011-
25
COVER SET; RR BRK DRUM
1-47151-641-0
01
1
0011-
25
COVER SET; RR BRK DRUM
1-47151-640-0
01
1
0011-
27
COVER; CHECK HOLE,DRUM COVER
1-87050-011-0
04
1
0011-
30
BOLT; DRUM COVER
1-47159-176-0
12
1
0011-
34
NIPPLE; GREASE,CHAMBER BRKT
1-48259-253-0
02
1
0011-
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-332-0
02
1
0011-0110
47
BRACKET; ANCHOR PIN,RR WHEEL BRK
1-47137-542-0
02
1
0111-
48
SEAL; OIL,CM/SHF,RR BRK
(A)
1-47149-056-0
02
1
0011-
48
SEAL; OIL,CM/SHF,RR BRK
(B)
1-47149-057-0
04
1
0011-
50
CAMSHAFT; BRK,RR BRK
1-47141-098-0
01
1
0011-
50
CAMSHAFT; BRK,RR BRK
1-47141-099-0
01
1
0011-
52
BOLT; ANCHOR BRKT
M16X50
1-42119-077-0
32
1
0011-0110
52
BOLT; ANCHOR BRKT
M16X50
1-42119-077-0
16
1
0111-
63
ADJUSTER ASM; SLACK,RR BRK
1-48270-079-0
02
1
0011-
65
SPACER; SLACK ADJ,BRK
(C)
1-47149-058-0
02
1
0011-
65
SPACER; SLACK ADJ,BRK
(B)
1-47149-059-0
02
1
0011-
65
SPACER; SLACK ADJ,BRK
(A) T=0.03"
1-47149-060-0
04
1
0011-0110
65
SPACER; SLACK ADJ,BRK
(A) T=0.03"
1-47149-060-0
02
1
0111-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
1-48258-158-0
01
1
0011-
76
BRACKET; POWER CHAMBER,RR,W/BUSHING
1-48258-159-0
01
1
0011-
77
BUSHING
1-47146-014-0
04
1
0011-
78
BUSHING; BRKT
1-47139-117-0
04
1
0011-
152
NUT; ANCHOR BRKT
1-47139-126-0
32
1
0011-0110
152
NUT; ANCHOR BRKT
1-47139-126-0
16
1
0111-
167
WASHER; ADJ CAM
1-47149-064-0
02
1
0011-0110
167
WASHER; ADJ CAM
1-47149-077-0
02
1
0111-
195
RING; SNAP,CM/SHF
1-87050-005-0
02
1
0011-
201
BOLT; BRKT,POWER CHAMBER
1-47139-116-0
08
1
0011-0110
201
BOLT; BRKT,POWER CHAMBER
1-47139-119-0
04
1
0111-
212
STAY
1-48259-287-0
02
1
0111-
217
LINING KIT; RR BRK
1-87050-154-0
01
1
0011-0110
217
LINING KIT; RR BRK
1-87050-157-0
01
1
0111-
263
WASHER; PL,ANCHOR BRKT
1-47139-125-0
64
1
0011-0110
263
WASHER; PL,ANCHOR BRKT
1-47139-125-0
16
1
0111-
277
SUPPORT; BRKT
1-48259-287-0
02
1
0011-0110
278
BOLT; SUPPORT
M16X50
1-42119-077-0
02
1
0011-0110
278
BOLT; SUPPORT
M16X50
1-42119-077-0
04
1
0111-
279
WASHER; SUPPORT
1-47139-125-0
04
1
0011-
280
NUT; SUPPORT
1-47139-126-0
02
1
0011-0110
280
NUT; SUPPORT
1-47139-126-0
04
1
0111-
