Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
3 - Brakes, Brake System
▶
3-01 - FRONT WHEEL BRAKE
▶

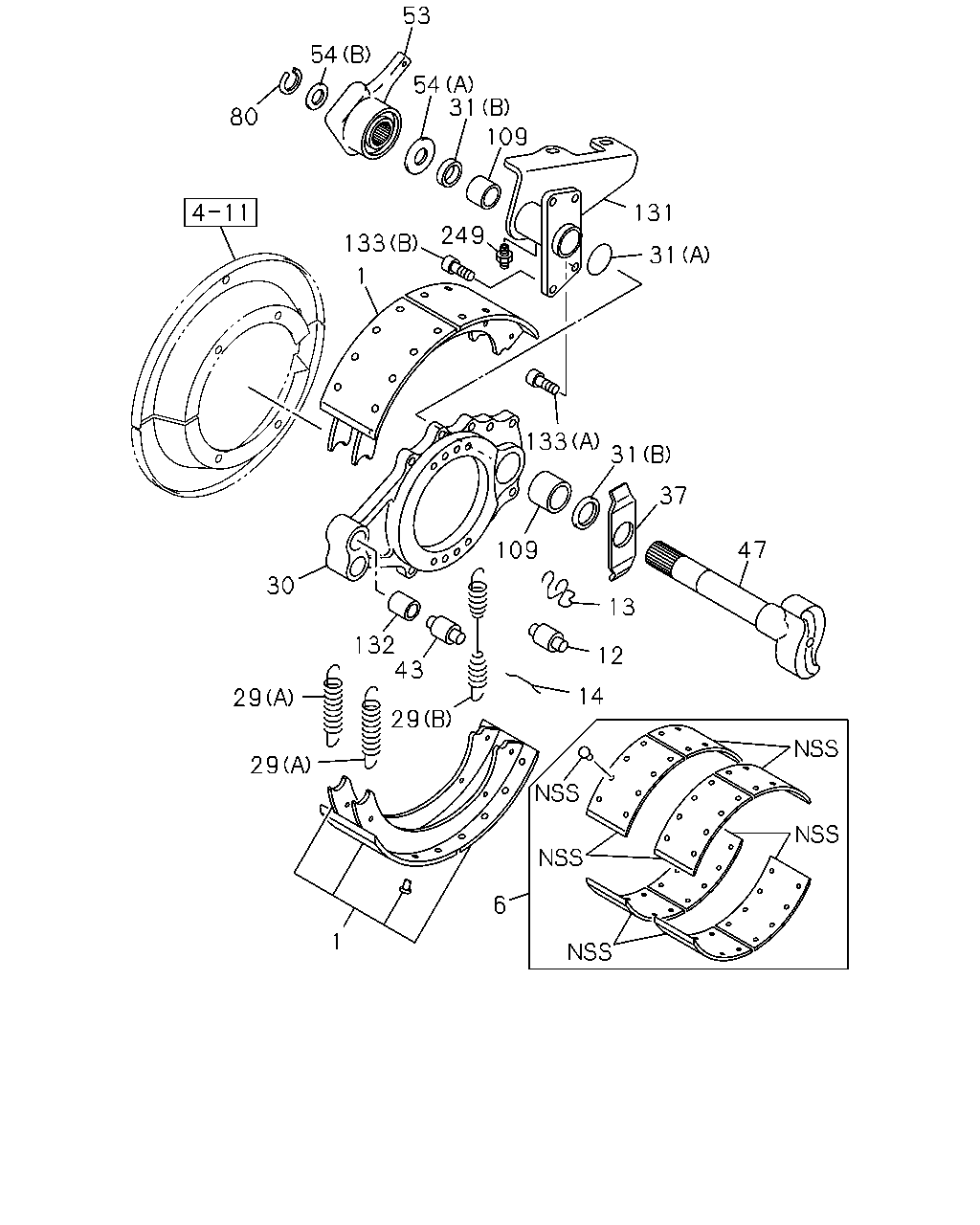

3-01 — FRONT WHEEL BRAKE
(#9769) — 29 parça
53
54
54
31
109
80
131
249
133
31
1
133
31
37
109
47
30
13
132
43
12
14
29
29
29
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,FRT
1-47120-402-0
04
1
0011-
6
LINING KIT; FRT BRK
1-87050-155-0
01
1
0011-
12
ROLLER; CAM,BRK SHOE
1-47119-117-0
02
1
0011-
13
CLIP; ROLLER PIN,BRK SHOE
1-47119-118-0
02
1
0011-
14
PIN; SHOE RETURN SPR
1-47119-116-0
02
1
0011-
29
SPRING; RETURN,FRT BRK SHOE
(A)
1-47119-114-0
04
1
0011-
29
SPRING; RETURN,FRT BRK SHOE
(B)
1-47119-119-0
02
1
0011-
30
BRACKET; ANCHOR,FRT
1-47137-333-0
01
1
0011-
30
BRACKET; ANCHOR,FRT
1-47137-334-0
01
1
0011-
31
SEAL; OIL,CM/SHF
(A)
1-47149-056-0
02
1
0011-
31
SEAL; OIL,CM/SHF
(B)
1-47149-057-0
04
1
0011-
37
WASHER; ADJ CAM
1-47149-079-0
02
1
0011-
43
PIN; ANCHOR
1-47131-046-0
04
1
0011-
47
CAMSHAFT; FRT BRK
1-47141-100-0
01
1
0011-
47
CAMSHAFT; FRT BRK
1-47141-101-0
01
1
0011-
53
ADJUSTER ASM; SLACK
1-48270-080-0
01
1
0011-1209
53
ADJUSTER ASM; SLACK
1-48270-111-0
01
1
1210-
53
ADJUSTER ASM; SLACK
1-48270-081-0
01
1
0011-1209
53
ADJUSTER ASM; SLACK
1-48270-112-0
01
1
1210-
54
SPACER; CM/SHF
(A)
1-47149-058-0
02
1
0011-
54
SPACER; CM/SHF
(B)
1-47149-059-0
02
1
0011-
80
RING; SNAP,CM/SHF
1-87050-005-0
02
1
0011-
109
BUSHING; CM/SHF,FRT BRK
1-47146-014-0
04
1
0011-
131
BRACKET; POWER CHAMBER
1-48258-160-0
01
1
0011-
131
BRACKET; POWER CHAMBER
1-48258-161-0
01
1
0011-
132
BUSHING; BRKT
1-47139-117-0
04
1
0011-
133
BOLT; BRKT
(A)
1-47139-118-0
06
1
0011-
133
BOLT; BRKT
(B)
1-47139-119-0
02
1
0011-
249
NIPPLE; GREASE,CHAMBER BRKT
1-48259-253-0
02
1
0011-
