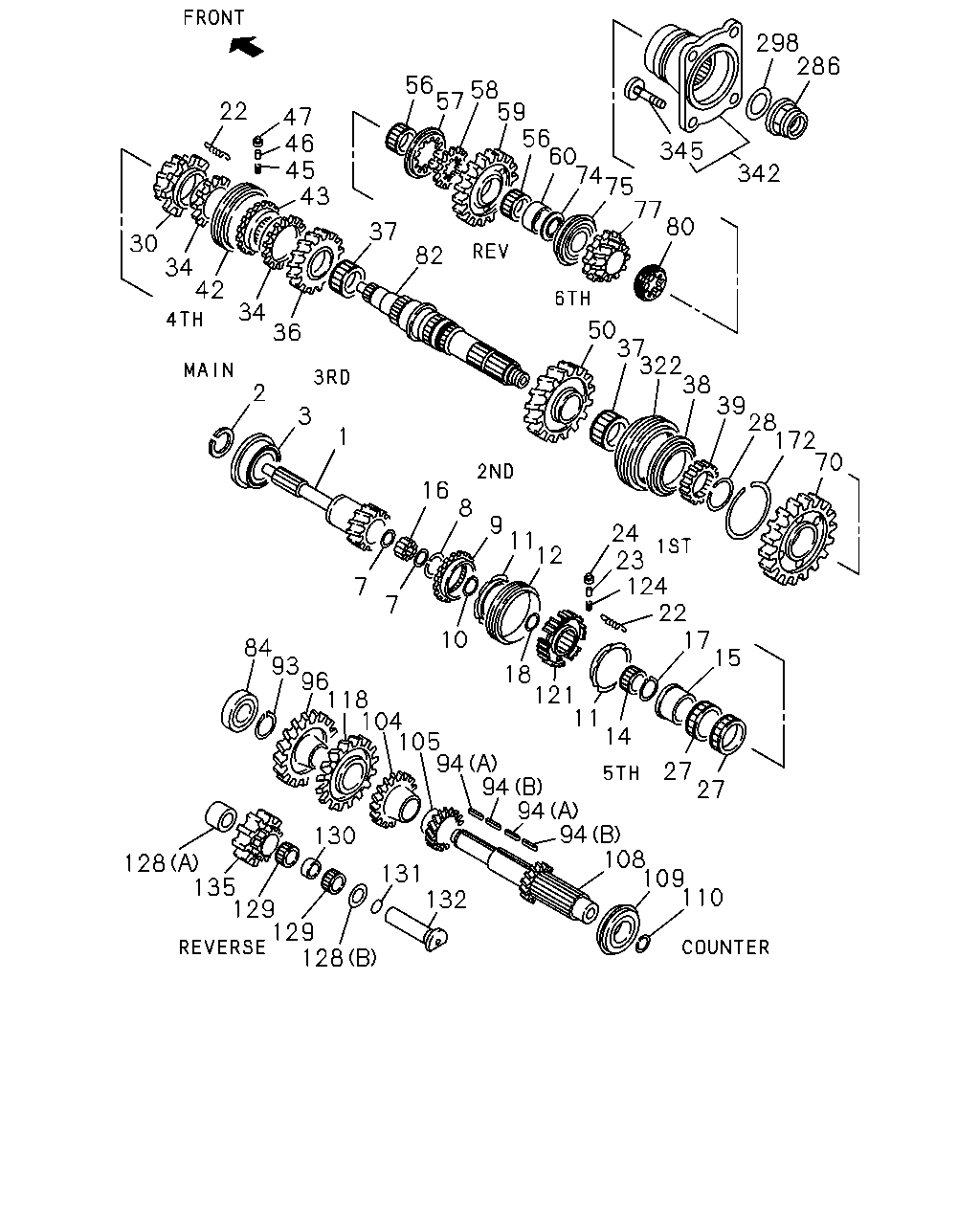

2-26 — MANUAL TRANSMISSION GEAR (#9764) — 83 parça

298 286 56 58 57 59 56 60 74 75 77 80 22 47 46 45 43 345 342 37 30 34 42 82 34 36 50 37 322 38 39 28 172 70 2 3 1 16 8 9 11 12 24 23 124 22 17 15 7 7 10 84 93 96 118 104 105 94 94 94 94 108 109 110 18 121 11 14 27 27 130 128 135 129 129 128 131 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS Z=25	1-33211-989-0	01	1	0011-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.53 WHITE	1-09588-160-1	AR	1	0011-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.56 YELLOW	1-09588-161-1	AR	1	0011-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.60 BLUE	1-09588-162-1	AR	1	0011-
2	RING; SNAP,TOP GEAR SHAFT ID=55.8 T=2.64 GREEN	1-09588-163-1	AR	1	0011-
3	BEARING; TOP GEAR SHAFT NSK	1-09810-050-2	01	1	0011-
7	WASHER; THRUST,MAINSHAFT	1-33239-080-1	02	1	0011-
8	CLIP; DOG CLU	1-33219-020-0	01	1	0011-
9	CLUTCH; DOG,TOP GEAR Z=48	1-33265-227-2	01	1	0011-
10	RING; SNAP,PILOT BRG OD=53.2	1-09587-072-0	01	1	0011-
11	RING; BLOCK,5TH & 6TH Z=36	1-33265-281-1	02	1	0011-
12	SLEEVE; 5TH & 6TH Z=42	1-33262-136-0	01	1	0011-
14	BEARING; NEEDLE,5TH NSK	1-09811-298-0	01	1	0011-
15	COLLAR; 4TH GEAR	1-33234-048-1	01	1	0011-
16	BEARING; PILOT,MAINSHAFT JTEKT	1-09844-015-0	13	1	0011-
17	RING; SNAP,4TH GEAR	1-09588-151-1	01	1	0011-
18	RING; SNAP,CLU HUB T=2.00	1-09588-150-1	01	1	0011-
22	SPRING; BLOCK,INSERT	1-09583-228-1	03	1	0011-
23	PLUNGER; DETENT,SYN	1-33269-037-1	03	1	0011-
24	BLOCK; INDEX,SYN	1-33269-035-1	03	1	0011-
27	BEARING; 4TH GEAR NSK	1-09811-300-0	02	1	0011-
28	RING; SNAP,3RD GEAR	1-09588-124-1	01	1	0011-
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-501-0	01	1	0011-1107
30	GEAR; 4TH,MAINSHAFT Z=33-54	1-33253-723-0	01	1	1108-
34	SYNCHRONIZER; 4TH & 3RD	1-33265-372-1	02	1	0011-0312
34	SYNCHRONIZER; 4TH & 3RD	1-33265-619-0	02	1	0401-
36	GEAR; 3RD,MAINSHAFT Z=43	1-33252-373-1	01	1	0011-
37	BEARING; NEEDLE,2ND & 3RD JTEKT	1-09811-277-0	02	1	0011-
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-279-0	02	1	0011-
38	SYNCHRONIZER; LOW & 2ND	1-33265-372-1	01	1	0011-0312
38	SYNCHRONIZER; LOW & 2ND	1-33265-619-0	01	1	0401-
39	HUB; CLU,LOW & 2ND Z=54	1-33261-217-0	01	1	0011-
42	SLEEVE Z=54	1-33262-154-0	01	1	0011-
43	HUB; CLU,3RD & 4TH,MAIN Z=54	1-33261-218-0	01	1	0011-
45	SPRING; BLOCK INSERT D=3.8	1-09580-395-0	06	1	0011-
46	PLUNGER; DETENT,SYN	1-33269-037-1	06	1	0011-
47	BLOCK; INDEX,SYN	1-33269-035-1	06	1	0011-
50	GEAR; 2ND,MAINSHAFT Z=48	1-33251-294-1	01	1	0011-
56	BEARING; NEEDLE,1ST,REV JTEKT	1-09811-320-0	02	1	0011-
57	SLEEVE; REV Z=40	1-33262-110-0	01	1	0011-
58	HUB; CLU,REV Z=26	1-33261-132-2	01	1	0011-
59	GEAR; REV MAINSHAFT Z=44	1-33257-060-1	01	1	0011-
60	COLLAR; REV MAIN	1-33234-095-0	01	1	0011-
70	GEAR; 1ST,MAINSHAFT Z=52	1-33255-055-1	01	1	0011-
74	WASHER; THRUST,REV GEAR	1-33239-035-2	01	1	0011-
75	BEARING; MAINSHAFT NSK	1-09810-047-1	01	1	0011-
75	BEARING; MAINSHAFT NTN	1-09810-154-0	01	1	0011-
77	GEAR; 6TH,MAINSHAFT Z=25	1-33253-517-0	01	1	0011-
80	GEAR; SPD DRIVE Z=5	1-33371-041-2	01	1	0011-
82	SHAFT; MAIN,TRANS Z=19-34-37-26-20	1-33231-249-0	01	1	0011-
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-140-0	01	1	0011-
93	RING; SNAP,COUNTER FRT BRG ID=55.8	1-09588-125-0	01	1	0011-
94	KEY; FEATHER,COUNTER SHAFT (A) L=47	1-09735-022-1	02	1	0011-
94	KEY; FEATHER,COUNTER SHAFT (B) L=55	1-09735-025-0	02	1	0011-
96	GEAR; COUNTER DRIVE Z=42	1-33331-212-1	01	1	0011-
104	GEAR; 4TH,COUNTER Z=36	1-33332-121-0	01	1	0011-1107
104	GEAR; 4TH,COUNTER Z=36	1-33332-133-0	01	1	1108-1311
104	GEAR; 4TH,COUNTER Z=36	8-98256-811-0	01	1	1312-
105	GEAR; 3RD,COUNTER Z=28	1-33333-161-0	01	1	0011-1311
105	GEAR; 3RD,COUNTER Z=28	8-98256-803-0	01	1	1312-
108	SHAFT; COUNTER Z=19-13	1-33311-235-1	01	1	0011-
109	BEARING; COUNTER SHAFT,RR JTEKT	1-09810-039-1	01	1	0011-
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-041-1	01	1	0011-
110	RING; SNAP,COUNTER BRG ID=46.3	1-09588-047-0	01	1	0011-
118	GEAR; 6TH,COUNTER Z=55	1-33332-103-1	01	1	0011-
121	HUB; CLU,6TH	1-33261-156-2	01	1	0011-0212
121	HUB; CLU,6TH	1-33261-270-0	01	1	0301-
124	SPRING; PLUNGER,CLU HUB D=3.8	1-09580-395-0	03	1	0011-
128	WASHER; THRUST,REV SHAFT (A) ID=38.5 T=42	1-33239-079-1	01	1	0011-
128	WASHER; THRUST,REV SHAFT (B) ID=38.5 T=2	1-33363-024-1	01	1	0011-
129	BEARING; NEEDLE,IDLER JTEKT	1-09811-102-0	02	1	0011-
129	BEARING; NEEDLE,IDLER NTN	1-09811-103-0	02	1	0011-
130	COLLAR; DIST,NEEDLE BRG	1-33363-023-0	01	1	0011-
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T).	1-09623-384-0	01	1	0011-
132	SHAFT; REV	1-33351-017-0	01	1	0011-
135	GEAR; REV IDLER Z=30-25	1-33361-063-0	01	1	0011-
172	RING; SNAP,CLU HUB ID=130 T=2.5	1-09588-040-0	01	1	0011-
286	NUT; LK,MAINSHAFT M36 FLANGE	1-09449-063-0	01	1	0011-0805
286	NUT; LK,MAINSHAFT M36 FLANGE	8-98014-140-0	01	1	0806-
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5	1-09623-380-0	01	1	0011-
322	SLEEVE; SYN,LOW & 2ND	1-33262-153-1	01	1	0011-
342	FLANGE; OUTPUT	1-37243-297-1	01	1	0011-
345	BOLT; FLANGE TO YOKE M16X51 W/MARK	1-46219-086-0	04	1	0011-
