◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-78 - FLOOR HOLE PLUG ▶
6-78 — FLOOR HOLE PLUG (#976) — 17 parça

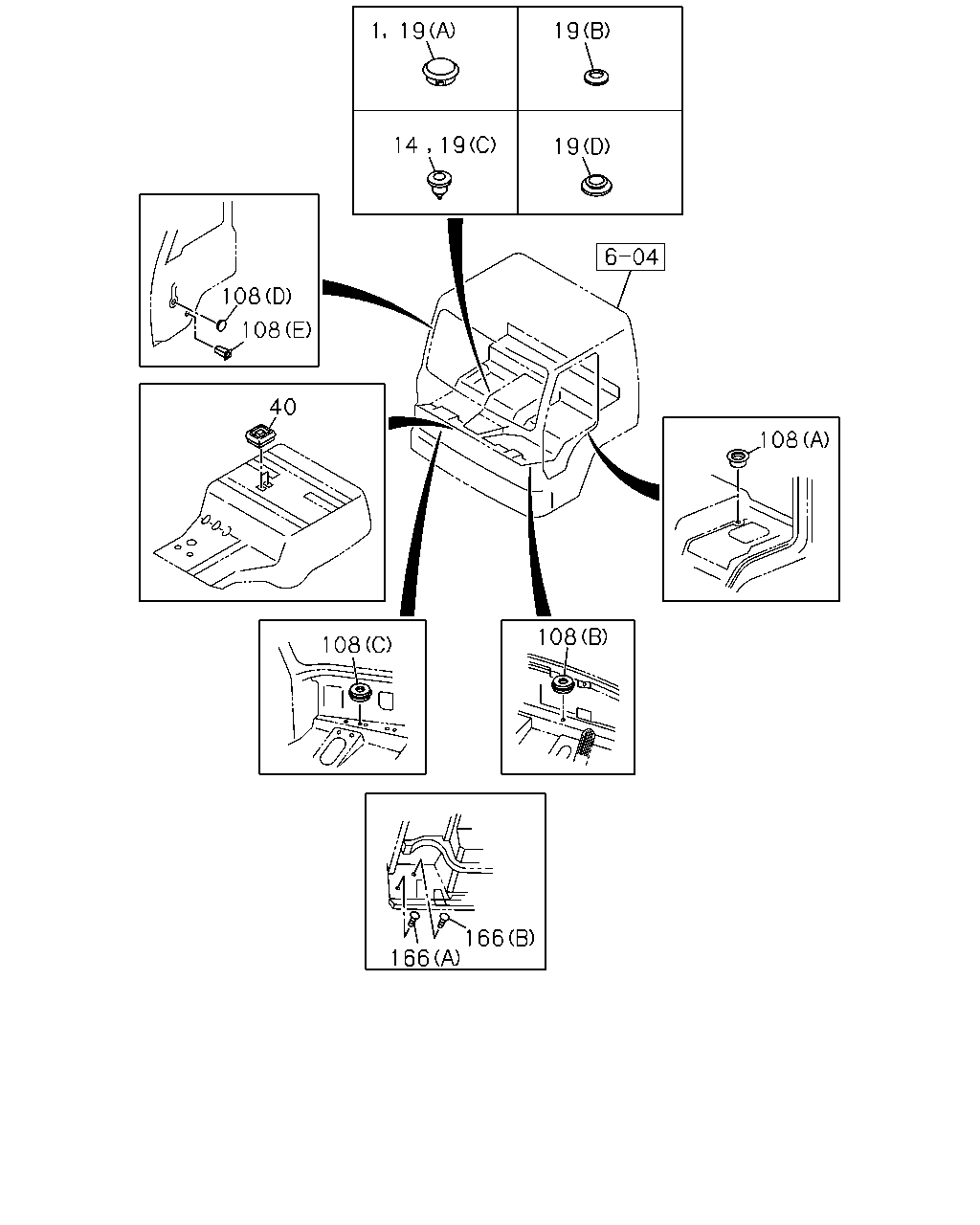

çizim 92890
19 19 1 19 108 108 40 108 108 108 166 166 14 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 GROMMET
OD=35 		1-09983-066-1 02 1 9202- ● ●
14 GROMMET; DUMMY HOLE FLOOR 1-09983-098-0 01 1 9203-9302 ● ●
19 GROMMET; FLOOR FRT
(A) OD=35 		1-09983-066-1 02 1 9202- ● ●
19 GROMMET; FLOOR FRT
(A) OD=23.5 		1-09983-101-0 04 1 9202- ● ●
19 GROMMET; FLOOR FRT
(B) OD=32 T=5 		5-09983-018-0 02 1 9202- ● ●
19 GROMMET; FLOOR FRT
(D) OD=20 		5-09983-020-0 04 1 9202- ● ●
19 GROMMET; FLOOR FRT
(C) OD=22 		9-61168-535-0 01 1 9202- ● ●
40 GROMMET; RR,UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 		1-09983-108-0 02 1 9202- ● ●
108 GROMMET; HOLE PLUG
(D) ID=20 OD=40 		1-09983-077-0 01 1 9202-9205 ● ●
108 GROMMET; HOLE PLUG
(D) ID=20 OD=40 		1-09983-077-0 02 1 9206- ● ●
108 GROMMET; HOLE PLUG
(A) OD=20 		5-09983-020-0 04 1 9202- ● ●
108 GROMMET; HOLE PLUG
(E) SCREW GROMMET D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 03 1 9202- ● ●
108 GROMMET; HOLE PLUG
(C) OD=28 		9-09575-497-0 02 1 9205- ● ●
108 GROMMET; HOLE PLUG
AUTO ENG SHUTOFF(KB6) (B) OD=36 		1-09983-092-0 01 1 9202- ● ●
108 GROMMET; HOLE PLUG
EXC. TACHOMETER<UD7> (C) OD=28 		9-09575-497-0 01 1 9202-9204 ● ●
166 PLUG; UNDER FRAME
(B) D4.7X11 		1-76378-154-0 02 1 9202- ● ●
166 PLUG; UNDER FRAME
(A) OD=15 L=14.5 		1-76378-157-0 01 1 9202- ● ●
