Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-35 - CHARGE AIR COOLER
▶

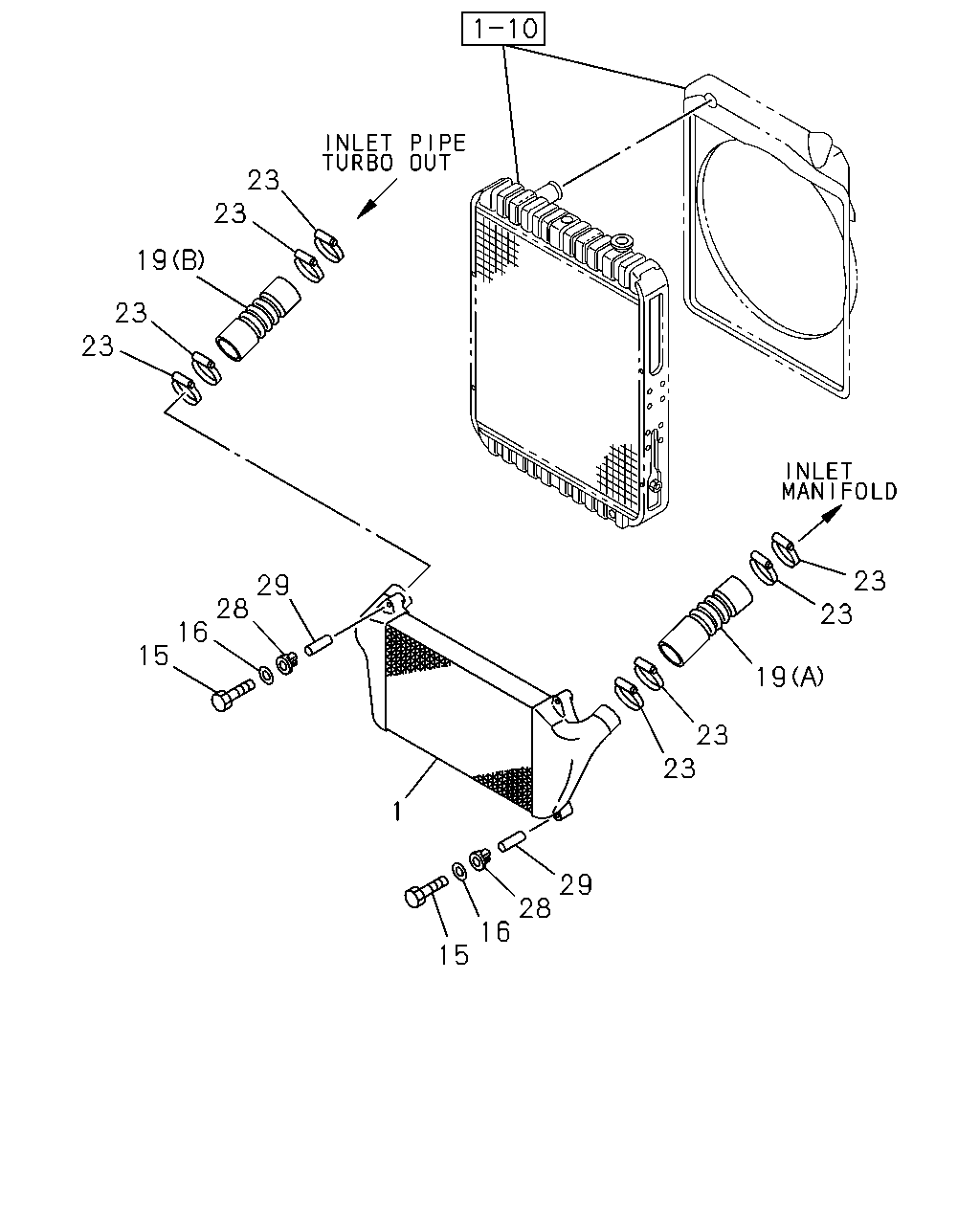

1-35 — CHARGE AIR COOLER
(#9749) — 12 parça
23
23
19
23
23
23
23
29
28
16
15
19
23
23
1
29
28
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
1-14431-041-1
01
1
0011-0511
1
COOLER; CHARGE AIR
8-98033-144-0
01
1
0512-
15
BOLT; CHARGE AIR COOLER
M8X35 FLANGE
0-28080-835-0
04
1
0011-
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0011-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-94390-035-0
01
1
0011-1408
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-98245-238-0
01
1
1409-
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-94390-043-0
01
1
0011-
23
CLIP; HOSE
ID=58-79
8-94126-771-0
08
1
0011-0306
23
CLIP; HOSE
ID=58-76
1-09707-203-0
08
1
0307-0811
23
CLIP; HOSE
ID=55-75
8-98133-349-0
08
1
0812-
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0011-
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0011-
