◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10854 - FVR-LHD(BUS CHASSIS) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#9747) — 20 parça

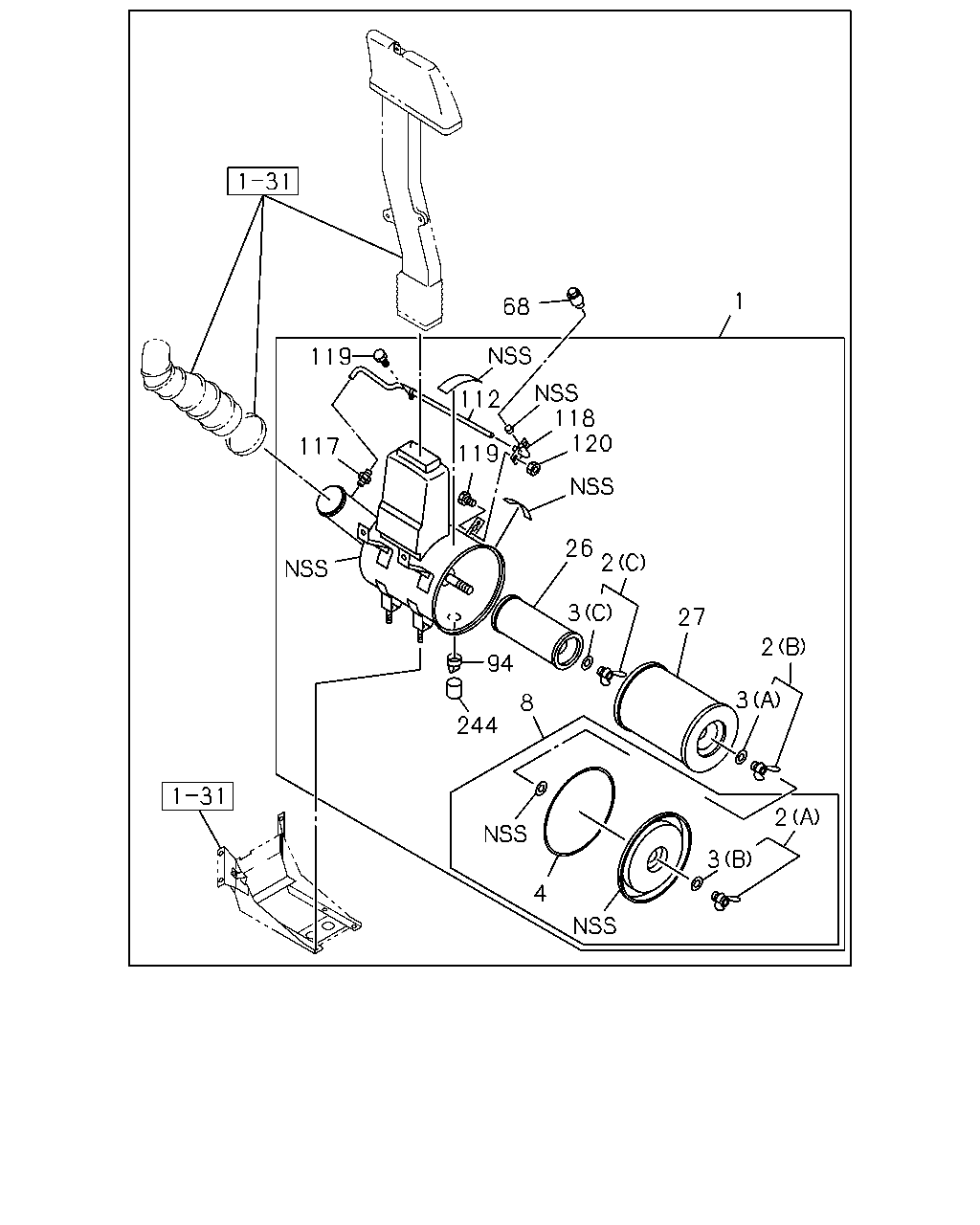

çizim 73051
1 68 119 118 120 112 117 119 26 2 3 27 2 94 3 8 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0011-
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0011-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0011-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0011-
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0011-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0011-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0011-
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0011-
8 COVER ASM; ACL 1-14212-053-0 01 1 0011-
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0011-
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0011-
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0011-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0011-
94 VALVE; VACUATOR 1-14219-192-0 01 1 0011-
112 HOSE; INDICATOR 1-14219-259-0 01 1 0011-
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0011-
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0011-
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0011-
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0011-
244 COVER ASM; VALVE 1-14219-281-0 01 1 0011-
