Sayfa 0-81 - Isuzu EPC

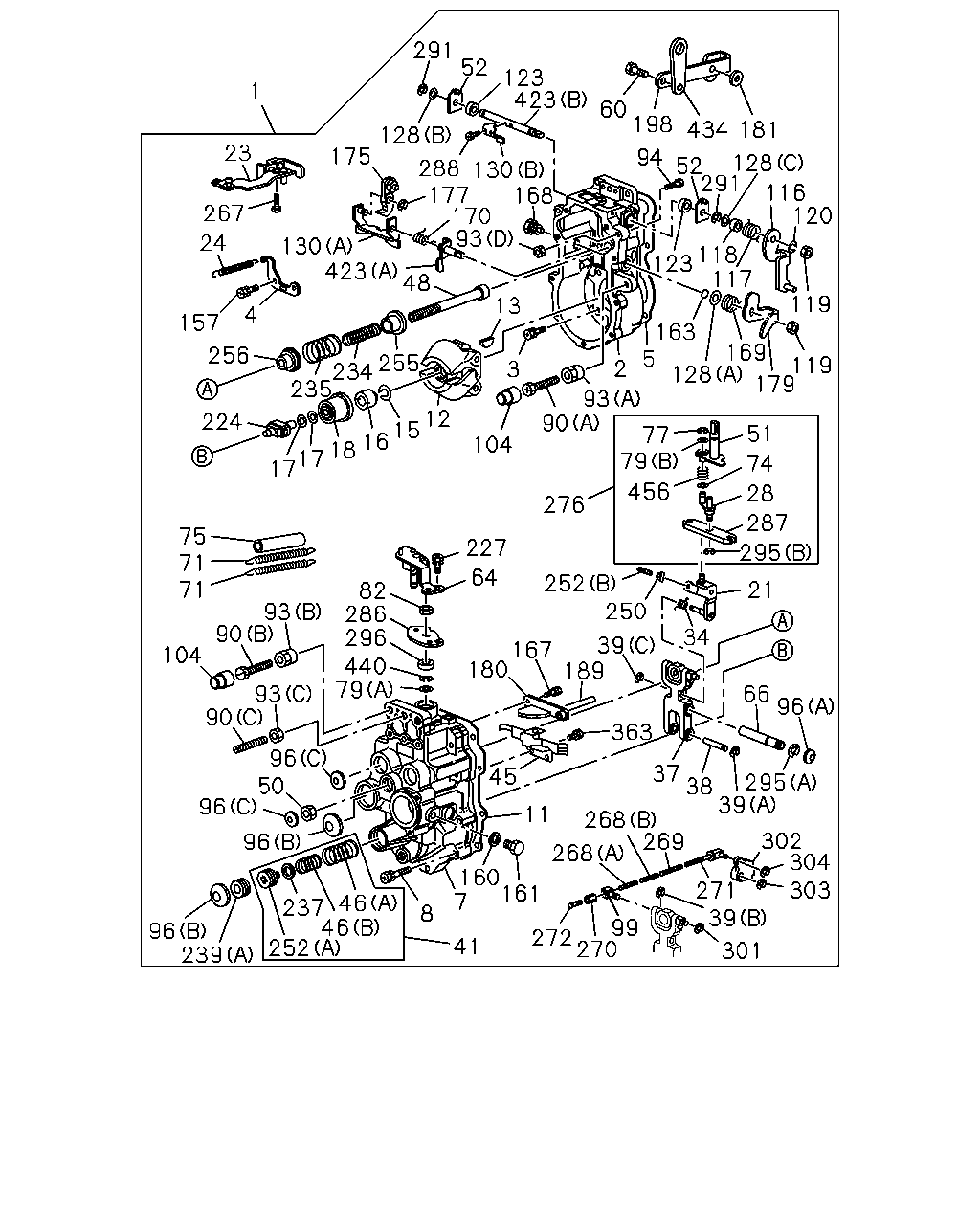

0-81 — GOVERNOR; INJECTION PUMP (#9739) — 201 parça

291 52 123 423 1 60 198 434 181 128 288 130 177 168 170 93 23 175 94 52 128 291 116 120 267 118 123 117 24 130 423 48 4 119 13 157 163 5 169 128 256 255 234 235 119 179 2 3 93 90 12 15 16 18 17 17 224 51 77 79 104 74 456 28 276 287 75 71 71 227 295 64 252 250 21 82 286 296 440 79 93 90 34 39 189 167 180 104 93 90 96 50 96 66 96 363 45 37 38 295 39 11 96 268 269 302 304 303 268 160 161 7 271 39 99 272 270 46 237 46 252 8 96 239 41 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	GOVERNOR ASM; INJ PUMP ASM PART: A = 8-94392-008-1	1-15770-999-1	01	1	-
2	HOUSING; GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15721-343-0	01	1	-
3	BOLT; GOV HSG,INJ PUMP ASM PART: A = 8-94392-008-1	1-15779-226-0	08	1	-
4	PLATE; START SPRING,GOV ASM PART: A = 8-94392-008-1	1-15779-524-0	01	1	-
5	GASKET; GOV TO INJ PUMP HSG ASM PART: A = 8-94392-008-1	1-15779-529-0	01	1	-
7	COVER; GOV HSG,INJ PUMP ASM PART: A = 8-94392-008-1	1-15721-357-0	01	1	-
8	BOLT; GOV COVER,INJ PUMP ASM PART: A = 8-94392-008-1	5-15729-033-0	09	1	-
11	GASKET; COVER TO HSG,GOV ASM PART: A = 8-94392-008-1	1-15779-251-0	01	1	-
12	FLYWEIGHT ASM; GOV ASM PART: A = 8-94392-008-1	1-15722-024-0	01	1	-
13	KEY; FLYWEIGHT,GOV 13MM ASM PART: A = 8-94392-008-1	9-81325-030-0	01	1	-
15	WASHER; LK,FLYWEIGHT FIX,GOV ASM PART: A = 8-94392-008-1	5-15729-034-0	01	1	-
16	NUT; FLYWEIGHT FIX,GOV ASM PART: A = 8-94392-008-1	9-81325-086-0	01	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=2.00 ASM PART: A = 8-94392-008-1	1-15729-891-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=3.00 ASM PART: A = 8-94392-008-1	1-15729-892-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=4.00 ASM PART: A = 8-94392-008-1	1-15729-893-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.50 ASM PART: A = 8-94392-008-1	5-15729-286-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.50 ASM PART: A = 8-94392-008-1	5-15729-287-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.20 ASM PART: A = 8-94392-008-1	9-81325-088-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.30 ASM PART: A = 8-94392-008-1	9-81325-551-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=0.40 ASM PART: A = 8-94392-008-1	9-81325-552-0	AR	1	-
17	SHIM; FLYWEIGHT SLEEVE,GOV T=1.00 ASM PART: A = 8-94392-008-1	9-81325-553-0	AR	1	-
18	SLEEVE; GOV ASM PART: A = 8-94392-008-1	5-15729-372-0	01	1	-
21	LEVER ASM; GUIDE,GOV ASM PART: A = 8-94392-008-1	1-15725-899-0	01	1	-
23	LINK; LEVER TO CONT RACK,GOV ASM PART: A = 8-94392-008-1	1-15725-900-0	01	1	-
24	SPRING; START,GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15723-450-0	01	1	-
28	LEVER; SUPPORTING,GOV ASM PART: A = 8-94392-008-1	1-15725-780-0	01	1	-
34	SPRING; SPD CONT LEVER,GOV ASM PART: A = 8-94392-008-1	1-15723-549-0	01	1	-
37	LEVER ASM; TENSION,GOV ASM PART: A = 8-94392-008-1	1-15725-898-1	01	1	-
38	PIN; TENSION LEVER,GOV ASM PART: A = 8-94392-008-1	1-15779-271-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (B) ASM PART: A = 8-94392-008-1	1-09588-170-0	01	1	-
39	RING; SNAP,LEVER PIN,GOV (A) ASM PART: A = 8-94392-008-1	8-94244-599-0	02	1	-
39	RING; SNAP,LEVER PIN,GOV (C), ID=4 ASM PART: A = 8-94392-008-1	9-09185-404-0	01	1	-
41	SPRING CAPSULE; IDLE CONT,GOV ASM PART: A = 8-94392-008-1	1-15723-484-0	01	1	-
45	LEVER ASM; GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15725-819-0	01	1	-
46	SPRING; GOV,INJ PUMP (B) ASM PART: A = 8-94392-008-1	1-15723-480-0	01	1	-
46	SPRING; GOV,INJ PUMP (A) ASM PART: A = 8-94392-008-1	1-15723-481-0	01	1	-
48	SHAFT; GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15779-240-0	01	1	-
50	NUT; GOV SHAFT,INJ PUMP ASM PART: A = 8-94392-008-1	8-94171-147-0	01	1	-
51	SHAFT; LOAD CONT LEVER,GOV ASM PART: A = 8-94392-008-1	1-15779-528-0	01	1	-
52	WASHER; CONT SHAFT,GOV ASM PART: A = 8-94392-008-1	1-15779-269-0	02	1	-
60	BOLT; COVER FIX,GOV COVER ASM PART: A = 8-94392-008-1	1-15789-098-0	02	1	-
64	LEVER; LOAD CONT,GOV ASM PART: A = 8-94392-008-1	1-15725-897-0	01	1	-
66	SHAFT; LEVER ASM PART: A = 8-94392-008-1	1-15779-234-0	01	1	-
71	SPRING; CONT LEVER,GOV ASM PART: A = 8-94392-008-1	1-15723-552-0	02	1	-
74	WASHER; LEVER SPR ASM PART: A = 8-94392-008-1	1-15779-232-0	01	1	-
75	TUBE; RETURN SPRING,STOPPER LEVER,GOV ASM PART: A = 8-94392-008-1	1-15779-284-0	02	1	-
77	RING; SNAP,CONT LEVER,GOV ASM PART: A = 8-94392-008-1	5-15729-023-0	01	1	-
79	SHIM; LEVER SETTING,GOV (A) ASM PART: A = 8-94392-008-1	1-15729-988-0	01	1	-
79	SHIM; LEVER SETTING,GOV (B) ASM PART: A = 8-94392-008-1	1-15779-232-0	01	1	-
82	NUT; CONT LEVER FIX,GOV ASM PART: A = 8-94392-008-1	1-15729-236-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X45 ASM PART: A = 8-94392-008-1	1-15779-244-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X49 ASM PART: A = 8-94392-008-1	1-15779-245-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (A), M8X53 ASM PART: A = 8-94392-008-1	1-15779-246-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (B) ASM PART: A = 8-94392-008-1	1-15779-247-0	01	1	-
90	SCREW; FULL LOAD ADJ,GOV (C), L=53 ASM PART: A = 8-94392-008-1	1-15779-296-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (A) ASM PART: A = 8-94392-008-1	1-15779-277-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (B) ASM PART: A = 8-94392-008-1	1-15779-278-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (C), M10 ASM PART: A = 8-94392-008-1	9-09111-410-0	01	1	-
93	NUT; ADJ SCREW LK,INJ PUMP GOV (D) ASM PART: A = 8-94392-008-1	9-88410-525-0	01	1	-
94	SCREW; ADJ,CONT LEVER,GOV ASM PART: A = 8-94392-008-1	1-15779-233-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (B) ASM PART: A = 8-94392-008-1	1-15779-293-0	01	1	-
96	PLUG; LEVER SHAFT,GOV (A) ASM PART: A = 8-94392-008-1	5-15729-076-0	02	1	-
96	PLUG; LEVER SHAFT,GOV (C) ASM PART: A = 8-94392-008-1	8-94171-148-0	03	1	-
99	PIN; TENSION LEVER,GOV ASM PART: A = 8-94392-008-1	1-15779-286-1	01	1	-
104	CAP; LOCK NUT,ADJ SCREW ASM PART: A = 8-94392-008-1	8-97085-022-0	02	1	-
116	LEVER; ENG STOP,GOV ASM PART: A = 8-94392-008-1	1-15725-896-0	01	1	-
117	SPRING; STOP LEVER,GOV ASM PART: A = 8-94392-008-1	1-15723-471-0	01	1	-
118	COLLAR; CONT SHAFT,GOV ASM PART: A = 8-94392-008-1	1-15779-389-0	01	1	-
119	NUT; ENG STOP LEVER,GOV ASM PART: A = 8-94392-008-1	1-15729-236-0	02	1	-
120	WASHER; LK,SPD ADJ LEVER,GOV ASM PART: A = 8-94392-008-1	1-83579-492-0	01	1	-
123	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-94392-008-1	1-15779-282-0	02	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.60 ASM PART: A = 8-94392-008-1	1-15729-897-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.80 ASM PART: A = 8-94392-008-1	1-15729-898-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.90 ASM PART: A = 8-94392-008-1	1-15729-899-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.50 ASM PART: A = 8-94392-008-1	1-15779-230-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (B), T=0.20 ASM PART: A = 8-94392-008-1	1-15779-231-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (C) ASM PART: A = 8-94392-008-1	1-15779-388-0	01	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.50 ASM PART: A = 8-94392-008-1	9-81325-556-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.30 ASM PART: A = 8-94392-008-1	9-81325-557-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.40 ASM PART: A = 8-94392-008-1	9-81325-558-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.25 ASM PART: A = 8-94392-008-1	9-81325-559-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.35 ASM PART: A = 8-94392-008-1	9-81325-560-0	AR	1	-
128	SHIM; CONT SHAFT,GOV (A), T=0.20 ASM PART: A = 8-94392-008-1	9-88410-421-0	AR	1	-
130	LEVER; CONT,GOV (B) ASM PART: A = 8-94392-008-1	1-15725-775-0	01	1	-
130	LEVER; CONT,GOV (A) ASM PART: A = 8-94392-008-1	1-15725-895-0	01	1	-
157	BOLT; START SPRING PLATE,GOV ASM PART: A = 8-94392-008-1	1-15779-226-0	02	1	-
160	GASKET; PLUG TO HSG L=96 ASM PART: A = 8-94392-008-1	1-15729-066-0	01	1	-
161	PLUG; HSG ASM PART: A = 8-94392-008-1	8-97037-288-0	01	1	-
163	GASKET; CONT SHAFT,GOV ASM PART: A = 8-94392-008-1	1-15779-227-0	01	1	-
167	BOLT; PLATE M6X16 ASM PART: A = 8-94392-008-1	5-15729-071-0	02	1	-
168	PLUG; CONT SHAFT,GOV HSG ASM PART: A = 8-94392-008-1	1-15779-285-0	01	1	-
169	SPRING; LEVER SET,GOV ASM PART: A = 8-94392-008-1	1-15723-548-0	01	1	-
170	SPRING; LEVER TO LEVER,GOV ASM PART: A = 8-94392-008-1	5-15723-033-0	01	1	-
175	LEVER; GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15725-893-0	01	1	-
177	RING; SNAP,GOV LEVER,INJ PUMP ASM PART: A = 8-94392-008-1	8-94324-735-0	01	1	-
179	LEVER; SPD ADJ,GOV ASM PART: A = 8-94392-008-1	1-15725-894-0	01	1	-
180	PLATE; GOV COVER ASM PART: A = 8-94392-008-1	1-15779-532-0	01	1	-
181	SPACER; BRKT ASM PART: A = 8-94392-008-1	1-15779-531-0	01	1	-
189	ROD; PUSH,GOV L=72.5 ASM PART: A = 8-94392-008-1	1-15779-336-0	01	1	-
189	ROD; PUSH,GOV L=73.0 ASM PART: A = 8-94392-008-1	1-15779-337-0	01	1	-
189	ROD; PUSH,GOV L=73.5 ASM PART: A = 8-94392-008-1	1-15779-338-0	01	1	-
189	ROD; PUSH,GOV L=74.0 ASM PART: A = 8-94392-008-1	1-15779-339-0	01	1	-
189	ROD; PUSH,GOV L=74.5 ASM PART: A = 8-94392-008-1	1-15779-340-0	01	1	-
189	ROD; PUSH,GOV L=75.0 ASM PART: A = 8-94392-008-1	1-15779-341-0	01	1	-
189	ROD; PUSH,GOV L=75.5 ASM PART: A = 8-94392-008-1	1-15779-342-0	01	1	-
189	ROD; PUSH,GOV L=76.0 ASM PART: A = 8-94392-008-1	1-15779-343-0	01	1	-
189	ROD; PUSH,GOV L=76.5 ASM PART: A = 8-94392-008-1	1-15779-344-0	01	1	-
189	ROD; PUSH,GOV L=77.0 ASM PART: A = 8-94392-008-1	1-15779-345-0	01	1	-
189	ROD; PUSH,GOV L=77.5 ASM PART: A = 8-94392-008-1	1-15779-346-0	01	1	-
189	ROD; PUSH,GOV L=78.0 ASM PART: A = 8-94392-008-1	1-15779-347-0	01	1	-
189	ROD; PUSH,GOV L=78.5 ASM PART: A = 8-94392-008-1	1-15779-348-0	01	1	-
189	ROD; PUSH,GOV L=79.0 ASM PART: A = 8-94392-008-1	1-15779-349-0	01	1	-
189	ROD; PUSH,GOV L=79.5 ASM PART: A = 8-94392-008-1	1-15779-350-0	01	1	-
189	ROD; PUSH,GOV L=80.0 ASM PART: A = 8-94392-008-1	1-15779-351-0	01	1	-
189	ROD; PUSH,GOV L=80.5 ASM PART: A = 8-94392-008-1	1-15779-352-0	01	1	-
189	ROD; PUSH,GOV L=81.0 ASM PART: A = 8-94392-008-1	1-15779-353-0	01	1	-
189	ROD; PUSH,GOV L=81.5 ASM PART: A = 8-94392-008-1	1-15779-354-0	01	1	-
189	ROD; PUSH,GOV L=82.0 ASM PART: A = 8-94392-008-1	1-15779-355-0	01	1	-
189	ROD; PUSH,GOV L=82.5 ASM PART: A = 8-94392-008-1	1-15779-356-0	01	1	-
189	ROD; PUSH,GOV L=83.0 ASM PART: A = 8-94392-008-1	1-15779-426-0	01	1	-
189	ROD; PUSH,GOV L=83.5 ASM PART: A = 8-94392-008-1	1-15779-427-0	01	1	-
189	ROD; PUSH,GOV L=84.0 ASM PART: A = 8-94392-008-1	1-15779-428-0	01	1	-
189	ROD; PUSH,GOV L=84.5 ASM PART: A = 8-94392-008-1	1-15779-429-0	01	1	-
189	ROD; PUSH,GOV L=85.0 ASM PART: A = 8-94392-008-1	1-15779-430-0	01	1	-
189	ROD; PUSH,GOV L=85.5 ASM PART: A = 8-94392-008-1	1-15779-431-0	01	1	-
189	ROD; PUSH,GOV L=86.0 ASM PART: A = 8-94392-008-1	1-15779-432-0	01	1	-
189	ROD; PUSH,GOV L=86.5 ASM PART: A = 8-94392-008-1	1-15779-433-0	01	1	-
189	ROD; PUSH,GOV L=87.0 ASM PART: A = 8-94392-008-1	1-15779-434-0	01	1	-
189	ROD; PUSH,GOV L=87.5 ASM PART: A = 8-94392-008-1	1-15779-435-0	01	1	-
189	ROD; PUSH,GOV L=88.0 ASM PART: A = 8-94392-008-1	1-15779-436-0	01	1	-
189	ROD; PUSH,GOV L=88.5 ASM PART: A = 8-94392-008-1	1-15779-437-0	01	1	-
189	ROD; PUSH,GOV L=89.0 ASM PART: A = 8-94392-008-1	1-15779-438-0	01	1	-
189	ROD; PUSH,GOV L=89.5 ASM PART: A = 8-94392-008-1	1-15779-439-0	01	1	-
189	ROD; PUSH,GOV L=90.0 ASM PART: A = 8-94392-008-1	1-15779-440-0	01	1	-
198	BRACKET; COVER ASM PART: A = 8-94392-008-1	1-15779-530-0	01	1	-
224	SHIFTER; TENSION LEVER,GOV ASM PART: A = 8-94392-008-1	1-15779-334-0	01	1	-
227	BOLT; GOV LEVER ASM PART: A = 8-94392-008-1	1-15719-005-0	03	1	-
234	SPRING; INNER,GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15723-479-0	01	1	-
235	SPRING; OUTER,GOV,INJ PUMP ASM PART: A = 8-94392-008-1	1-15723-550-0	01	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=2.00 ASM PART: A = 8-94392-008-1	1-15729-891-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=3.00 ASM PART: A = 8-94392-008-1	1-15729-892-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=4.00 ASM PART: A = 8-94392-008-1	1-15729-893-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.50 ASM PART: A = 8-94392-008-1	5-15729-286-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.50 ASM PART: A = 8-94392-008-1	5-15729-287-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.20 ASM PART: A = 8-94392-008-1	9-81325-088-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.30 ASM PART: A = 8-94392-008-1	9-81325-551-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=0.40 ASM PART: A = 8-94392-008-1	9-81325-552-0	AR	1	-
237	SHIM; SPR CAPSULE,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-94392-008-1	9-81325-553-0	AR	1	-
239	SCREW; GOV (B) ASM PART: A = 8-94392-008-1	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 8-94392-008-1	1-15779-239-0	01	1	-
250	NUT; GUIDE SCREW,GOV SHAFT ASM PART: A = 8-94392-008-1	1-15779-287-0	01	1	-
252	SCREW; GUIDE (A) ASM PART: A = 8-94392-008-1	1-15779-238-0	01	1	-
252	SCREW; GUIDE (B) ASM PART: A = 8-94392-008-1	1-15779-288-0	01	1	-
255	SEAT; GOV SPRING,INJ PUMP ASM PART: A = 8-94392-008-1	1-15779-241-0	01	1	-
256	SEAT; GOV SPRING ASM PART: A = 8-94392-008-1	1-15779-242-0	01	1	-
267	BOLT; CONN,CONT RACK,GOV ASM PART: A = 8-94392-008-1	1-15749-747-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (A) ASM PART: A = 8-94392-008-1	1-15723-445-0	01	1	-
268	SPRING; ROD INNER,TORQUE CAM,GOV (B) ASM PART: A = 8-94392-008-1	1-15723-446-0	01	1	-
269	SPRING; ROD OUTER,TORQUE CAM,GOV ASM PART: A = 8-94392-008-1	1-15723-459-0	01	1	-
270	NUT; TORQUE ROD LK,GOV ASM PART: A = 8-94392-008-1	1-15779-272-0	01	1	-
271	ROD; TORQUE CAM,GOV ASM PART: A = 8-94392-008-1	1-15779-235-1	01	1	-
272	SCREW; ADJ,TORQUE CAM ROD,GOV ASM PART: A = 8-94392-008-1	1-15779-289-0	01	1	-
276	LEVER ASM; LOAD CONT,GOV ASM PART: A = 8-94392-008-1	1-15725-901-0	01	1	-
286	LEVER; GOV ASM PART: A = 8-94392-008-1	1-15725-782-0	01	1	-
287	LEVER; GOV ASM PART: A = 8-94392-008-1	1-15725-781-0	01	1	-
288	BOLT; LEVER ASM PART: A = 8-94392-008-1	1-15729-197-0	02	1	-
291	RING; SNAP,CONT SHAFT,GOV ASM PART: A = 8-94392-008-1	1-15779-196-0	02	1	-
295	RING; SNAP (A) ASM PART: A = 8-94392-008-1	1-15779-273-0	02	1	-
295	RING; SNAP (B) ASM PART: A = 8-94392-008-1	5-15729-023-0	01	1	-
296	SEAL; OIL,CONT SHAFT,GOV ASM PART: A = 8-94392-008-1	8-97024-879-0	01	1	-
301	RING; SNAP ID=4 ASM PART: A = 8-94392-008-1	9-09185-404-0	01	1	-
302	PLATE; CAM,GOV ASM PART: A = 8-94392-008-1	1-15779-693-0	01	1	-
303	RING; SNAP,CAM PLATE,GOV ASM PART: A = 8-94392-008-1	5-15729-023-0	01	1	-
304	RING; SNAP,LINK TO CAM PLATE,GOV ID=4 ASM PART: A = 8-94392-008-1	9-09185-404-0	01	1	-
363	BOLT; LEVER FIX ASM PART: A = 8-94392-008-1	8-94247-029-0	02	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (A) ASM PART: A = 8-94392-008-1	1-15779-525-0	01	1	-
423	SHAFT; CONT,GOV HSG,INJ PUMP (B) ASM PART: A = 8-94392-008-1	1-15779-607-0	01	1	-
434	HANGER; GOV ASM PART: A = 8-94392-008-1	1-15619-347-0	01	1	-
440	RING; SNAP,LEVER ASM PART: A = 8-94392-008-1	1-15729-989-0	01	1	-
456	SPRING; LEVER,GOV ASM PART: A = 8-94392-008-1	1-15723-551-0	01	1	-

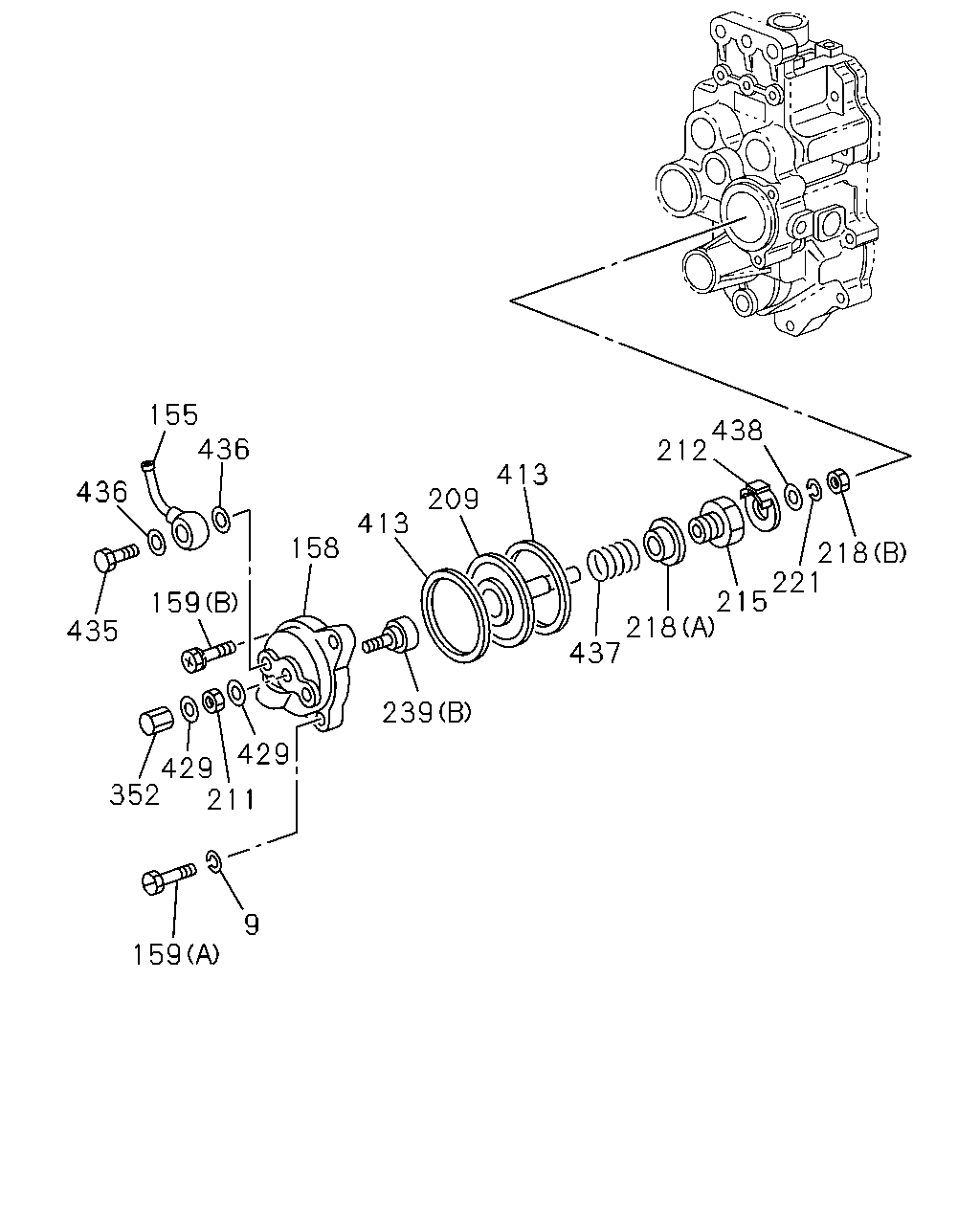

155 436 438 212 413 436 209 413 158 218 221 215 159 218 437 435 239 429 429 352 211 9 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	WASHER; LK,GOV COVER ID=6.1 ASM PART: A = 8-94392-008-1	9-09150-506-0	02	1	-
155	JOINT; HOSE,HSG ASM PART: A = 8-94392-008-1	1-15779-527-0	01	1	-
158	COVER; GOV HSG ASM PART: A = 8-94392-008-1	1-15619-283-0	01	1	-
159	BOLT; COVER (A) ASM PART: A = 8-94392-008-1	1-15779-202-0	02	1	-
159	BOLT; COVER (B), M6X20 ASM PART: A = 8-94392-008-1	9-81325-187-0	01	1	-
209	DIAPHRAGM; GOV ASM PART: A = 8-94392-008-1	1-15713-005-0	01	1	-
211	NUT; LOCK,GOV ASM PART: A = 8-94392-008-1	9-88410-525-0	01	1	-
212	PLATE; GOV ASM PART: A = 8-94392-008-1	8-94122-719-0	01	1	-
215	BOLT; DIAPH ASM PART: A = 8-94392-008-1	8-97037-284-0	01	1	-
218	NUT; DIAPH (A) ASM PART: A = 8-94392-008-1	1-15729-249-0	01	1	-
218	NUT; DIAPH (B) ASM PART: A = 8-94392-008-1	8-94122-726-0	01	1	-
221	WASHER; LK,DIAPH ID=6.1 ASM PART: A = 8-94392-008-1	9-09150-506-0	01	1	-
239	SCREW; GOV (B) ASM PART: A = 8-94392-008-1	1-15729-386-0	01	1	-
239	SCREW; GOV (A) ASM PART: A = 8-94392-008-1	1-15779-239-0	01	1	-
352	NUT; CAP CAP NUT ASM PART: A = 8-94392-008-1	1-15729-093-0	01	1	-
413	GASKET; GOV COVER ASM PART: A = 8-94392-008-1	1-15779-129-0	02	1	-
429	GASKET; CAP NUT ASM PART: A = 8-94392-008-1	1-15729-868-0	02	1	-
435	BOLT; EYE,GOV COVER ASM PART: A = 8-94392-008-1	1-15729-325-0	01	1	-
436	GASKET; EYE BOLT ASM PART: A = 8-94392-008-1	1-15729-849-0	02	1	-
437	SPRING; DIAPHRAGM ASM PART: A = 8-94392-008-1	1-15723-247-0	01	1	-
438	DISK; DIAPHRAGM ASM PART: A = 8-94392-008-1	1-15779-333-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
