0-52 — OIL AND VACUUM PIPING; ENGINE (#9733) — 51 parça

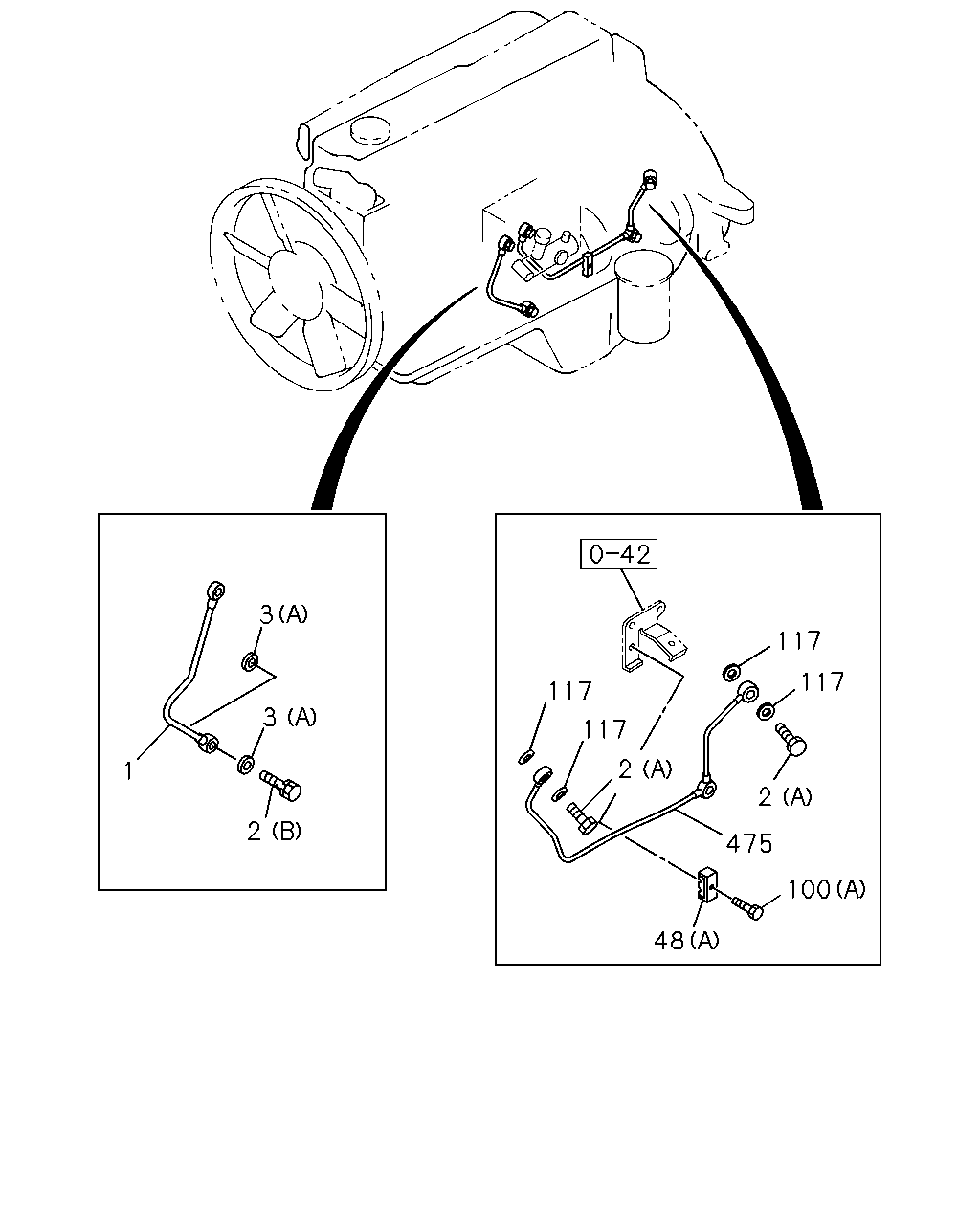

3 117 117 117 117 1 2 2 475 100 48 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; OIL,INJ PUMP TO C/BL	8-94395-795-0	01	1	0011-
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0011-0805
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0011-
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0011-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0011-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0011-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0011-
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0011-
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0011-0512
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0011-
117	GASKET; JOINT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=15.2	1-09630-083-0	04	1	0011-
475	PIPE; OIL,OIL FILTER TO INJ PUMP	8-97600-567-1	01	1	0011-

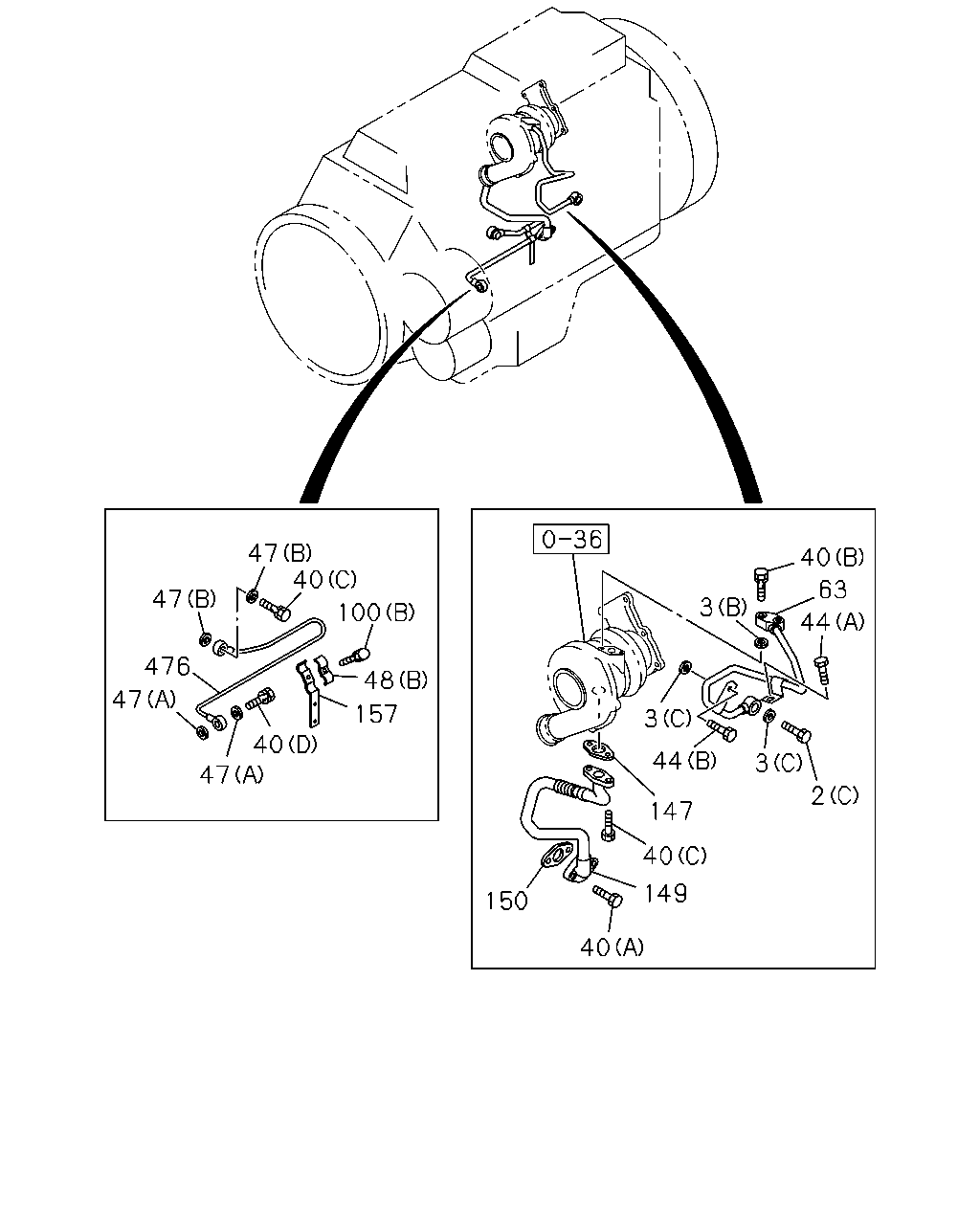

47 40 40 63 47 3 100 44 476 48 47 157 3 40 44 3 47 2 147 40 149 150 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	03	1	0011-0805
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	03	1	0806-
2	BOLT; EYE,OIL PIPE (B) M12X27 FLANGE	1-09675-085-0	01	1	0011-
2	BOLT; EYE,OIL PIPE (C) M14X27 FLANGE	1-09675-086-0	02	1	0011-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.3	1-09623-481-0	01	1	0011-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	1-09630-084-0	02	1	0011-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	8-98251-344-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28080-830-0	02	1	0011-0512
40	BOLT; OIL PIPE (B) M8X30 FLANGE	0-28050-830-0	02	1	0601-
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28080-840-0	02	1	0011-0512
40	BOLT; OIL PIPE (A) M8X40 FLANGE	0-28050-840-0	02	1	0601-
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28181-016-0	02	1	0011-0512
40	BOLT; OIL PIPE (D) M10X16 FLANGE	0-28151-016-0	02	1	0601-
40	BOLT; OIL PIPE (C) M10X22 FLANGE	0-28181-022-0	02	1	0011-
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28080-812-0	01	1	0011-0512
44	BOLT; CLIP,OIL PIPE (A) M8X12 FLANGE	0-28050-812-0	01	1	0601-
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28080-816-0	01	1	0011-0512
44	BOLT; CLIP,OIL PIPE (B) M8X16 FLANGE	0-28050-816-0	01	1	0601-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0011-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0011-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
48	CLIP; OIL PIPE (A)	1-09701-091-0	01	1	0011-
48	CLIP; OIL PIPE (B)	8-94395-170-0	01	1	0011-
63	PIPE; OIL,TURBOCHARGER FEED	8-94392-976-0	01	1	0011-
100	BOLT; CLIP (B) M6X16 FLANGE	0-28080-616-0	01	1	0011-0512
100	BOLT; CLIP (B) M6X16 FLANGE	0-28050-616-0	01	1	0601-
100	BOLT; CLIP (A) M6X22 FLANGE	0-28080-622-0	01	1	0011-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	1-09637-058-2	01	1	0011-
149	PIPE; OIL RETURN,TURBOCHARGER	8-94392-977-0	01	1	0011-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0011-
157	BRACKET; OIL PIPE	8-94395-168-0	01	1	0011-
476	PIPE; OIL,C/BL TO AIR CMPR	8-94394-940-1	01	1	0011-
