◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#973) — 25 parça

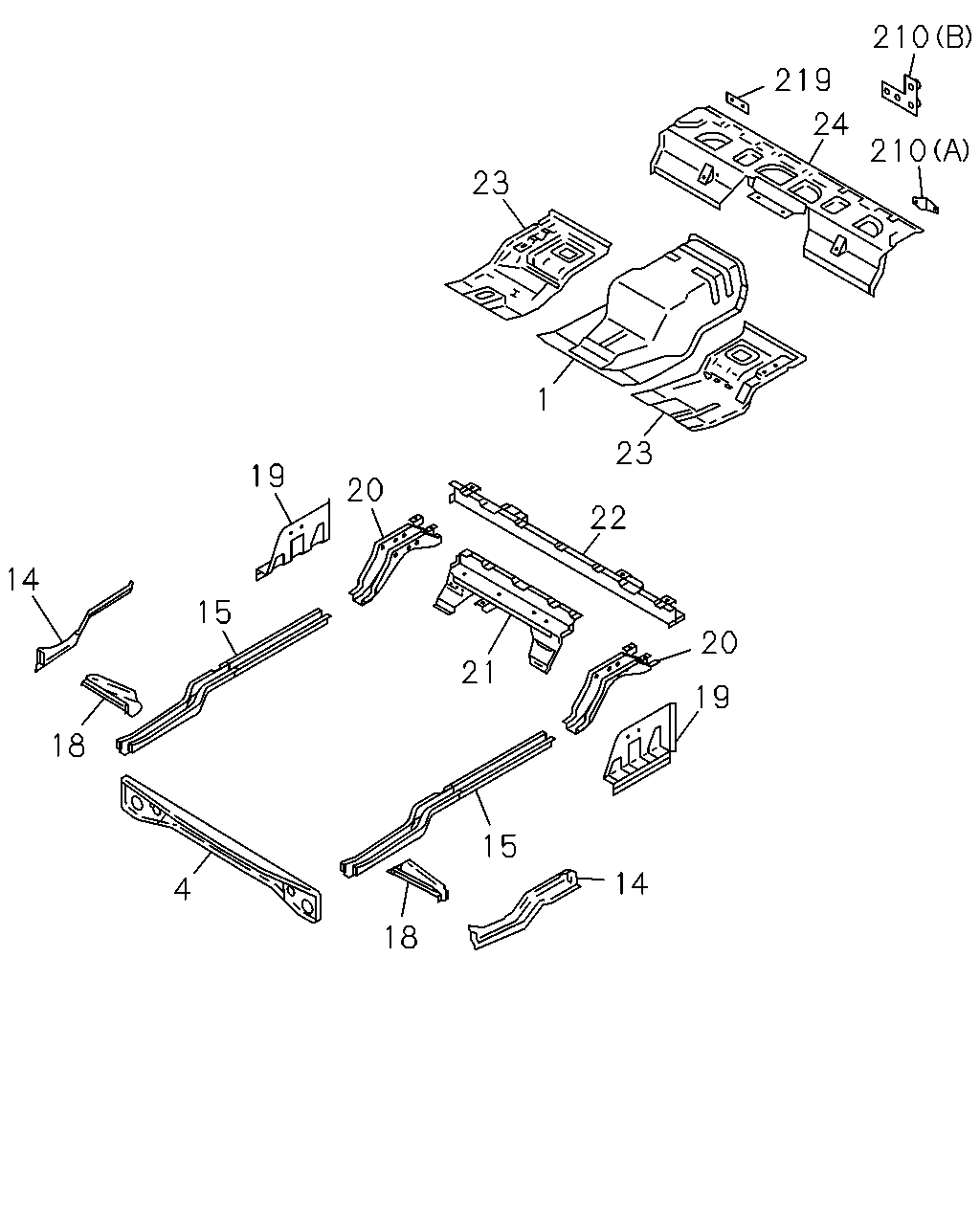

çizim 93030
210 219 24 210 23 1 23 19 20 22 14 15 20 21 19 18 15 14 4 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62182-735-2 01 1 9202- ● ●
4 FRAME; FLOOR,FRT 1-62482-936-0 01 1 9202- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-657-1 01 1 9202- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62482-656-1 01 1 9202- ● ●
15 FRAME; UNDER 1-62482-802-1 01 1 9202- ● ●
15 FRAME; UNDER 1-62482-326-6 01 1 9202- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-078-4 01 1 9202- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-077-4 01 1 9202- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-661-0 01 1 9202- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62482-660-0 01 1 9202- ● ●
20 FRAME; FLOOR SIDE,REAR 1-62482-208-3 01 1 9202- ● ●
20 FRAME; FLOOR SIDE,REAR 1-62482-207-3 01 1 9202- ● ●
21 FRAME; FLOOR CENTER 1-62482-780-1 01 1 9202- ● ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 9202- ● ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62182-065-9 01 1 9202- ●
23 PANEL; FLOOR,SIDE
TRANSMISSION FRONT PTO(RC2) EXC. PTO CONTROL AIR LINK TYPE<SEC>,PTO CONTROL<SV6> 		1-62182-065-9 01 1 9202- ●
23 PANEL; FLOOR,SIDE
PTO CONTROL AIR LINK TYPE<SEC> 		1-62182-065-9 01 1 9202- ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62182-305-8 01 1 9202- ●
23 PANEL; FLOOR,SIDE
TRANSMISSION FRONT PTO(RC2) PTO CONTROL<SV6> 		1-62182-305-8 01 1 9202- ●
23 PANEL; FLOOR,SIDE
EXC. TRANSMISSION FRONT PTO(RC2),PTO CONTROL AIR LINK TYPE<SEC> 		1-62182-305-8 01 1 9202- ●
23 PANEL; FLOOR,SIDE 1-62182-064-9 01 1 9202- ● ●
24 PANEL; BED PAN 1-62182-685-4 01 1 9202- ● ●
210 PANEL; HAND BRAKE LEVER BRKT
(A) 		1-62182-085-0 01 1 9202- ● ●
210 PANEL; HAND BRAKE LEVER BRKT
(B) 		1-62182-415-0 01 1 9202- ● ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9202- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
