0-39 — AIR COMPRESSOR; BRAKE (#9727) — 33 parça

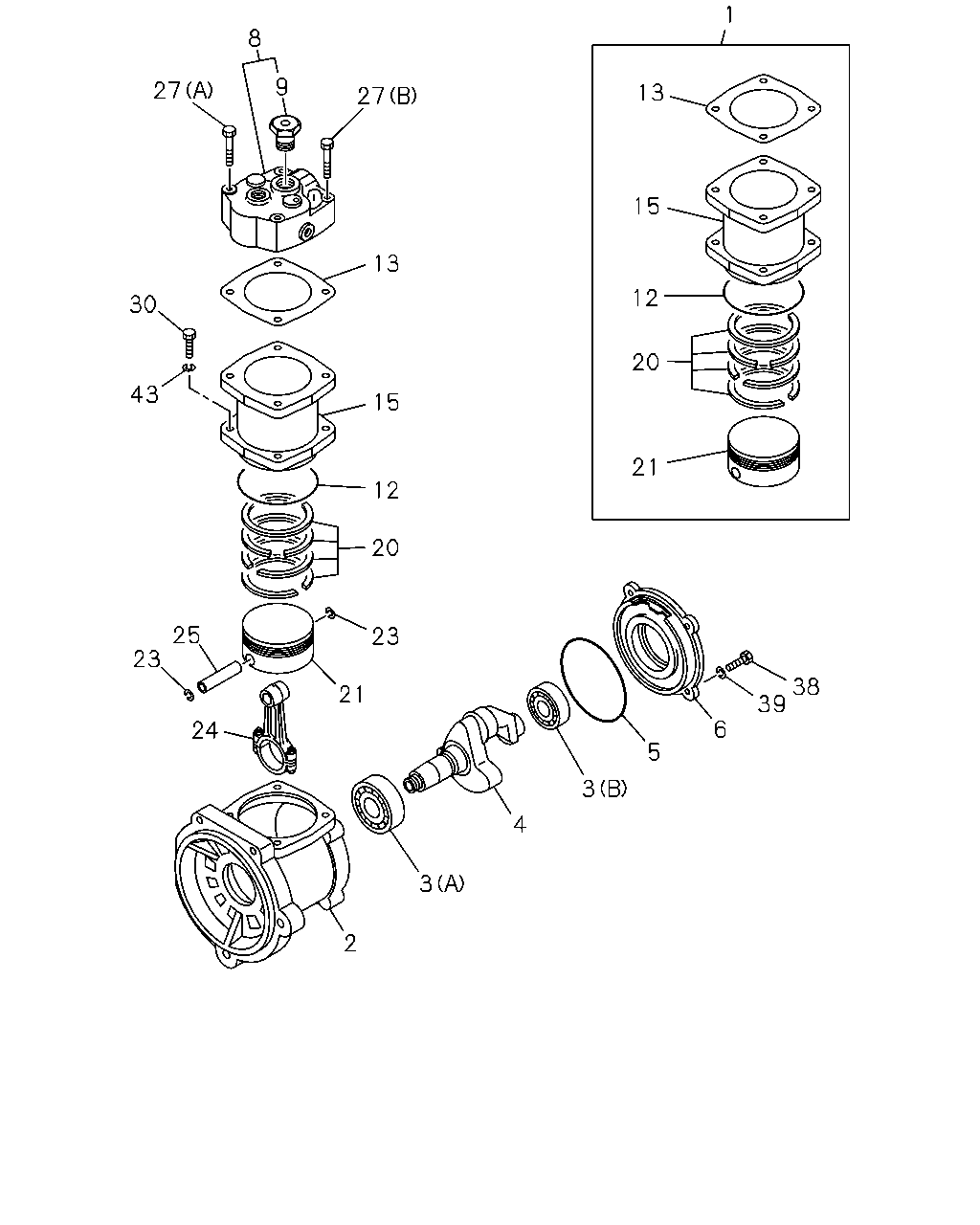

çizim 74864
1 13 15 12 20 21 38 39 6 5 3 4 3 2 8 27 9 27 13 30 43 15 12 20 23 25 23 24 21
BalonParca AdiParca NoAdetTipApplied Date
1 LINER KIT; CYL,AIR CMPR 1-19163-052-1 01 1 0011-0812
1 LINER KIT; CYL,AIR CMPR 1-19163-075-0 01 1 0901-
2 CRANKCASE; AIR CMPR 1-19151-274-0 01 1 0011-
3 BEARING; AIR CMPR
(B) 		9-00006-206-0 01 1 0011-1202
3 BEARING; AIR CMPR
(A) 		9-00090-152-0 01 1 0011-
4 CRANKSHAFT; AIR CMPR 1-19171-028-0 01 1 0011-1202
4 CRANKSHAFT; AIR CMPR 8-98209-089-0 01 1 1203-
5 GASKET; AIR CMPR 1-09623-361-0 01 1 0011-1107
5 GASKET; AIR CMPR 8-98192-460-0 01 1 1108-
6 COVER ASM; BRG,AIR CMPR 1-19156-039-0 01 1 0011-1202
6 COVER ASM; BRG,AIR CMPR 8-98209-092-0 01 1 1203-
8 HEAD ASM; CYL,AIR CMPR 1-19110-056-1 01 1 0011-
9 VALVE ASM; UNLOADER,AIR CMPR 1-19120-017-1 01 1 0011-
12 GASKET; AIR CMPR 1-09623-539-0 01 1 0011-1107
12 GASKET; AIR CMPR 8-98185-684-0 01 1 1108-
13 GASKET; AIR CMPR 1-19139-016-0 01 1 0011-
15 CYLINDER; AIR CMPR 1-19151-218-0 01 1 0011-
20 RING KIT; PISTON,AIR CMPR 1-19163-051-1 01 1 0011-0812
20 RING KIT; PISTON,AIR CMPR 1-19163-058-0 01 1 0901-
21 PISTON; AIR CMPR 1-19161-016-0 01 1 0011-0812
21 PISTON; AIR CMPR 1-19161-027-0 01 1 0901-
23 RING; SNAP,PISTON,AIR CMPR 9-19168-008-0 02 1 0011-0812
23 RING; SNAP,PISTON,AIR CMPR 1-19169-004-0 02 1 0901-
24 ROD ASM; CONN,AIR CMPR 1-19173-010-0 01 1 0011-1202
24 ROD ASM; CONN,AIR CMPR 8-98209-093-0 01 1 1203-
25 PIN; PISTON,AIR CMPR 9-19167-003-0 01 1 0011-0812
25 PIN; PISTON,AIR CMPR 1-19167-003-0 01 1 0901-
27 BOLT; HD
(A) M10X45 		9-01066-045-0 02 1 0011-
27 BOLT; HD
(B) M10X60 		9-01066-060-0 02 1 0011-
30 BOLT; CYL TO CRANKCASE
M10X25 		9-02051-025-0 04 1 0011-
38 BOLT; COVER FIX 1-19179-011-0 04 1 0011-
39 WASHER; LK,COVER FIX
ID=8.2 		9-09150-608-0 04 1 0011-
43 WASHER; LK,CYL TO CRANKCASE,AIR CMPR
ID=10.2 		9-09150-610-0 04 1 0011-
