Isuzu WW
▶
TRUCKS
▶
FVR
▶
10854 - FVR-LHD(BUS CHASSIS)
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

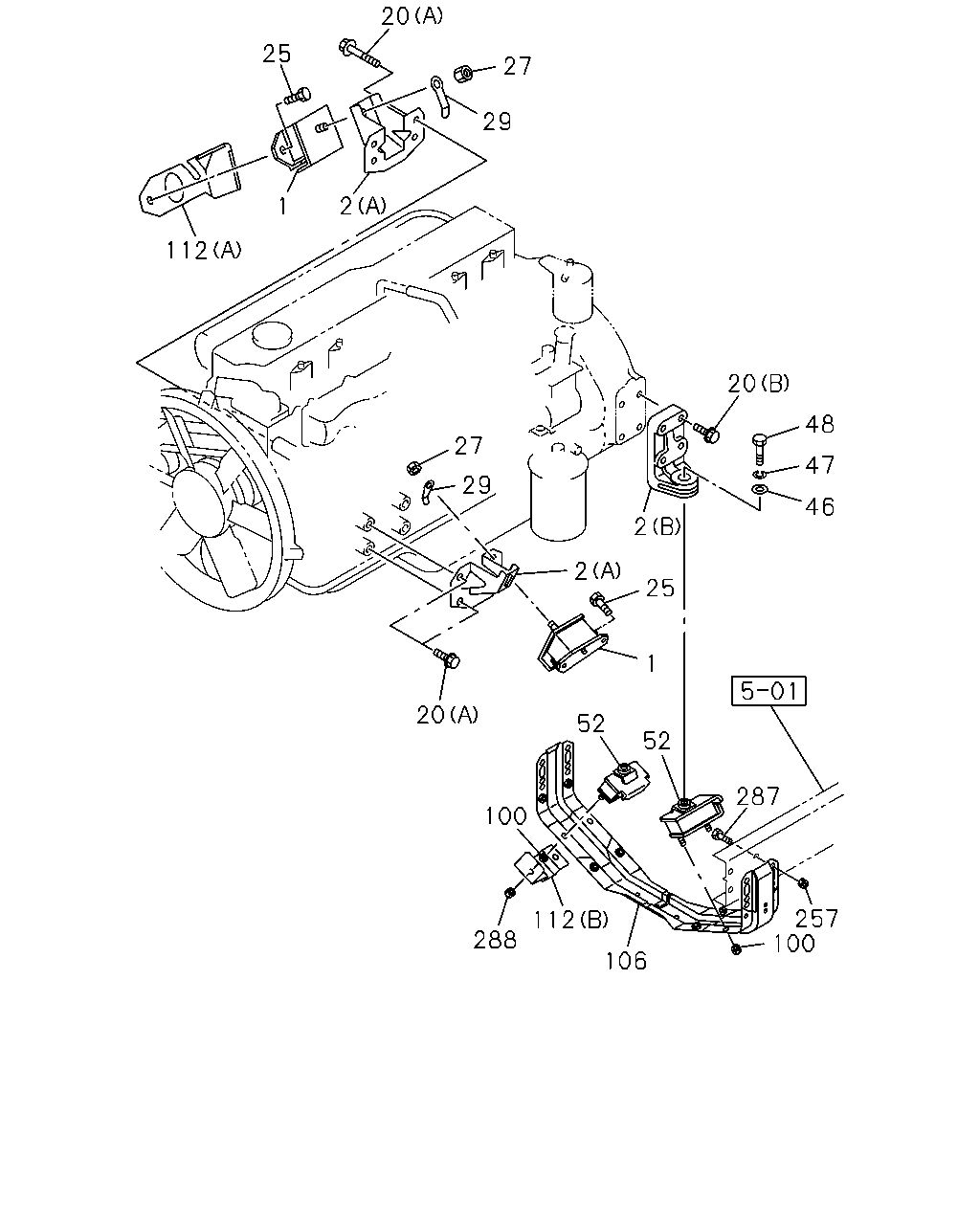

0-22 — ENGINE MOUNTING
(#9715) — 29 parça
20
25
27
29
2
1
112
20
48
27
47
29
46
2
2
25
1
20
52
52
287
100
257
100
112
288
106
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-172-0
02
1
0011-
2
FOOT; ENG
(A)
8-94393-491-1
02
1
0011-
2
FOOT; ENG
(B)
8-94394-543-1
01
1
0011-
2
FOOT; ENG
(B)
8-94394-544-2
01
1
0011-
20
BOLT; ENG FOOT
(A) M10X20 FLANGE
8-94395-721-0
08
1
0011-
20
BOLT; ENG FOOT
(B) M12X55
8-94399-884-1
08
1
0011-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28681-235-0
04
1
0011-0512
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0601-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91150-212-0
02
1
0011-0602
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0603-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-052-1
02
1
0011-
46
WASHER; PL,CUSHION TO ENG,RR
ID=17
9-09164-516-0
02
1
0706-
47
WASHER; LK,CUSHION RUBBER
ID=16.2
9-09150-616-0
02
1
0011-0603
47
WASHER; LK,CUSHION RUBBER
ID=16.2
0-91510-616-0
02
1
0604-0705
48
BOLT; CUSHION RUBBER TO ENG
M16X60
9-91066-660-0
02
1
0011-0512
48
BOLT; CUSHION RUBBER TO ENG
M16X60
0-10956-660-0
02
1
0601-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-314-1
01
1
0011-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-313-1
01
1
0011-
100
NUT; CUSHION RUBBER
M12 FLANGE
0-91150-212-0
04
1
0011-0602
100
NUT; CUSHION RUBBER
M12 FLANGE
0-91180-212-0
04
1
0603-
106
MEMBER; MTG,RR
1-53221-192-0
01
1
0011-
112
PROTECTOR; HEAT
(A)
1-53219-629-4
01
1
0011-
112
PROTECTOR; HEAT
(B)
1-53219-638-0
01
1
0011-
257
NUT; MEMBER
M12 FLANGE
0-91150-212-0
08
1
0011-0602
257
NUT; MEMBER
M12 FLANGE
0-91180-212-0
08
1
0603-
287
BOLT; MEMBER
M12X40 FLANGE
0-28681-240-0
08
1
0011-0512
287
BOLT; MEMBER
M12X40 FLANGE
0-28651-240-0
08
1
0601-
288
NUT; HEAT PROTECTOR
M12 FLANGE
0-91150-212-0
02
1
0011-0602
288
NUT; HEAT PROTECTOR
M12 FLANGE
0-91180-212-0
02
1
0603-
