◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10854 - FVR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-14 - CAMSHAFT AND VALVE ▶
0-14 — CAMSHAFT AND VALVE (#9712) — 70 parça

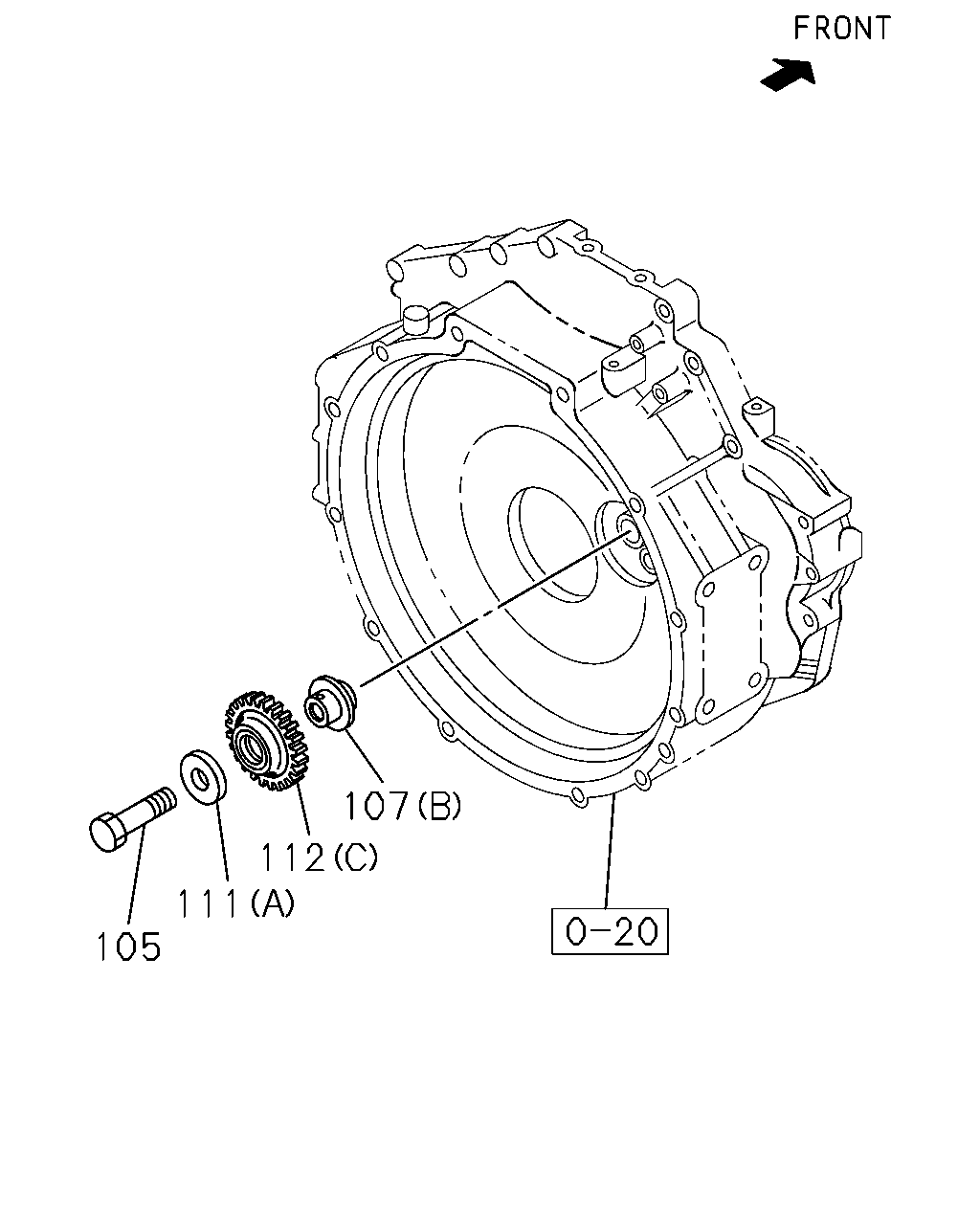

çizim 19935
107 112 111 105
BalonParca AdiParca NoAdetTipApplied Date
105 BOLT; IDLE GEAR SHAFT
M14X65 		8-97066-798-0 01 1 0011-
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0011-0205
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-
107 SHAFT; IDLE GEAR
(B) 		8-94395-096-0 01 1 0011-0304
107 SHAFT; IDLE GEAR
(B) 		8-94334-682-1 01 1 0305-
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0011-0204
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0011-0306
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 02 1 0307-
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0011-
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 0011-
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0011-
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 0011-

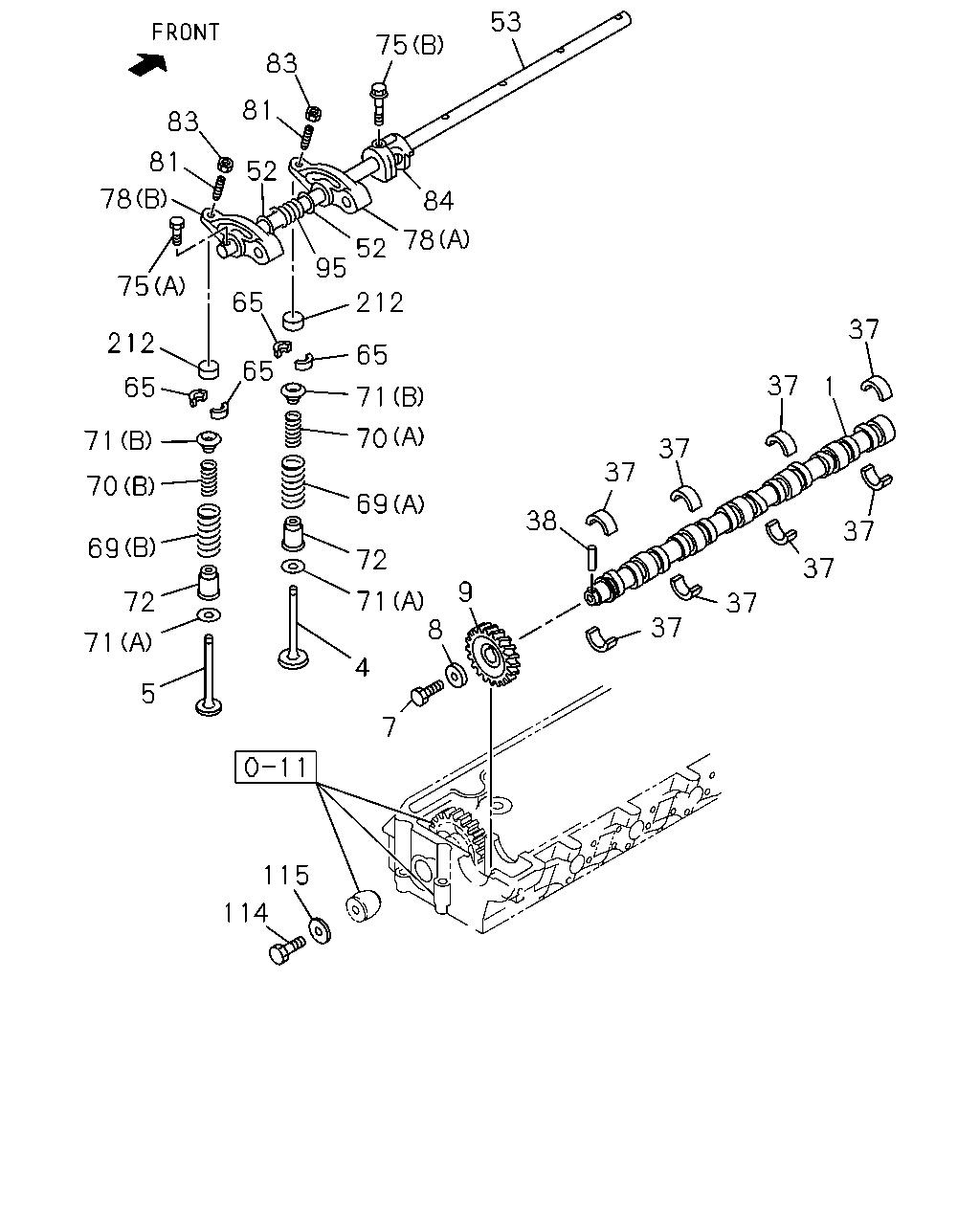

çizim 19936
53 75 83 81 83 81 52 78 84 78 52 95 75 212 65 37 212 65 65 37 1 65 71 71 37 37 38 37 72 37 9 71 8 72 37 37 71 4 5 7 115 114 69 70 70 69
BalonParca AdiParca NoAdetTipApplied Date
1 CAMSHAFT 8-94395-758-2 01 1 0011-1311
1 CAMSHAFT 8-98227-258-1 01 1 1312-
4 VALVE; INL 8-94395-113-1 06 1 0011-
5 VALVE; EXH 8-94395-462-2 06 1 0011-
7 BOLT; CM/SHF GEAR
M14X40 		8-94396-439-0 01 1 0011-
8 WASHER; CM/SHF GEAR
ID=14.5 		9-09851-850-3 01 1 0011-
9 GEAR; CM/SHF
Z=35 		8-97094-440-2 01 1 0011-
37 METAL; CM/SHF
UPPER B=16 		8-97356-939-0 04 1 0401-0706
37 METAL; CM/SHF
B=16 		8-97386-189-0 04 1 0707-
37 METAL; CM/SHF 8-94363-100-1 08 1 0011-0206
37 METAL; CM/SHF
B=22 		8-97602-698-0 08 1 0207-0312
37 METAL; CM/SHF
LOWER B=22 		8-97602-698-0 04 1 0401-
38 PIN; CAM BRG SET
OD=7 L=7.5 		8-94399-487-0 01 1 0011-
52 WASHER; ROCKER ARM SHAFT 8-94362-105-0 12 1 0011-
53 SHAFT; ROCKER ARM 8-94393-984-4 01 1 0011-
65 COLLAR; SPLIT 5-12565-006-0 24 1 0011-
69 SPRING; VLV,OUTER
(B) EXHAUST MARK YELLOW 		8-94393-310-0 06 1 0011-
69 SPRING; VLV,OUTER
(A) INLET 		8-94394-996-0 06 1 0011-0111
69 SPRING; VLV,OUTER
(A) INLET MARK PINK 		8-97120-912-0 06 1 0112-
70 SPRING; VLV,INNER
(A) INLET 		8-94395-266-0 06 1 0011-0111
70 SPRING; VLV,INNER
(A) INLET MARK PINK 		8-97120-911-0 06 1 0112-
70 SPRING; VLV,INNER
(B) EXHAUST MARK YELLOW 		8-94397-500-0 06 1 0011-
71 SEAT; SPR
(A) OD=38 		8-94385-029-2 12 1 0011-
71 SEAT; SPR
(B) ID=14.3 T=0.5 		8-94396-014-0 12 1 0011-
72 SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-609-2 12 1 0011-
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28080-835-0 02 1 0011-0512
75 BOLT; BRKT
(A) M8X35 FLANGE 		0-28050-835-0 02 1 0601-
75 BOLT; BRKT
(B) M10X62 FLANGE 		8-94393-131-0 05 1 0011-
78 ARM; ROCKER
(B) JBK 		8-97014-258-2 06 1 0011-
78 ARM; ROCKER
(A) JBK 		8-97074-614-1 06 1 0011-
81 SCREW; ADJ,ROCKER ARM
M10 L=32 		8-94395-024-0 12 1 0011-
83 NUT; ADJ SCREW,LK
M10 		9-09111-410-0 12 1 0011-0512
83 NUT; ADJ SCREW,LK
M10 		0-91111-510-0 12 1 0601-
84 BRACKET; ROCKER SHAFT,INTER
JBK 		8-94388-109-3 05 1 0011-
95 SPRING; ROCKER SHAFT
JBK 		8-94397-263-0 06 1 0011-
114 BOLT; IDLE GEAR
M14X36.5 		8-94372-221-1 01 1 0011-
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-94370-688-0 01 1 0011-0306
115 WASHER; THRUST,IDLE GEAR
ID=14.5 OD=46 		8-97209-728-2 01 1 0307-
212 CAP; ADJ SCREW 8-94396-015-2 12 1 0011-

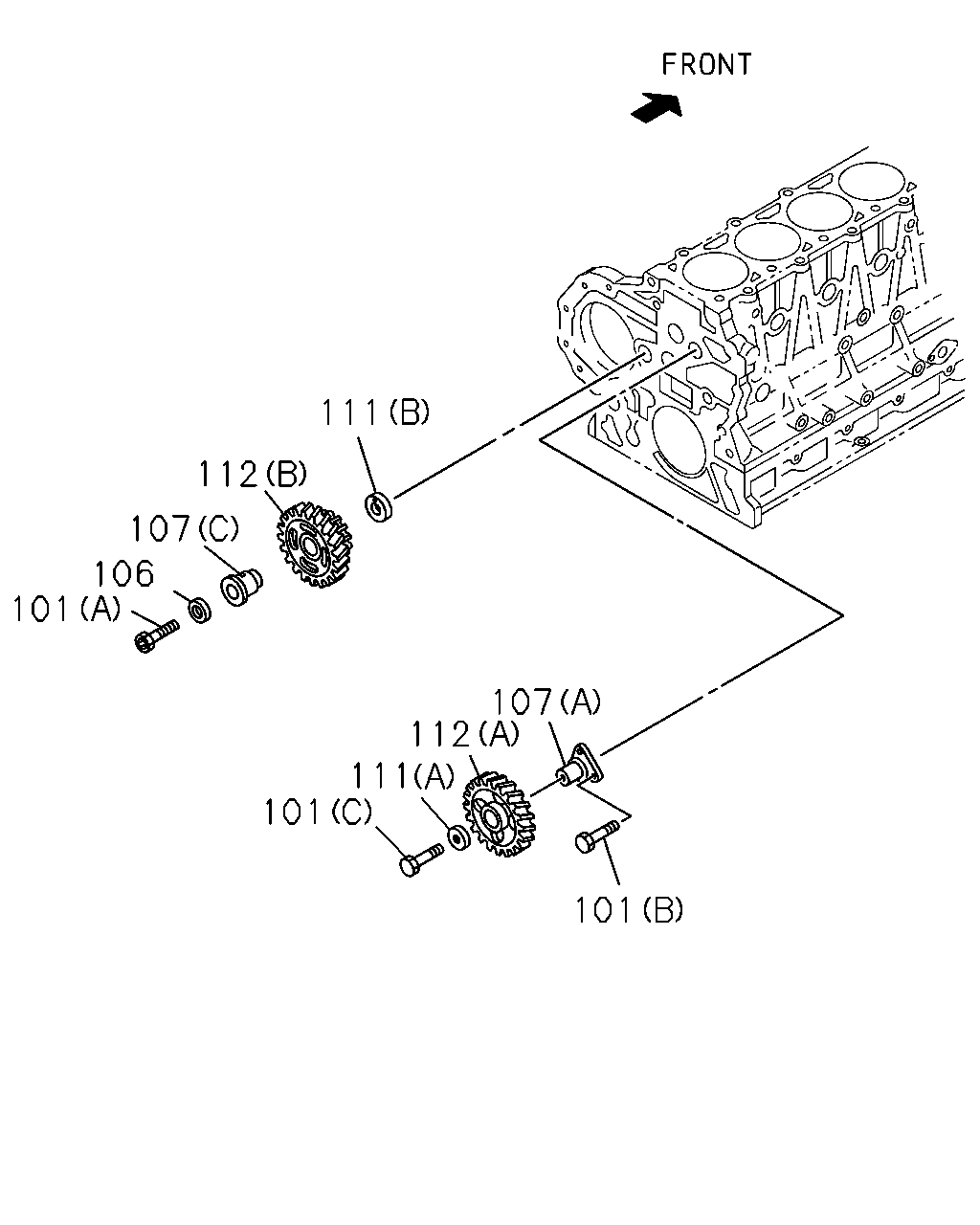

çizim 74910
111 112 107 106 101 107 112 101 101
BalonParca AdiParca NoAdetTipApplied Date
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28090-816-0 03 1 0011-0512
101 BOLT; THRUST COLLAR
(B) M8X16 FLANGE 		0-28060-816-0 03 1 0601-
101 BOLT; THRUST COLLAR
(A) M14X67 HEX SOCKET 		8-94394-779-2 01 1 0011-
101 BOLT; THRUST COLLAR
(C) M14X30 		9-92361-430-0 01 1 0011-0512
101 BOLT; THRUST COLLAR
(C) M14X30 		0-23951-430-0 01 1 0601-
106 WASHER; IDLE GEAR SHAFT
ID=14.2 OD=23 		1-09503-031-0 01 1 0011-
107 SHAFT; IDLE GEAR
(C) 		8-94395-073-2 01 1 0011-0205
107 SHAFT; IDLE GEAR
(C) 		8-97602-588-0 01 1 0206-
107 SHAFT; IDLE GEAR
(B) 		8-94395-096-0 01 1 0011-0304
107 SHAFT; IDLE GEAR
(B) 		8-94334-682-1 01 1 0305-
107 SHAFT; IDLE GEAR
(A) 		8-97189-244-1 01 1 0011-0204
107 SHAFT; IDLE GEAR
(A) 		8-97350-021-0 01 1 0205-
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-94370-688-0 02 1 0011-0306
111 COLLAR; THRUST,IDLE GEAR
(A) ID=14.5 OD=46 		8-97209-728-2 02 1 0307-
111 COLLAR; THRUST,IDLE GEAR
(B) ID=24 OD=70 		8-94394-097-1 01 1 0011-
112 GEAR; IDLE
(A) Z=61 		8-94393-439-4 01 1 0011-
112 GEAR; IDLE
(B) Z=72-30 		8-94394-092-3 01 1 0011-
112 GEAR; IDLE
(C) Z=34 		8-94394-509-3 01 1 0011-
