◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVR ▶ 10854 - FVR-LHD(BUS CHASSIS) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-12 - CYLINDER BLOCK ▶
0-12 — CYLINDER BLOCK (#9710) — 73 parça

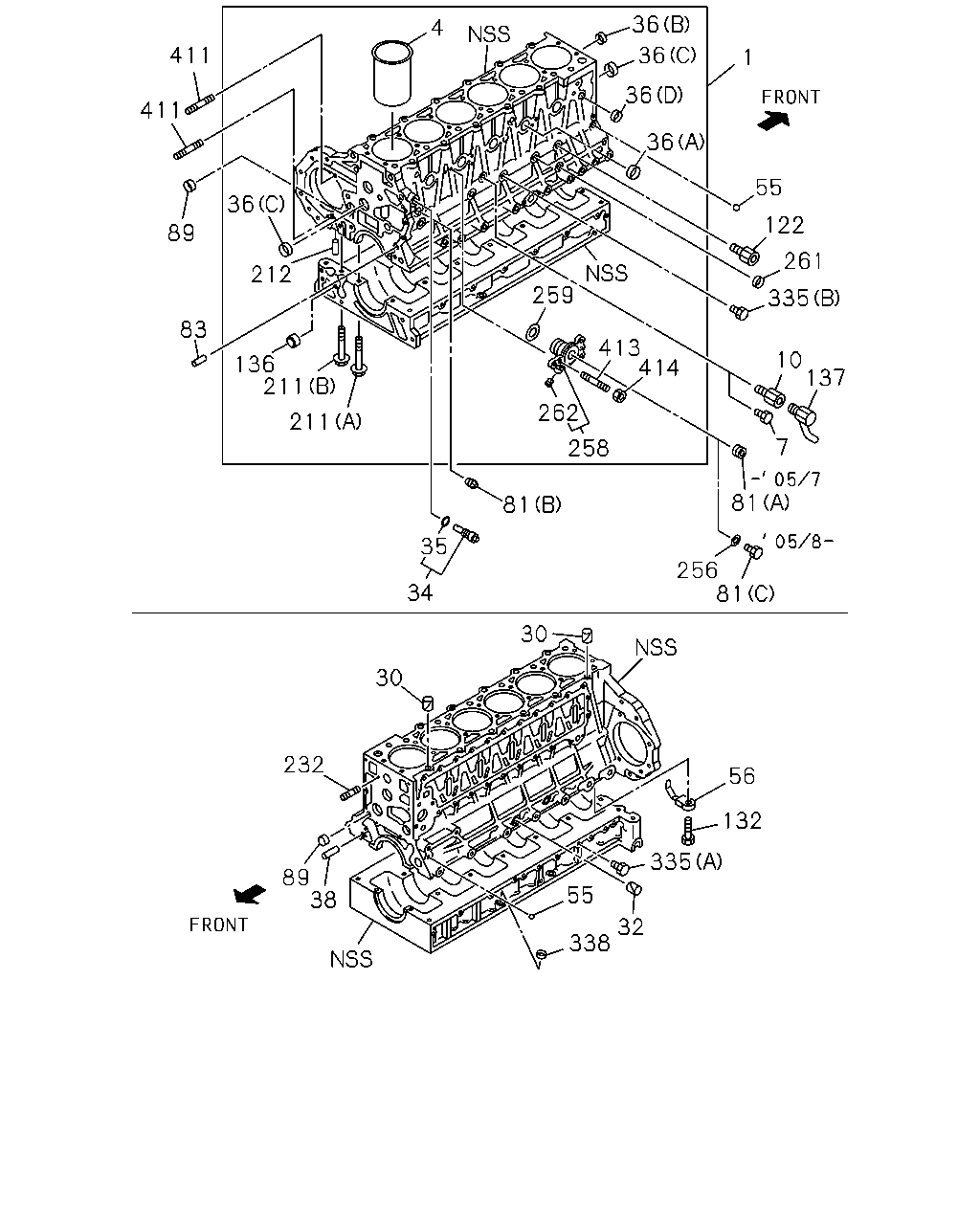

çizim 19937
36 4 411 36 1 36 411 36 55 36 122 89 261 259 212 335 83 413 414 10 137 136 211 262 211 7 258 81 81 35 256 81 34 30 30 232 56 132 335 89 38 55 32 338
BalonParca AdiParca NoAdetTipApplied Date
1 BLOCK ASM; CYL 8-97601-299-5 01 1 0011-1012
1 BLOCK ASM; CYL 8-98180-705-0 01 1 1101-1209
1 BLOCK ASM; CYL 8-98206-960-0 01 1 1210-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-600-1 06 1 0011-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-601-1 06 1 0011-
7 PLUG; WATER DRAIN
M14X16.5 		8-97329-617-0 01 1 1101-
10 CONNECTOR; WATER DRAIN 8-94396-378-0 01 1 0011-1012
30 PIN; CYL HD GASKET SETTING
OD=18.15 		8-94399-688-1 02 1 0011-
32 PIN; INJ PUMP BRKT
OD=14 		8-94453-344-0 02 1 0011-
34 VALVE; OIL RELIEF 8-94393-077-1 01 1 0011-
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7 		5-09623-035-0 01 1 0011-
36 CUP; SEALING,WATER JACKET
(A) OD=45 		1-09600-005-2 04 1 0011-
36 CUP; SEALING,WATER JACKET
(D) OD=25 		1-09600-016-0 01 1 0011-
36 CUP; SEALING,WATER JACKET
(B) OD=25 		8-94399-005-0 01 1 0011-
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-94399-639-0 04 1 0011-0502
36 CUP; SEALING,WATER JACKET
(C) OD=40 		8-97096-824-0 04 1 0503-
38 PIN; TIMING GEAR CASE
L=22 		8-94483-674-0 02 1 0011-
55 PLUG; OIL GALLERY
3/8" BALL 		9-00097-011-0 02 1 0011-
56 JET; OIL,PISTON COOLING 8-94395-194-0 06 1 0011-0703
56 JET; OIL,PISTON COOLING 8-98020-649-0 06 1 0704-1007
56 JET; OIL,PISTON COOLING 8-98173-342-0 06 1 1008-
81 PLUG; WATER JACKET
(A) NPTF1-11 1/2 		1-09605-065-1 01 1 0011-0507
81 PLUG; WATER JACKET
(C) M14X14 		9-09862-156-0 01 1 0508-
81 PLUG; WATER JACKET
(B) PT3/8 		8-94397-338-0 01 1 0011-
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0011-0306
83 PIN; FLYWHEEL HSG
OD=10 L=20 		8-97135-423-0 02 1 0307-0307
83 PIN; FLYWHEEL HSG
L=22 		8-94483-674-0 02 1 0308-
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11219-192-0 03 1 0011-0908
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0909-
122 ADAPTER; OIL PRESSURE SWITCH 8-94399-858-2 01 1 0011-
132 VALVE; CHECK,OIL
M12X18.5 		8-94394-419-1 06 1 0011-
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0011-0812
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901-
137 COCK; DRAIN,WATER 8-94393-716-1 01 1 0011-1012
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-94396-207-3 14 1 0011-0905
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 14 1 0906-
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 25 1 0011-
212 PIN; CRANKCASE
L=22 		8-94483-674-0 02 1 0011-0306
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0307-
232 STUD; WATER PUMP
M8X55 L=67 		9-04110-855-0 03 1 0011-0604
232 STUD; WATER PUMP
M8X55 L=67 		0-41010-855-0 03 1 0605-
256 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=25 		1-09630-141-0 01 1 0508-
258 ADAPTER; BLOCK HTR 8-94395-868-0 01 1 0011-0507
258 ADAPTER; BLOCK HTR 8-97602-806-0 01 1 0508-
259 GASKET; ADAPTER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=38.7 		1-09623-184-0 01 1 0011-
261 PLUG; OIL PRESS UNIT
OD=12.3 		5-09600-013-0 01 1 0011-0307
262 PLUG; ADAPTER 1-13163-002-0 01 1 0011-
335 PLUG; C/BL,SIDE
(B) M14 		8-94399-225-0 02 1 0011-0703
335 PLUG; C/BL,SIDE
(B) M14X16.5 		8-97329-617-0 02 1 0704-
335 PLUG; C/BL,SIDE
(A) M8X6 		8-94399-421-0 01 1 0011-0501
335 PLUG; C/BL,SIDE
(A) M8X10 		8-98003-416-0 01 1 0502-
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 01 1 0011-0607
338 CUP; SEALING,GUIDE TUBE HOLE
OD=15.6 		5-11129-003-0 02 1 0608-
411 STUD; BRG CASE
M10X36.5 L=48.5 		8-94396-145-0 02 1 0011-0301
411 STUD; BRG CASE
M10X25 L=40 		0-49841-025-0 02 1 0302-0512
411 STUD; BRG CASE
M10X25 L=48.5 		0-49241-025-0 02 1 0601-
413 STUD; ADAPTER
M8X30 L=41 		9-04110-830-0 02 1 0011-0604
413 STUD; ADAPTER
M8X30 L=41 		0-41010-830-0 02 1 0605-
414 NUT; ADAPTER
M8 FLANGE 		0-91150-208-0 02 1 0011-0602
414 NUT; ADAPTER
M8 FLANGE 		0-91180-208-0 02 1 0603-
çizim 75159
343 308 2 4
BalonParca AdiParca NoAdetTipApplied Date
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-701-2 06 1 0011-0108
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-203-3 06 1 0109-0305
2 LINER SET; ENG CYL
GRADE=1X 		1-87811-701-4 06 1 0306-0706
2 LINER SET; ENG CYL
GRADE=1X 		1-87812-203-5 06 1 0707-
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-702-2 06 1 0011-0108
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-204-3 06 1 0109-0305
2 LINER SET; ENG CYL
GRADE=3X 		1-87811-702-4 06 1 0306-0706
2 LINER SET; ENG CYL
GRADE=3X 		1-87812-204-5 06 1 0707-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON 		8-94391-600-1 06 1 0011-
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON 		8-94391-601-1 06 1 0011-
308 PROTECTOR; HEAT,HD COVER 8-94395-748-0 01 1 0011-
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 04 1 0011-0512
343 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28050-812-0 04 1 0601-
