8-80 — WINDSHIELD WIPER AND WASHER (#9704) — 28 parça

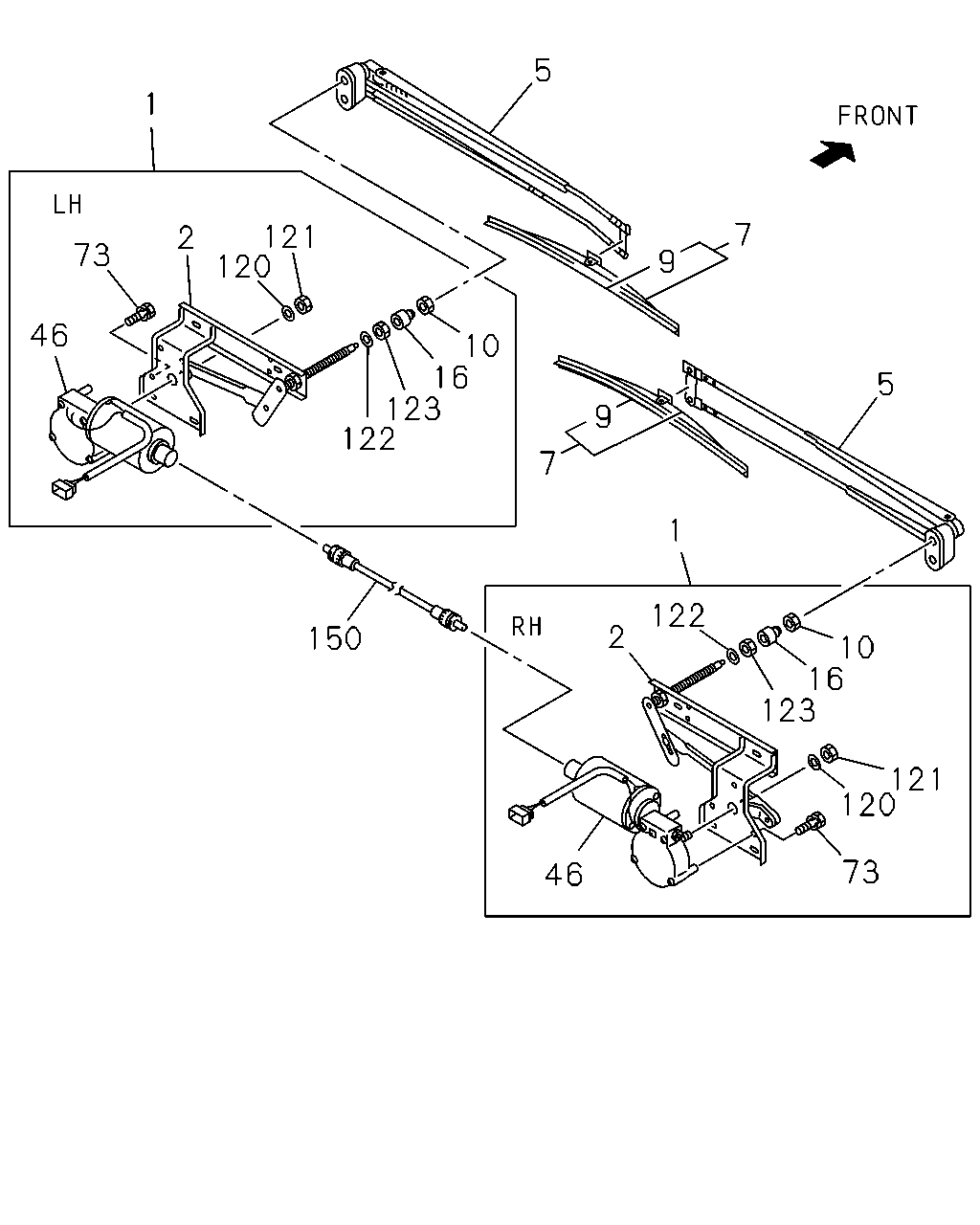

çizim 82221
5 1 7 121 120 2 73 9 46 10 16 123 122 5 9 7 1 122 2 150 10 16 123 121 120 73 46
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83310-071-0 01 1 0109-
1 LINK ASM; FRT WIPER 1-83310-114-0 01 1 0109-
2 LINK; FRT WIPER 1-83314-117-0 01 1 0109-
2 LINK; FRT WIPER 1-83312-082-0 01 1 0109-
5 ARM; WIPER 1-83314-050-0 01 1 0109-
5 ARM; WIPER 1-83314-051-0 01 1 0109-
7 BLADE; WIPER 1-83315-024-1 02 1 0109-
9 RUBBER; FRT WIPER BLADE 1-83355-007-0 02 1 0109-
10 NUT; WIPER ARM TO WIPER PIVOT 1-83318-049-0 02 1 0109-
16 SEAL; BALL JOINT 1-83318-048-0 02 1 0109-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-059-0 01 1 0109-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-065-0 01 1 0109-
73 BOLT 1-83318-079-0 06 1 0109-
120 WASHER; ARM TO BRKT 1-83318-045-0 01 1 0109-
120 WASHER; ARM TO BRKT 1-83318-077-0 01 1 0109-
121 NUT; ARM TO BRKT 1-83318-044-0 01 1 0109-
121 NUT; ARM TO BRKT 1-83318-078-0 01 1 0109-
122 WASHER; PIVOT FIX,FRT WIPER 1-83318-046-0 02 1 0109-
123 NUT; PIVOT FIX,FRT WIPER 1-83318-050-0 02 1 0109-
150 SHAFT; FLEX,WIPER MOTOR TO WIPER 1-83124-080-0 01 1 0109-
çizim 82613
24 26 25 127 30 36 36 36 39 36 40 36 39
BalonParca AdiParca NoAdetTipApplied Date
24 TANK ASM; WASHER 1-83330-033-0 01 1 0109-
25 BRACKET; WASHER TANK 9-83561-926-0 01 1 0109-
26 HANGER; WASHER TANK 9-83561-925-0 01 1 0109-
30 MOTOR ASM; FRT WASHER TANK 9-83561-208-0 01 1 0109-
36 HOSE; WASHER
SERVICED BY L=10000 		9-09914-906-0 01 1 0109-
39 NOZZLE; WINDSHIELD WASHER 1-83334-012-0 02 1 0109-
40 JOINT; WASHER HOSE 9-83565-006-0 01 1 0109-
127 BAND; WASHER TANK 9-83561-928-0 01 1 0109-
