Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-21 - METER ASM
▶

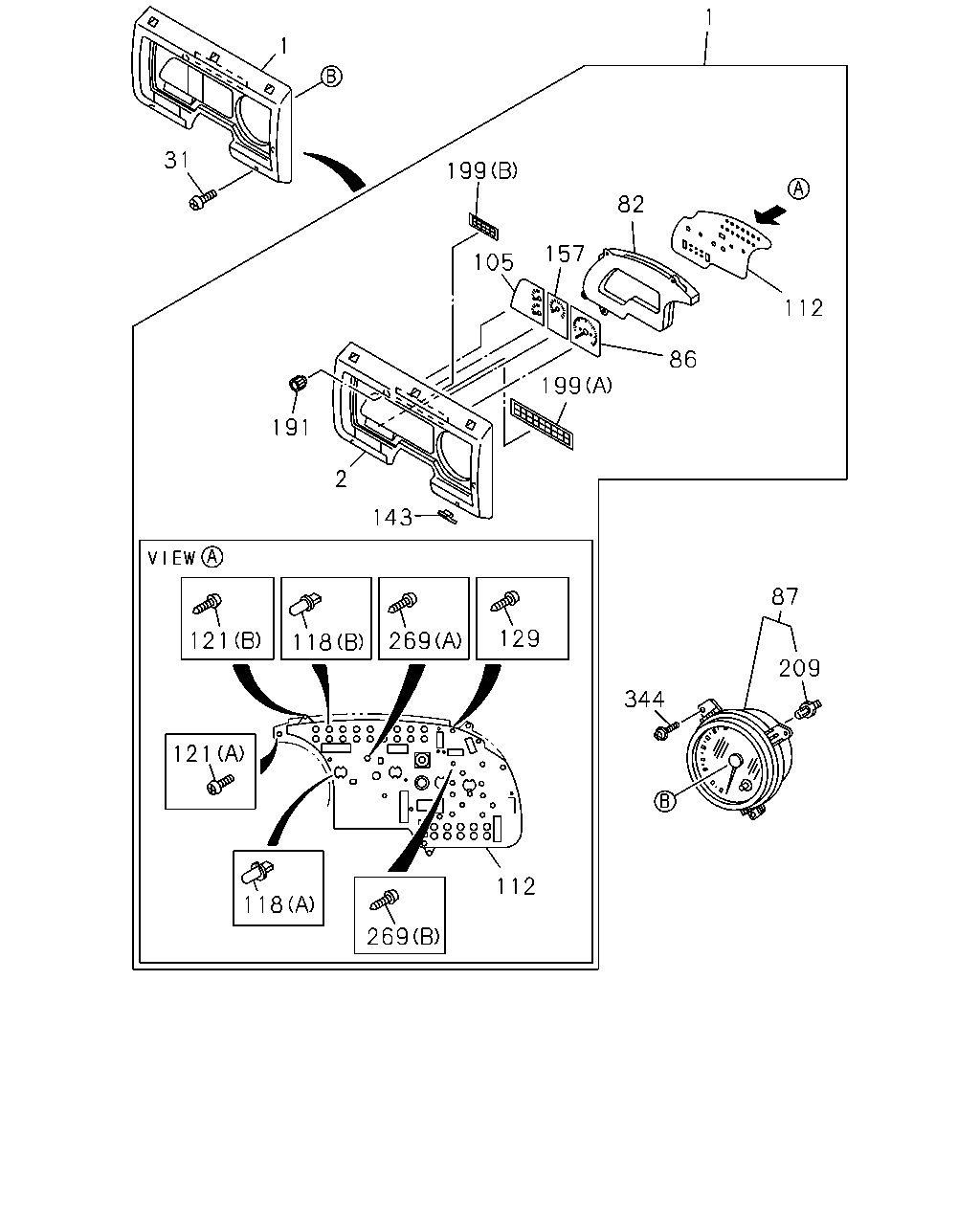

8-21 — METER ASM
(#9700) — 24 parça
1
1
31
199
82
157
105
112
86
199
191
2
143
87
129
121
269
118
209
344
121
112
118
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
METER COMPL; CLUSTER
1-83115-919-0
01
1
0109-
2
PANEL; CLUSTER
1-83119-825-0
01
1
0109-
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0109-0604
31
SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
82
CASE ASM; CLUSTER METER
1-83119-509-0
01
1
0109-
86
TACHOMETER; CLUSTER METER
1-83120-834-0
01
1
0109-
87
SPEEDOMETER
1-83120-490-1
01
1
0109-
105
GAUGE; THERMO & FUEL,CLUSTER METER
1-83180-274-0
01
1
0109-
112
COVER; HOLE,GLASS
1-83189-309-0
01
1
0109-
118
BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET
1-82194-061-0
04
1
0109-
118
BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET
1-82194-062-0
15
1
0109-
121
SCREW; PANEL FIX,CLUSTER METER
(A) M4 TAPPING
1-83119-442-0
04
1
0109-
121
SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING
1-83119-515-0
04
1
0109-
129
SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING
1-83119-052-0
10
1
0109-
143
COVER; CLUSTER METER
1-83119-516-0
05
1
0109-
157
METER; AIR PRESSURE,CLUSTER METER
1-83150-187-0
01
1
0109-
191
KNOB; BULB CHECK
1-83119-500-0
01
1
0109-
199
LENS; WARNING LAMP
(B)
1-83119-435-0
01
1
0109-
199
LENS; WARNING LAMP
(A)
1-83119-526-0
01
1
0109-
209
BULB; SPEEDOMETER
24V 3W GREEN SOCKET
1-82194-061-0
02
1
0109-
269
SCREW; METER CLUSTER
(A) M3 TAPPING
1-83119-439-0
04
1
0109-
269
SCREW; METER CLUSTER
(B) M3 TAPPING
1-83119-441-0
06
1
0109-
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74110-620-0
03
1
0109-0604
344
SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER
0-74160-620-0
03
1
0605-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
