6-47 — MUD GUARD AND INSULATOR (#970) — 128 parça

147 150 149 151 147 140 148 140 146 146 150 151 149 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
139	PANEL; SIDE ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-089-1	01	1	9401-	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28080-825-0	05	1	9401-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X25 FLANGE	0-28280-825-0	04	1	9401-	●
140	BOLT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> (A) M8X18	1-09030-034-1	02	1	9401-	●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-213-0	01	1	9401-	●
146	PANEL; SIDE,UNDER,FRT ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-948-2	01	1	9401-	●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-876-5	01	1	9401-	●
147	PANEL; SIDE,UNDER,RR ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-872-3	01	1	9401-	●
148	BOLT; PANEL TO PANEL ANTI NOISE EQUIPMENT VAR2<TAK> M8X22 W/LK&PL WASHER	1-09030-084-0	02	1	9401-	●
149	WASHER; LK,SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.2	9-09150-508-0	02	1	9401-	●
150	NUT; SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	02	1	9401-	●
151	WASHER; PL,SIDE PANEL ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=22	9-09160-708-0	02	1	9401-	●

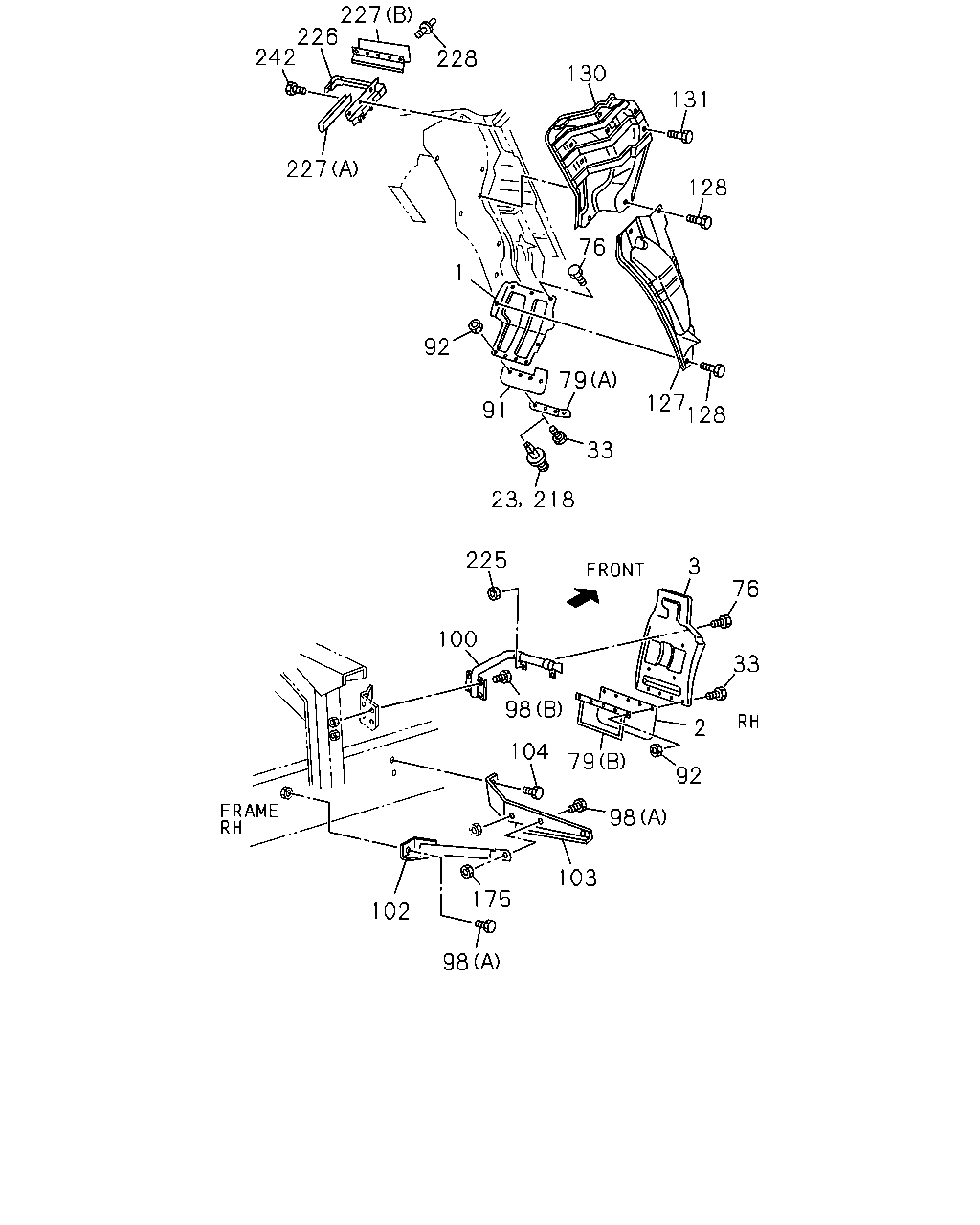

227 226 242 228 130 131 227 128 76 1 92 79 127 128 91 33 23 218 225 3 76 100 33 98 2 104 79 92 98 103 175 102 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-629-3	01	1	9202-	●	●
1	GUARD; MUD,FRT FRONT AXLE F063(FS7)	1-79938-687-1	01	1	9202-	●	●
1	GUARD; MUD,FRT EXC. FRONT AXLE F063(FS7)	1-79938-630-3	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-825-0	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	02	1	9308-	●	●
3	GUARD; MUD,RR	1-79938-775-0	01	1	9202-	●	●
3	GUARD; MUD,RR	1-79938-711-1	01	1	9202-	●	●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER FRONT AXLE F063(FS7) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9202-9205	●	●
33	BOLT; MUD COVER EXC. FRONT AXLE F063(FS7) M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9202-9205	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-824-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-986-0	01	1	9308-9401	●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	01	1	9402-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) (A) 260+125	1-79930-501-1	01	1	9202-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) (A) 225X30	1-79930-619-0	01	1	9202-	●	●
79	RETAINER; MUD COVER EXC. FRONT AXLE F063(FS7) (A) 260+125	1-79930-501-1	02	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) 160X350	1-79930-503-1	01	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) 160X280	1-79930-618-0	01	1	9202-	●	●
91	COVER; MUD,FRT EXC. FRONT AXLE F063(FS7) 160X350	1-79930-503-1	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9202-	●	●
92	NUT; MUD COVER FRONT AXLE F063(FS7) M6	9-09110-406-0	07	1	9202-9205	●	●
92	NUT; MUD COVER EXC. FRONT AXLE F063(FS7) M6	9-09110-406-0	08	1	9202-9205	●	●
98	BOLT; STAY TO BRKT (A) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●
98	BOLT; STAY TO BRKT (A) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
98	BOLT; STAY TO BRKT (A) M8X30 FLANGE	0-28010-830-0	01	1	9202-9204	●
98	BOLT; STAY TO BRKT (A) M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●
98	BOLT; STAY TO BRKT (B)	0-28011-025-0	04	1	9202-9204	●
98	BOLT; STAY TO BRKT (B) M10X25 FLANGE	0-28081-025-0	04	1	9205-	●	●
100	STAY; UPR,MUD GUARD	1-53497-332-1	01	1	9202-	●	●
102	STAY; LWR,MUD GUARD	1-53497-377-0	01	1	9202-9205	●
102	STAY; LWR,MUD GUARD	1-53497-360-1	01	1	9206-	●	●
103	BRACKET ASM; RR MUD FLAP	1-53497-380-1	01	1	9202-	●	●
104	BOLT; BRKT	0-28011-025-0	02	1	9202-9204	●	●
104	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	02	1	9205-	●	●
127	APRON; FRT ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-032-1	01	1	9202-	●	●
127	APRON; FRT ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-416-1	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9202-	●	●
128	BOLT; APRON,FRT ANTI NOISE EOUIPMENT VAR E<SLK> M8X18 W/LK&PL WASHER	1-09030-003-1	10	1	9202-9202	●	●
128	BOLT; APRON,FRT EXC. ANTI NOISE EOUIPMENT VAR E<SLK> M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-9202	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-036-2	01	1	9202-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-387-1	01	1	9202-	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9202-	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9202-	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
175	NUT; STAY FIX M8	9-09110-408-0	01	1	9202-	●	●
218	FASTENER; RUBBER FRONT AXLE F063(FS7)	1-09470-001-0	07	1	9206-	●	●
218	FASTENER; RUBBER EXC. FRONT AXLE F063(FS7)	1-09470-001-0	08	1	9206-	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	02	1	9202-9304	●	●
225	NUT; MUD GUARD M8	9-09110-408-0	04	1	9305-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-733-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-768-1	01	1	9202-	●	●
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	02	1	9202-	●	●
227	SEAL; MUD GUARD (A) L=285	1-79938-739-0	01	1	9202-	●	●
227	SEAL; MUD GUARD (A)	1-79938-675-1	01	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	14	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9202-	●	●

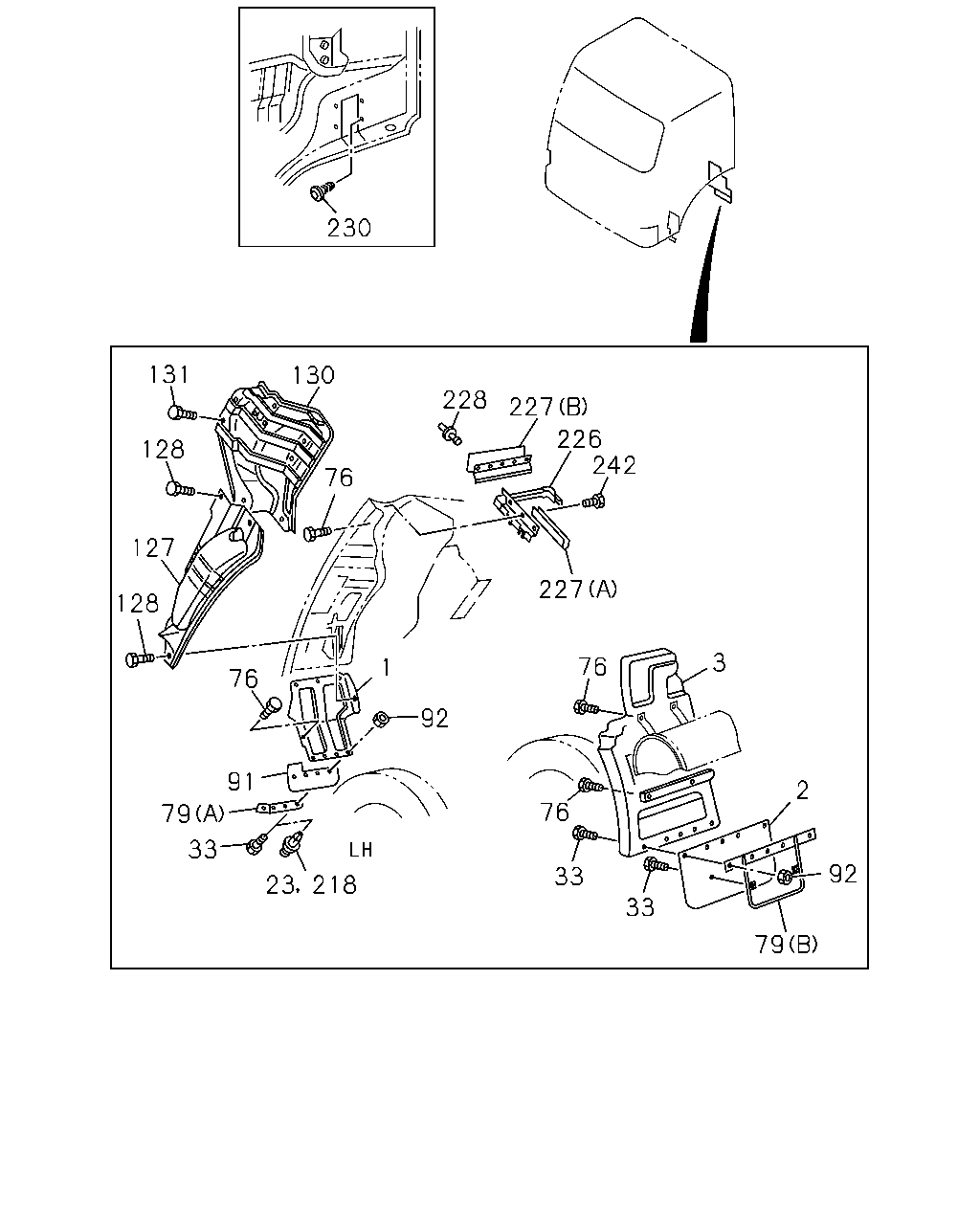

230 131 130 228 227 76 226 242 128 127 227 128 3 76 1 76 92 91 2 76 79 33 92 33 23 218 33 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GUARD; MUD,FRT	1-79938-629-3	01	1	9202-	●	●
1	GUARD; MUD,FRT FRONT AXLE F063(FS7)	1-79938-687-1	01	1	9202-	●	●
1	GUARD; MUD,FRT EXC. FRONT AXLE F063(FS7)	1-79938-630-3	01	1	9202-	●	●
2	COVER; MUD,TIRE RR	1-79930-825-0	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-1	01	1	9202-9307	●	●
2	COVER; MUD,TIRE RR	1-79930-530-2	02	1	9308-	●	●
3	GUARD; MUD,RR	1-79938-775-0	01	1	9202-	●	●
3	GUARD; MUD,RR	1-79938-711-1	01	1	9202-	●	●
23	FASTENER; MUD COVER	1-09470-001-0	02	1	9308-9401	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	05	1	9308-9401	●	●
33	BOLT; MUD COVER M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9402-	●	●
33	BOLT; MUD COVER FRONT AXLE F063(FS7) M6X16 W/LK&PL WASHER	1-09980-492-0	07	1	9202-9205	●	●
33	BOLT; MUD COVER EXC. FRONT AXLE F063(FS7) M6X16 W/LK&PL WASHER	1-09980-492-0	08	1	9202-9205	●	●
76	BOLT; MUD GUARD M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9202-	●	●
76	BOLT; MUD GUARD M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-	●	●
79	RETAINER; MUD COVER (B)	1-79930-824-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-521-0	01	1	9202-9307	●	●
79	RETAINER; MUD COVER (B)	1-79930-986-0	01	1	9308-9401	●	●
79	RETAINER; MUD COVER (B)	1-79931-131-0	01	1	9402-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) (A) 260+125	1-79930-501-1	01	1	9202-	●	●
79	RETAINER; MUD COVER FRONT AXLE F063(FS7) (A) 225X30	1-79930-619-0	01	1	9202-	●	●
79	RETAINER; MUD COVER EXC. FRONT AXLE F063(FS7) (A) 260+125	1-79930-501-1	02	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) 160X350	1-79930-503-1	01	1	9202-	●	●
91	COVER; MUD,FRT FRONT AXLE F063(FS7) 160X280	1-79930-618-0	01	1	9202-	●	●
91	COVER; MUD,FRT EXC. FRONT AXLE F063(FS7) 160X350	1-79930-503-1	02	1	9202-	●	●
92	NUT; MUD COVER M6	9-09110-406-0	10	1	9202-	●	●
92	NUT; MUD COVER FRONT AXLE F063(FS7) M6	9-09110-406-0	07	1	9202-9205	●	●
92	NUT; MUD COVER EXC. FRONT AXLE F063(FS7) M6	9-09110-406-0	08	1	9202-9205	●	●
127	APRON; FRT ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-032-1	01	1	9202-	●	●
127	APRON; FRT ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-416-1	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-623-3	01	1	9202-	●	●
127	APRON; FRT EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-621-3	01	1	9202-	●	●
128	BOLT; APRON,FRT ANTI NOISE EOUIPMENT VAR E<SLK> M8X18 W/LK&PL WASHER	1-09030-003-1	10	1	9202-9202	●	●
128	BOLT; APRON,FRT EXC. ANTI NOISE EOUIPMENT VAR E<SLK> M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9202-9202	●	●
128	BOLT; APRON,FRT M8X24 W/LK&PL WASHER	1-09030-083-0	10	1	9203-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-036-2	01	1	9202-	●	●
130	PANEL; SHUTTER NOISE ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-53192-387-1	01	1	9202-	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-734-1	01	1	9202-	●	●
130	PANEL; SHUTTER NOISE EXC. ANTI NOISE EOUIPMENT VAR E<SLK>,ANTI NOISE EQUIPMENT VAR2<TAK>	1-79938-740-1	01	1	9202-	●	●
131	BOLT; PANEL M6X20 W/LK&PL WASHER	1-09980-495-0	08	1	9202-	●	●
218	FASTENER; RUBBER FRONT AXLE F063(FS7)	1-09470-001-0	07	1	9206-	●	●
218	FASTENER; RUBBER EXC. FRONT AXLE F063(FS7)	1-09470-001-0	08	1	9206-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-733-1	01	1	9202-	●	●
226	SUPPORT; SEAL,MUD GUARD	1-79938-768-1	01	1	9202-	●	●
227	SEAL; MUD GUARD (B) L=342	1-79938-765-0	02	1	9202-	●	●
227	SEAL; MUD GUARD (A) L=285	1-79938-739-0	01	1	9202-	●	●
227	SEAL; MUD GUARD (A)	1-79938-675-1	01	1	9202-	●	●
228	FASTENER; MUD GUARD SEAL	5-09989-002-0	14	1	9202-	●	●
230	PLUG; MUD GUARD D4.7X11	1-76378-154-0	08	1	9202-	●	●
242	BOLT; SUPPORT MUD GUARD M6X20 W/LK&PL WASHER	1-09980-495-0	04	1	9202-	●	●
