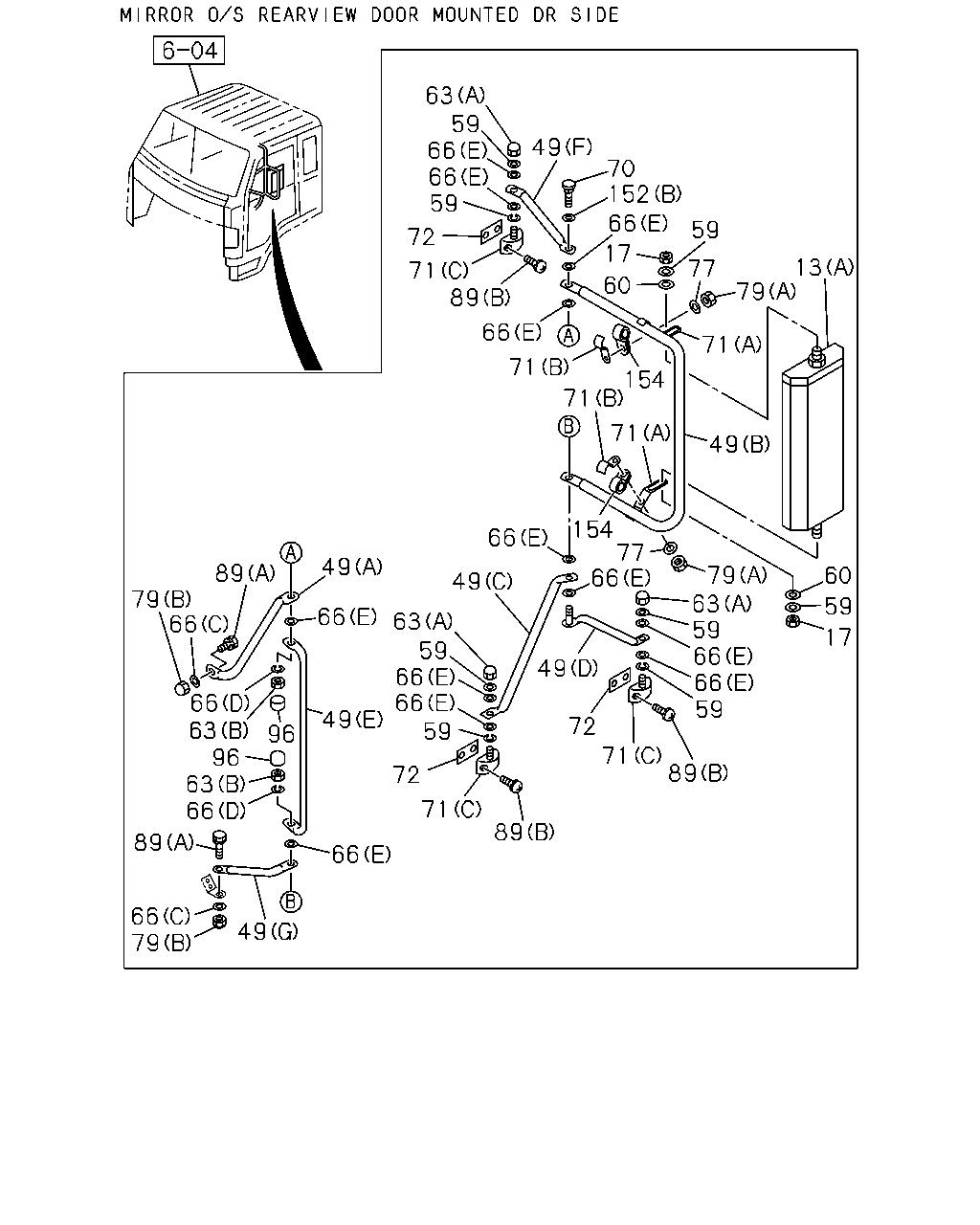

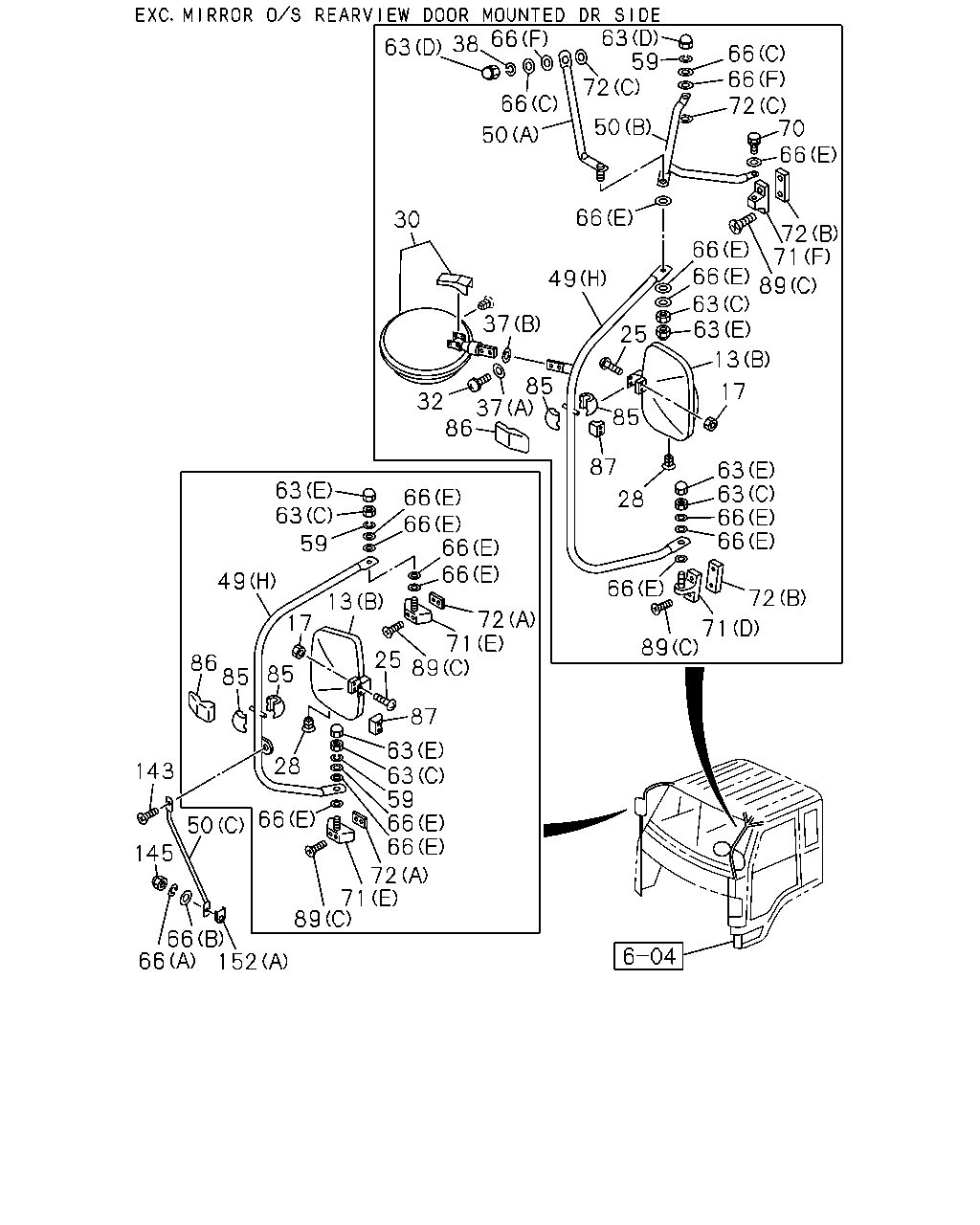

7-20 — MIRROR AND MIRROR STAY (#97) — 155 parça

66 63 59 72 38 63 66 66 72 70 66 66 50 50 66 30 66 66 89 63 63 72 71 49 37 25 13 85 17 32 37 86 85 87 63 63 66 66 63 63 59 66 66 66 66 28 49 66 72 13 72 71 89 17 71 89 85 25 86 85 87 63 63 59 66 66 28 143 66 50 145 72 71 89 66 66 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71737-918-0	02	1	9202-	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M5	1-09984-124-0	04	1	9202-	●	●
25	SCREW; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M5X50	1-09981-444-0	04	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	01	1	9202-	●	●
28	GROMMET; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> BLACK	1-71737-678-0	02	1	9202-	●	●
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9> BLACK	1-71736-662-4	01	1	9202-	●	●
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M6X16 W/LK&PL WASHER	1-09981-431-0	02	1	9202-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	1-71736-661-0	01	1	9202-	●	●
37	GASKET; SIDE UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> (A)	1-71737-748-0	02	1	9202-	●	●
38	WASHER; LK,UNDER MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=8.2	1-09985-177-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE THAILAND KD SPECIAL<PT6> (H)	1-71736-753-0	01	1	9202-9309	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (F)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (G)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, THAILAND KD SPECIAL<PT6> (H) BLACK	1-71798-001-0	01	1	9202-9309	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (H) BLACK	1-71798-001-0	01	1	9310-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, MIRROR O/S UNDER VIEW<RR9>,FRONT FENDER WIDE<SA4> (H)	1-71736-512-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE FRONT FENDER WIDE<SA4> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, FRONT FENDER WIDE<SA4> (H) BLACK	1-71798-003-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> FRONT FENDER WIDE<SA4> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (H)	1-71736-846-0	01	1	9202-	●	●
50	STAY; CAB SIDE THAILAND KD SPECIAL<PT6> (C)	1-71736-751-0	01	1	9202-9309	●
50	STAY; CAB SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-410-3	01	1	9202-	●	●
50	STAY; CAB SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B) BLACK	1-71736-414-0	01	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=10	1-09985-180-0	03	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=10	1-09985-180-0	01	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) M10	1-09984-120-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) M10	1-09984-145-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) M10	1-09984-120-0	01	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) M10	1-09984-145-0	01	1	9202-	●	●
66	WASHER; PL THAILAND KD SPECIAL<PT6> (A) D=6	1-09985-179-0	01	1	9202-9309	●
66	WASHER; PL THAILAND KD SPECIAL<PT6> (B) ID=6.4 OD=14 T=1	1-09985-187-0	01	1	9202-9309	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D) OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (F) ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (F)	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D) WHITE	1-71736-415-3	01	1	9202-	●	●
72	SHEET MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71736-247-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71737-428-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71737-444-0	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=22.2	1-71736-489-2	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR FRONT FENDER WIDE<SA4> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=22.2	1-71736-489-2	02	1	9202-	●	●
85	PIVOT; MAIN MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, FRONT FENDER WIDE<SA4> ID=19.1	1-71737-633-2	02	1	9202-	●	●
86	COVER; STAY,OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> BLACK	1-71737-760-0	02	1	9202-	●	●
87	SPACER EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71737-704-0	02	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-09981-494-0	08	1	9202-	●	●
143	SCREW; SUB STAY,MIRROR THAILAND KD SPECIAL<PT6> M6X20	1-09981-446-0	01	1	9202-9309	●
145	NUT; CAP,SUB STAY THAILAND KD SPECIAL<PT6> M6 FLANGE	1-09984-127-0	01	1	9202-9309	●
152	SHEET; MIRROR STAY THAILAND KD SPECIAL<PT6> (A)	1-71737-714-0	01	1	9202-9309	●
152	SHEET; MIRROR STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-357-0	02	1	9202-	●	●

63 59 66 66 59 49 70 152 66 59 72 17 13 77 71 89 60 79 66 71 154 71 71 71 49 154 77 66 66 49 89 79 63 59 66 66 59 60 49 79 66 59 66 63 59 66 66 59 17 49 66 63 96 63 66 49 72 96 71 89 72 71 89 89 66 66 79 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71737-918-0	02	1	9202-	●	●
17	NUT; CAP,MIRROR STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M8 FLANGE	1-09984-122-0	04	1	9202-	●	●
17	NUT; CAP,MIRROR STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M5	1-09984-124-0	04	1	9202-	●	●
49	STAY; MIRROR SIDE THAILAND KD SPECIAL<PT6> (H)	1-71736-753-0	01	1	9202-9309	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (F)	1-71736-562-1	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (G)	1-71736-564-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E)	1-71736-624-0	02	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-561-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71736-566-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D)	1-71736-568-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-658-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-560-2	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-563-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71736-565-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D)	1-71736-567-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, THAILAND KD SPECIAL<PT6> (H) BLACK	1-71798-001-0	01	1	9202-9309	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (H) BLACK	1-71798-001-0	01	1	9310-	●	●
49	STAY; MIRROR SIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, MIRROR O/S UNDER VIEW<RR9>,FRONT FENDER WIDE<SA4> (H)	1-71736-512-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE FRONT FENDER WIDE<SA4> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, MIRROR O/S UNDER VIEW<RR9> (H)	1-71736-719-0	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>, FRONT FENDER WIDE<SA4> (H) BLACK	1-71798-003-1	01	1	9202-	●	●
49	STAY; MIRROR SIDE MIRROR O/S UNDER VIEW<RR9> FRONT FENDER WIDE<SA4> EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (H)	1-71736-846-0	01	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=8.2	1-09985-177-0	04	1	9202-	●	●
59	WASHER; LK MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=10	1-09985-180-0	06	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=10	1-09985-180-0	03	1	9202-	●	●
59	WASHER; LK EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=10	1-09985-180-0	01	1	9202-	●	●
60	WASHER; PL,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	08	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A) M10	1-09984-134-0	06	1	9202-	●	●
63	NUT; STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B) M10 H=8.3	1-09984-146-0	04	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) M10	1-09984-120-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D) M8 FLANGE	1-09984-126-0	02	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) M10	1-09984-145-0	03	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) M10	1-09984-120-0	01	1	9202-	●	●
63	NUT; STAY EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) M10	1-09984-145-0	01	1	9202-	●	●
66	WASHER; PL THAILAND KD SPECIAL<PT6> (A) D=6	1-09985-179-0	01	1	9202-9309	●
66	WASHER; PL THAILAND KD SPECIAL<PT6> (B) ID=6.4 OD=14 T=1	1-09985-187-0	01	1	9202-9309	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) ID=8.4 OD=16	1-09985-174-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D) OD=18 T=2.0	1-09985-182-0	04	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	12	1	9202-	●	●
66	WASHER; PL MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	14	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C) ID=8.4 OD=16	1-09985-174-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (F) ID=8.5 T=1.0	1-09985-181-0	02	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	10	1	9202-	●	●
66	WASHER; PL EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E) ID=10.5 OD=26 T=2.6	1-09985-204-0	03	1	9202-	●	●
70	BOLT; STAY TO BRKT MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M10X52	1-71736-634-0	02	1	9202-	●	●
70	BOLT; STAY TO BRKT EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> M10X30	1-09980-517-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-224-3	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71736-404-1	04	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71737-441-4	06	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (E)	1-71736-419-2	02	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (F)	1-71736-578-0	01	1	9202-	●	●
71	BRACKET; OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (D) WHITE	1-71736-415-3	01	1	9202-	●	●
72	SHEET MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71737-428-0	06	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-71736-247-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71737-428-0	02	1	9202-	●	●
72	SHEET EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71737-444-0	02	1	9202-	●	●
77	WASHER; PL,BRKT,STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> ID=8.4 OD=16.0 T=1.6	1-09985-191-0	04	1	9202-	●	●
79	NUT; BRKT,STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-09984-122-0	04	1	9202-	●	●
79	NUT; BRKT,STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-09984-126-0	04	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-09980-512-0	04	1	9202-9207	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-09980-534-0	04	1	9208-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-09981-494-0	12	1	9202-	●	●
89	SCREW; BRKT,OUTSIDE MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (C)	1-09981-494-0	08	1	9202-	●	●
96	CAP; MIRROR STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71736-199-0	04	1	9202-	●	●
152	SHEET; MIRROR STAY THAILAND KD SPECIAL<PT6> (A)	1-71737-714-0	01	1	9202-9309	●
152	SHEET; MIRROR STAY MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71736-357-0	02	1	9202-	●	●
154	SEAT; BRKT MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71736-479-0	04	1	9202-	●	●

13 132 133 134 6 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MIRROR; ROOM	1-73117-026-1	01	1	9202-	●	●
2	SCREW; MIRROR TO BODY M6X25	1-09981-441-0	02	1	9202-	●	●
6	BUSHING; RR VIEW MIRROR DELUXE CAB(W14)	1-73318-342-0	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (A)	1-71737-487-3	02	1	9202-	●	●
13	MIRROR ASM; OUTSIDE RR VIEW EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32> (B)	1-71737-918-0	02	1	9202-	●	●
132	RING; MIRROR EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71737-934-0	02	1	9202-	●	●
133	LENS; MIRROR,OUTSIDE EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71737-927-0	02	1	9202-	●	●
134	CLIP; MIRROR LENS EXC. MIRROR O/S REARVIEW DOOR MOUTED DR SIDE<D32>	1-71737-936-0	02	1	9202-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
