8-15 — FIXING PARTS; WIRING HARNESS (#9698) — 118 parça
çizim 82549
38 38 38 133 133 133 516 239 520 209 524 173 239 139 313 184 210 219 294
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28680-820-0 03 1 0109-0512
38 BOLT; CLIP,HARNESS
(C) M8X20 FLANGE 		0-28650-820-0 03 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28680-825-0 01 1 0109-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0109-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 04 1 0109-0512
38 BOLT; CLIP,HARNESS
(C) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 W/LK&PL WASHER 		8-97086-825-0 01 1 0109-1201
38 BOLT; CLIP,HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0109-0512
38 BOLT; CLIP,HARNESS
(A) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
133 SCREW; HARNESS CLIP,STRG COLUMN
(B) M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 0109-
133 SCREW; HARNESS CLIP,STRG COLUMN
(A) M6X16 W/LK&PL WASHER 		8-94279-402-0 01 1 0109-0110
133 SCREW; HARNESS CLIP,STRG COLUMN
(C) M6X12 W/PL WASHER 		8-97806-950-0 01 1 0111-
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0109-0512
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 01 1 0601-
139 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 02 1 0109-0512
139 BOLT; BRKT
M8X35 FLANGE 		0-28650-835-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0109-1201
173 BOLT; STARTER EARTH
M10X20 W/PL WASHER 		8-98164-838-0 01 1 1202-
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0109-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0109-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0109-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 08 1 0109-0602
219 NUT
M8 FLANGE 		0-91180-108-0 08 1 0603-
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 0109-
239 BOLT; GRAND
(A) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0109-1007
239 BOLT; GRAND
(A) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0109-1201
239 BOLT; GRAND
(A) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0109-0602
294 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 06 1 0109-0602
294 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
294 NUT
M10 FLANGE 		0-91150-210-0 01 1 0109-0602
294 NUT
M10 FLANGE 		0-91180-210-0 01 1 0603-
313 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 04 1 0109-0512
313 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 04 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0109-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0109-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0109-0602
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 01 1 0603-
çizim 82614
217 53 59 178 334 335 235 421 335 513
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
L=95 		1-82699-085-0 04 1 0109-
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0109-
178 GROMMET; HARNESS
ID=19 OD=23 T=24 		1-09332-103-0 01 1 0109-
178 GROMMET; HARNESS
ID=19 OD=23 T=24 		1-09332-103-0 02 1 0109-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0109-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0109-
235 CLIP; HARNESS,SPD SENSOR,SSPS
ID=12 L=35 		5-09700-206-0 01 1 0109-
334 BRACKET 1-82699-425-0 01 1 0109-
335 BRACKET; CONNECTOR
(A) 		1-82698-167-0 01 1 0109-
335 BRACKET; CONNECTOR
(B) L=60 		1-82699-875-0 01 1 0109-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 0109-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 01 1 0109-
513 TAPE; SOFT,HARNESS
100X40 		1-72498-022-1 02 1 0109-

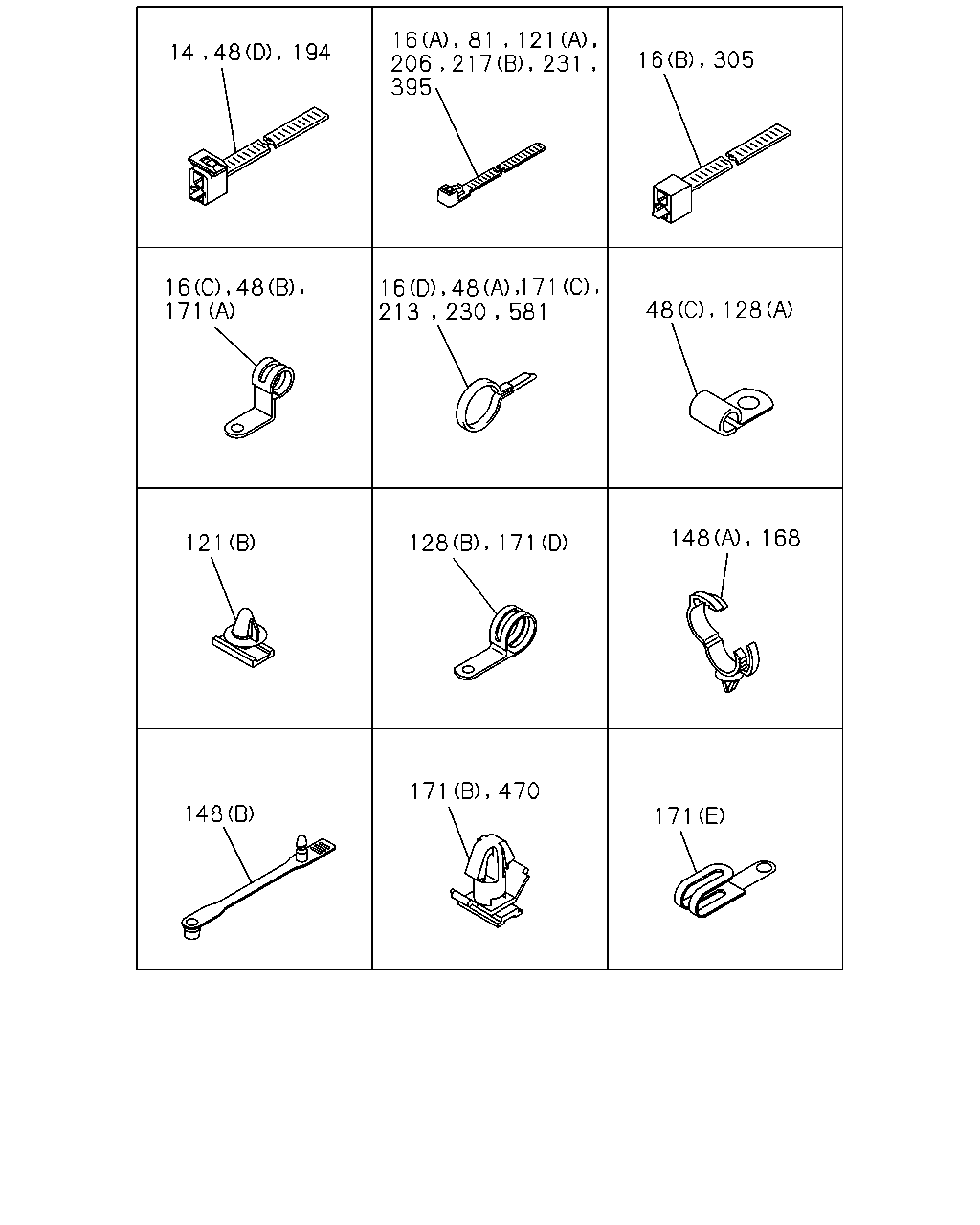

çizim 83933
121 395 194 581 171 48 128 148 168 121 128 171 148 171 14 48 16 81 206 217 231 16 305 171 48 16 213 230 16 48 470 171
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=180 		1-09707-162-1 01 1 0109-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 01 1 0109-
16 CLIP; HARNESS
(D) ID=11 L=41 		1-09700-403-0 03 1 0109-
16 CLIP; HARNESS
(D) ID=28 L=78 		1-09700-858-0 01 1 0109-
16 CLIP; HARNESS
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0109-
16 CLIP; HARNESS
(B) L=300 		1-09707-001-1 01 1 0109-
16 CLIP; HARNESS
(A) L=250 		5-09707-030-1 01 1 0109-
16 CLIP; HARNESS
(A) L=140 		5-09707-031-1 01 1 0109-
16 CLIP; HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0109-
48 CLIP; FRAME HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0109-
48 CLIP; FRAME HARNESS
(A) ID=11 L=61 		1-09700-484-0 03 1 0109-
48 CLIP; FRAME HARNESS
(A) ID=20 L=70 		1-09700-485-0 10 1 0109-
48 CLIP; FRAME HARNESS
(C) ID=35 L=75 		1-09700-608-2 01 1 0109-
48 CLIP; FRAME HARNESS
(C) ID=32 L=75 		1-09700-704-1 02 1 0109-
48 CLIP; FRAME HARNESS
(A) ID=28 L=78 		1-09700-858-0 03 1 0109-
48 CLIP; FRAME HARNESS
(D) L=180 		1-09707-162-1 01 1 0109-
48 CLIP; FRAME HARNESS
(C) ID=19 L=28 		9-09525-856-0 01 1 0109-0606
48 CLIP; FRAME HARNESS
(C) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(C) ID=19 L=60 		9-09525-896-0 01 1 0109-0606
48 CLIP; FRAME HARNESS
(C) ID=19 L=60 		0-95235-896-0 01 1 0607-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0109-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 02 1 0109-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 25 1 0109-
48 CLIP; FRAME HARNESS
(B) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0109-
81 CLIP; HARNESS
L=140 		5-09707-031-1 02 1 0109-
121 CLIP; FACIA HARNESS
(A) L=140 		5-09707-031-1 01 1 0109-
121 CLIP; FACIA HARNESS
(B) OD=7 H=1.2 		8-94364-750-0 02 1 0109-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0109-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0109-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0109-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0109-
148 CLIP; BAND,HEADLAMP HARNESS
(B) L=85 		8-94232-611-0 01 1 0109-
148 CLIP; BAND,HEADLAMP HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 01 1 0109-
168 CLIP; DASH HARNESS
ID=6 & 10-13 		8-97069-515-0 05 1 0109-
171 CLIP; STARTER HARNESS
(C) ID=11 L=41 		1-09700-403-0 01 1 0109-
171 CLIP; STARTER HARNESS
(A) ID=21 L=30 H=40 		1-09700-991-1 02 1 0109-
171 CLIP; STARTER HARNESS
(B) OD=9 H=6 		1-09709-178-0 02 1 0109-
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-94225-185-0 01 1 0109-0801
171 CLIP; STARTER HARNESS
(E) ID=18 L=44 		8-97367-985-1 01 1 0802-
171 CLIP; STARTER HARNESS
(D) ID=19 L=40 		9-09525-876-0 01 1 0109-0606
171 CLIP; STARTER HARNESS
(D) ID=19 L=40 		9-09525-876-0 01 1 0109-0606
171 CLIP; STARTER HARNESS
(D) ID=19 L=40 		0-95235-876-0 01 1 0607-
171 CLIP; STARTER HARNESS
(D) ID=19 L=40 		0-95235-876-0 01 1 0607-
194 CLIP; BAND
L=180 		1-09707-162-1 03 1 0109-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0109-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0109-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0109-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0109-
230 CLIP; C/MBR HARNESS
ID=11 L=41 		1-09700-403-0 02 1 0109-
231 CLIP; BAND,OIL PRESS
L=250 		5-09707-030-1 01 1 0109-
305 CLIP; ENG HARNESS
L=300 		1-09707-001-1 01 1 0109-
395 CLIP; WIPER HARNESS
L=140 		5-09707-031-1 01 1 0109-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0109-
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 01 1 0109-0109
581 CLIP; HARNESS,REAR SUSP
ID=11 L=41 		1-09700-403-0 03 1 0110-
