8-10 — WIRING HARNESS AND FUSE
(#9697) — 31 parça
◀

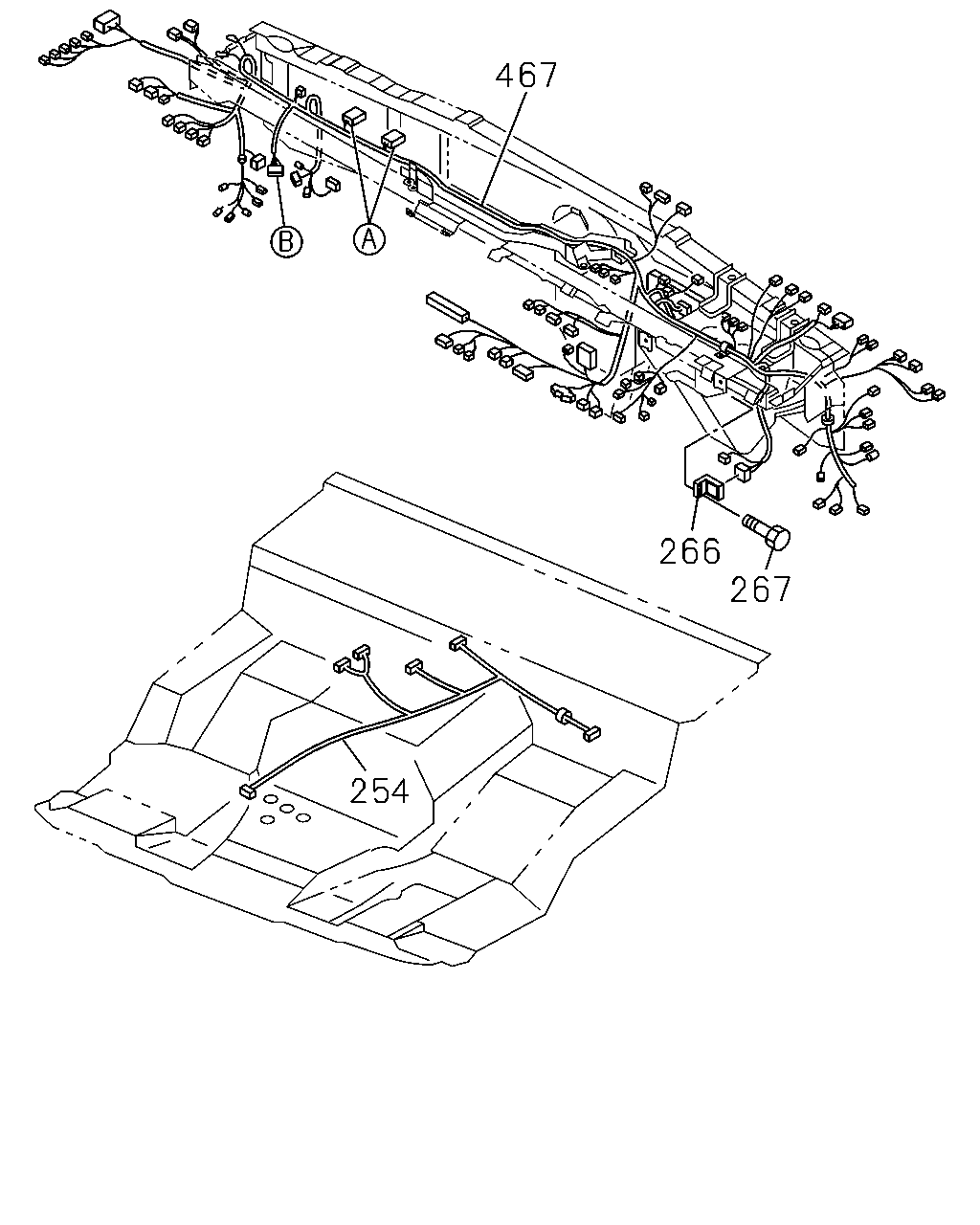

[810A] FACIA AND FLOOR HARNESS (4 parça)

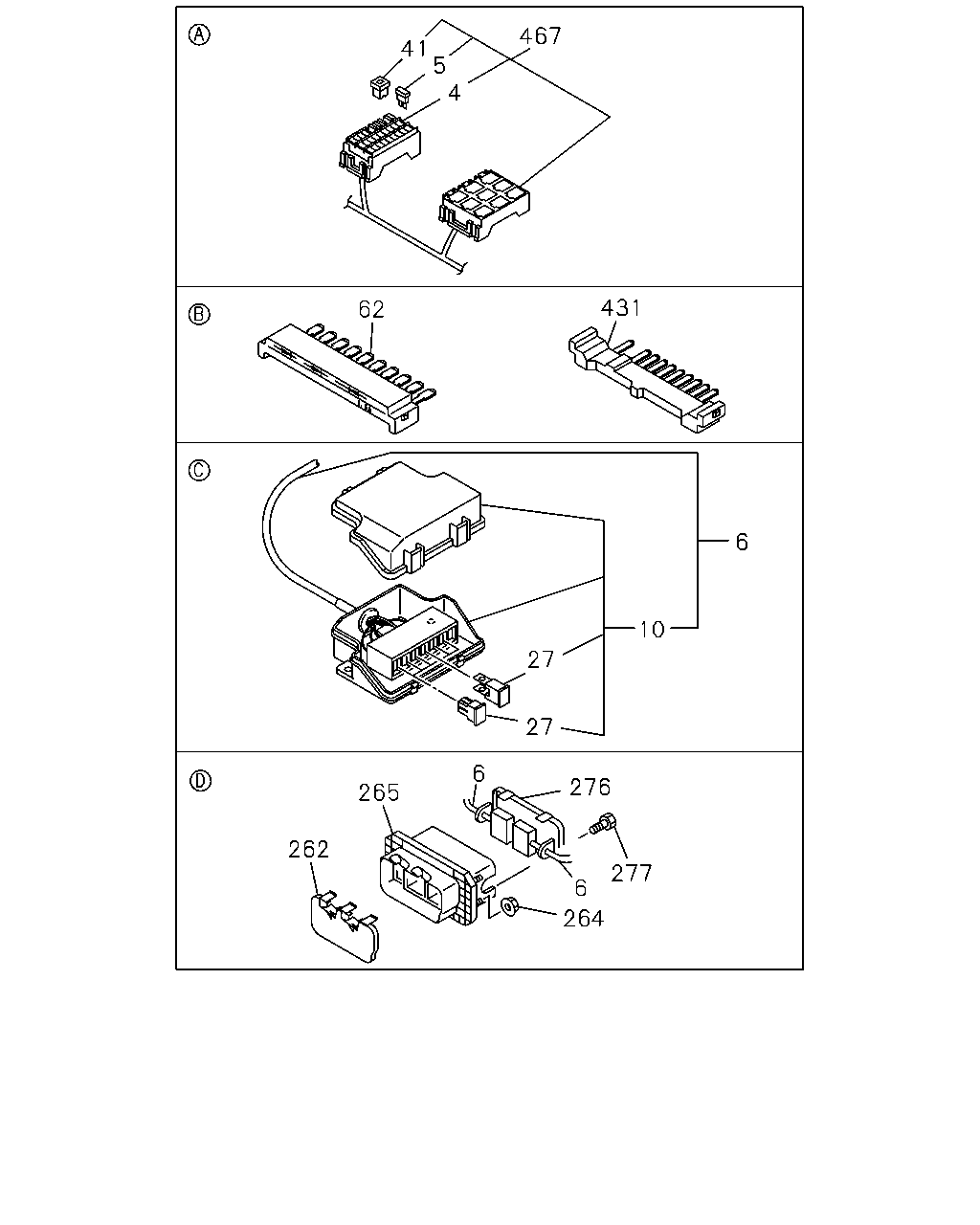

[810A] FUSE,DIODE AND CONNECTOR (18 parça)

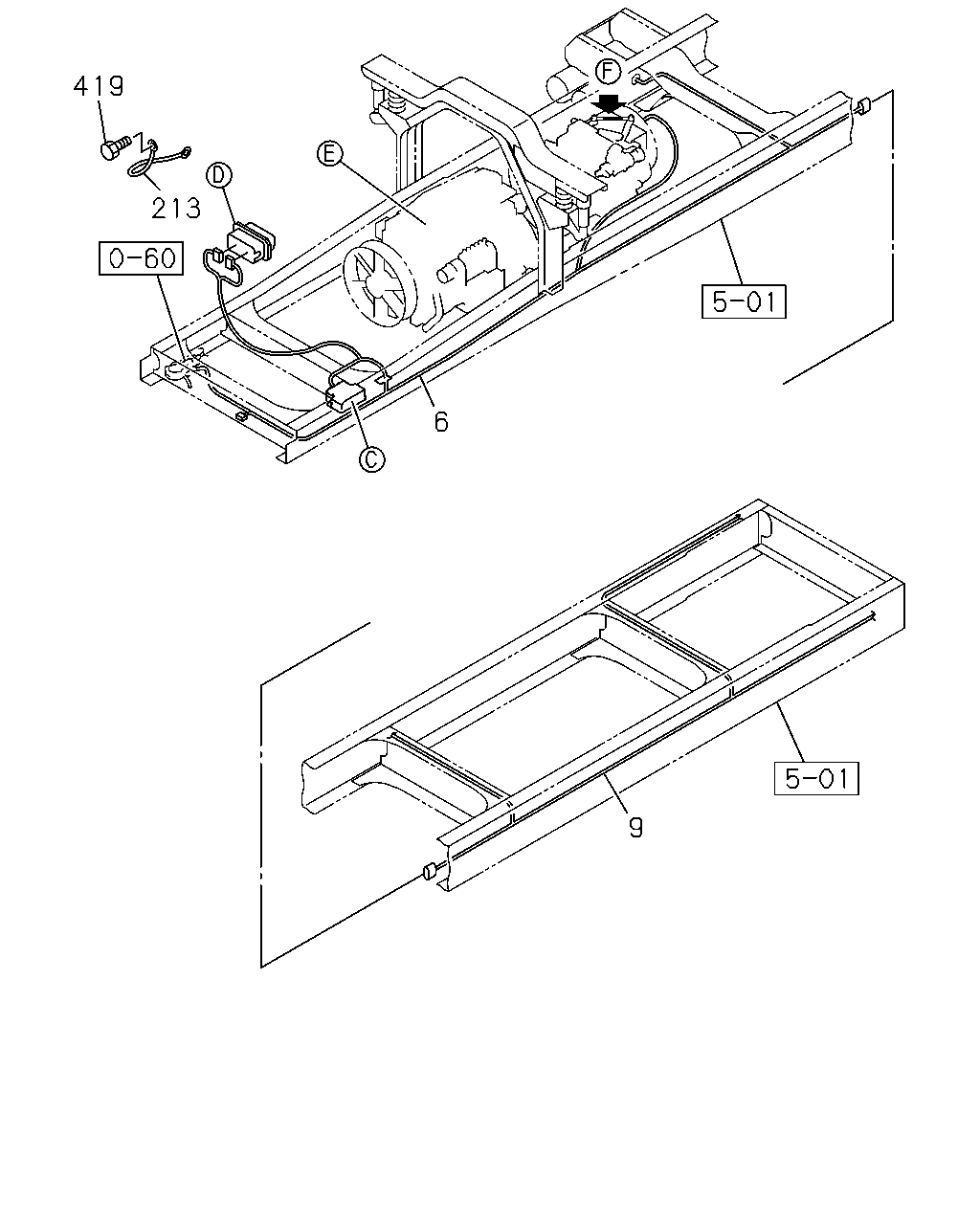

[810A] FRAME HARNESS (5 parça)

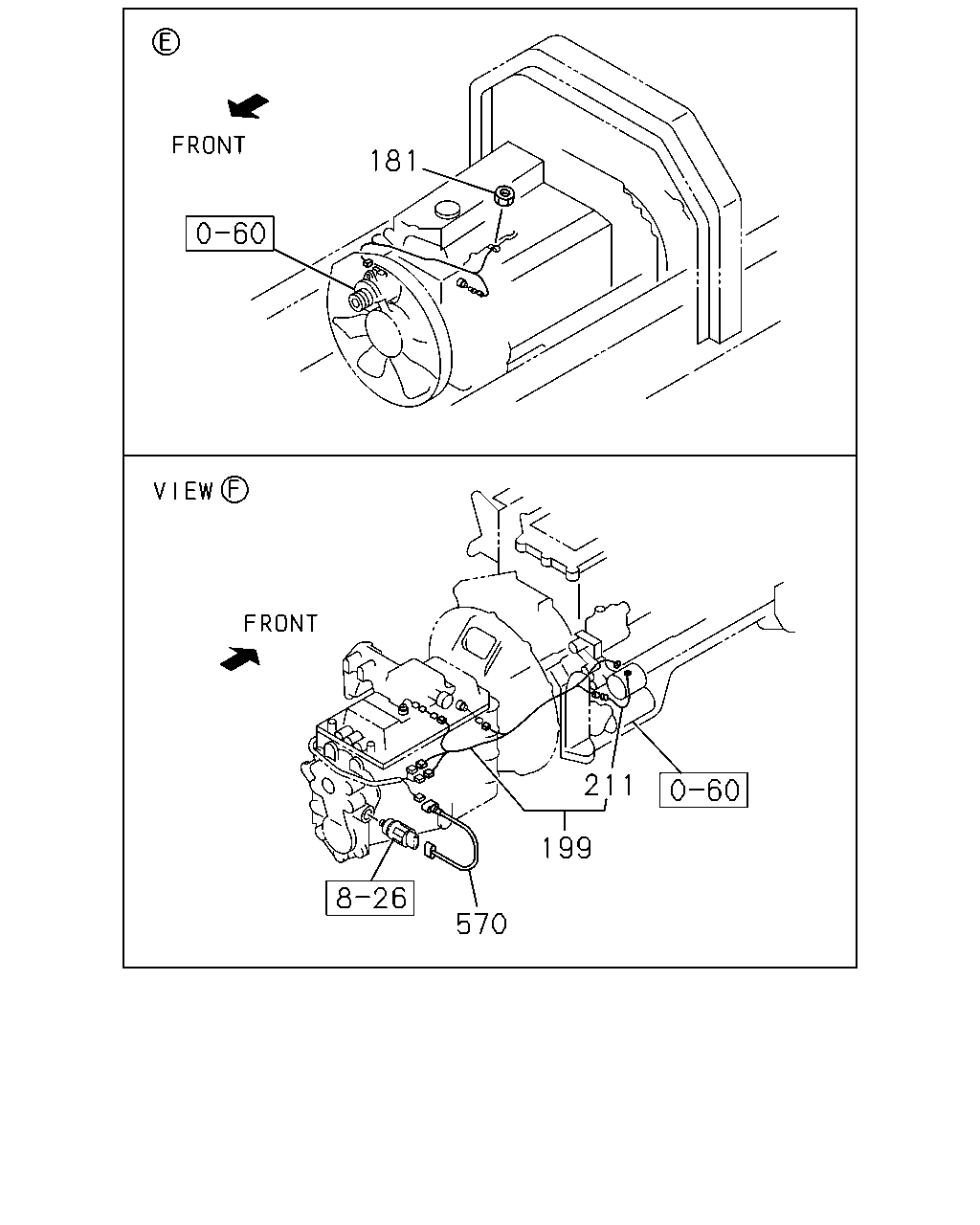

[810A] ENG AND T/M SIDE (4 parça)
▶
467
266
267
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
254
HARNESS; CAB FLOOR
1-82627-084-2
01
1
0109-
266
BRACKET; CONN BOX
1-82699-580-0
01
1
0109-
267
BOLT; BRKT
M6X16 W/PL WASHER
1-09981-438-0
02
1
0109-
467
HARNESS; FACIA
1-82660-401-1
01
1
0109-
467
41
5
4
431
62
6
10
27
27
6
276
265
262
277
6
264
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
7.5AX10 15AX6 20AX2
1-82510-598-0
01
1
0109-
5
FUSE; FACIA HARNESS
15A BLUE
5-82516-003-0
06
1
0109-
5
FUSE; FACIA HARNESS
25A CLEAR
5-82516-005-0
02
1
0109-
5
FUSE; FACIA HARNESS
7.5A BROWN
8-94159-007-0
10
1
0109-
6
HARNESS; FRAME
1-82674-738-0
01
1
0109-
10
BOX; FUSE,HARNESS
1-82510-409-0
01
1
0109-
27
FUSE UNIT
40A GREEN
8-94468-662-0
03
1
0109-
27
FUSE UNIT
60A YELLOW
8-94468-669-0
01
1
0109-
41
PULLER; FUSE
L=25.3 B=11.5
8-94121-482-0
01
1
0109-
62
DIODE; HARNESS
BLACK 10P
1-82699-703-0
01
1
0109-
262
COVER; CONNECTOR BOX,FRT PNL
1-82699-605-1
01
1
0109-
264
NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER
1-09984-180-0
04
1
0109-
265
BOX; CONN,FRT PNL
1-82699-538-3
01
1
0109-
276
COVER; BOX,FRAME HARNESS
1-82699-558-3
01
1
0109-
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50140-625-0
02
1
0109-0512
277
BOLT; BOX ASM FIX
M6X25 W/LK&PL WASHER
0-50640-625-0
02
1
0601-
431
CONNECTOR; JOINT
10P BROWN
1-82699-601-0
01
1
0109-
467
HARNESS; FACIA
1-82660-401-1
01
1
0109-
419
213
6
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
1-82674-738-0
01
1
0109-
9
HARNESS; FRAME,RR
1-82674-739-0
01
1
0109-
213
CABLE; EARTH,CAB TO FRAME
1-82657-055-1
01
1
0109-
419
BOLT; CAB EARTH
M8X25 W/LK&PL WASHER
8-97087-203-0
01
1
0109-1201
419
BOLT; CAB EARTH
M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1202-
181
211
199
570
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
NUT; GLOW PLUG HARNESS
M4 FLANGE
5-09440-007-0
01
1
0109-
199
HARNESS; STARTER
1-82640-723-6
01
1
0109-
211
WIRE; FUSIBLE LINK,STARTER
WHITE
1-82659-124-1
01
1
0109-
570
HARNESS; SPEED SENSOR
1-82670-566-0
01
1
0109-
