7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#9693) — 61 parça
◀
[750A] SEAT BACK AND CUSHION;DRIVER (20 parça)
[750A] SEAT DAMPER (28 parça)
[750A] SEAT ADJUSTER (13 parça)
▶
1
2
228
24
18
19
17
99
13
12
542
73
55
46
62
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
AIR SUSP DRIVER SEAT<A56>
1-75208-051-3
01
1
0109-
2
COVER; TRIM,FRT SEAT,BACK
AIR SUSP DRIVER SEAT<A56>
1-75116-587-1
01
1
0109-
12
CUSHION; SEAT,FRT
AIR SUSP DRIVER SEAT<A56>
1-75026-682-1
01
1
0109-
13
COVER; TRIM,FRT SEAT,CUSHION
AIR SUSP DRIVER SEAT<A56>
1-75116-550-1
01
1
0109-
17
BOLT; RECLINING
AIR SUSP DRIVER SEAT<A56> M8X20
8-97255-906-0
02
1
0109-
18
COVER; RECLINING
AIR SUSP DRIVER SEAT<A56>
1-75418-050-0
01
1
0109-
19
SCREW; COVER
AIR SUSP DRIVER SEAT<A56> M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0109-
24
KNOB; RECLINING,FRT,SEAT
AIR SUSP DRIVER SEAT<A56>
1-75418-059-0
01
1
0109-
46
BOLT; STAND TO FLOOR
AIR SUSP DRIVER SEAT<A56> M10X20 W/LK&PL WASHER
8-94279-211-0
02
1
0109-0703
46
BOLT; STAND TO FLOOR
AIR SUSP DRIVER SEAT<A56> M10X20 FLANGE
0-28451-020-0
02
1
0704-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
AIR SUSP DRIVER SEAT<A56> M10 FLANGE
1-09984-153-0
02
1
0109-0703
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
AIR SUSP DRIVER SEAT<A56> M10 FLANGE
0-91180-110-0
02
1
0704-
62
DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56>
1-75538-183-6
01
1
0109-1403
62
DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56>
8-98261-448-0
01
1
1404-
73
NUT; ADJ,HEIGHT CONT
AIR SUSP DRIVER SEAT<A56> M8 FLANGE
1-75538-207-0
08
1
0109-0501
99
BUSHING; SEAT BACK
AIR SUSP DRIVER SEAT<A56>
8-97854-087-0
01
1
0109-
228
SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> M4X6
8-97042-273-0
01
1
0109-1403
228
SCREW; KNOB
AIR SUSP DRIVER SEAT<A56> M4
8-98062-662-0
01
1
1404-
542
ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>
1-75518-282-3
01
1
0109-1502
542
ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>
8-98291-655-0
01
1
1503-

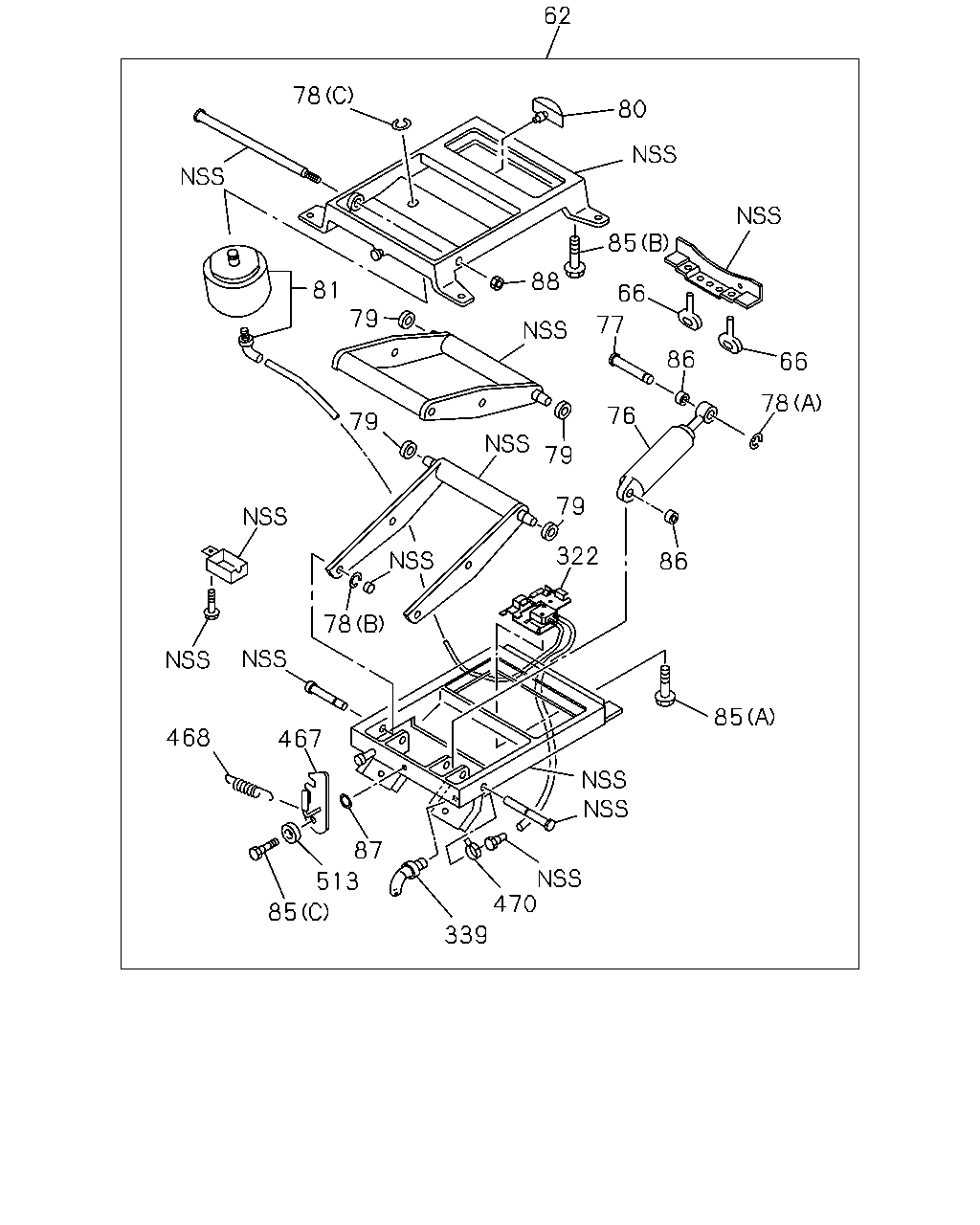

62
78
80
85
88
79
81
66
77
66
78
86
76
79
79
79
322
86
85
470
339
87
513
85
467
468
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
62
DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56>
1-75538-183-6
01
1
0109-1403
62
DAMPER ASM; SEAT SUSP
AIR SUSP DRIVER SEAT<A56>
8-98261-448-0
01
1
1404-
66
RUBBER; LWR STOPPER
AIR SUSP DRIVER SEAT<A56>
1-75538-145-0
02
1
0109-
76
DAMPER; AIR SUSP
AIR SUSP DRIVER SEAT<A56>
1-75538-139-0
01
1
0109-
77
PIN; DAMPER
AIR SUSP DRIVER SEAT<A56>
1-75538-138-2
01
1
0109-
78
RING; SNAP
AIR SUSP DRIVER SEAT<A56> (A) ID=8
9-09185-408-0
01
1
0109-
78
RING; SNAP
AIR SUSP DRIVER SEAT<A56> (B) ID=10
9-09185-410-0
02
1
0109-0406
78
RING; SNAP
AIR SUSP DRIVER SEAT<A56> (C) ID=15
9-09185-415-0
01
1
0109-
79
ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56>
1-75538-159-0
04
1
0109-1403
79
ROLLER ASM; AIR SUSP
AIR SUSP DRIVER SEAT<A56>
8-98261-489-0
04
1
1404-
80
RUBBER; STOPPER
AIR SUSP DRIVER SEAT<A56>
1-09987-123-0
01
1
0109-
81
SPRING; AIR
AIR SUSP DRIVER SEAT<A56>
1-75538-151-2
01
1
0109-1403
81
SPRING; AIR
AIR SUSP DRIVER SEAT<A56>
8-98242-816-0
01
1
1404-
85
BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X25 W/LK&PL WASHER
8-98243-394-0
01
1
1404-
85
BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (C)
1-09980-577-1
01
1
0109-
85
BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (A) M6X12
1-75538-208-1
02
1
0109-
85
BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER
1-75538-209-0
03
1
0109-1403
85
BOLT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER
1-75538-209-0
02
1
1404-
86
BUSHING; GUIDE
AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY
1-09983-173-1
02
1
0109-
87
WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2
9-09150-508-0
01
1
0109-1403
87
WASHER; AIR SUSP
AIR SUSP DRIVER SEAT<A56> ID=8.2
0-91510-508-0
01
1
1404-
88
NUT; AIR SUSP
AIR SUSP DRIVER SEAT<A56> M10
1-75537-273-1
01
1
0109-
322
VALVE; AIR SPRING
AIR SUSP DRIVER SEAT<A56>
1-75538-186-3
01
1
0109-
339
UNION; DRIVER SEAT
AIR SUSP DRIVER SEAT<A56>
1-75538-131-3
01
1
0109-
467
LEVER; LOCK
AIR SUSP DRIVER SEAT<A56>
1-75538-134-0
01
1
0109-
468
SPRING; RETURN
AIR SUSP DRIVER SEAT<A56>
1-75538-132-0
01
1
0109-
470
CLIP; HOSE
AIR SUSP DRIVER SEAT<A56>
1-75538-137-0
01
1
0109-
513
SPACER; LEVER
AIR SUSP DRIVER SEAT<A56>
1-75538-133-0
01
1
0109-

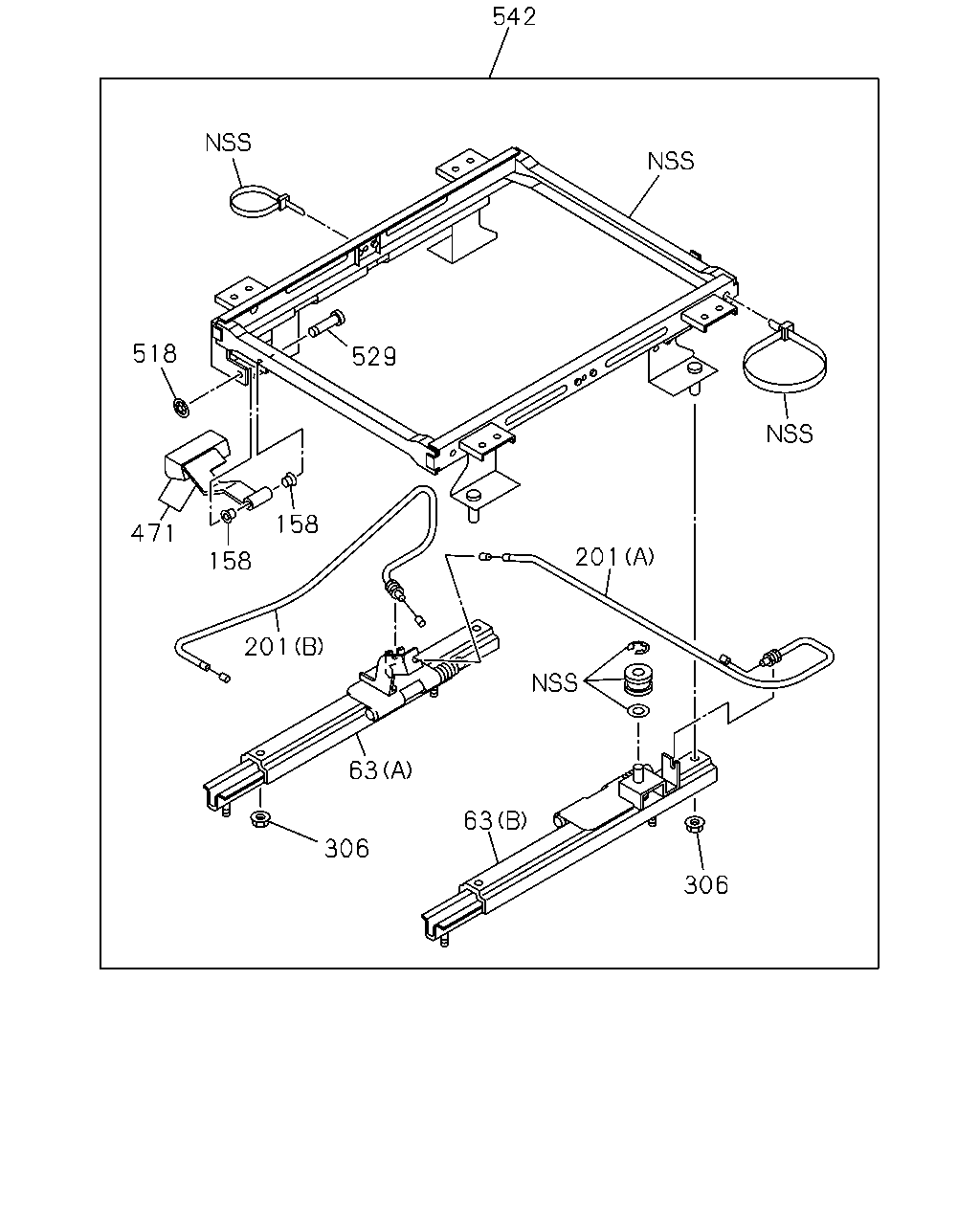

542
529
518
471
158
201
158
201
306
63
63
306
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
63
ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (B)
1-75518-199-1
01
1
0109-
63
ADJUSTER; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56> (A)
1-75518-294-1
01
1
0109-
158
BUSHING; LINK ARM
AIR SUSP DRIVER SEAT<A56>
1-75518-209-0
02
1
0109-
201
CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (B) L=667
1-75518-288-0
01
1
0109-
201
CABLE; ADJ
AIR SUSP DRIVER SEAT<A56> (A) L=605
1-75518-289-1
01
1
0109-
306
NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> M8 FLANGE
1-75538-207-0
04
1
0109-0501
306
NUT; SEAT ADJ
AIR SUSP DRIVER SEAT<A56> M8 FLANGE
1-75538-207-0
12
1
0502-
471
LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>
1-75518-291-0
01
1
0109-1403
471
LEVER; SEAT ADJ
AIR SUSP DRIVER SEAT<A56>
8-98107-869-0
01
1
1404-
518
NUT; TILT ADJ
AIR SUSP DRIVER SEAT<A56>
1-75518-263-0
01
1
0109-
529
PIN; LINK
AIR SUSP DRIVER SEAT<A56>
1-75518-262-0
01
1
0109-
542
ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>
1-75518-282-3
01
1
0109-1502
542
ADJUSTER ASM; SEAT SLIDE
AIR SUSP DRIVER SEAT<A56>
8-98291-655-0
01
1
1503-
