10853 - MV123(RHD)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

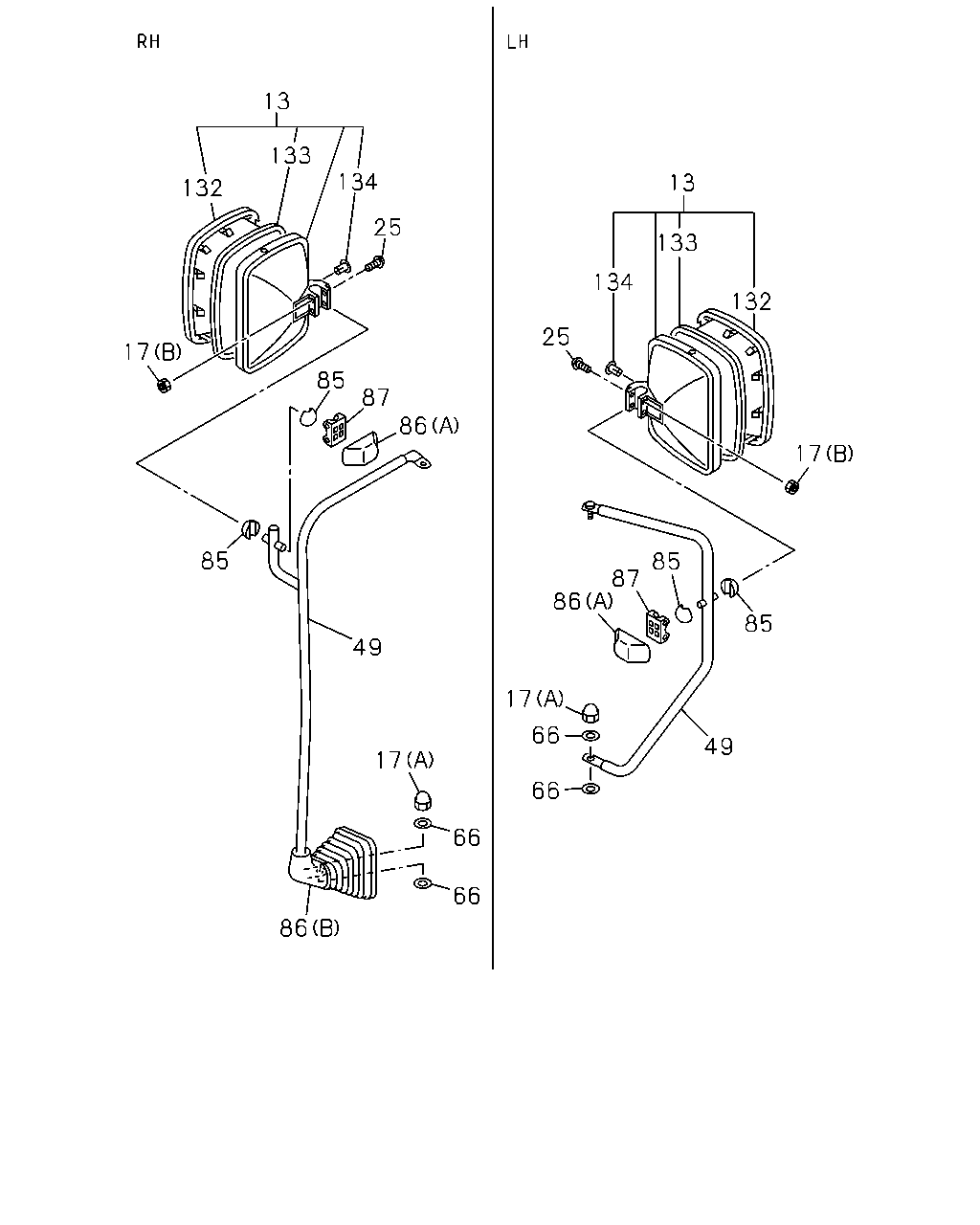

7-20 — MIRROR AND MIRROR STAY
(#9689) — 15 parça
13
133
134
13
132
25
133
134
132
25
17
85
87
86
17
85
85
87
86
85
49
17
66
49
17
66
66
66
86
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
1-71737-918-3
02
1
0109-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
04
1
0109-
17
NUT; CAP,MIRROR STAY
(A) M10
1-09984-183-0
02
1
0109-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
04
1
0109-0404
25
SCREW; OUTSIDE MIRROR
1-09981-541-0
04
1
0405-
49
STAY; MIRROR SIDE
1-71798-516-4
01
1
0109-1209
49
STAY; MIRROR SIDE
1-71798-599-1
01
1
0109-1209
66
WASHER; PL
ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
0109-
85
PIVOT; MAIN MIRROR
ID=22.2
1-71736-489-2
04
1
0109-
86
COVER; STAY,OUTSIDE MIRROR
(A) BLACK
1-71737-760-1
02
1
0109-
86
COVER; STAY,OUTSIDE MIRROR
(B)
1-71798-695-0
01
1
0109-1209
87
SPACER
1-71737-704-0
02
1
0109-
132
RING; MIRROR
1-71737-934-0
02
1
0109-
133
LENS; MIRROR,OUTSIDE
1-71737-927-0
02
1
0109-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
0109-
