Isuzu WW
▶
BUSES
▶
MV
▶
10853 - MV123(RHD)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

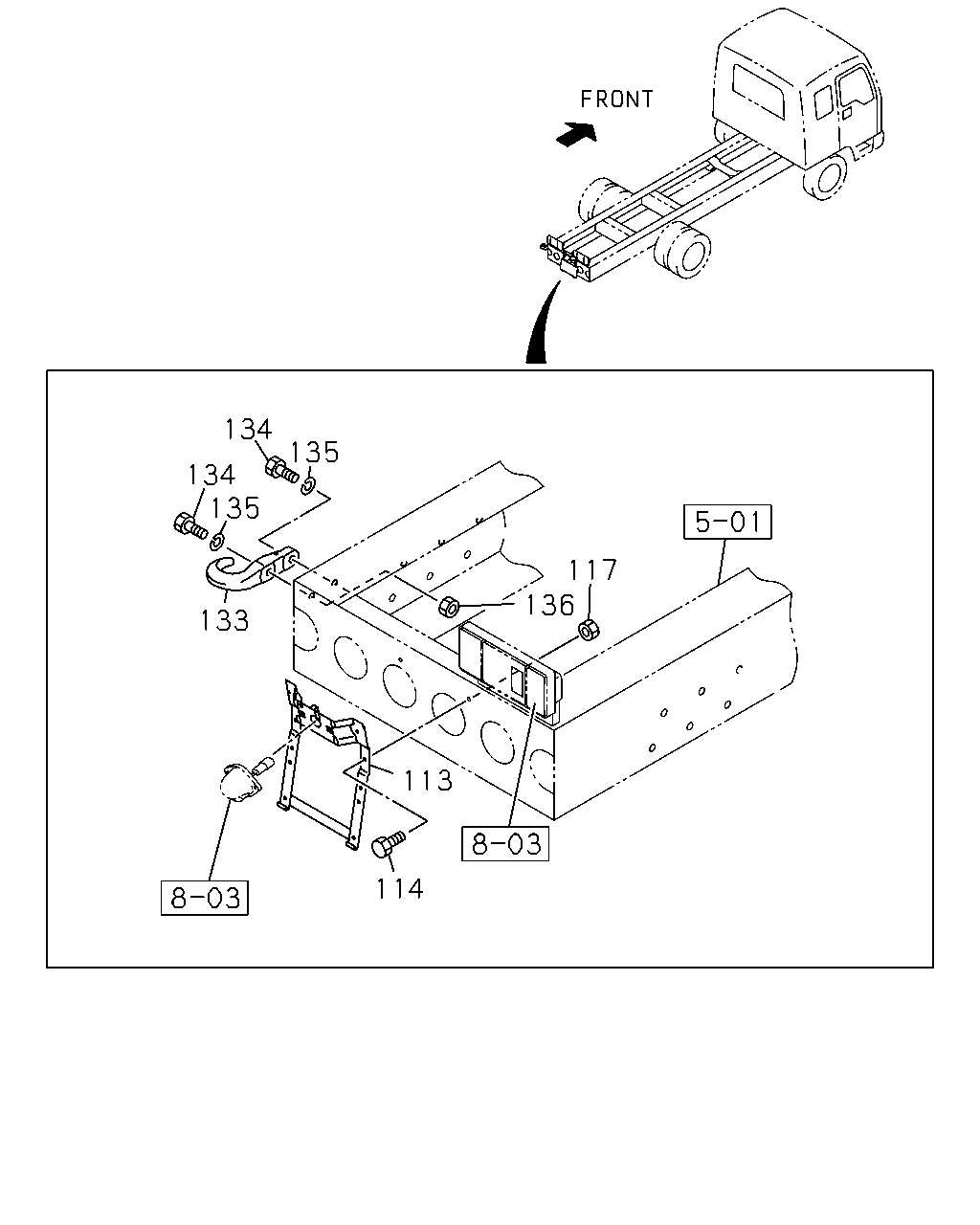

6-90 - REAR BUMPER
▶
6-90 — REAR BUMPER
(#9686) — 20 parça
134
135
134
135
117
136
133
113
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
113
BRACKET; LICENSE PLATE
1-53485-065-0
01
1
0109-0302
113
BRACKET; LICENSE PLATE
1-53485-074-0
01
1
0303-
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28680-825-0
02
1
0109-0512
114
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
0-28650-825-0
02
1
0601-
117
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0109-0602
117
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
133
HOOK
1-57181-027-1
01
1
0109-0301
133
HOOK
TOW HOOK<V76>
1-57181-027-1
01
1
0302-
134
BOLT; HOOK
M16X70
0-10811-670-0
01
1
0109-0301
134
BOLT; HOOK
TOW HOOK<V76> M16X70
0-10811-670-0
01
1
0302-0512
134
BOLT; HOOK
TOW HOOK<V76> M16X70
0-10861-670-0
01
1
0601-
134
BOLT; HOOK
M16X50
0-20801-650-0
01
1
0109-0301
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20801-650-0
01
1
0302-0512
134
BOLT; HOOK
TOW HOOK<V76> M16X50
0-20851-650-0
01
1
0601-
135
WASHER; LK,HOOK
ID=16.2
9-09150-516-0
02
1
0109-0301
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
9-09150-516-0
02
1
0302-0603
135
WASHER; LK,HOOK
TOW HOOK<V76> ID=16.2
0-91510-516-0
02
1
0604-
136
NUT; HOOK
M16
9-99110-416-0
02
1
0109-0301
136
NUT; HOOK
TOW HOOK<V76> M16
9-99110-416-0
02
1
0302-0512
136
NUT; HOOK
TOW HOOK<V76> M16
0-91110-516-0
02
1
0601-
