4-80 — ROAD WHEEL (#9680) — 114 parça

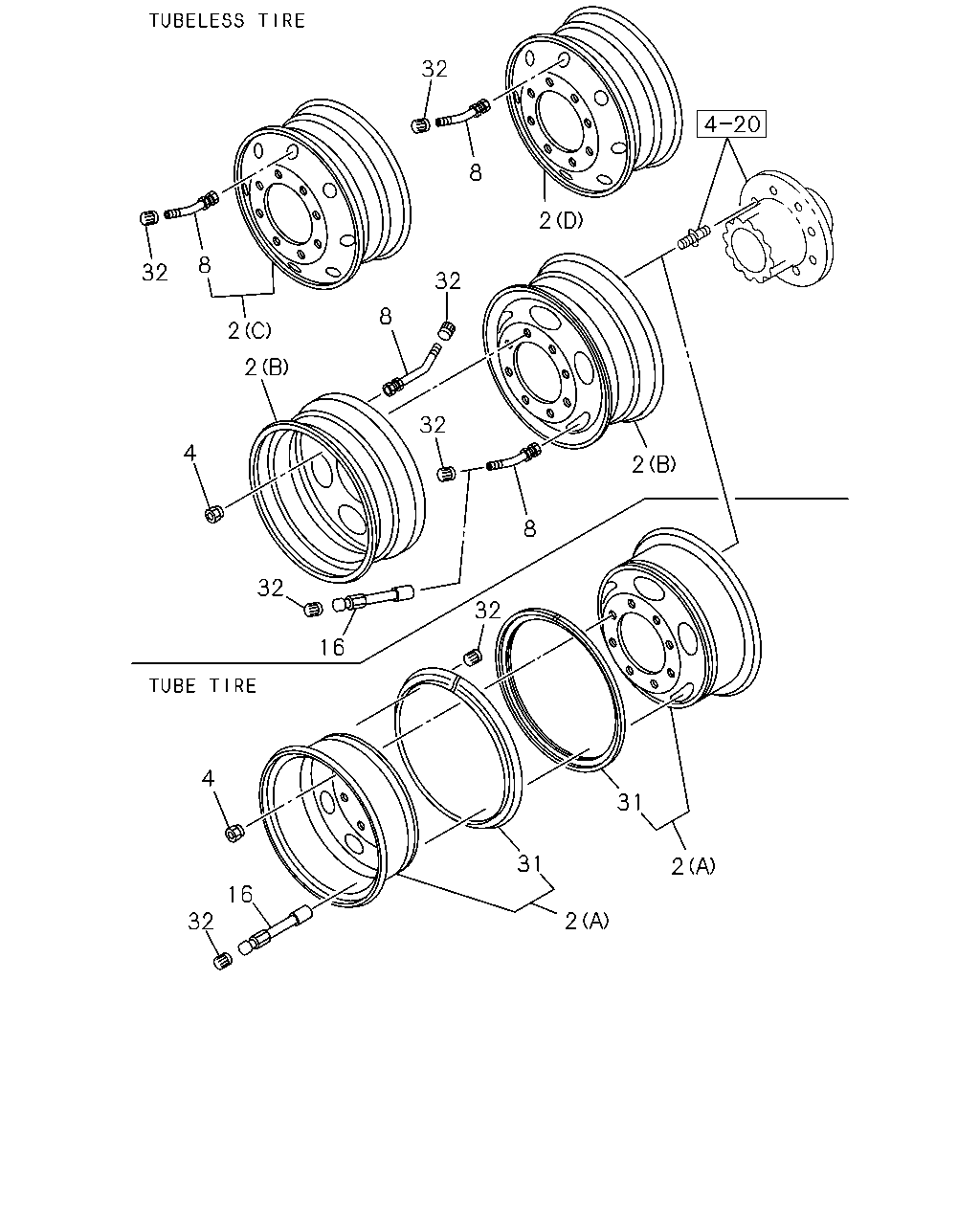

32 8 2 32 32 8 2 2 32 4 2 8 32 32 16 4 31 31 2 16 2 32 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-448-0	01	1	0109-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-448-0	01	1	0109-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-467-1	01	1	0109-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-467-1	01	1	0109-0207
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-646-0	01	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-646-0	01	1	0208-0408
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-638-1	01	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-638-1	01	1	0409-0602
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	1-42350-730-0	01	1	0603-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	1-42350-730-0	01	1	0603-1205
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) (A) SPARE	1-42350-447-0	01	1	0109-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-447-0	01	1	0109-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	06	1	0109-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-467-1	06	1	0109-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-646-0	06	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-638-1	06	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-730-0	06	1	0603-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98281-497-0	06	1	1408-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-447-0	06	1	0109-
4	NUT; WHEEL,RR AXLE M22	1-42333-043-0	20	1	0109-0606
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-050-1	20	1	0607-0907
4	NUT; WHEEL,RR AXLE M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	06	1	0109-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-041-1	06	1	0409-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	06	1	0603-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	06	1	1408-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0109-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0109-0408
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-041-1	01	1	0409-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-041-1	01	1	0409-0602
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0603-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0603-1205
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-019-3	01	1	1408-
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	1-42370-024-0	02	1	0109-1003
16	HOLDER; TIRE VALVE,DISC WHEEL L=170	8-98167-052-0	02	1	1004-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-014-0	01	1	0109-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-014-0	01	1	0109-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) SPARE	1-42355-012-1	01	1	0109-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	0109-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0109-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	06	1	0109-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0603-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0603-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0603-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	0504-
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0109-0503
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0109-0503
32	CAP; VALVE DISC WHEEL SPARE<N79> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	05	1	0504-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	05	1	0504-

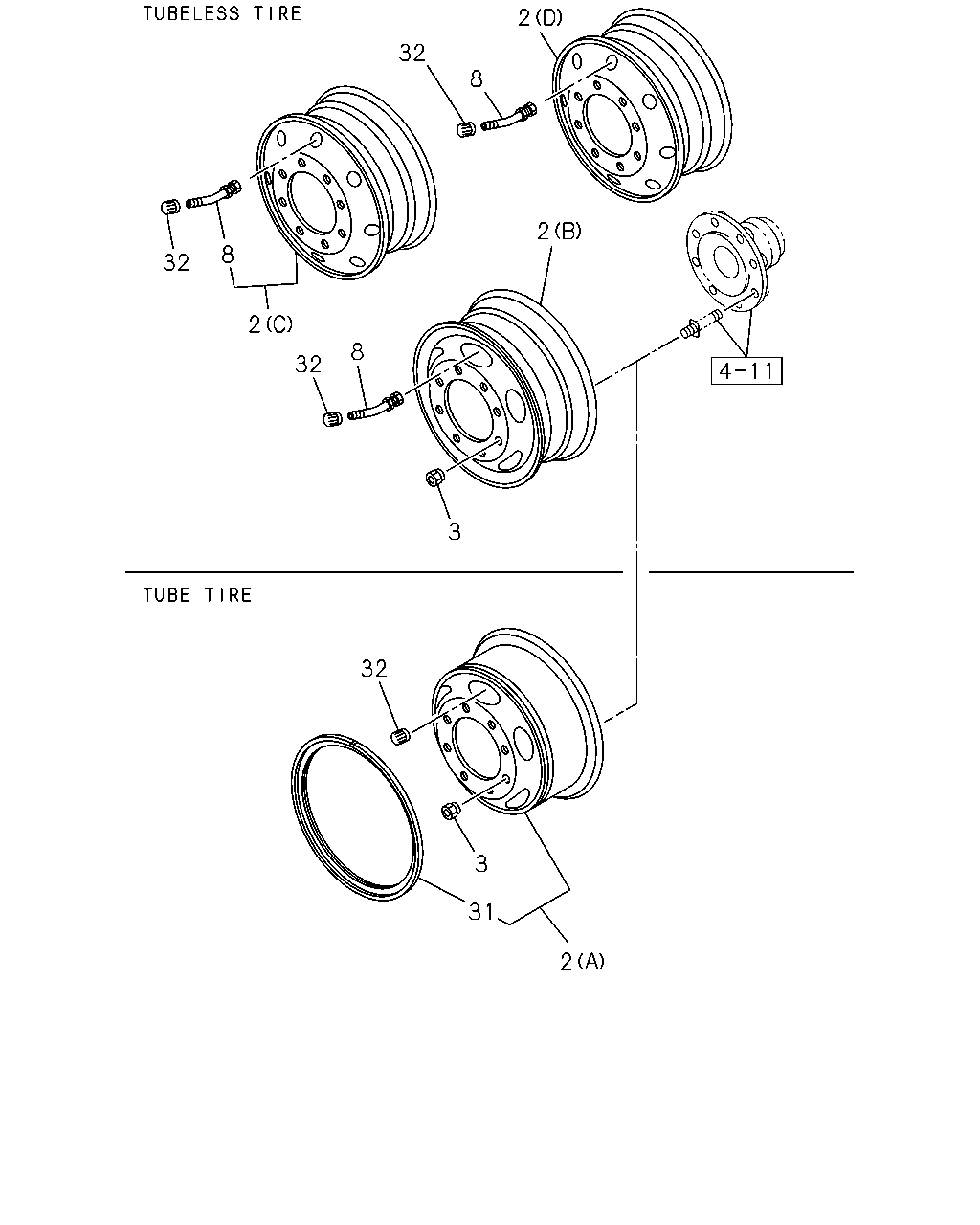

2 32 8 2 8 32 2 8 32 3 32 3 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-448-0	01	1	0109-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE	1-42350-448-0	01	1	0109-
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-467-1	01	1	0109-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE	1-42350-467-1	01	1	0109-0207
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-646-0	01	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-646-0	01	1	0208-0408
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-638-1	01	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (C) SPARE	1-42350-638-1	01	1	0409-0602
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	1-42350-730-0	01	1	0603-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	1-42350-730-0	01	1	0603-1205
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98217-247-0	01	1	1206-1407
2	WHEEL; DISC DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> (D) SPARE	8-98281-497-0	01	1	1408-
2	WHEEL; DISC DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) (A) SPARE	1-42350-447-0	01	1	0109-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE	1-42350-447-0	01	1	0109-
2	WHEEL; DISC DISC WHEEL 10STUD 7.50VX20 165-12(Q64) (A)	1-42350-448-0	06	1	0109-
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (B)	1-42350-467-1	06	1	0109-0207
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-646-0	06	1	0208-0408
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (C)	1-42350-638-1	06	1	0409-0602
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	1-42350-730-0	06	1	0603-1205
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98217-247-0	06	1	1206-1407
2	WHEEL; DISC DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) (D)	8-98281-497-0	06	1	1408-
2	WHEEL; DISC WHEEL 10STUD 7.00TX20(Q58) (A)	1-42350-447-0	06	1	0109-
3	NUT; WHEEL,FRT AXLE M22	1-42333-043-0	20	1	0109-0606
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-050-1	20	1	0607-0907
3	NUT; WHEEL,FRT AXLE M22X1.5	1-42333-055-0	20	1	0908-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	06	1	0109-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-041-1	06	1	0409-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-020-3	06	1	0603-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-048-0	06	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42370-019-3	06	1	1408-
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0109-0408
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0109-0408
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-041-1	01	1	0409-0602
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-041-1	01	1	0409-0602
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0603-1205
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-020-3	01	1	0603-1205
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-048-0	01	1	1206-1407
8	VALVE; TIRE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-019-3	01	1	1408-
8	VALVE; TIRE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42370-019-3	01	1	1408-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 7.50VX20 165-12(Q64) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-014-0	01	1	0109-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64) SPARE TIRE & DISC WHEEL RR<R46> SPARE	1-42355-014-0	01	1	0109-
31	RING; SIDE,DISC WHEEL DISC WHEEL SPARE<N79> WHEEL 10STUD 7.00TX20(Q58) SPARE	1-42355-012-1	01	1	0109-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE	1-42355-012-1	01	1	0109-
31	RING; SIDE,DISC WHEEL DISC WHEEL 10STUD 7.50VX20 165-12(Q64)	1-42355-014-0	06	1	0109-
31	RING; SIDE,DISC WHEEL WHEEL 10STUD 7.00TX20(Q58)	1-42355-012-1	06	1	0109-
32	CAP; VALVE DISC WHEEL SPARE<N79> DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) EXC. SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0603-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8) SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	01	1	0603-
32	CAP; VALVE DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	06	1	0603-
32	CAP; VALVE EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	04	1	0504-
32	CAP; VALVE DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0109-0503
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>	1-42374-001-0	05	1	0109-0503
32	CAP; VALVE DISC WHEEL SPARE<N79> EXC. DISC WHEEL 10STUD 8.25X22.5 165-13(QM8),SPARE TIRE & DISC WHEEL RR<R46>	1-42374-001-0	05	1	0504-
32	CAP; VALVE SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79>,DISC WHEEL 10STUD 8.25X22.5 165-13(QM8)	1-42374-001-0	05	1	0504-
